BooBoo Details

Property	Value
Rupture Count	38,197
Ruptures Above Sect Min Mag	38,178
Ruptures w/ Nonzero Rates	92
Magnitude Range	[6.74, 8.58]
Length Range	[18, 1,082] km
Total Rate	0.0024961822 /yr
Multi-Fault Rate	0.0024961822 /yr (100.00%)
Directly-Connected Faults	13
All Co-Rupturing Faults	160

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

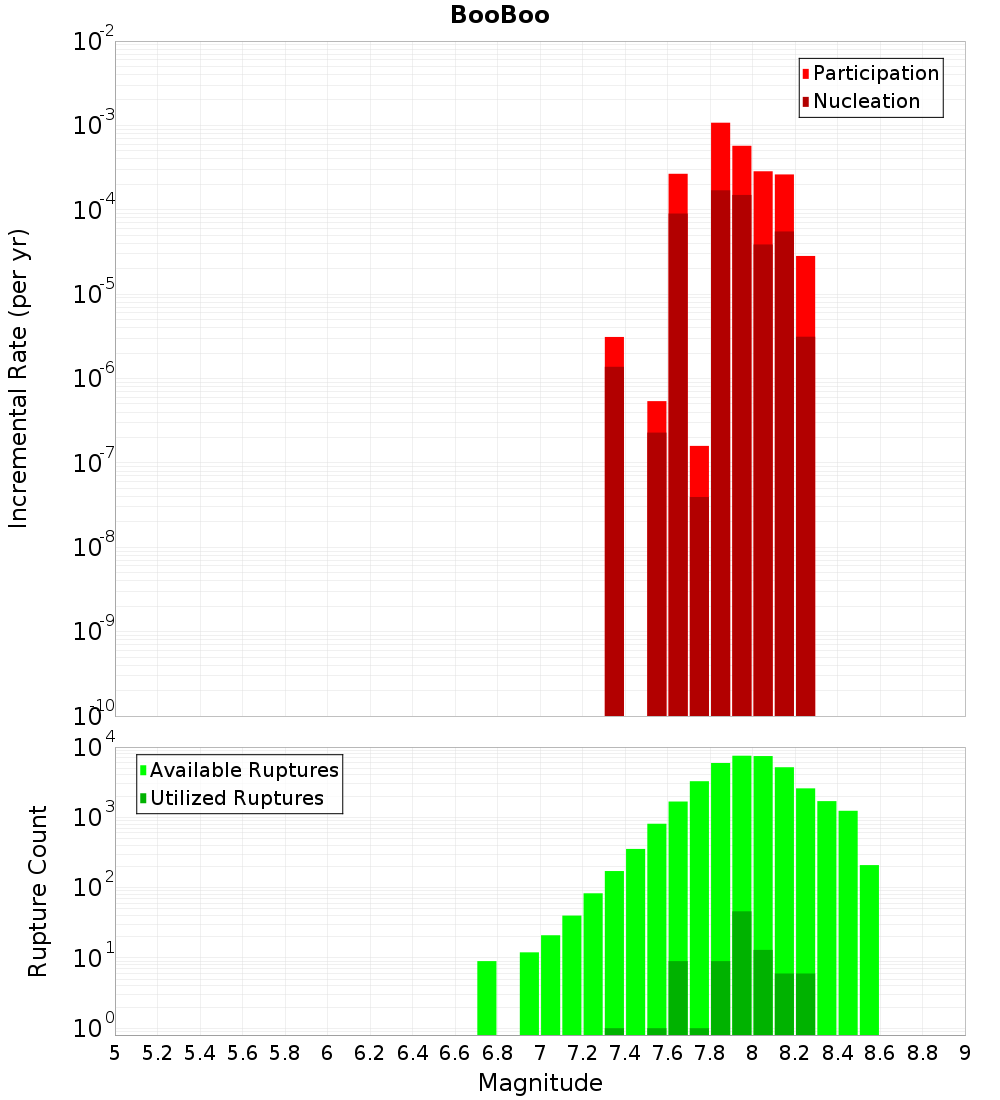

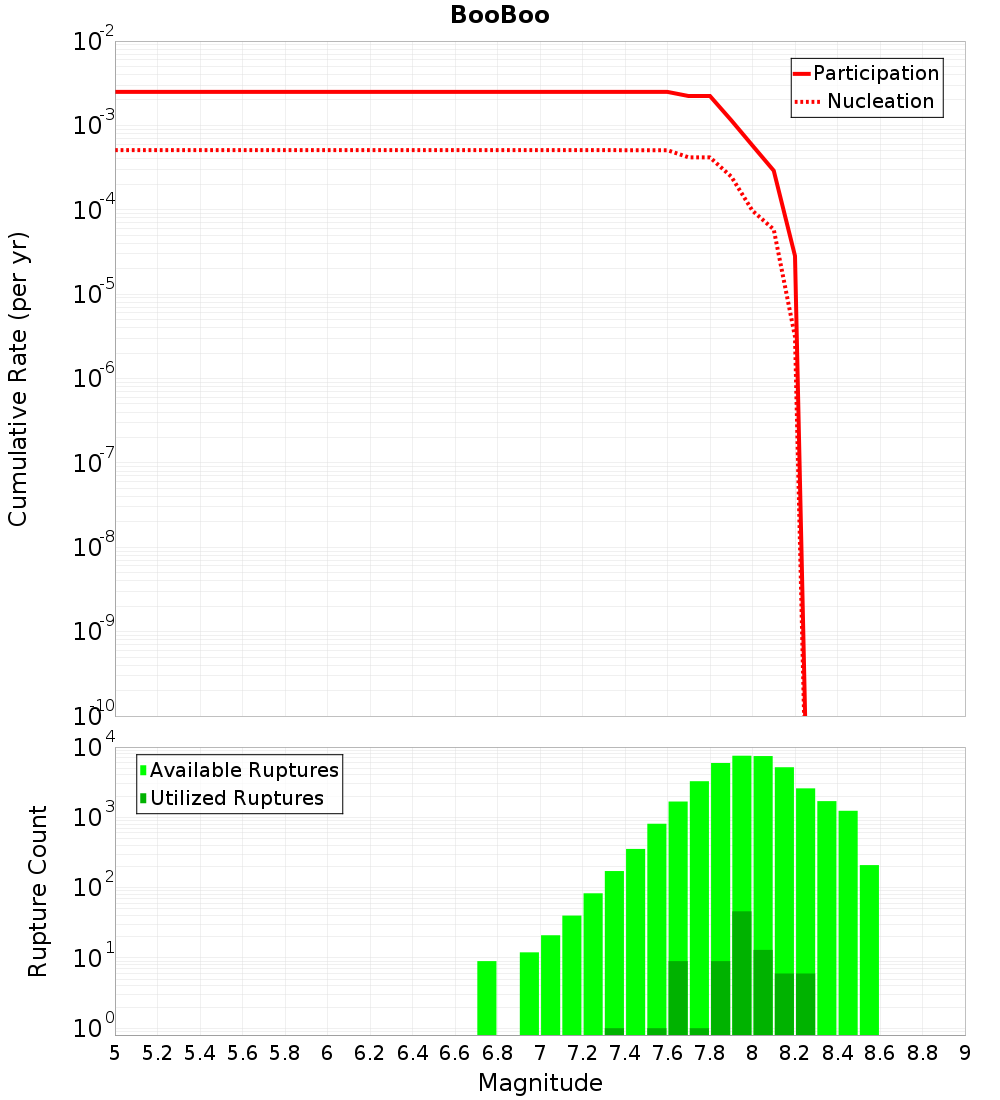

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Opouawe - Uruti, 0.13 km away	Cloudy 3, 7.74 km away
Pahaua, 0.16 km away	Upper Slope, 9.5 km away
Needles, 0.17 km away	Needles East 2, 10.51 km away
Campbell Bank, 0.23 km away	Wharekauhau, 10.67 km away
Vernon 4, 1.64 km away	Dry River - Huangarua: 1, 10.86 km away
Palliser - Kaiwhata, 4.24 km away	Te Rapa 2, 13.57 km away
Wairarapa: Needles, 5.6 km away	Wairarapa: 1, 14.76 km away
Otaraia, 5.91 km away	Vernon 3, 14.97 km away
London Hill, 7.46 km away

Opouawe - Uruti, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	16,117
Co-rupture Rate	1.0975344E-4

Pahaua, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,404
Co-rupture Rate	7.605495E-5

Needles, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	19,770
Co-rupture Rate	0.0014587406

Campbell Bank, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,170
Co-rupture Rate	7.258661E-5

Vernon 4, 1.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	391
Co-rupture Rate	8.1309903E-4

Palliser - Kaiwhata, 4.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	7,841
Co-rupture Rate	8.746475E-4

Wairarapa: Needles, 5.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,601
Co-rupture Rate	0.0

Otaraia, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,306
Co-rupture Rate	1.9136527E-5

London Hill, 7.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	false
Co-rupture Count	1,152
Co-rupture Rate	0.0

Cloudy 3, 7.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,229
Co-rupture Rate	2.901668E-4

Upper Slope, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,826
Co-rupture Rate	1.8639918E-4

Needles East 2, 10.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	false
Co-rupture Count	428
Co-rupture Rate	0.0

Wharekauhau, 10.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,629
Co-rupture Rate	1.6681575E-4

Dry River - Huangarua: 1, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,215
Co-rupture Rate	7.4359115E-5

Te Rapa 2, 13.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,304
Co-rupture Rate	3.960383E-4

Wairarapa: 1, 14.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	false
Co-rupture Count	2,982
Co-rupture Rate	0.0

Vernon 3, 14.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTMuMFdUdDYz
Connected?	true
Directly Connected?	false
Co-rupture Count	29
Co-rupture Rate	1.7254152E-4
