Skippers Details
| Property | Value |
|---|---|
| Rupture Count | 1,012 |
| Ruptures Above Sect Min Mag | 1,012 |
| Ruptures w/ Nonzero Rates | 40 |
| Magnitude Range | [6.99, 8.47] |
| Length Range | [23, 846] km |
| Total Rate | 6.4925094E-5 /yr |
| Multi-Fault Rate | 6.4925094E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 87 |
Table Of Contents

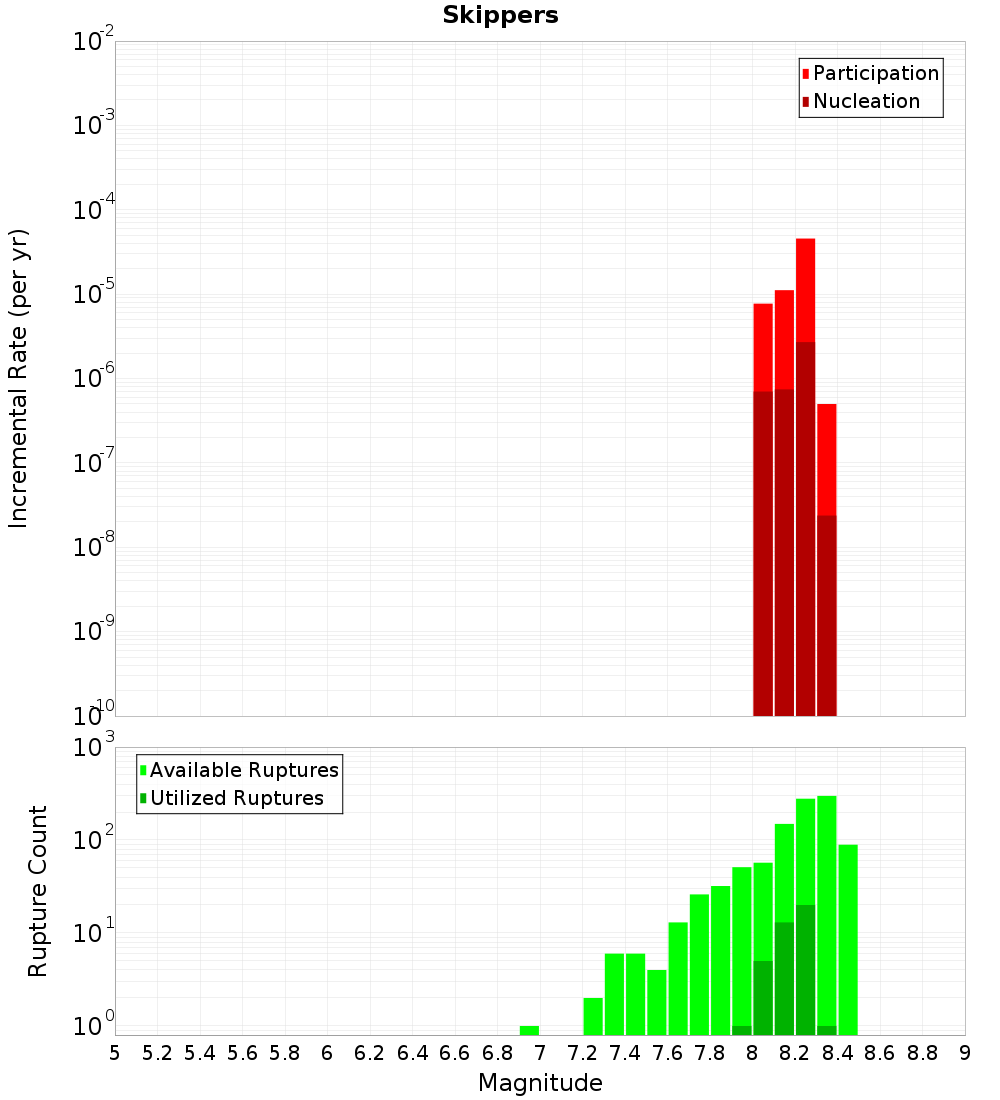

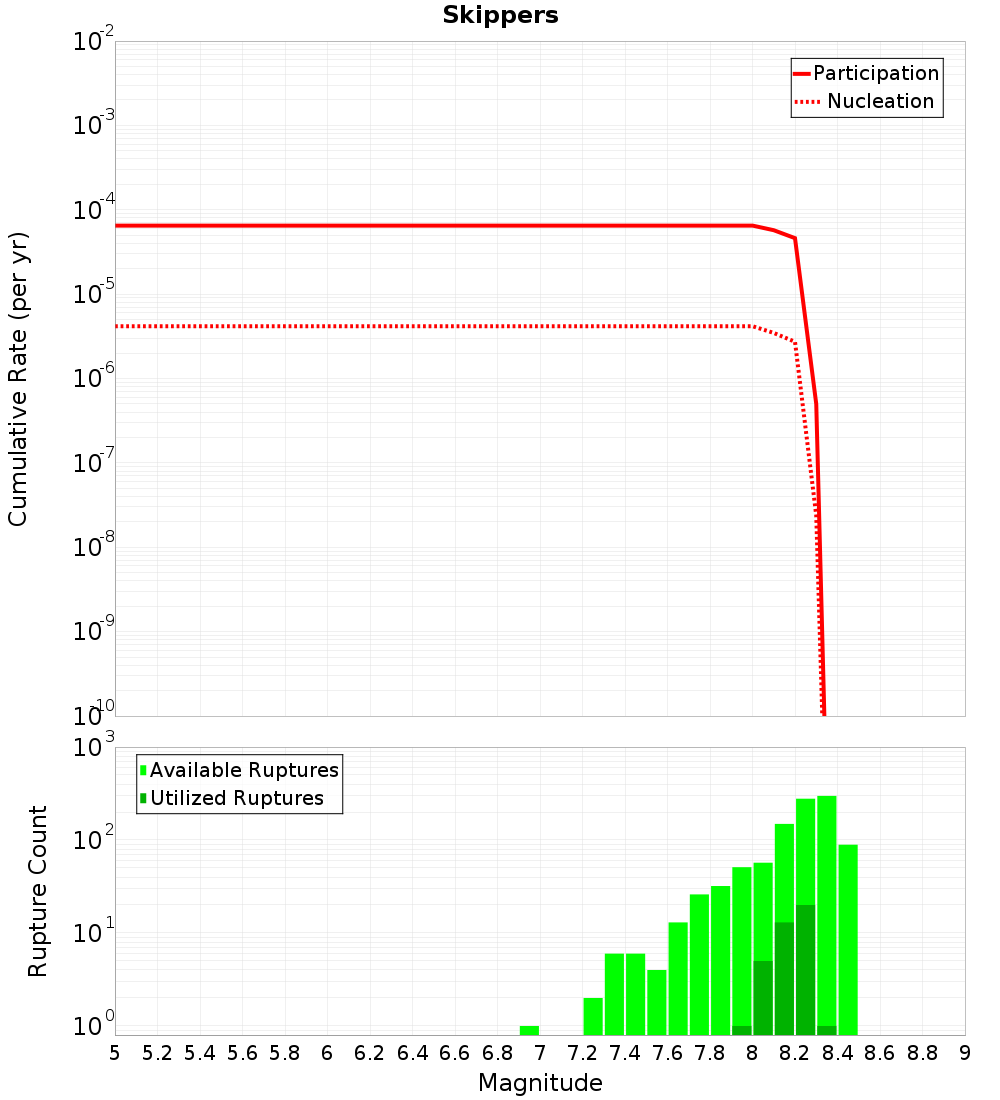

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

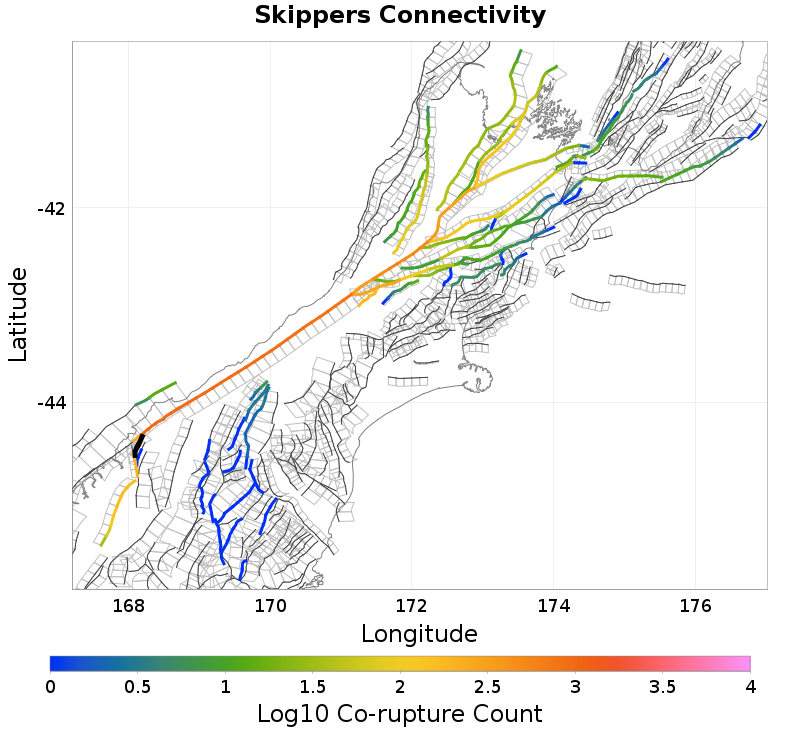

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alpine: George to Jacksons, 0.18 km away |
| Madagascar, 0.19 km away |
| Darran, 0.83 km away |
| Barn, 2.55 km away |
| Hollyford, 3.74 km away |
| Livingstone, 9.56 km away |
Alpine: George to Jacksons, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NTQuMFdZWW92 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,005 |
| Co-rupture Rate | 6.4925094E-5 |
Madagascar, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NTQuMFdZWW92 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Darran, 0.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NTQuMFdZWW92 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 194 |
| Co-rupture Rate | 2.1760543E-5 |
Barn, 2.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NTQuMFdZWW92 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Hollyford, 3.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NTQuMFdZWW92 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Livingstone, 9.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NTQuMFdZWW92 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
