Okaia 5 Details

Property	Value
Rupture Count	5
Ruptures Above Sect Min Mag	5
Ruptures w/ Nonzero Rates	3
Magnitude Range	[7.07, 7.59]
Length Range	[23, 72] km
Total Rate	8.149881E-6 /yr
Multi-Fault Rate	8.149881E-6 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	2

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

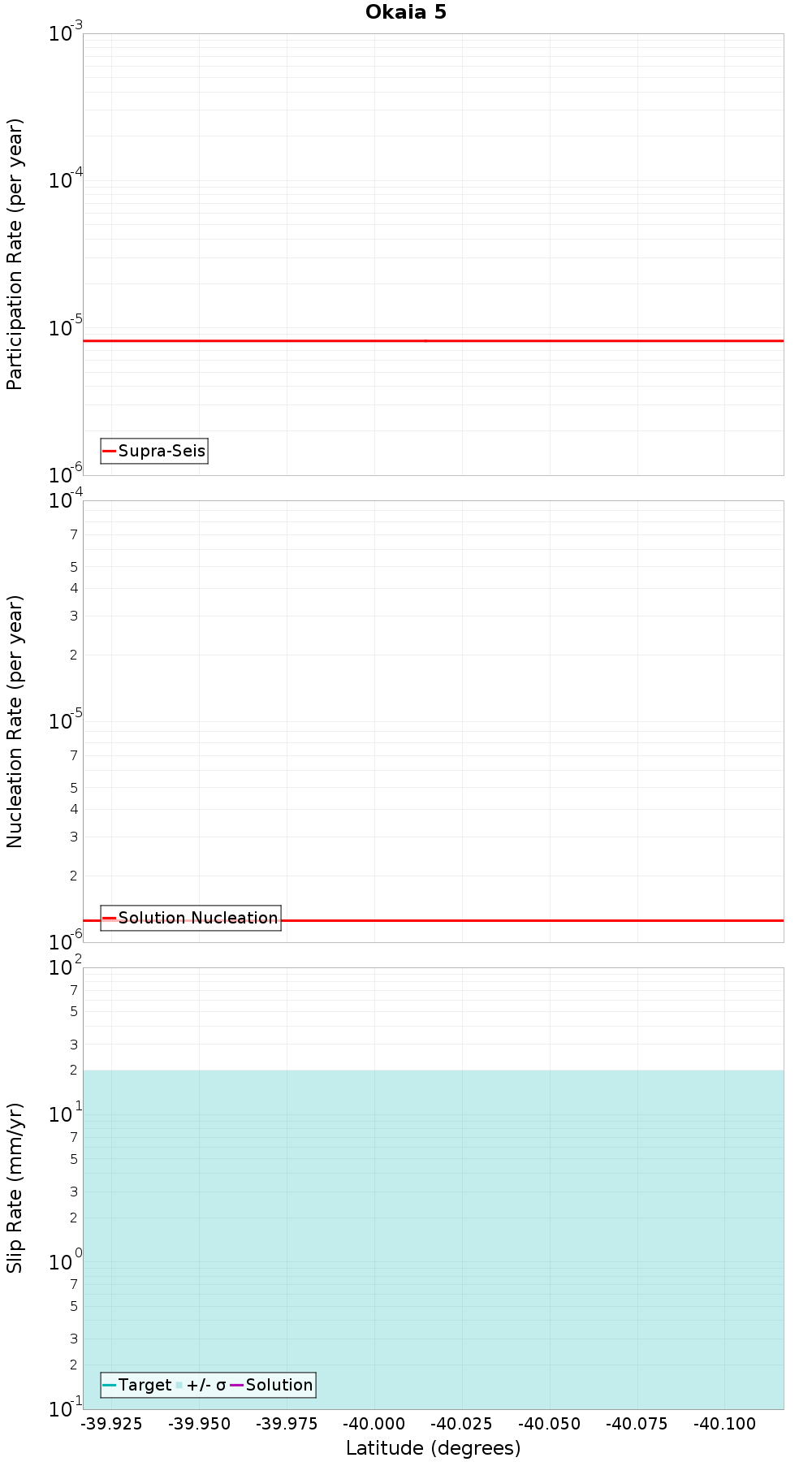

Along-Strike Values

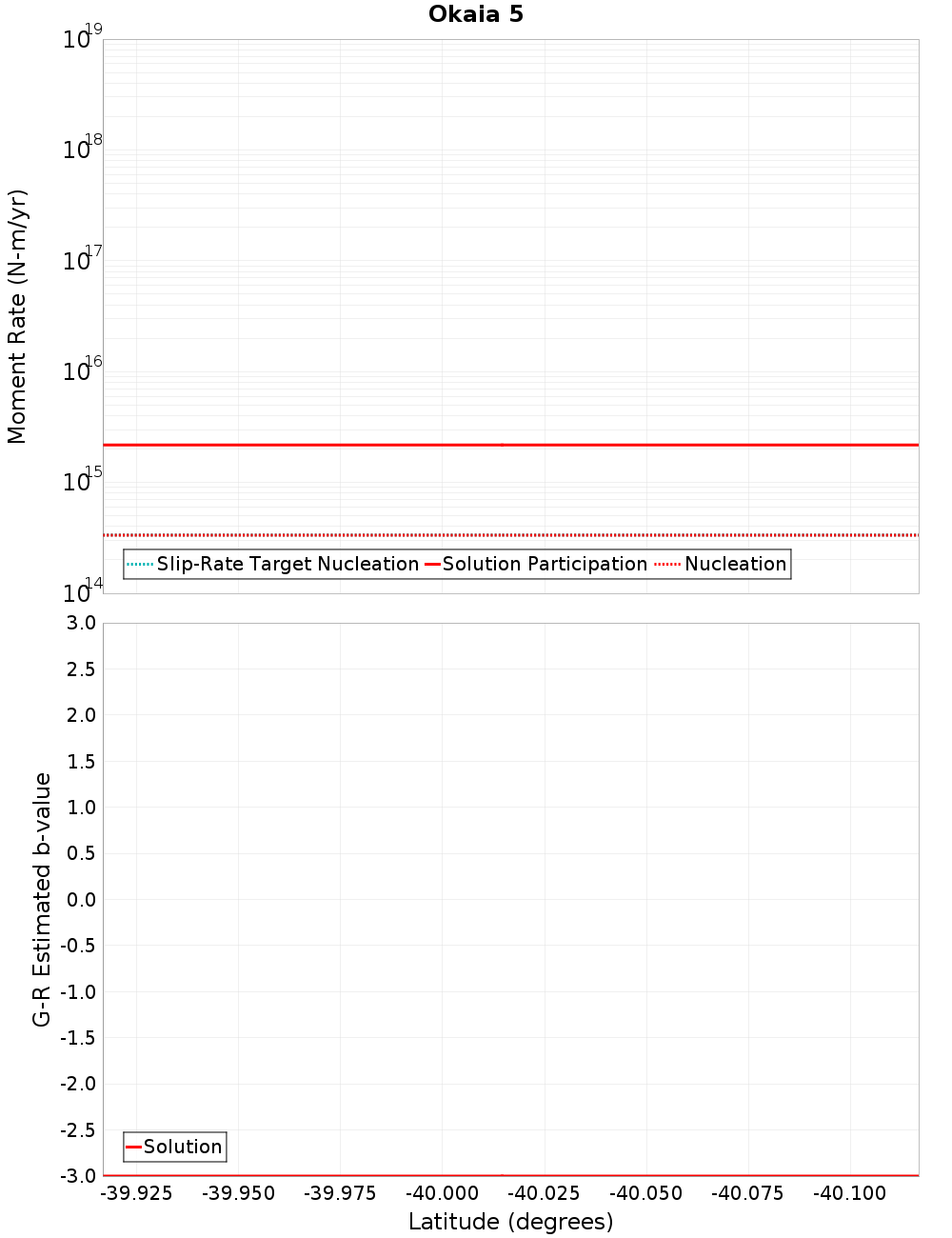

Moment-Rates and b-Values

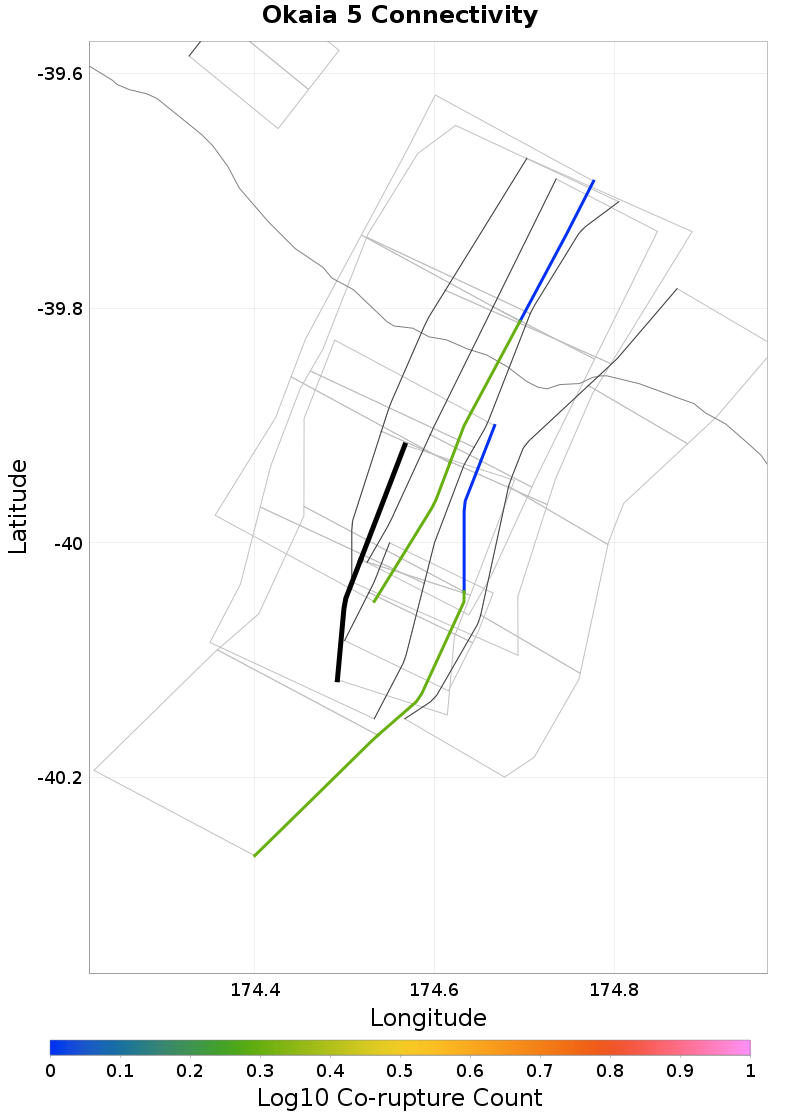

Connectivity

Nearby Sections

Fault Section
Okaia 3, 0.08 km away
Waverley - Okaia 1, 0.09 km away
Waitotara 8 & 9, 0.14 km away
Waitotara 10 & 11, 0.23 km away
Ridge Road - Okaia 2, 0.34 km away
Moumahaki - Okaia 4, 0.59 km away
Nukumuru - Waitotara 1-6, 6.97 km away

Okaia 3, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzIuMFV3OTJy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waverley - Okaia 1, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzIuMFV3OTJy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitotara 8 & 9, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzIuMFV3OTJy
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	7.974376E-6

Waitotara 10 & 11, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzIuMFV3OTJy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ridge Road - Okaia 2, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzIuMFV3OTJy
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	1.7550502E-7

Moumahaki - Okaia 4, 0.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzIuMFV3OTJy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nukumuru - Waitotara 1-6, 6.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzIuMFV3OTJy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
