Awatere: Northeast 1 Details

PropertyValue
Rupture Count19,862
Ruptures Above Sect Min Mag19,855
Ruptures w/ Nonzero Rates53
Magnitude Range[6.89, 8.58]
Length Range[22, 1,082] km
Total Rate0.0013482211 /yr
Multi-Fault Rate0.0013482211 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults157

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

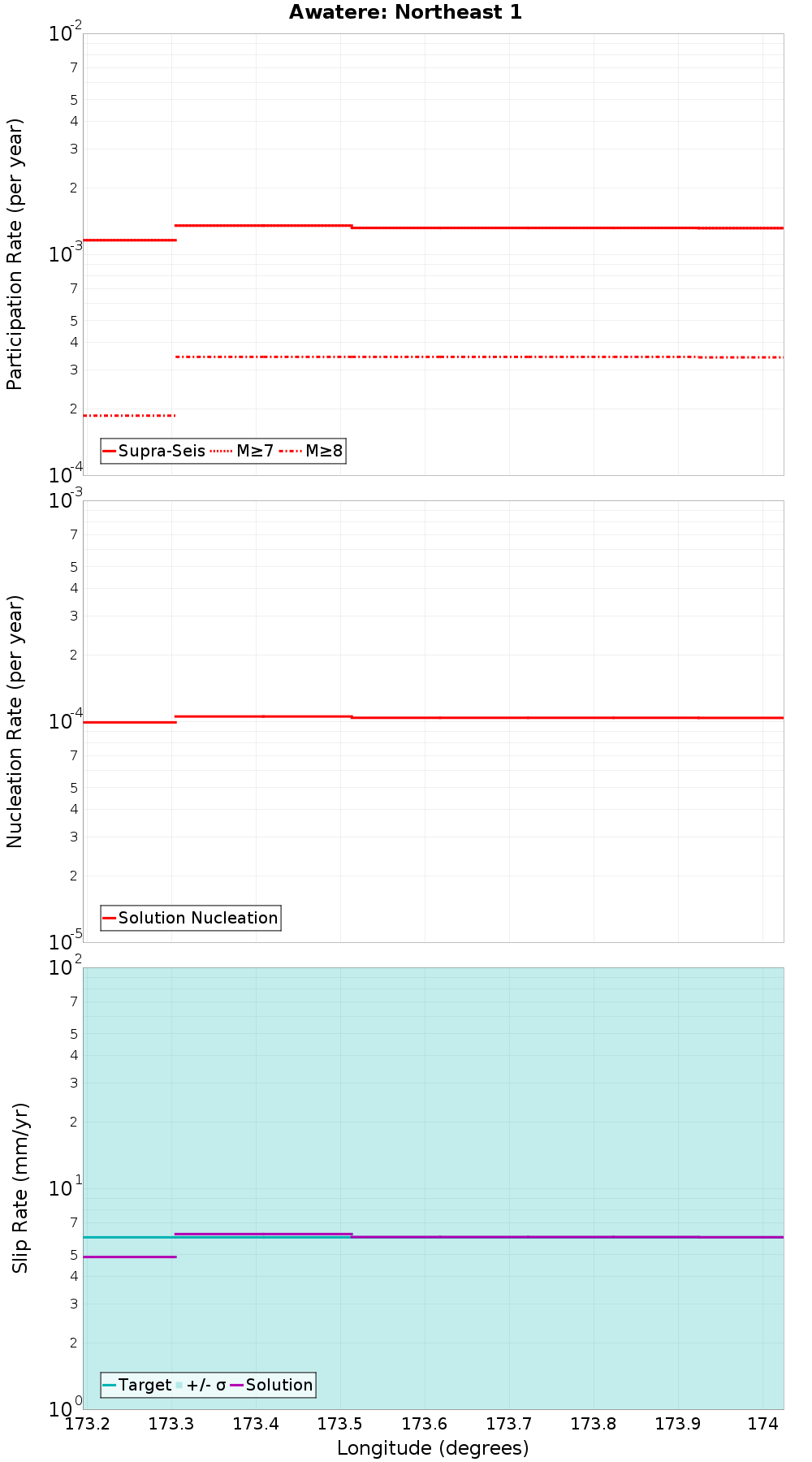

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

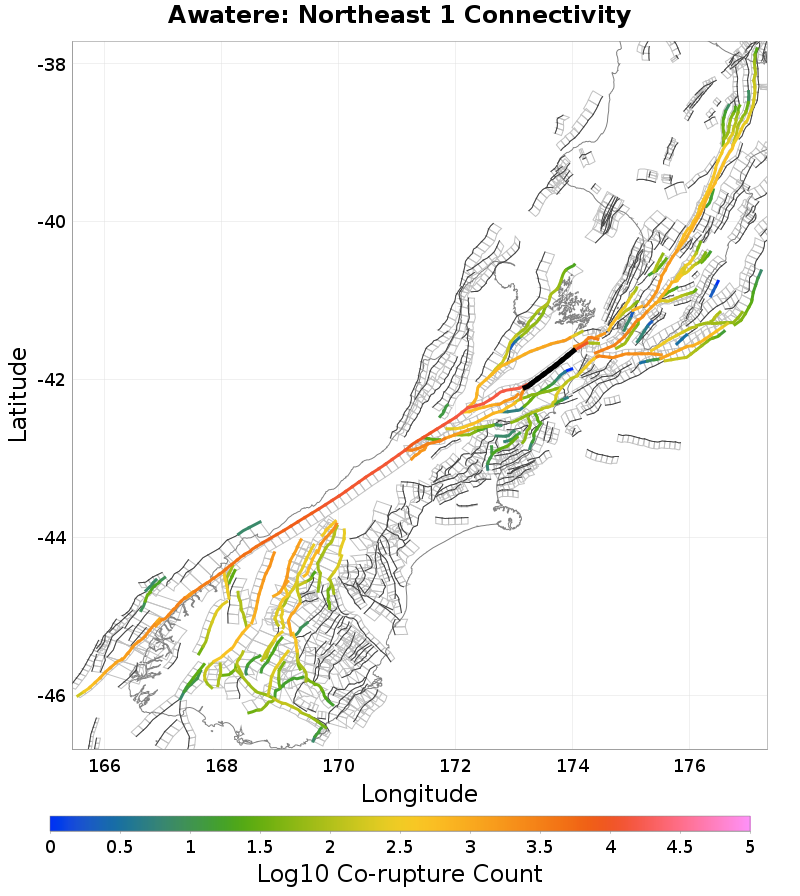

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Barefell, 0 km away
Vernon 1, 0 km away
Awatere: Northeast 2, 0 km away
Awatere: Southwest, 0.1 km away
Vernon 2, 4.62 km away
Elliott, 9.09 km away
Clarence: Northeast, 9.18 km away
Clarence: Central, 10.17 km away
Wairau, 11.05 km away
Jordan, 12.64 km away
Fowlers, 14.06 km away

Barefell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?true
Co-rupture Count2,405
Co-rupture Rate1.1187003E-4

Vernon 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?true
Co-rupture Count362
Co-rupture Rate9.715233E-4

Awatere: Northeast 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?true
Co-rupture Count10,284
Co-rupture Rate2.1803546E-4

Awatere: Southwest, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?true
Co-rupture Count14,826
Co-rupture Rate3.9350768E-4

Vernon 2, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?true
Co-rupture Count2,269
Co-rupture Rate0.0010032025

Elliott, 9.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate0.0

Clarence: Northeast, 9.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Clarence: Central, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?false
Co-rupture Count556
Co-rupture Rate2.6583491E-5

Wairau, 11.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?true
Co-rupture Count1,606
Co-rupture Rate0.0

Jordan, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?true
Co-rupture Count214
Co-rupture Rate0.0

Fowlers, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0
Connected?true
Directly Connected?false
Co-rupture Count2,348
Co-rupture Rate9.899277E-5
