Opawa Details
| Property | Value |
|---|---|
| Rupture Count | 220 |
| Ruptures Above Sect Min Mag | 219 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [6.87, 8.06] |
| Length Range | [19, 297] km |
| Total Rate | 1.5002957E-5 /yr |
| Multi-Fault Rate | 1.5002957E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 23 |
Table Of Contents

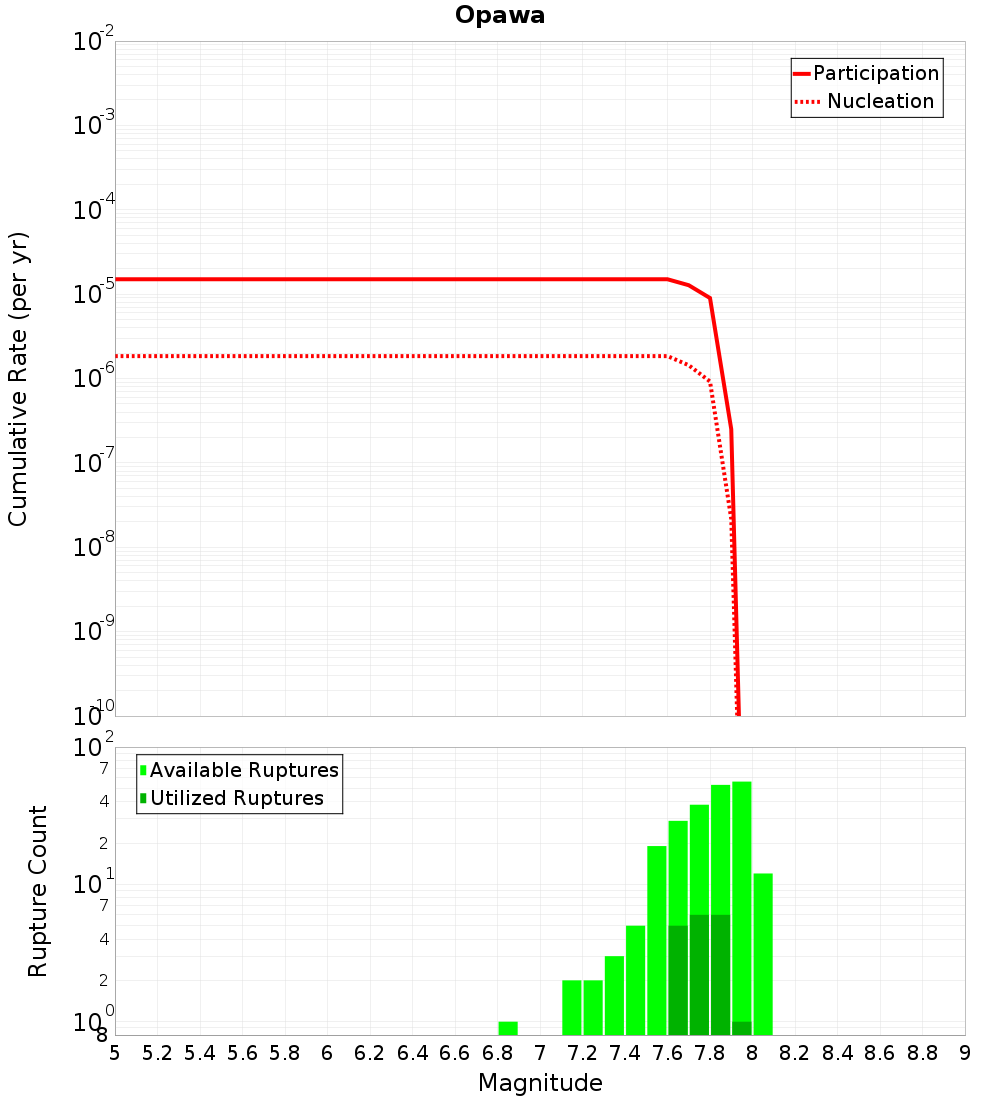

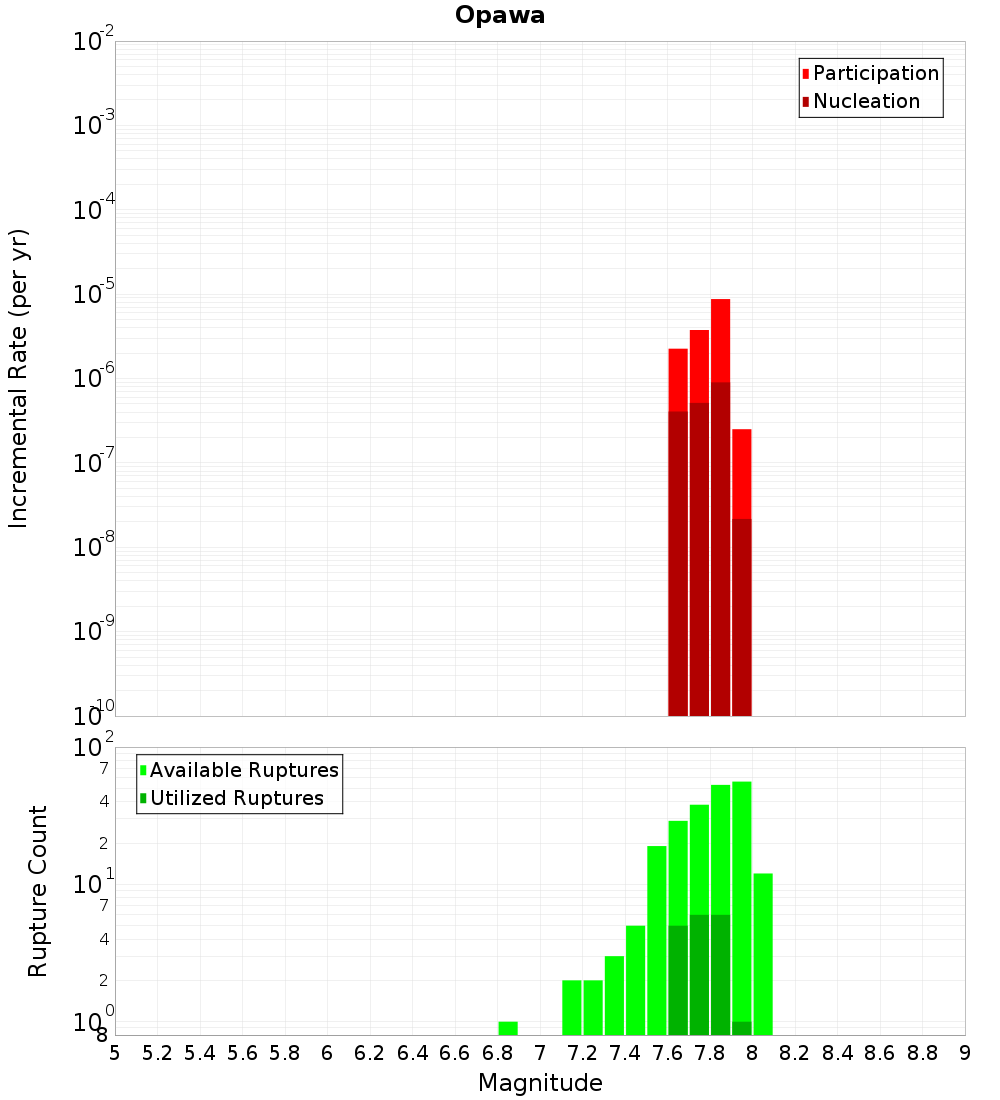

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Albury, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 2.3797718E-7 |
Hunters, 0.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 166 |
| Co-rupture Rate | 1.0367532E-5 |
Sugarloaf, 0.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fox Peak, 1.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 202 |
| Co-rupture Rate | 1.5002957E-5 |
Chamberlain, 1.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 43 |
| Co-rupture Rate | 7.871928E-6 |
Dalgety, 1.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Irishman Creek, 8.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 14 |
| Co-rupture Rate | 4.712326E-6 |
Brothers, 8.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Catherine, 8.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hutt Peel, 9.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 107 |
| Co-rupture Rate | 2.5064568E-7 |
Edith, 14.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2NzcuMFhYRTY0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
