Beaumont River Details

PropertyValue
Rupture Count5,928
Ruptures Above Sect Min Mag5,927
Ruptures w/ Nonzero Rates113
Magnitude Range[7.05, 8.27]
Length Range[24, 397] km
Total Rate1.8422179E-5 /yr
Multi-Fault Rate1.8422179E-5 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults49

Table Of Contents

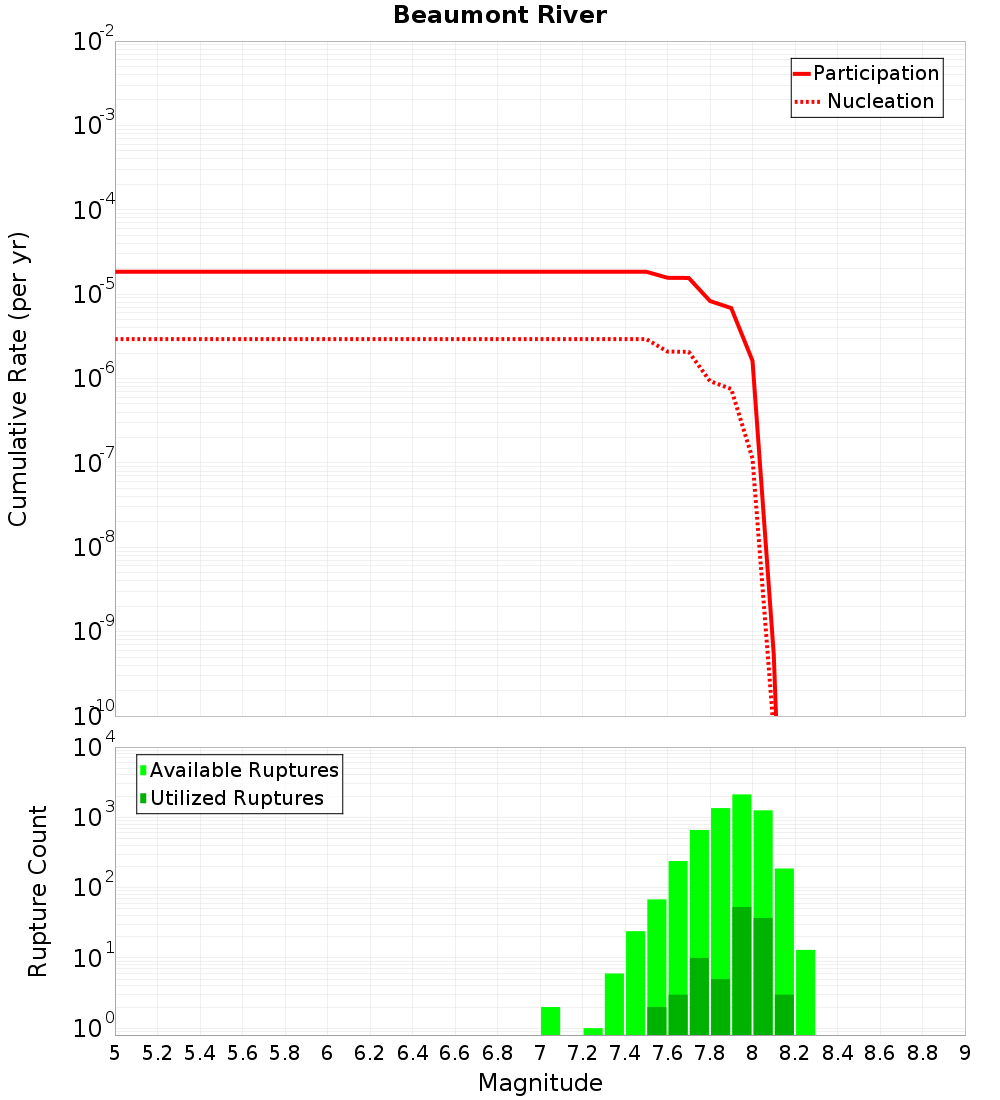

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

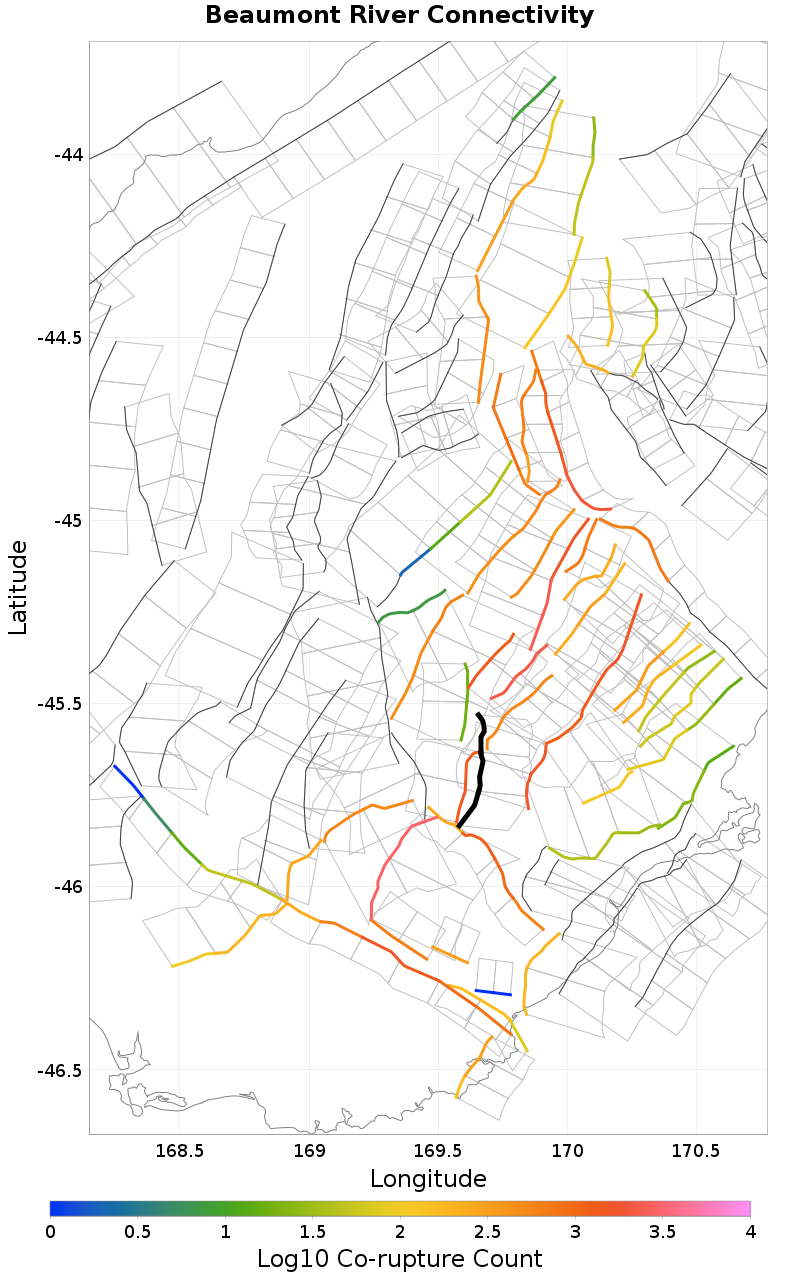

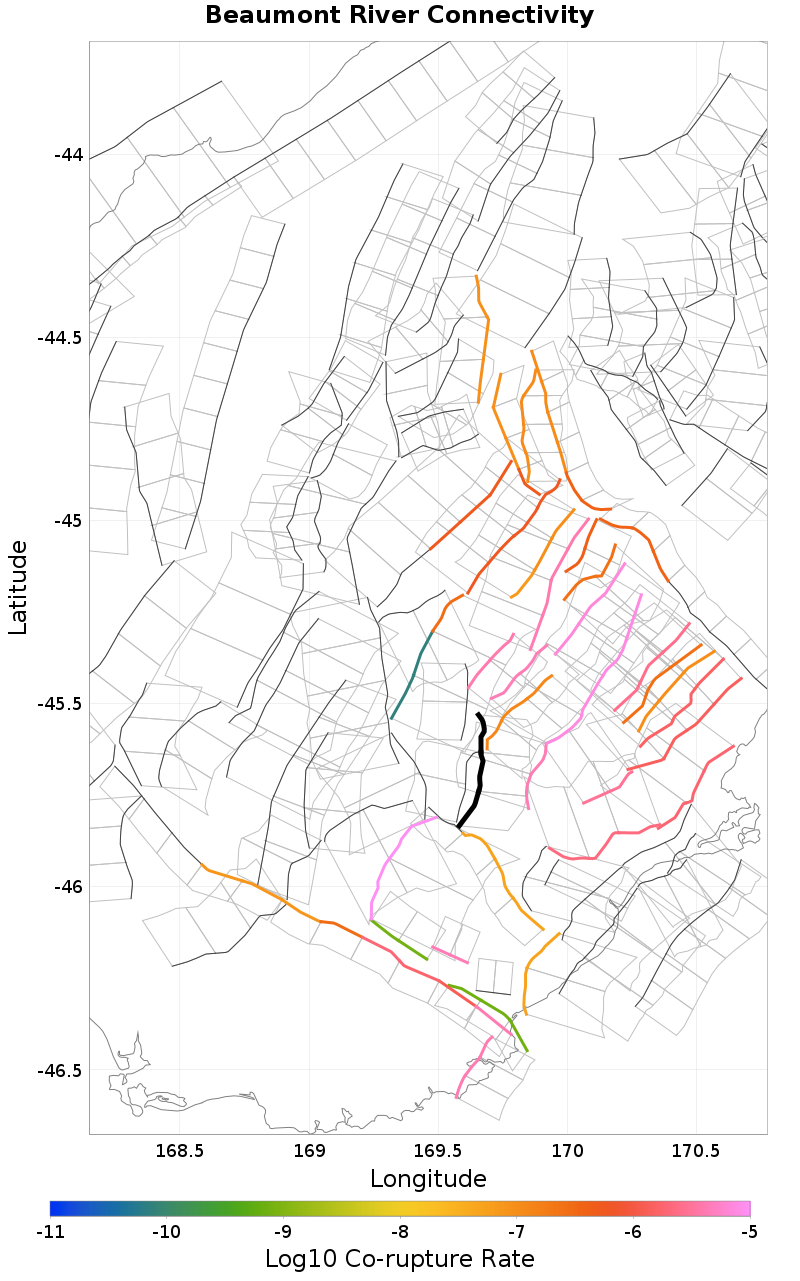

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Logan Burn, 0.16 km away
Pylap, 0.16 km away
Maungatua - North Taieri, 0.31 km away
Hyde South - The Twins, 0.34 km away
Hyde North, 0.34 km away
Backbone, 0.6 km away
Tuapeka, 0.91 km away
Blue Mountain, 3.48 km away
Lake Onslow, 3.85 km away
Nichols Rock, 5.01 km away
Long Valley, 5.05 km away
Little Valley, 10.37 km away
Teviot, 10.54 km away
Spylaw, 12.97 km away

Logan Burn, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?true
Co-rupture Count557
Co-rupture Rate1.2475248E-7

Pylap, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?true
Co-rupture Count2,306
Co-rupture Rate4.413971E-6

Maungatua - North Taieri, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate2.147025E-6

Hyde South - The Twins, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?true
Co-rupture Count1,582
Co-rupture Rate4.2809233E-6

Hyde North, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?true
Co-rupture Count1,894
Co-rupture Rate7.4409554E-6

Backbone, 0.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?true
Co-rupture Count1,449
Co-rupture Rate0.0

Tuapeka, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?true
Co-rupture Count1,261
Co-rupture Rate5.00957E-8

Blue Mountain, 3.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?true
Co-rupture Count2,945
Co-rupture Rate9.220548E-6

Lake Onslow, 3.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Nichols Rock, 5.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?true
Co-rupture Count117
Co-rupture Rate2.9659384E-6

Long Valley, 5.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?true
Co-rupture Count1,475
Co-rupture Rate3.942543E-6

Little Valley, 10.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?false
Co-rupture Count598
Co-rupture Rate2.8391494E-7

Teviot, 10.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Spylaw, 12.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc2ODAuMFR0RFJj
Connected?true
Directly Connected?false
Co-rupture Count529
Co-rupture Rate0.0
