Motatapu Details

Property	Value
Rupture Count	34,402
Ruptures Above Sect Min Mag	34,400
Ruptures w/ Nonzero Rates	118
Magnitude Range	[6.93, 8.62]
Length Range	[19, 963] km
Total Rate	1.3241918E-4 /yr
Multi-Fault Rate	1.585176E-5 /yr (11.97%)
Directly-Connected Faults	4
All Co-Rupturing Faults	81

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

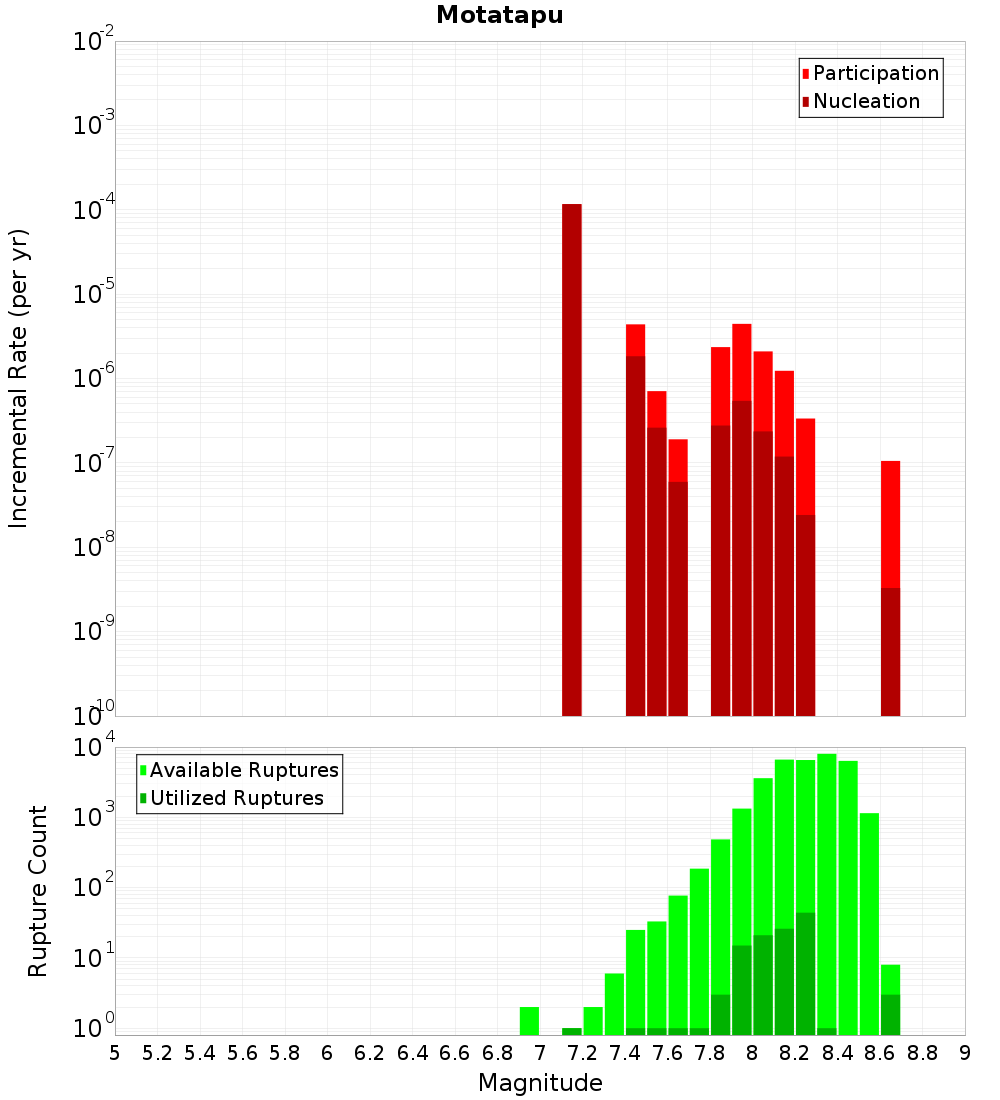

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

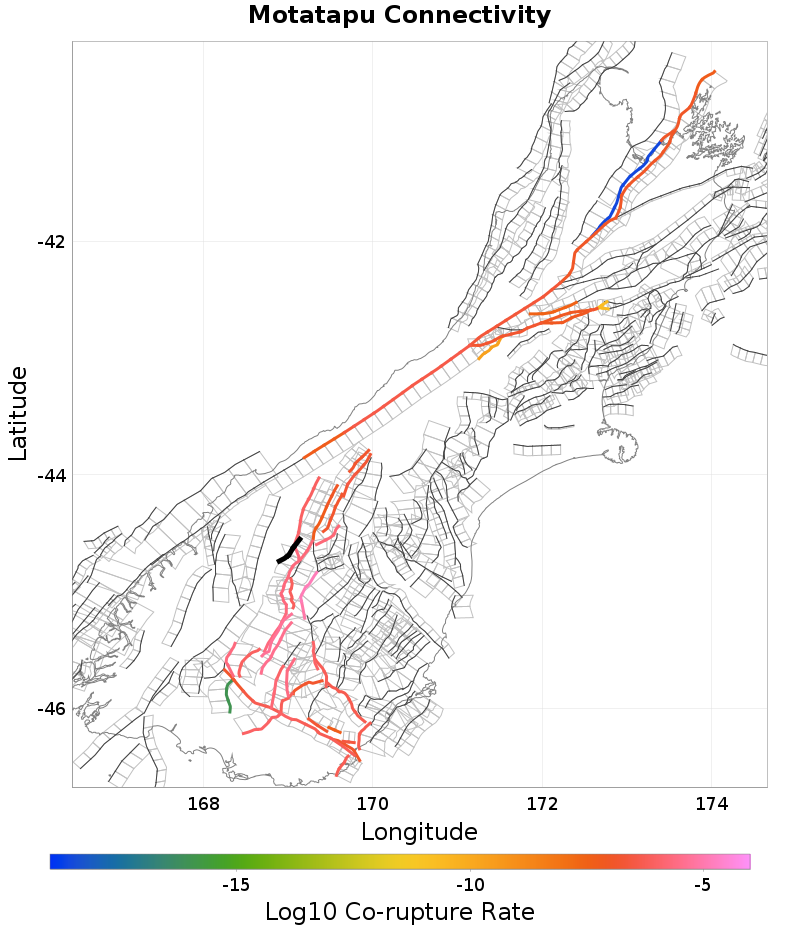

Connectivity

Nearby Sections

Fault Section
NW Cardrona North, 0.08 km away
Pisa, 0.13 km away
Cardrona - Hawea, 0.37 km away
Wanaka, 1.15 km away
Hunter Valley, 6.65 km away
Timaru Creek, 7.02 km away
Cluden, 8.83 km away
Paddys Ridge, 10.98 km away
Grandview, 11.63 km away
NW Cardrona South, 11.75 km away
Roaring Meg, 13.14 km away

NW Cardrona North, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	true
Directly Connected?	true
Co-rupture Count	8,491
Co-rupture Rate	2.0193036E-6

Pisa, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	true
Directly Connected?	true
Co-rupture Count	27,331
Co-rupture Rate	1.3612416E-5

Cardrona - Hawea, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	true
Directly Connected?	true
Co-rupture Count	2,938
Co-rupture Rate	1.7789067E-6

Wanaka, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	true
Directly Connected?	true
Co-rupture Count	31,948
Co-rupture Rate	1.1144876E-6

Hunter Valley, 6.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	true
Directly Connected?	false
Co-rupture Count	3,372
Co-rupture Rate	9.357894E-8

Timaru Creek, 7.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	true
Directly Connected?	false
Co-rupture Count	961
Co-rupture Rate	1.7290421E-6

Cluden, 8.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Paddys Ridge, 10.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	true
Directly Connected?	false
Co-rupture Count	143
Co-rupture Rate	0.0

Grandview, 11.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

NW Cardrona South, 11.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	true
Directly Connected?	false
Co-rupture Count	5,116
Co-rupture Rate	2.0192942E-6

Roaring Meg, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MjMuMHZIeXpQ
Connected?	true
Directly Connected?	false
Co-rupture Count	4,158
Co-rupture Rate	7.0843396E-7
