Boby Stream Details
| Property | Value |
|---|---|
| Rupture Count | 9,248 |
| Ruptures Above Sect Min Mag | 9,247 |
| Ruptures w/ Nonzero Rates | 24 |
| Magnitude Range | [6.90, 8.25] |
| Length Range | [18, 538] km |
| Total Rate | 8.140421E-5 /yr |
| Multi-Fault Rate | 8.140421E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 81 |
Table Of Contents

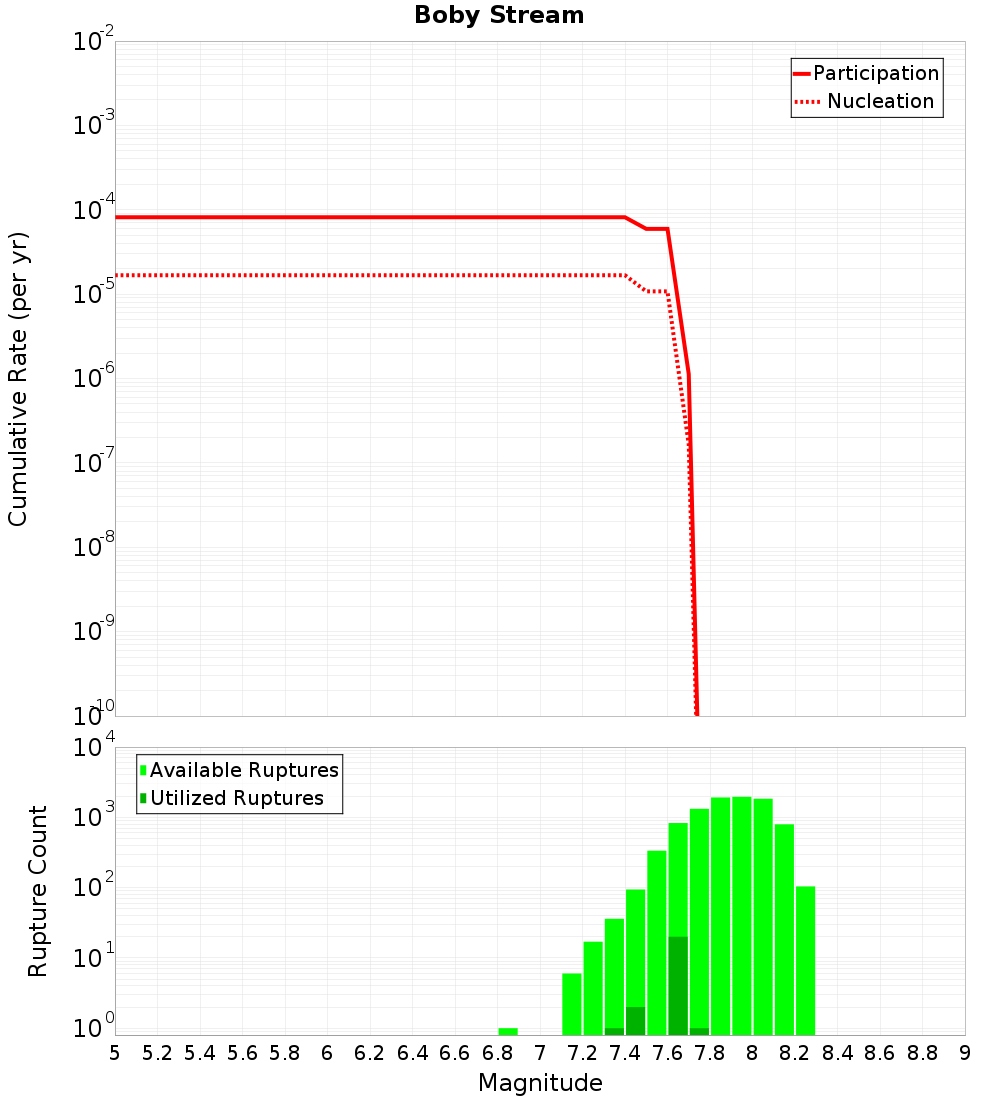

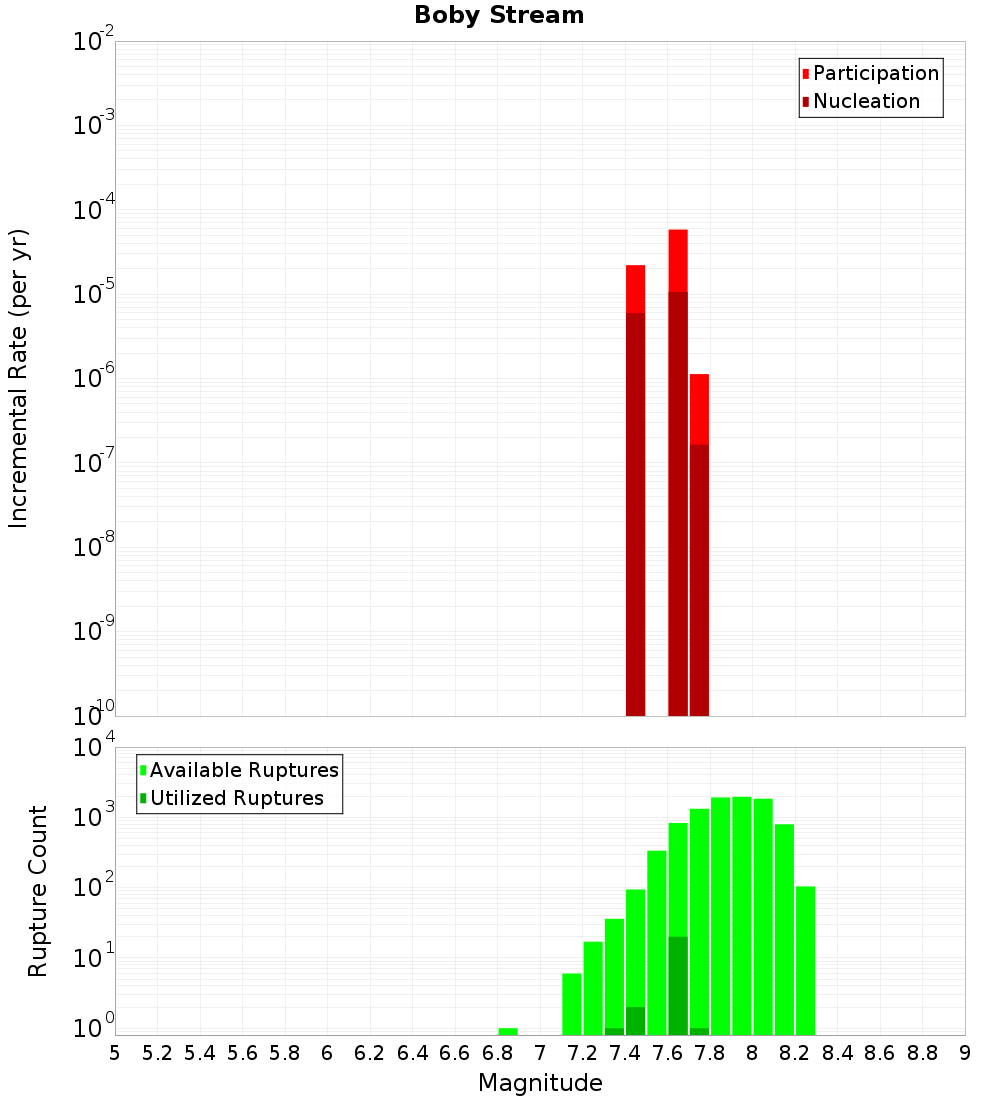

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

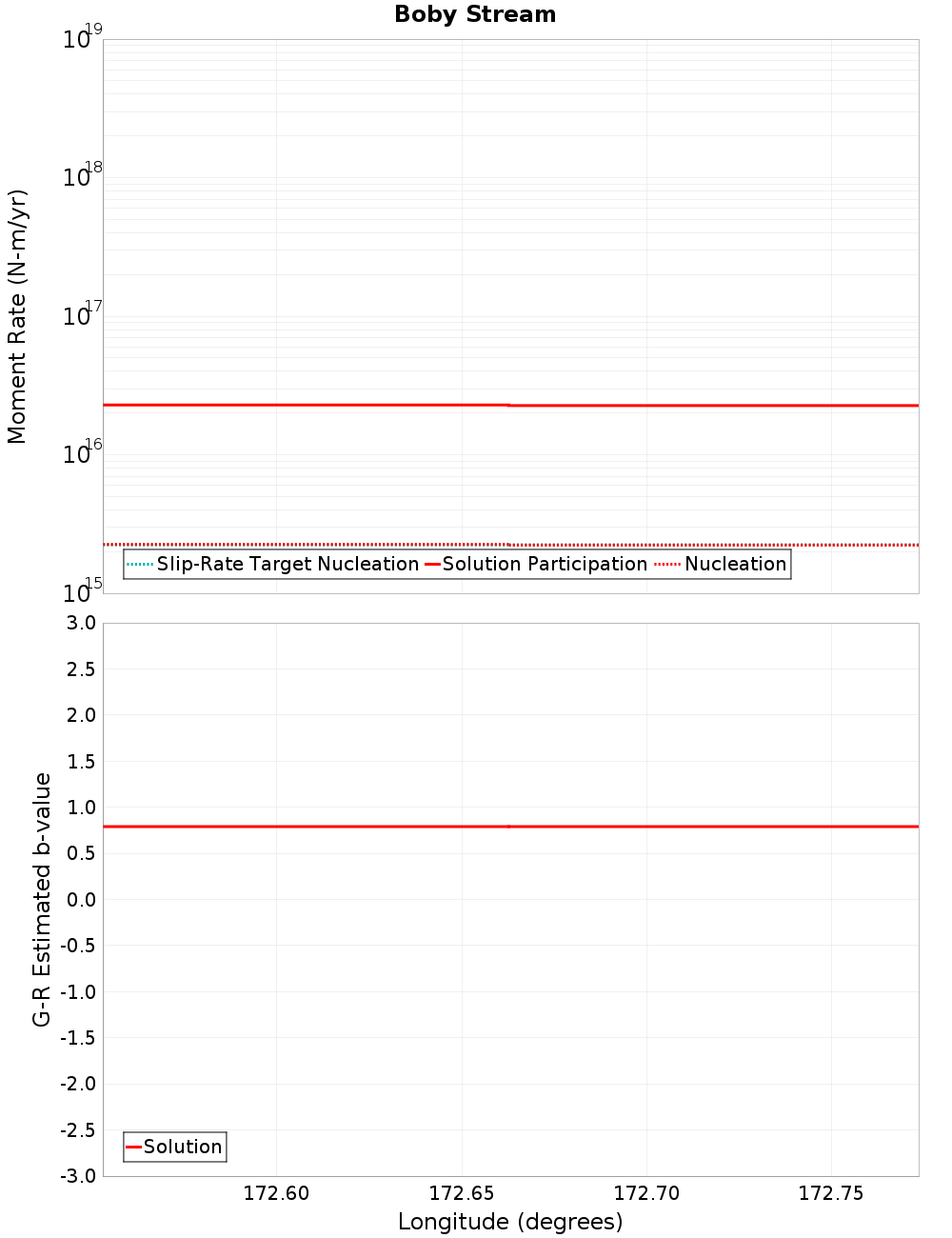

Moment-Rates and b-Values

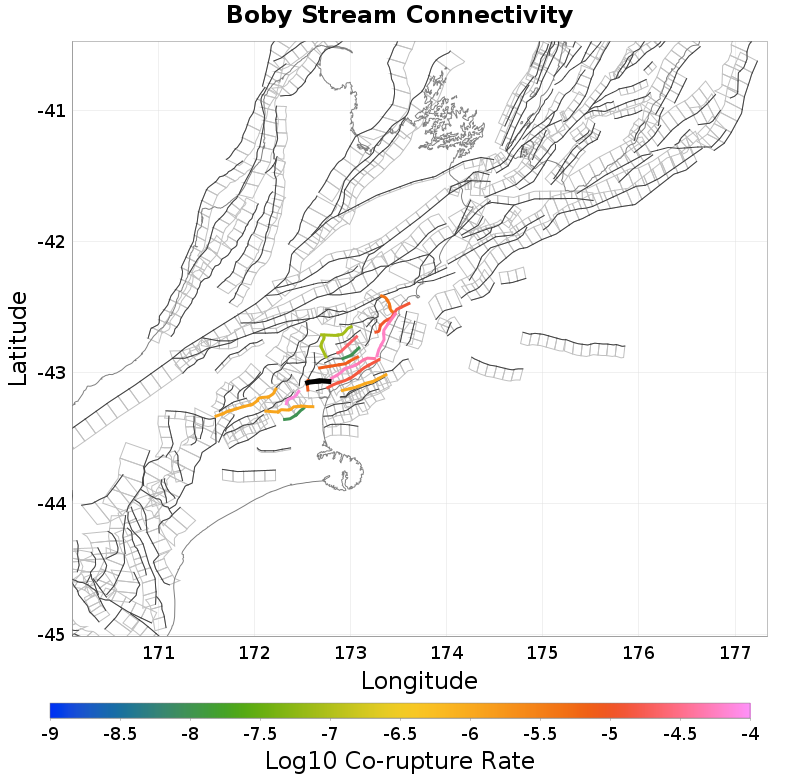

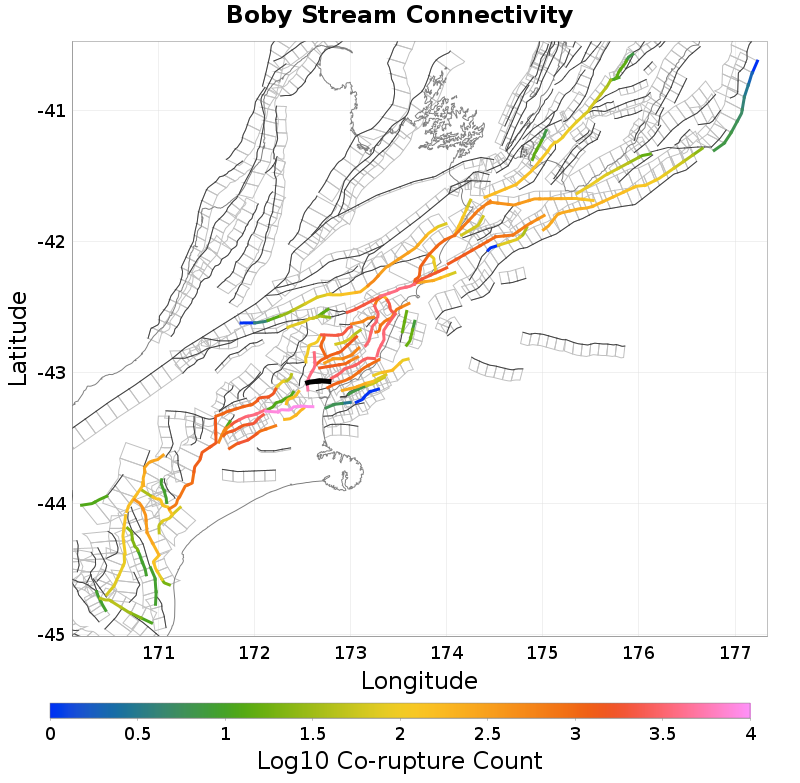

Connectivity
 |  |
|---|
Nearby Sections
Doctors, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,039 |
| Co-rupture Rate | 7.985582E-6 |
Starvation - Ashley, 0.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8,865 |
| Co-rupture Rate | 1.1377945E-6 |
OmihiLwrHuru, 0.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,217 |
| Co-rupture Rate | 6.599921E-5 |
AmberBlyth, 3.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,371 |
| Co-rupture Rate | 1.5316191E-5 |
Mt Lawry, 4.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 160 |
| Co-rupture Rate | 7.3089046E-5 |
Kaiwara South, 6.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,372 |
| Co-rupture Rate | 7.985582E-6 |
Mt Arden, 6.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Springbank, 9.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 187 |
| Co-rupture Rate | 9.444076E-9 |
Pancake, 10 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lees Valley, 10.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,612 |
| Co-rupture Rate | 1.1377945E-6 |
Lowry, 10.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,475 |
| Co-rupture Rate | 2.21733E-5 |
Alexander, 10.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 740 |
| Co-rupture Rate | 9.440779E-9 |
Motunau, 13.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 253 |
| Co-rupture Rate | 1.0041059E-6 |
Knowles Top, 13.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 0.0 |
North Canterbury Shelf 2, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Leithfield - NCVI - NCVII, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3MzUuMDhCVmg5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 55 |
| Co-rupture Rate | 0.0 |
