Dryburgh Details

Property	Value
Rupture Count	183
Ruptures Above Sect Min Mag	182
Ruptures w/ Nonzero Rates	13
Magnitude Range	[6.80, 8.14]
Length Range	[19, 349] km
Total Rate	1.2101876E-5 /yr
Multi-Fault Rate	1.2101876E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	23

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

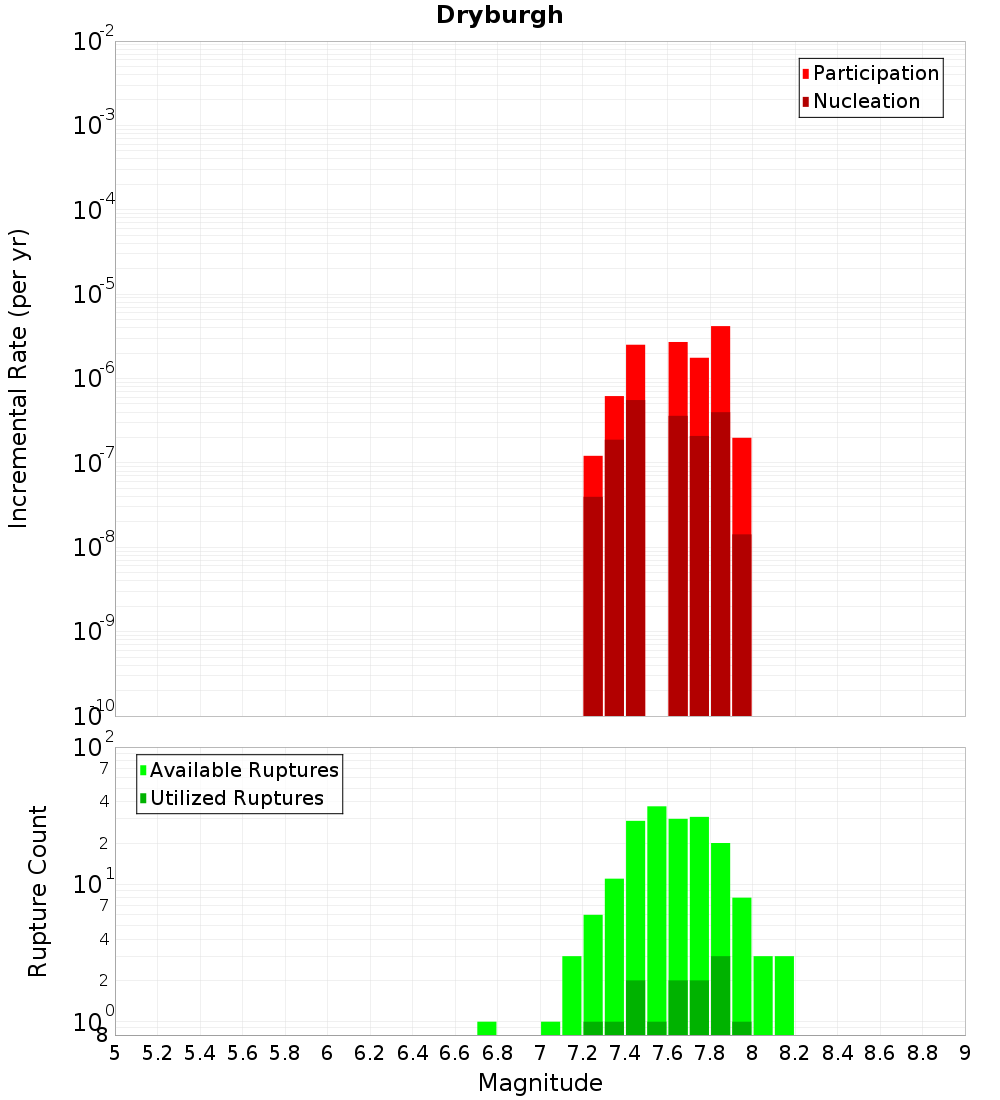

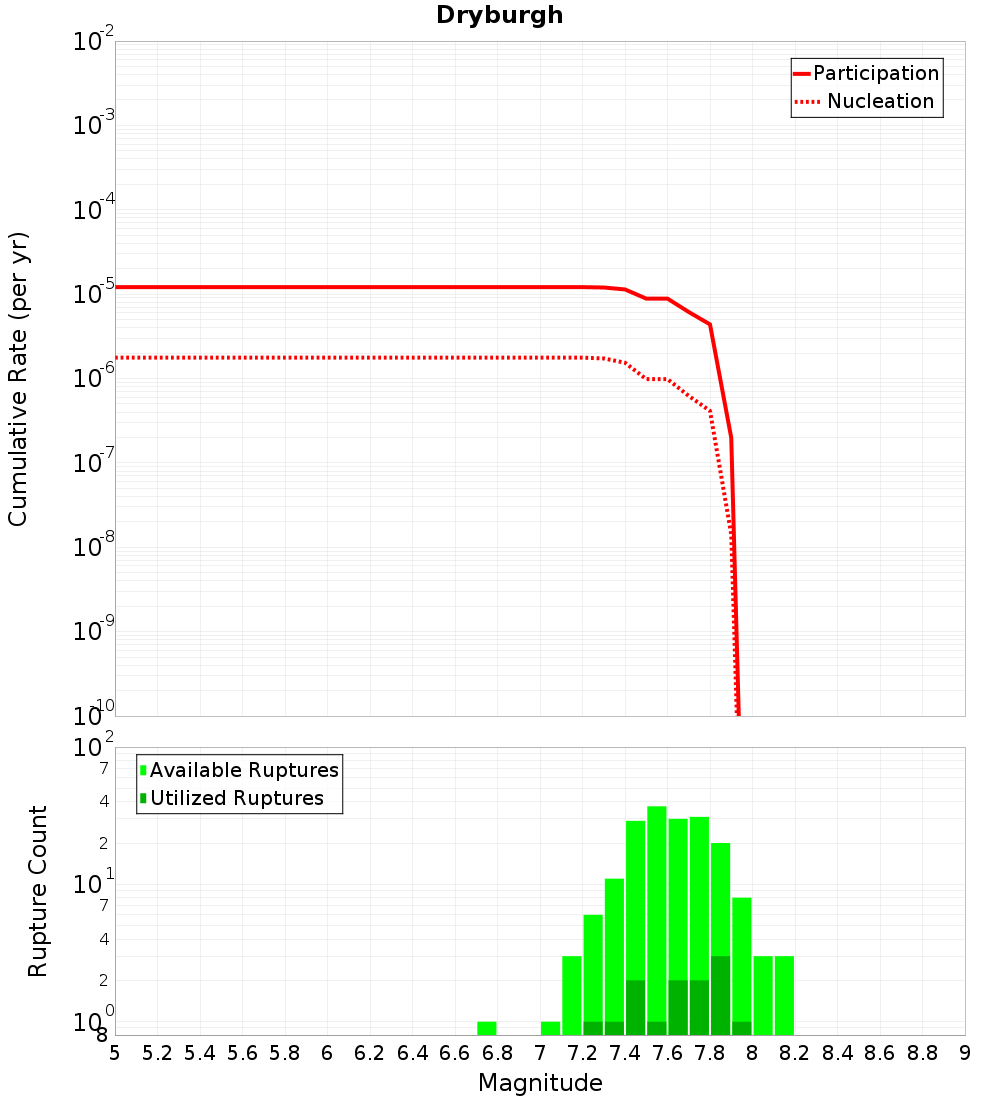

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

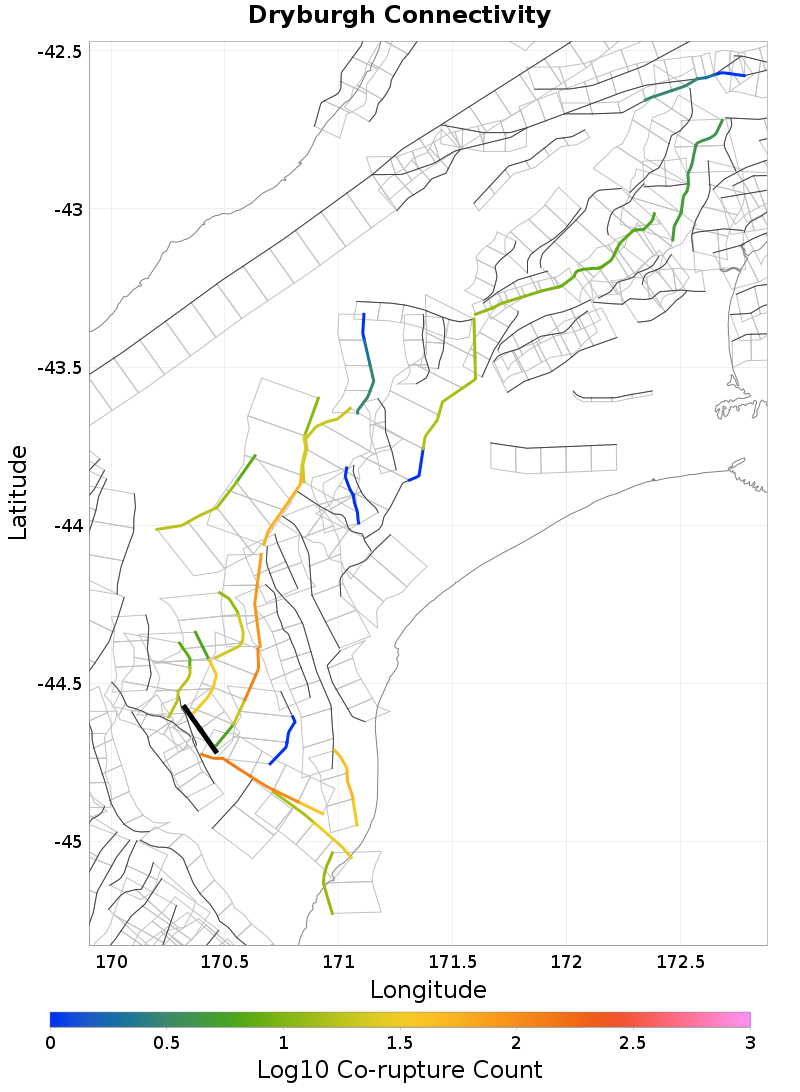

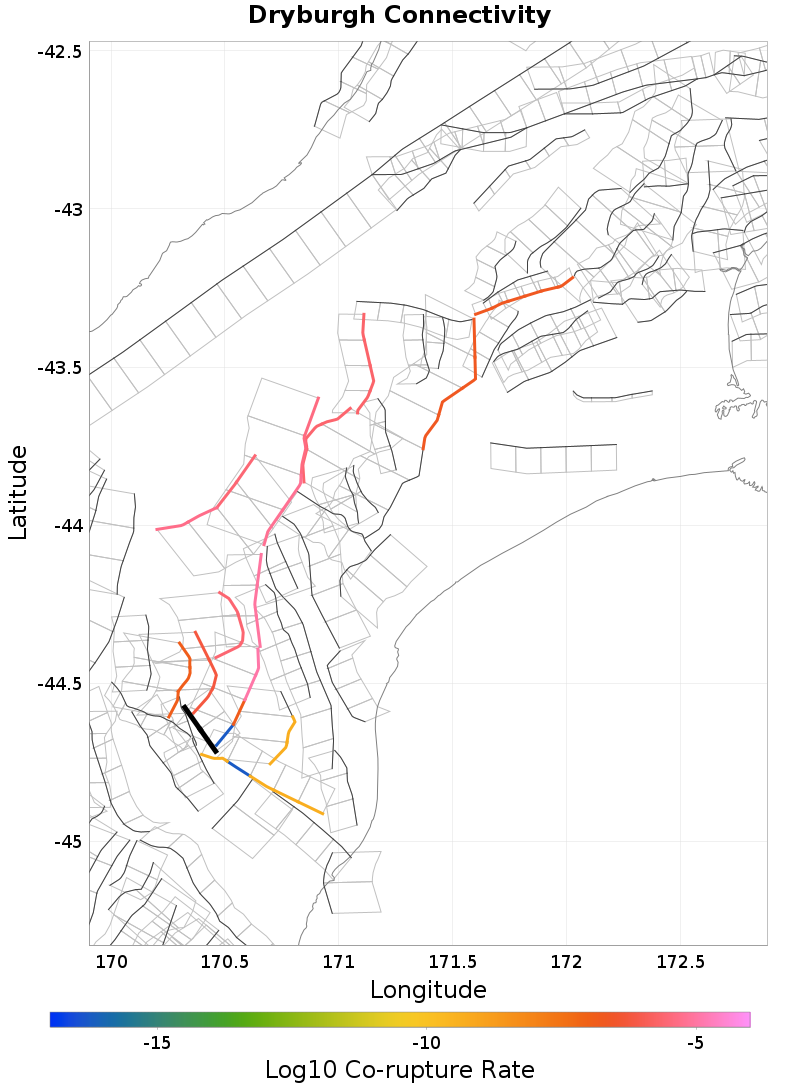

Connectivity

Nearby Sections

Fault Section
Kirkliston, 0.12 km away
Mt Sutton, 0.25 km away
Campbell Hills, 0.27 km away
Stonewall, 0.28 km away
Waitangi, 1.08 km away
Gibson, 3.37 km away
Awahokomo, 3.91 km away
Fern Gully, 4.21 km away
Grampian, 13.34 km away
Middle Range, 14.1 km away
Falstone, 14.51 km away

Kirkliston, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	true
Directly Connected?	true
Co-rupture Count	120
Co-rupture Rate	1.1361013E-5

Mt Sutton, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	true
Directly Connected?	true
Co-rupture Count	34
Co-rupture Rate	6.19163E-7

Campbell Hills, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	4.4065748E-10

Stonewall, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	true
Directly Connected?	true
Co-rupture Count	137
Co-rupture Rate	8.81315E-10

Waitangi, 1.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gibson, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	1.2125916E-7

Awahokomo, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fern Gully, 4.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grampian, 13.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	2.5135353E-6

Middle Range, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Falstone, 14.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NDIuMGZWQWs2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
