Otaki Forks: 1 Details

Property	Value
Rupture Count	19,300
Ruptures Above Sect Min Mag	19,299
Ruptures w/ Nonzero Rates	51
Magnitude Range	[6.76, 8.61]
Length Range	[17, 1,132] km
Total Rate	1.590947E-4 /yr
Multi-Fault Rate	1.590947E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	118

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

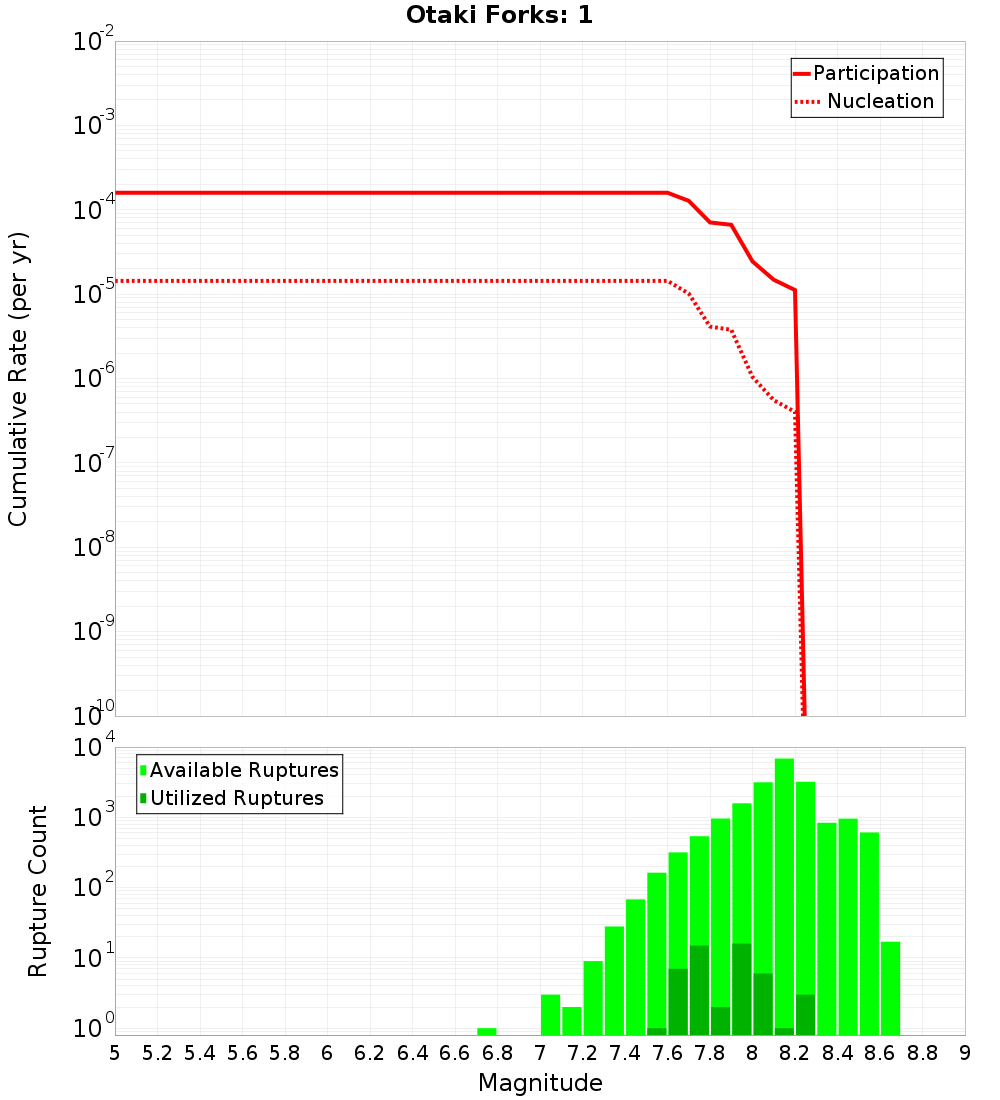

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

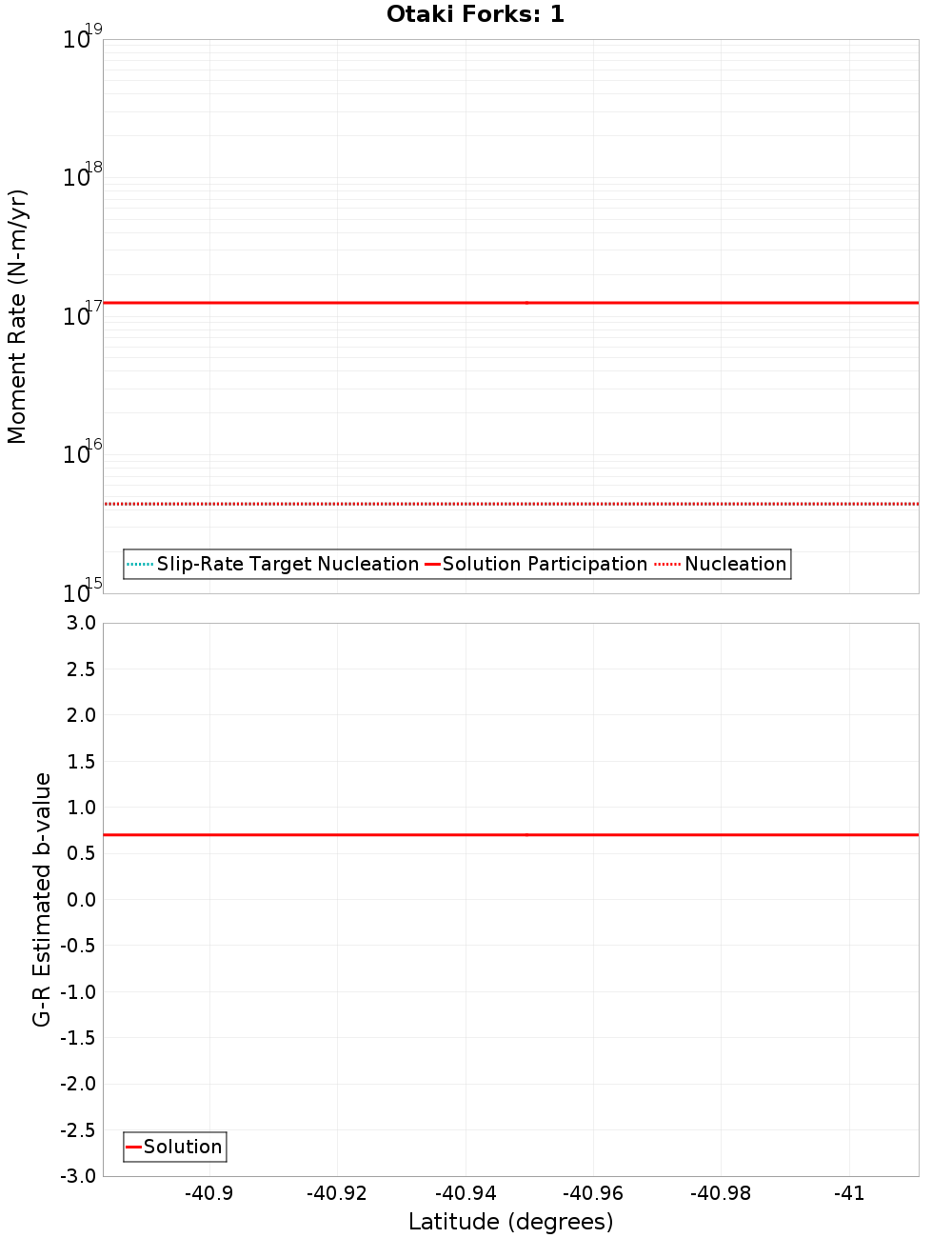

Moment-Rates and b-Values

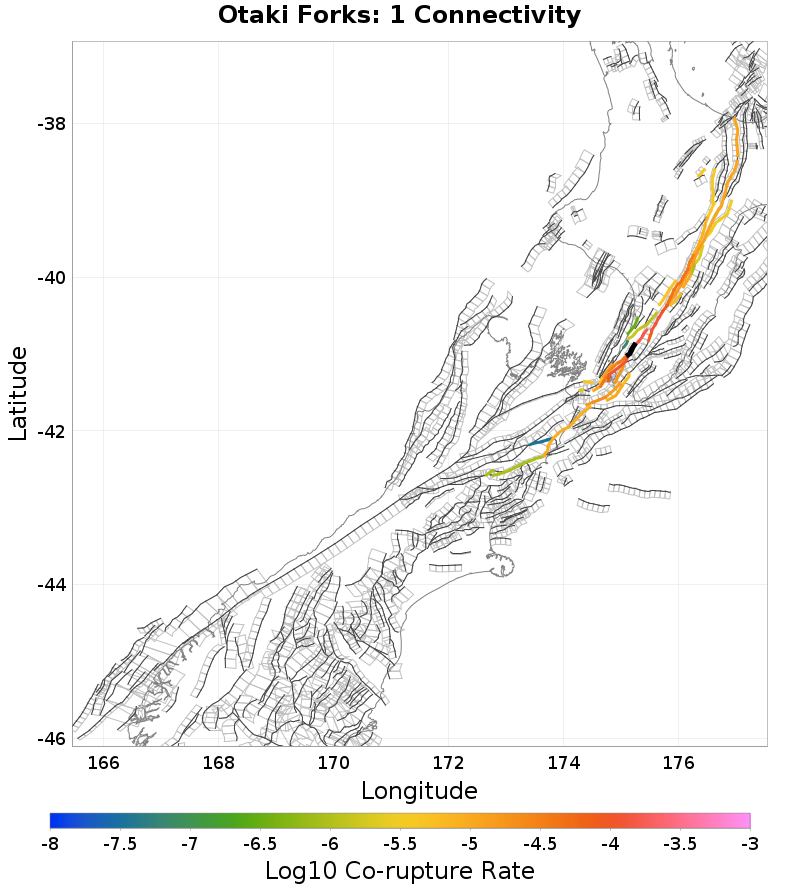

Connectivity

Nearby Sections

Fault Section
Moonshine, 0 km away
Akatarawa, 0 km away
Otaki Forks: 2, 0 km away
Ohariu, 5.13 km away
Northern Ohariu, 7.3 km away
Wellington: Tararua 1, 7.89 km away
Wellington Hutt Valley: 5, 8.56 km away
Wellington: Tararua 2, 10.09 km away
Wellington: Tararua 3, 11.36 km away
Wellington Hutt Valley: 4, 14.19 km away
Pukerua - Shepherds Gully: 3, 14.2 km away

Moonshine, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	true
Co-rupture Count	12,096
Co-rupture Rate	4.3325508E-5

Akatarawa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	true
Co-rupture Count	8,438
Co-rupture Rate	1.15769246E-4

Otaki Forks: 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	true
Co-rupture Count	18,514
Co-rupture Rate	1.5902813E-4

Ohariu, 5.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	true
Co-rupture Count	6,086
Co-rupture Rate	1.5413798E-5

Northern Ohariu, 7.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	false
Co-rupture Count	1,810
Co-rupture Rate	1.5395291E-6

Wellington: Tararua 1, 7.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 5, 8.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 2, 10.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 3, 11.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	false
Co-rupture Count	1,638
Co-rupture Rate	8.0628735E-5

Wellington Hutt Valley: 4, 14.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	false
Co-rupture Count	2,905
Co-rupture Rate	1.2061597E-4

Pukerua - Shepherds Gully: 3, 14.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
