Patoka - Rangiora Details

Property	Value
Rupture Count	4,610
Ruptures Above Sect Min Mag	4,605
Ruptures w/ Nonzero Rates	19
Magnitude Range	[6.91, 8.34]
Length Range	[22, 605] km
Total Rate	9.041032E-4 /yr
Multi-Fault Rate	3.8766954E-4 /yr (42.88%)
Directly-Connected Faults	3
All Co-Rupturing Faults	82

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

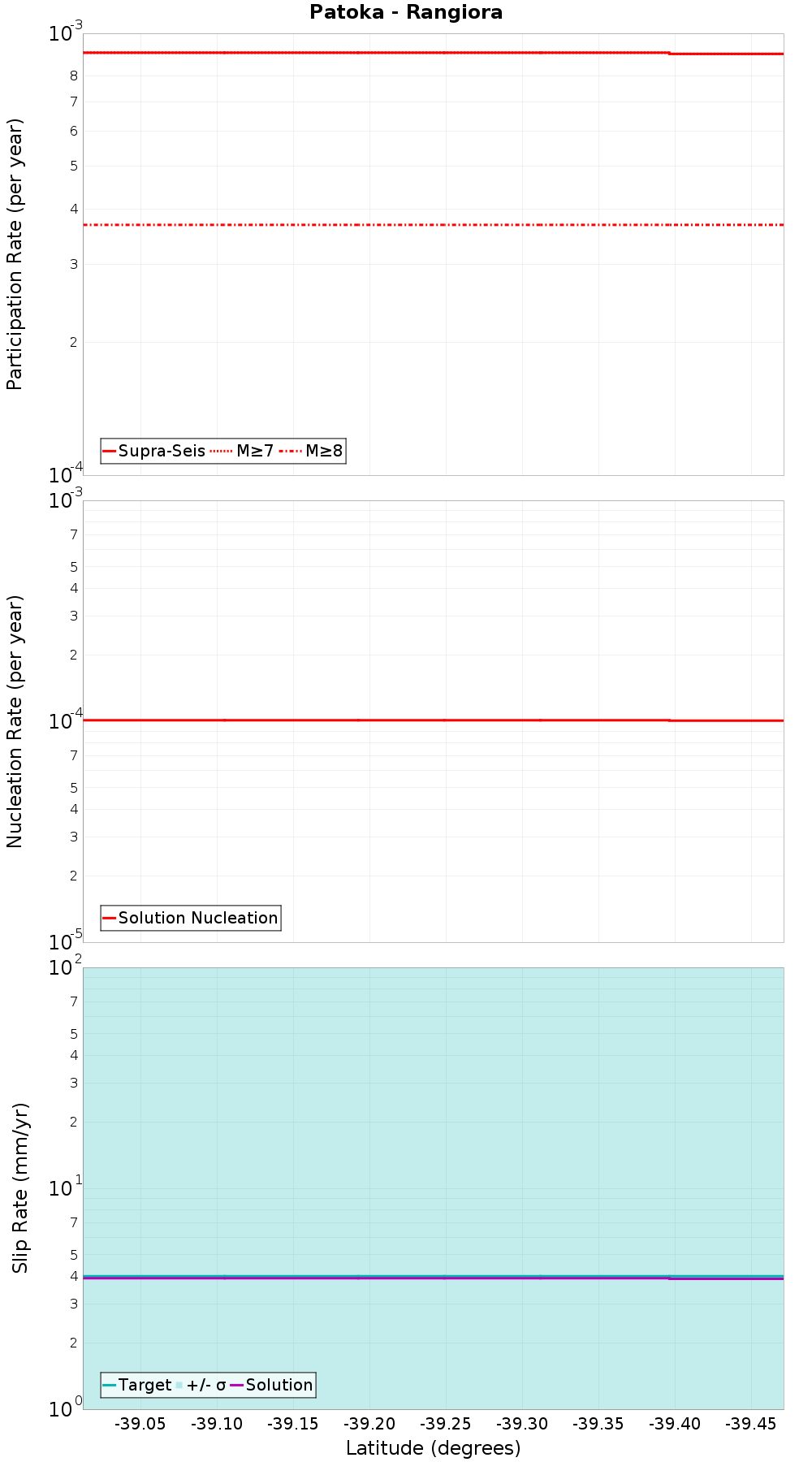

Along-Strike Values

Moment-Rates and b-Values

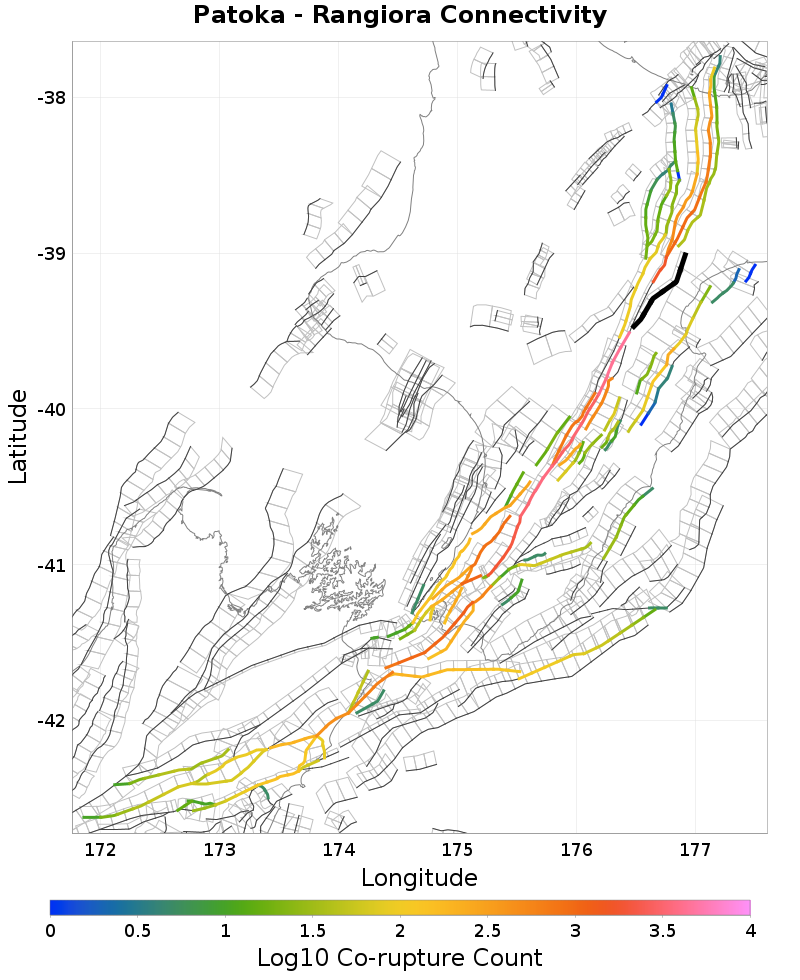

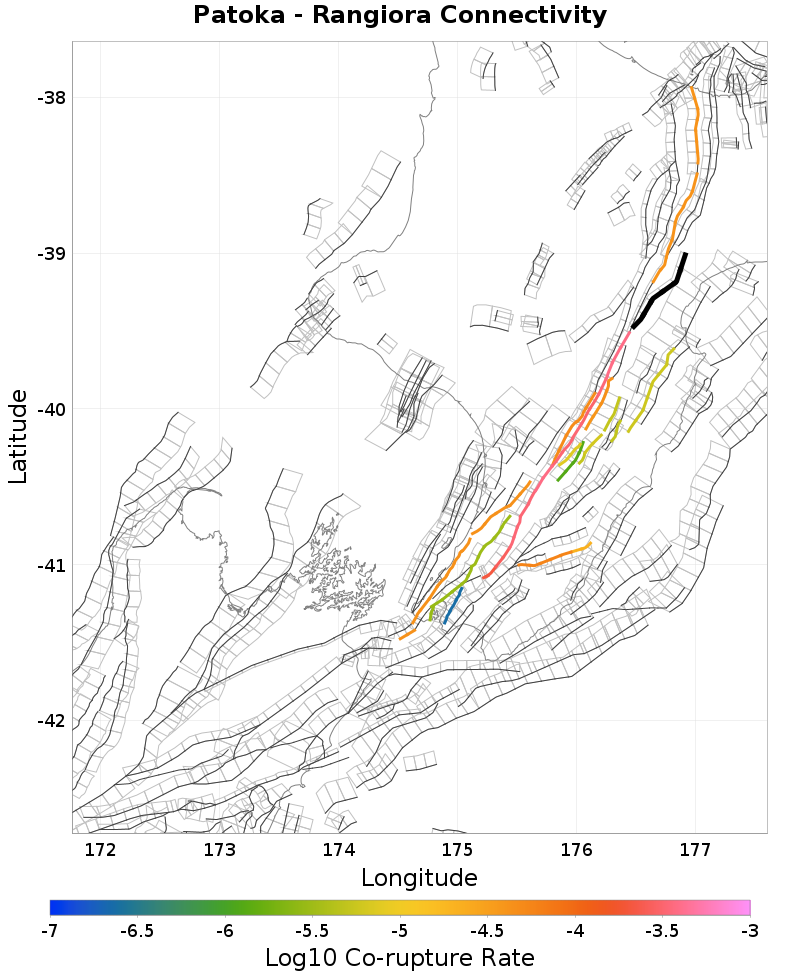

Connectivity

Nearby Sections

Fault Section
Mohaka: North, 0.41 km away
Awanui, 3.5 km away
Mohaka: South, 5.52 km away
Ruahine: North, 6.53 km away
Waiotahi: South, 7.72 km away
Waimana: South, 10.75 km away
Whakatane: South, 12.36 km away
Ruahine: Central, 12.66 km away
Hawke Bay 1, 12.96 km away
Wakarara, 14.99 km away

Mohaka: North, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,658
Co-rupture Rate	4.1571726E-5

Awanui, 3.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	true
Co-rupture Count	236
Co-rupture Rate	5.7585194E-6

Mohaka: South, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	true
Co-rupture Count	4,840
Co-rupture Rate	4.0455384E-4

Ruahine: North, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	false
Co-rupture Count	94
Co-rupture Rate	0.0

Waiotahi: South, 7.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	0.0

Waimana: South, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	false
Co-rupture Count	1,030
Co-rupture Rate	0.0

Whakatane: South, 12.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	false
Co-rupture Count	512
Co-rupture Rate	4.1571726E-5

Ruahine: Central, 12.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawke Bay 1, 12.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Wakarara, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NTQuNVV6bWMy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
