Moumahaki - Okaia 4 Details

Property	Value
Rupture Count	9
Ruptures Above Sect Min Mag	8
Ruptures w/ Nonzero Rates	4
Magnitude Range	[7.13, 7.59]
Length Range	[27, 78] km
Total Rate	6.6744156E-5 /yr
Multi-Fault Rate	2.0248084E-5 /yr (30.34%)
Directly-Connected Faults	2
All Co-Rupturing Faults	2

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

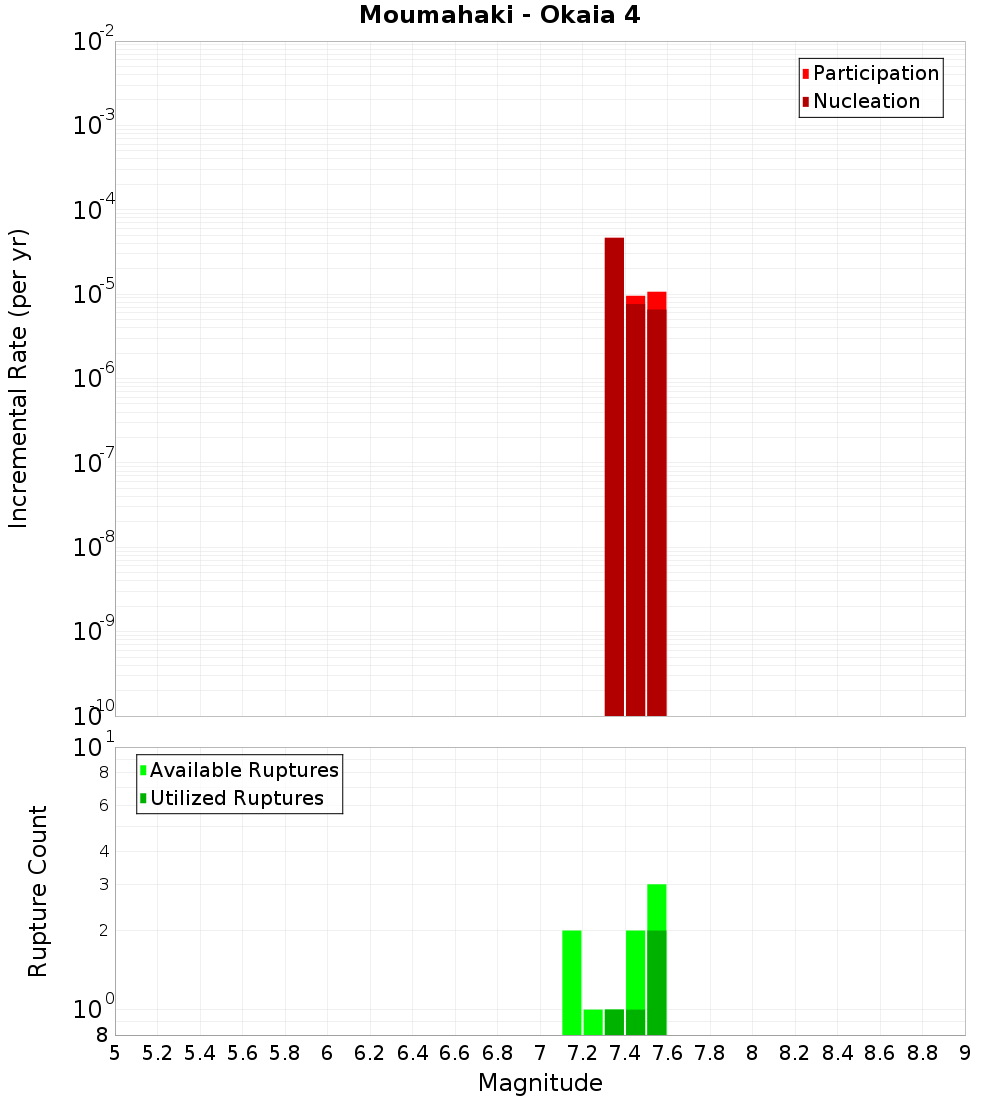

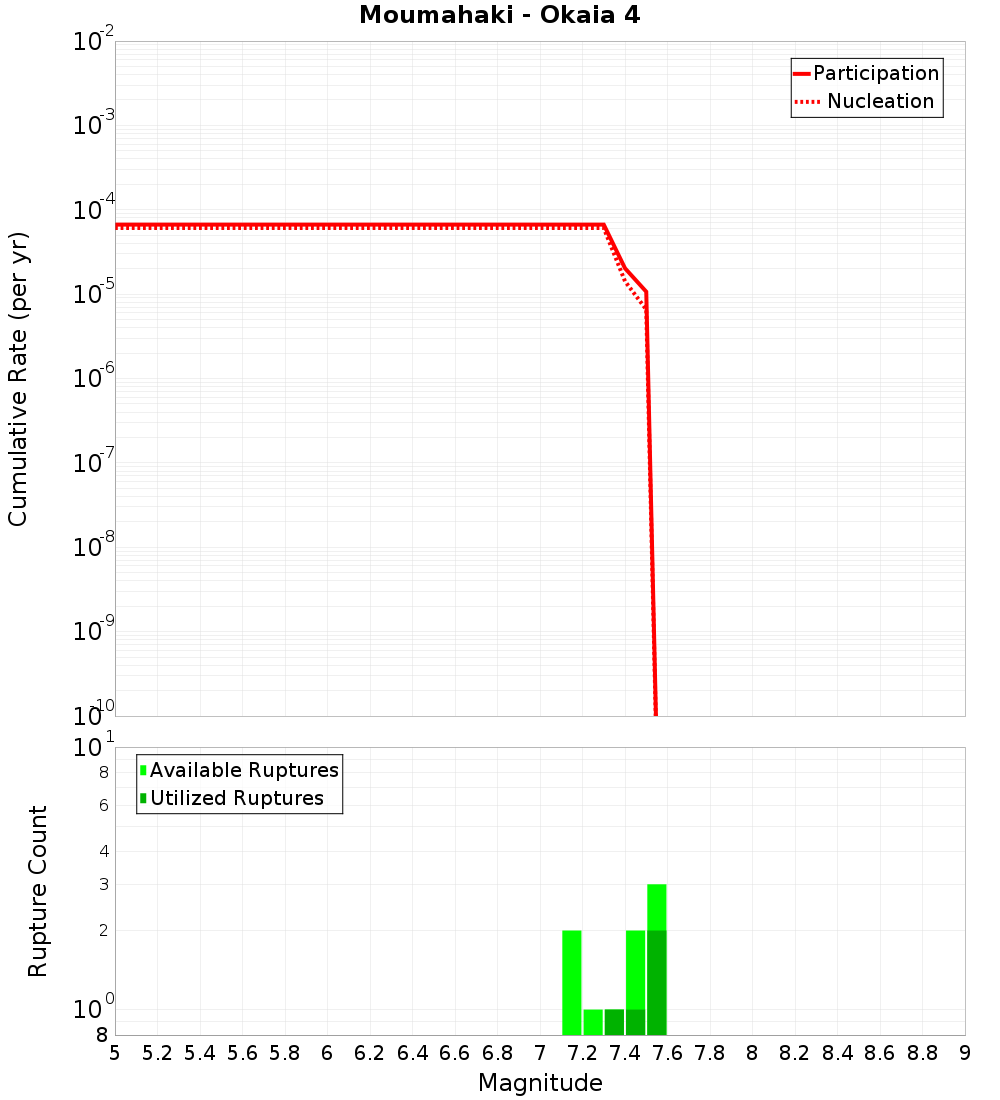

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waverley - Okaia 1, 0.07 km away
Waitotara 8 & 9, 0.2 km away
Ridge Road - Okaia 2, 0.29 km away
Waitotara 10 & 11, 0.36 km away
Okaia 5, 0.59 km away
Okaia 3, 0.95 km away
Nukumuru - Waitotara 1-6, 7.97 km away

Waverley - Okaia 1, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NjEuMGdvNUJ4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitotara 8 & 9, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NjEuMGdvNUJ4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ridge Road - Okaia 2, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NjEuMGdvNUJ4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitotara 10 & 11, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NjEuMGdvNUJ4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okaia 5, 0.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NjEuMGdvNUJ4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okaia 3, 0.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NjEuMGdvNUJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	9.565433E-6

Nukumuru - Waitotara 1-6, 7.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NjEuMGdvNUJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	1.068265E-5
