Vernon 2 Details

PropertyValue
Rupture Count2,479
Ruptures Above Sect Min Mag2,475
Ruptures w/ Nonzero Rates14
Magnitude Range[6.60, 8.54]
Length Range[13, 894] km
Total Rate0.0010049398 /yr
Multi-Fault Rate0.0010049398 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults90

Table Of Contents

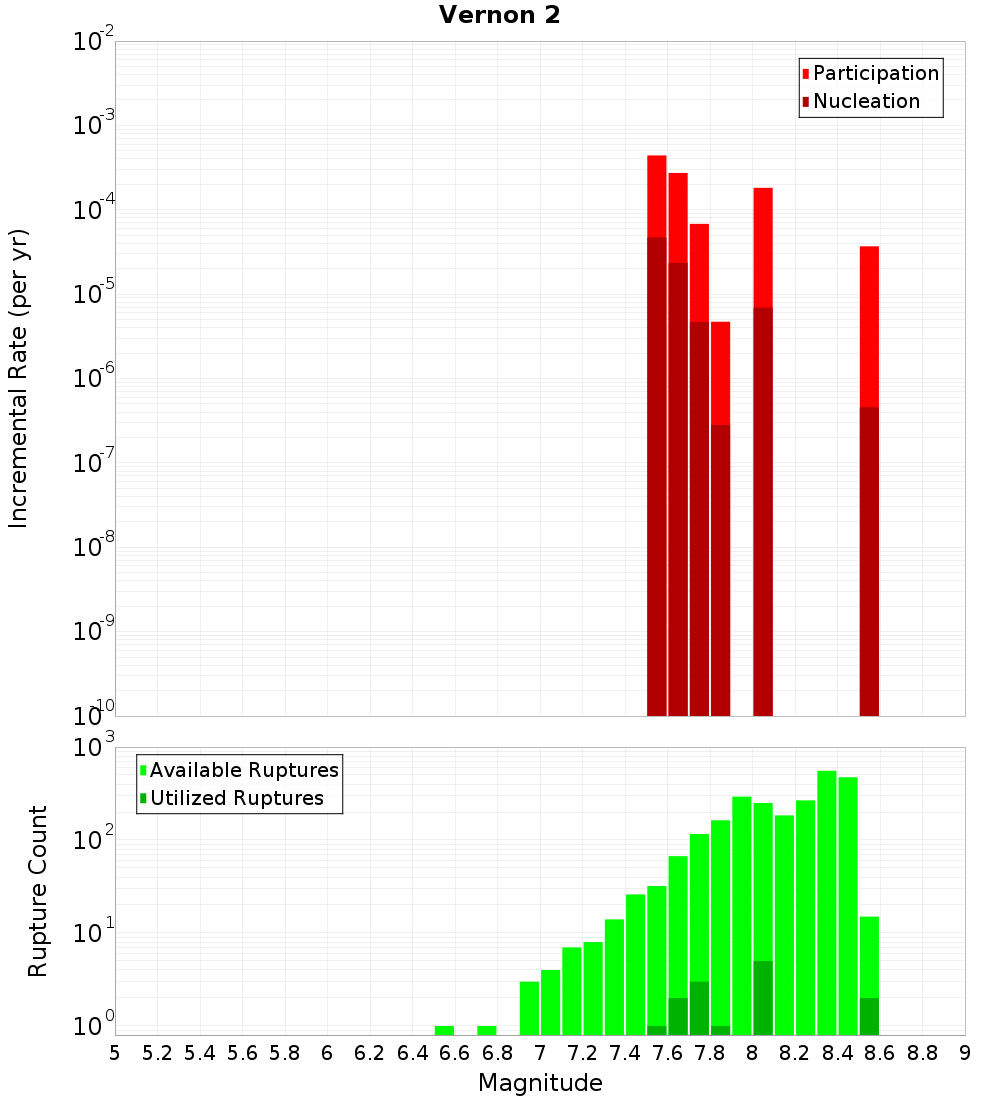

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

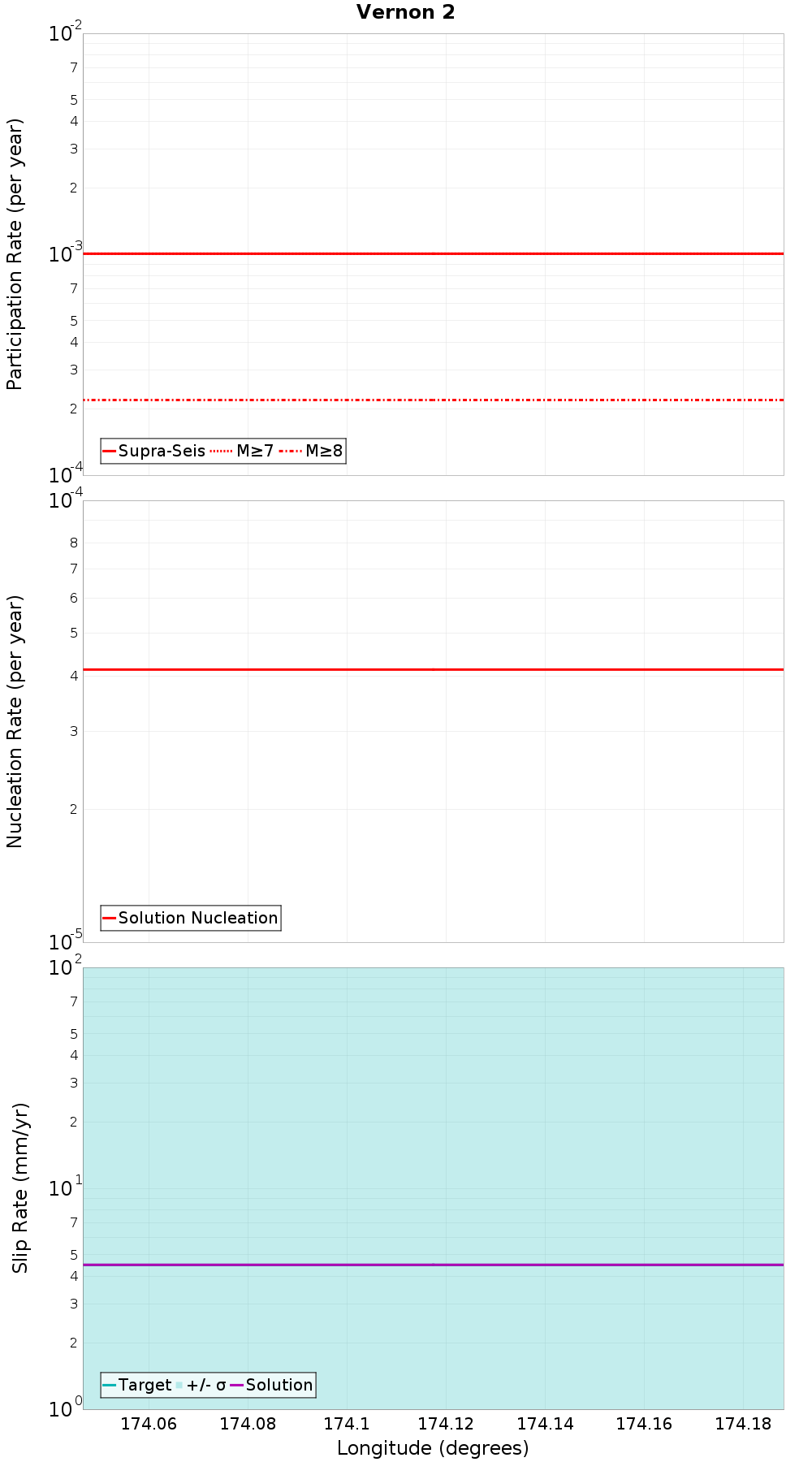

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

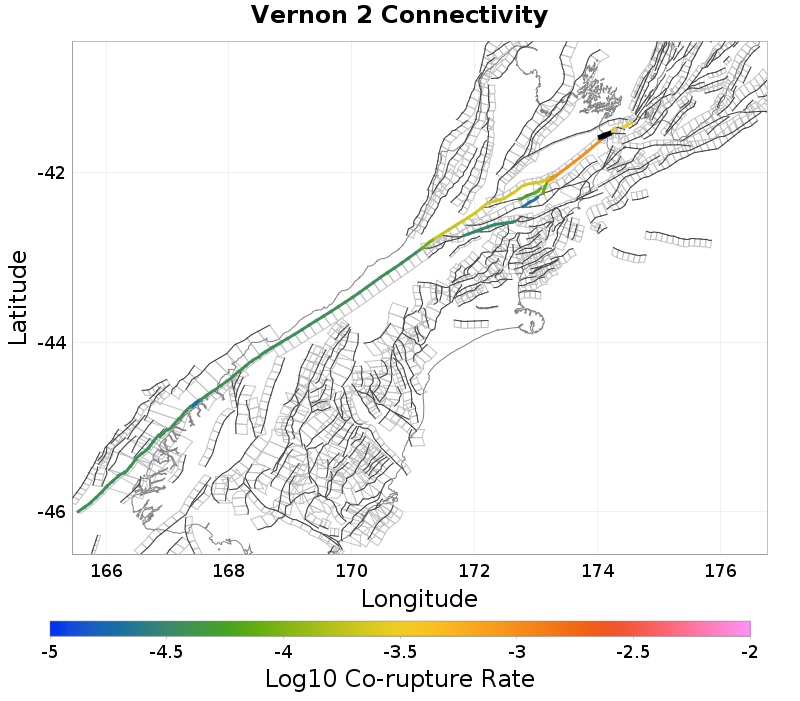

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cloudy 1, 0 km away
Vernon 1, 0 km away
Vernon 3, 0 km away
Awatere: Northeast 2, 0.12 km away
Awatere: Northeast 1, 4.62 km away
Vernon 4, 5.22 km away
Cloudy 3, 7.26 km away
Cloudy 2, 8.36 km away
Needles East 2, 12.36 km away
Wairau, 14 km away
Wairarapa: Needles, 14.03 km away
Wairau 2, 14.3 km away

Cloudy 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?true
Directly Connected?true
Co-rupture Count1,258
Co-rupture Rate3.127921E-4

Vernon 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?true
Directly Connected?true
Co-rupture Count450
Co-rupture Rate9.3814766E-4

Vernon 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Northeast 2, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?true
Directly Connected?true
Co-rupture Count460
Co-rupture Rate0.0

Awatere: Northeast 1, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?true
Directly Connected?true
Co-rupture Count2,269
Co-rupture Rate0.0010049398

Vernon 4, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Cloudy 2, 8.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Needles East 2, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?true
Directly Connected?false
Co-rupture Count247
Co-rupture Rate0.0

Wairarapa: Needles, 14.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 2, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc3NzUuMG1IOXQ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
