Grampian Details

PropertyValue
Rupture Count137
Ruptures Above Sect Min Mag136
Ruptures w/ Nonzero Rates12
Magnitude Range[6.99, 7.81]
Length Range[21, 177] km
Total Rate1.7602946E-5 /yr
Multi-Fault Rate7.5458033E-6 /yr (42.87%)
Directly-Connected Faults4
All Co-Rupturing Faults18

Table Of Contents

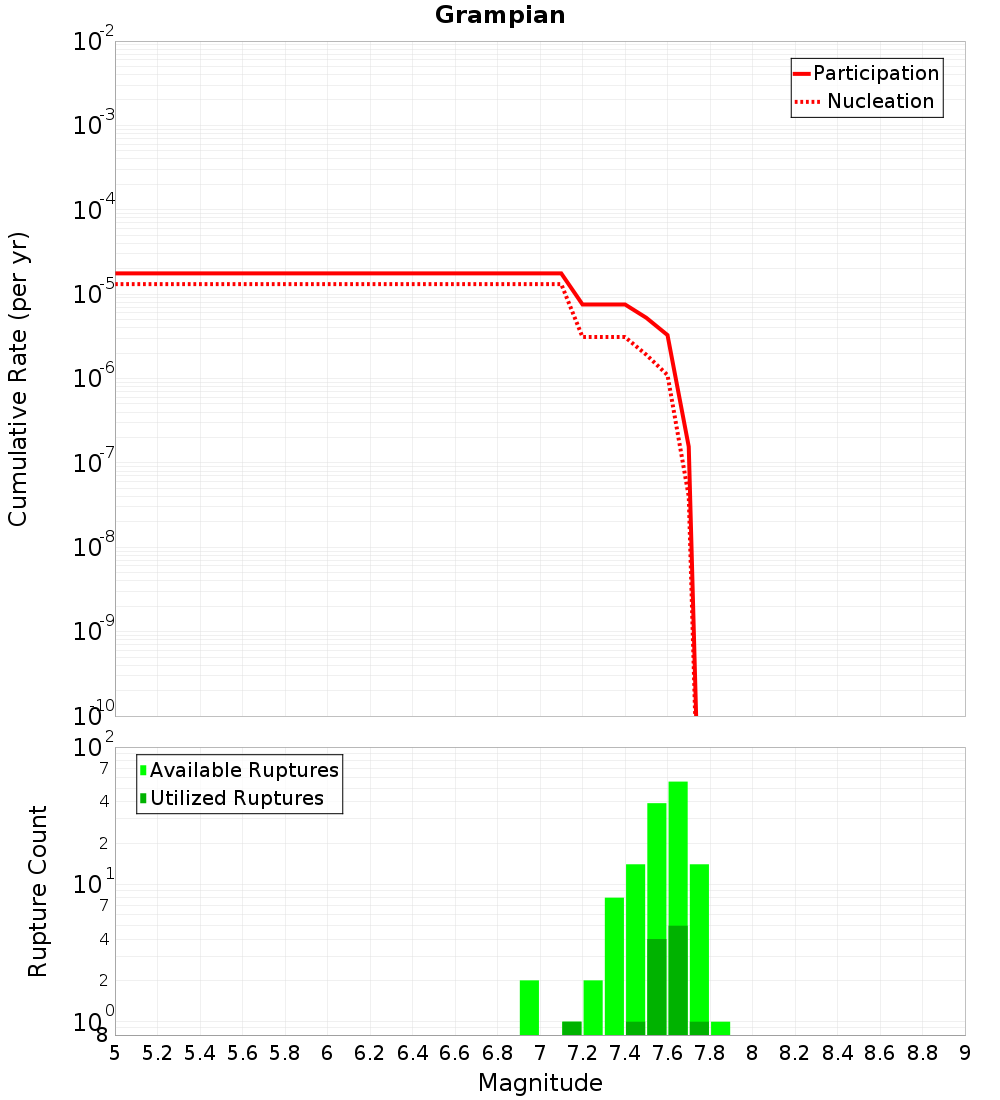

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mt Sutton, 1.54 km away
Dalgety, 4.61 km away
Kirkliston, 4.67 km away
Gibson, 6.29 km away
Irishman Creek, 10.72 km away
Middle Range, 11.17 km away
Chamberlain, 11.5 km away
Falstone, 12.43 km away
Dryburgh, 13.34 km away
Waitangi, 14.38 km away
Hunters, 14.81 km away

Mt Sutton, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?true
Directly Connected?true
Co-rupture Count72
Co-rupture Rate1.5566303E-7

Dalgety, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate7.319199E-6

Gibson, 6.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Irishman Creek, 10.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Middle Range, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate1.5566303E-7

Chamberlain, 11.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate5.3700067E-8

Falstone, 12.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dryburgh, 13.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate2.2995175E-6

Waitangi, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate1.5566303E-7

Hunters, 14.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MDguMHFFblZt
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate7.094107E-8
