Te Whaiti North Details

PropertyValue
Rupture Count901
Ruptures Above Sect Min Mag900
Ruptures w/ Nonzero Rates5
Magnitude Range[6.37, 8.40]
Length Range[8, 687] km
Total Rate1.3996124E-4 /yr
Multi-Fault Rate1.3996124E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults77

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

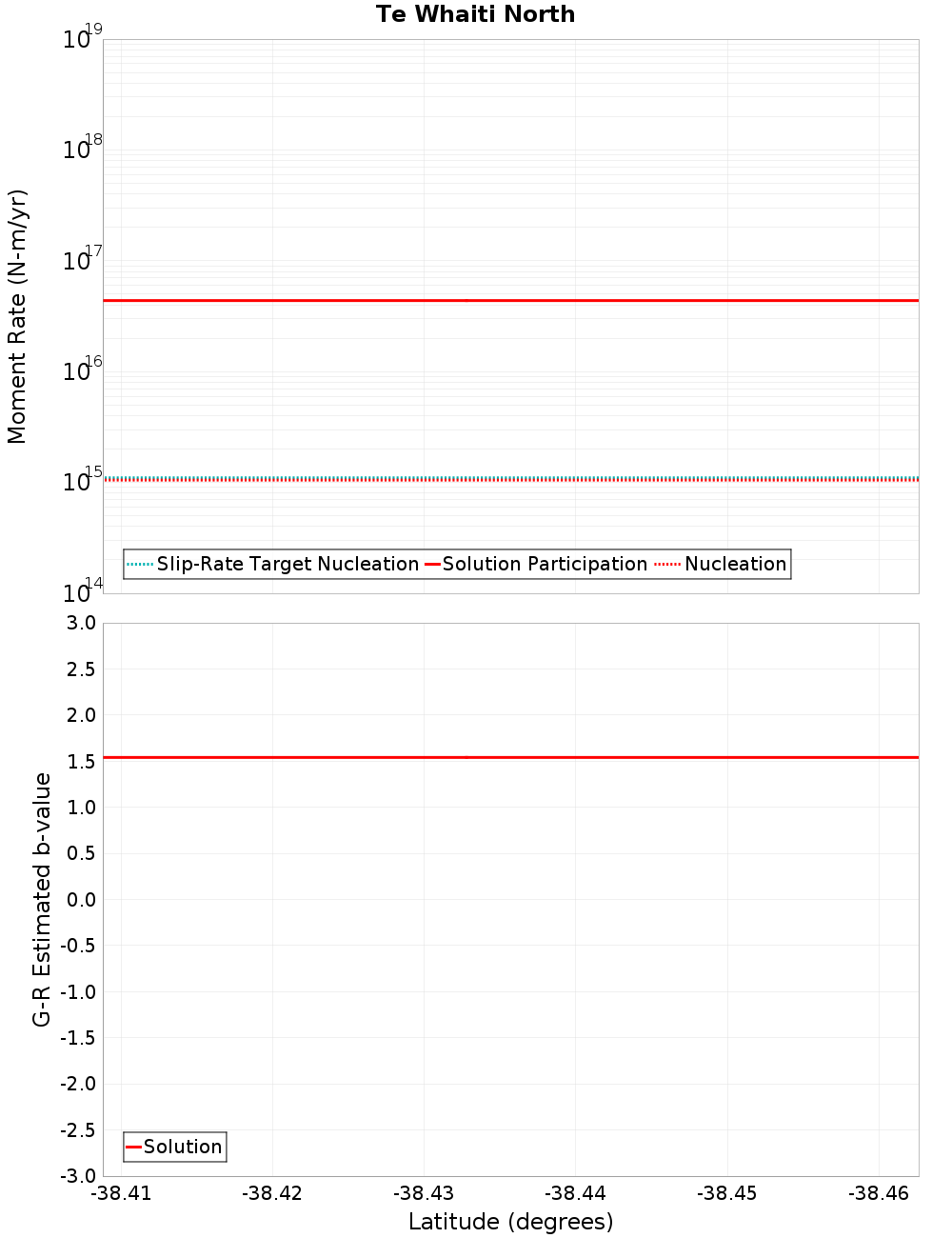

Moment-Rates and b-Values

(top)

Along-strike plot

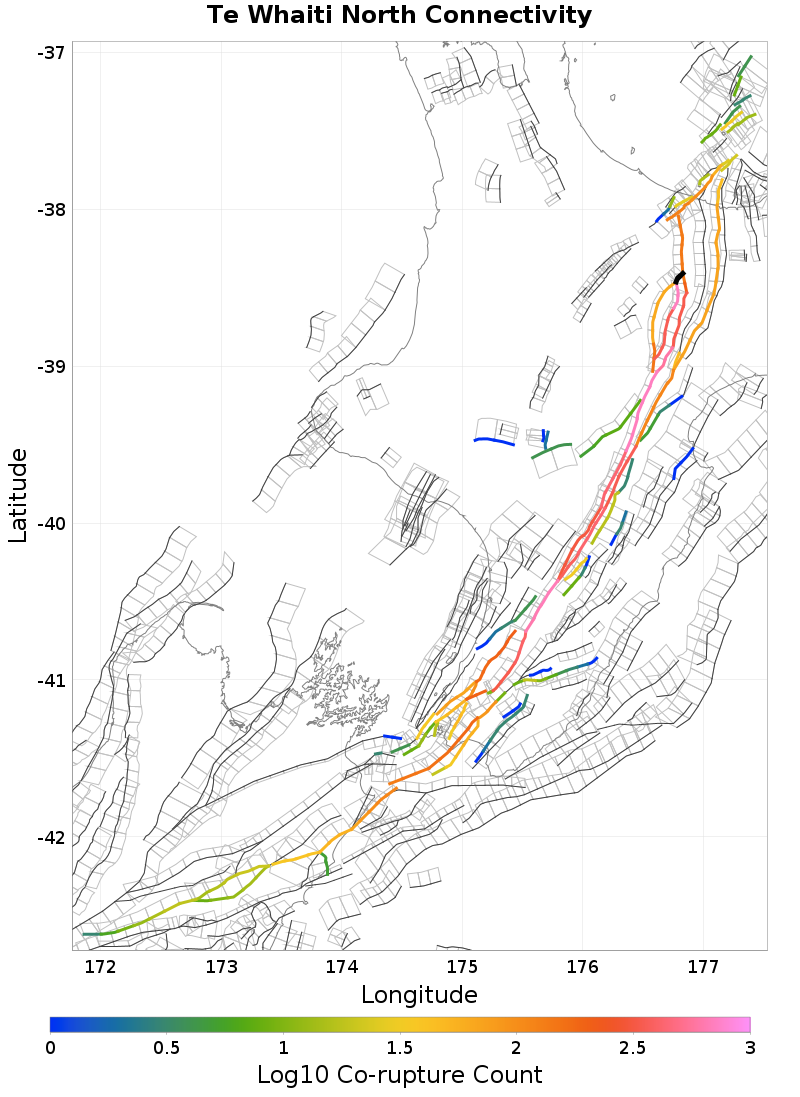

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Whaiti South, 0 km away
Wheao: North, 0 km away
Waiohau: North, 0.16 km away
Waiohau: South, 10.36 km away
Wheao: South, 11.11 km away
Whakatane: North, 13.65 km away

Te Whaiti South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?true
Directly Connected?true
Co-rupture Count697
Co-rupture Rate4.7226793E-5

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?true
Directly Connected?false
Co-rupture Count63
Co-rupture Rate0.0

Waiohau: North, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?true
Directly Connected?true
Co-rupture Count203
Co-rupture Rate9.2734444E-5

Waiohau: South, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?true
Directly Connected?false
Co-rupture Count603
Co-rupture Rate0.0

Wheao: South, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?true
Directly Connected?false
Co-rupture Count152
Co-rupture Rate0.0

Whakatane: North, 13.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
