West Wakatipu Details

Property	Value
Rupture Count	2,184
Ruptures Above Sect Min Mag	2,182
Ruptures w/ Nonzero Rates	5
Magnitude Range	[7.05, 8.54]
Length Range	[25, 865] km
Total Rate	4.230494E-6 /yr
Multi-Fault Rate	4.230494E-6 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	57

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

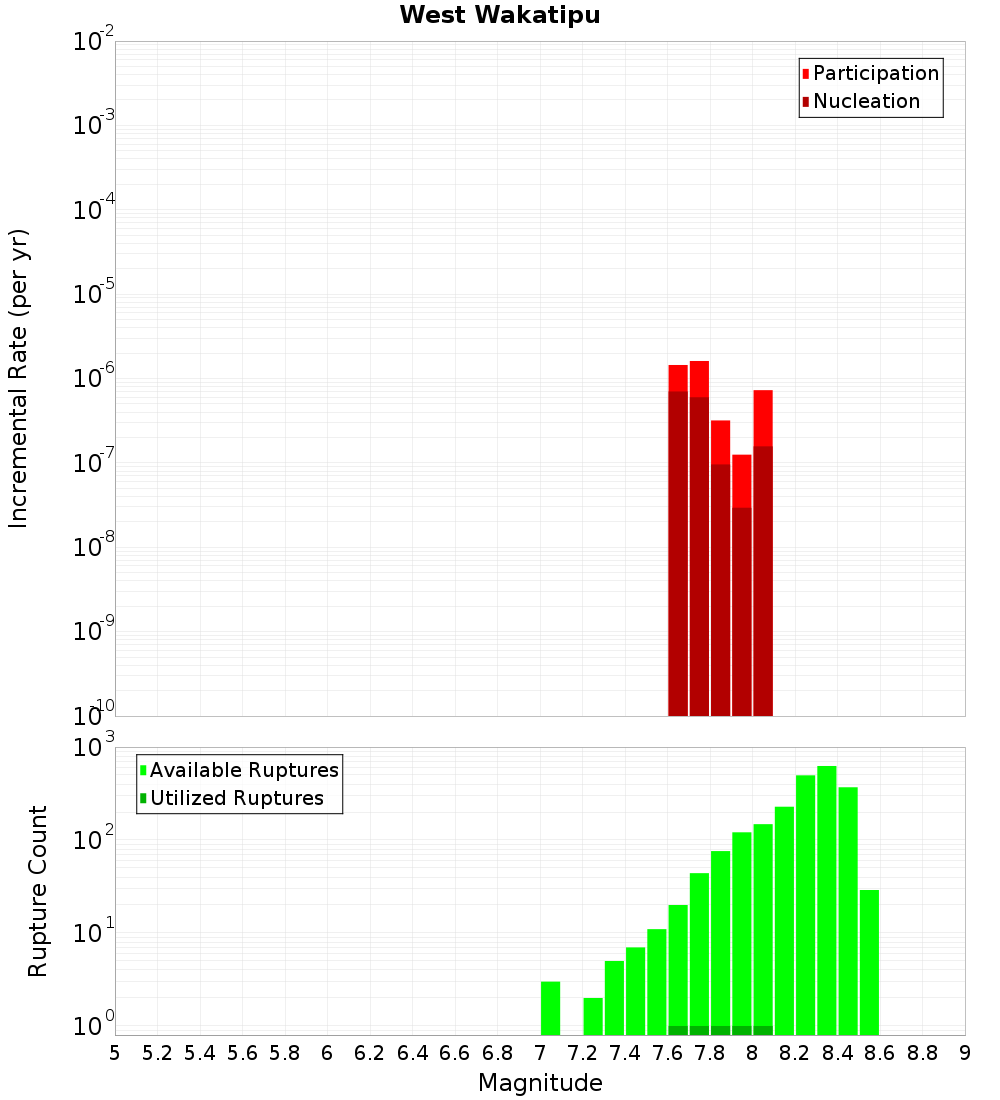

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Moonlight North, 0.14 km away
Moonlight South, 1.86 km away
Livingstone, 7.08 km away
Nevis, 7.52 km away
NW Cardrona South, 12.07 km away
Darran, 12.9 km away
Hollyford, 13.88 km away

Moonlight North, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,027
Co-rupture Rate	0.0

Moonlight South, 1.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	1,449
Co-rupture Rate	2.784154E-6

Livingstone, 7.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?	true
Directly Connected?	true
Co-rupture Count	24
Co-rupture Rate	4.230494E-6

Nevis, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0

NW Cardrona South, 12.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Darran, 12.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hollyford, 13.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzIuMFJtM2Rr
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	4.230494E-6
