Motuokura North Details
| Property | Value |
|---|---|
| Rupture Count | 1,039 |
| Ruptures Above Sect Min Mag | 1,036 |
| Ruptures w/ Nonzero Rates | 19 |
| Magnitude Range | [6.80, 8.23] |
| Length Range | [20, 546] km |
| Total Rate | 2.64447E-4 /yr |
| Multi-Fault Rate | 2.64447E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 27 |
Table Of Contents

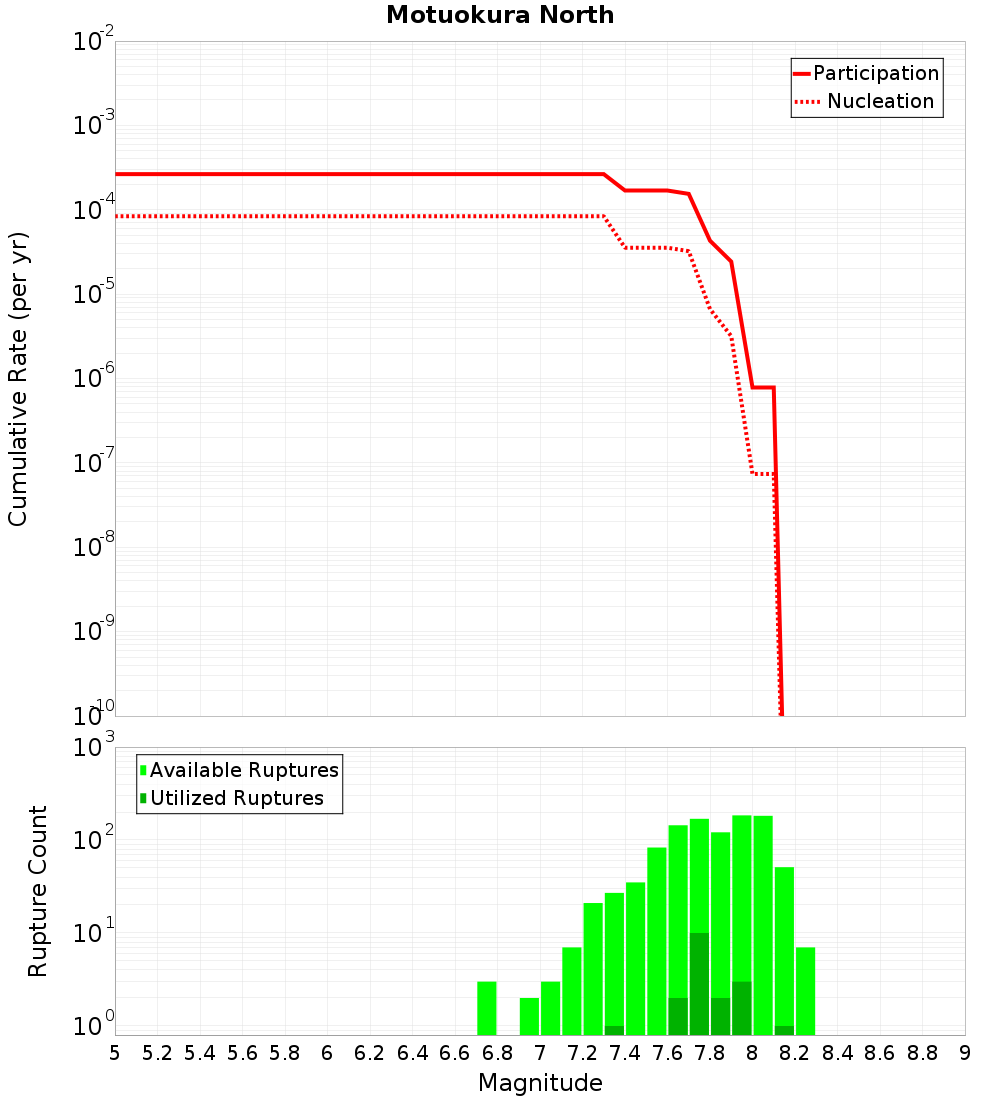

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

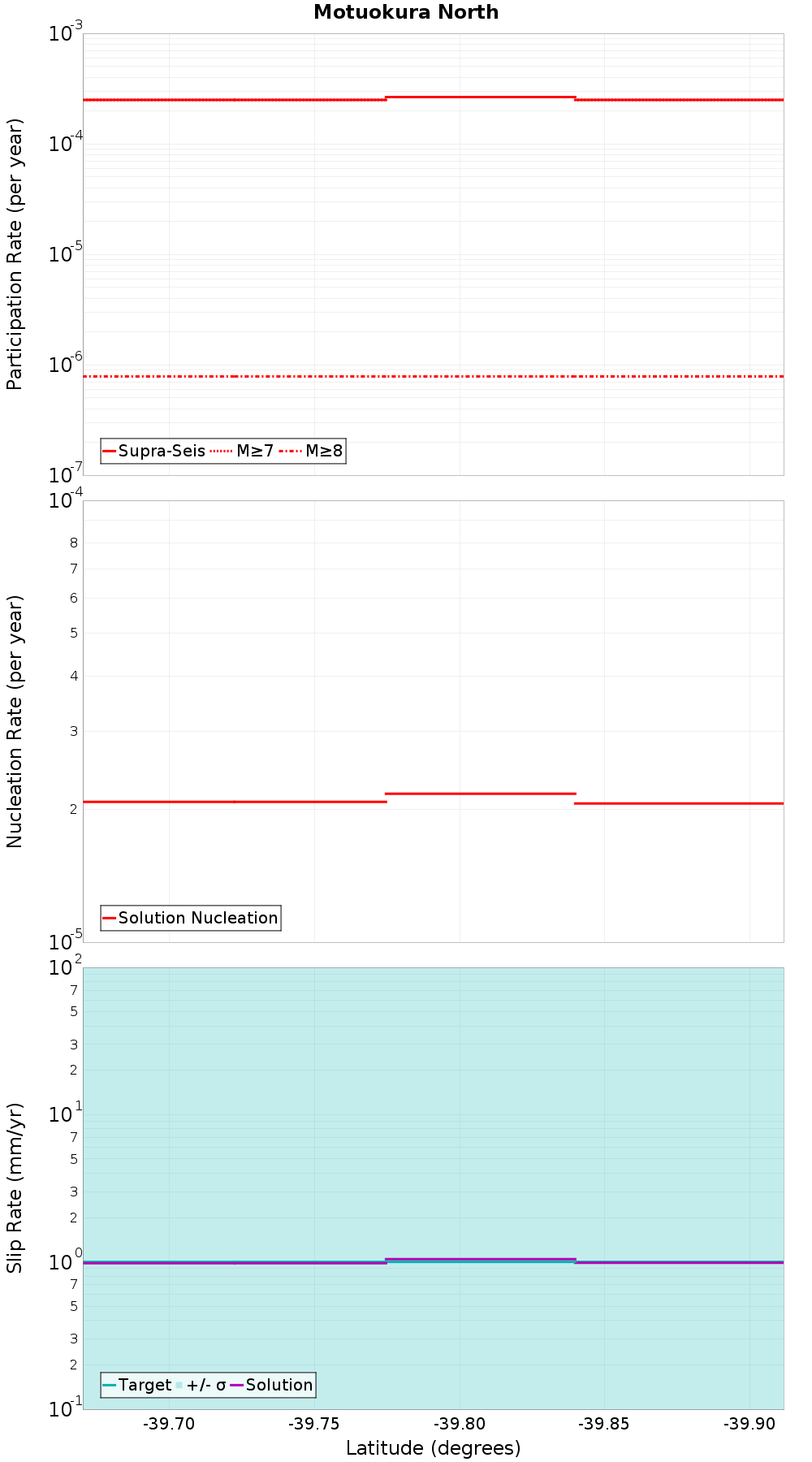

Along-Strike Values

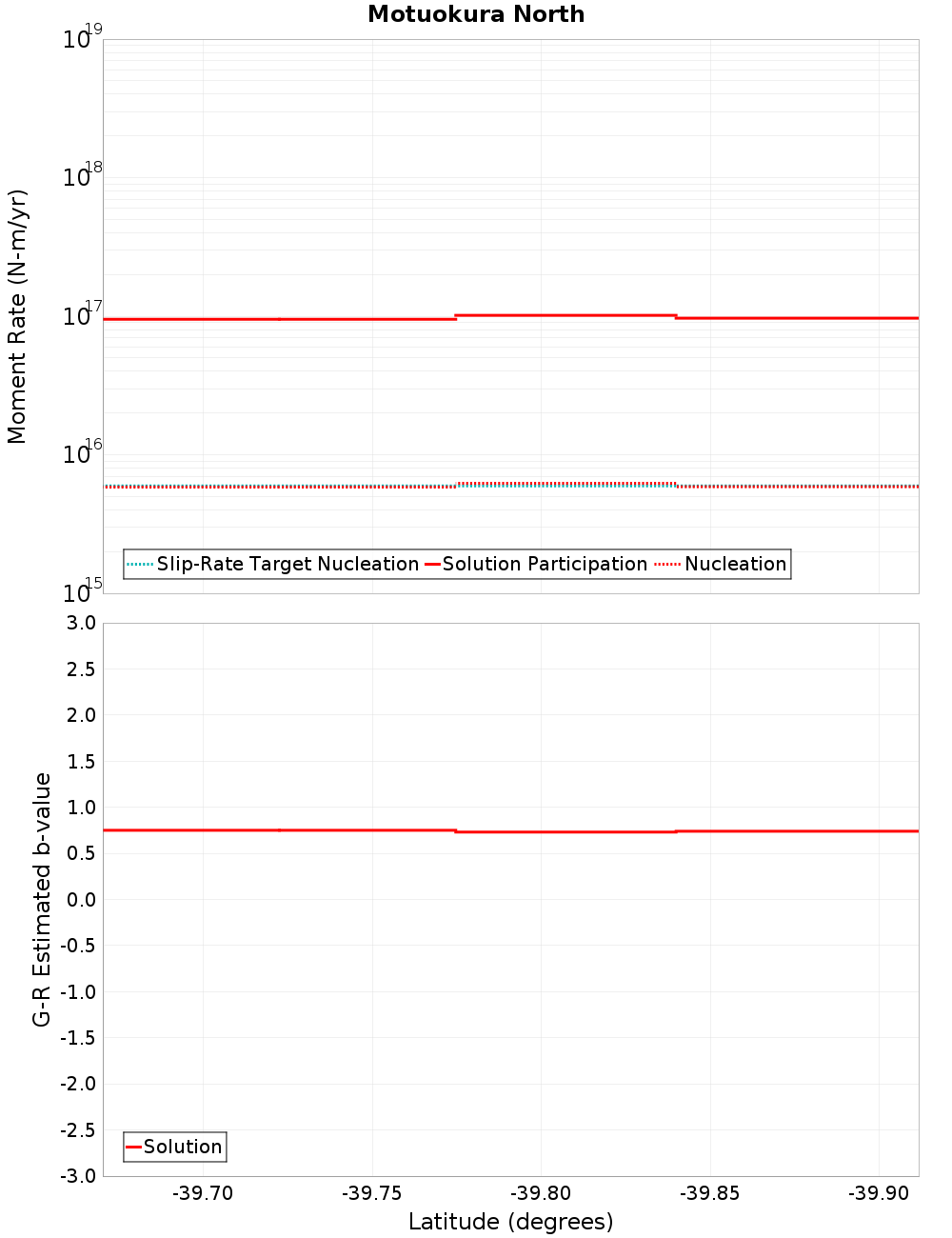

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Motu o Kura Ridge, 0 km away |
| Motu o Kura East, 7.07 km away |
| Lachlan 1 & 2, 10.61 km away |
Motu o Kura Ridge, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzYuMHZlbVBZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 678 |
| Co-rupture Rate | 1.8940588E-4 |
Motu o Kura East, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzYuMHZlbVBZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 303 |
| Co-rupture Rate | 6.029286E-5 |
Lachlan 1 & 2, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzYuMHZlbVBZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 380 |
| Co-rupture Rate | 2.9594788E-5 |
