Needles Details

PropertyValue
Rupture Count53,906
Ruptures Above Sect Min Mag53,897
Ruptures w/ Nonzero Rates244
Magnitude Range[6.68, 8.53]
Length Range[17, 973] km
Total Rate0.0028352619 /yr
Multi-Fault Rate0.0028352619 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults182

Table Of Contents

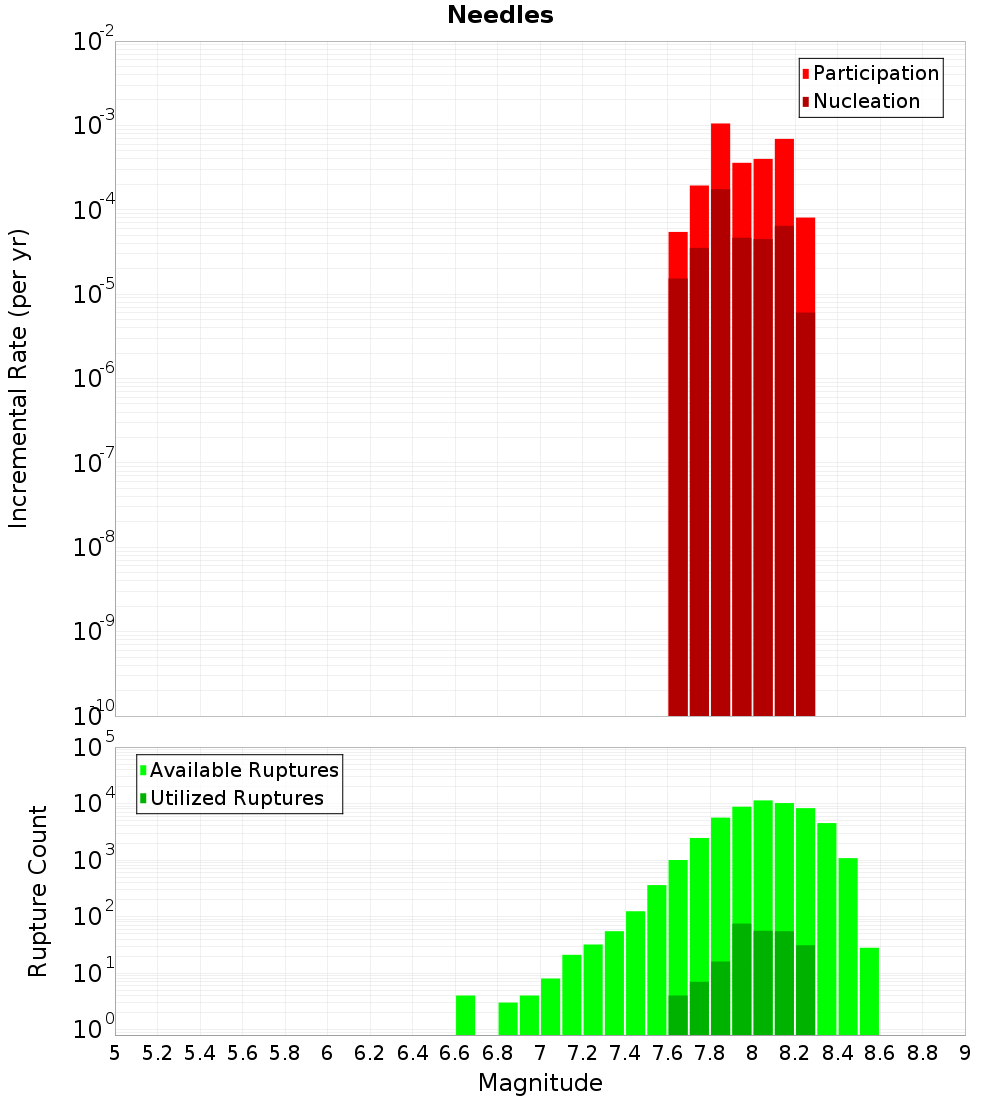

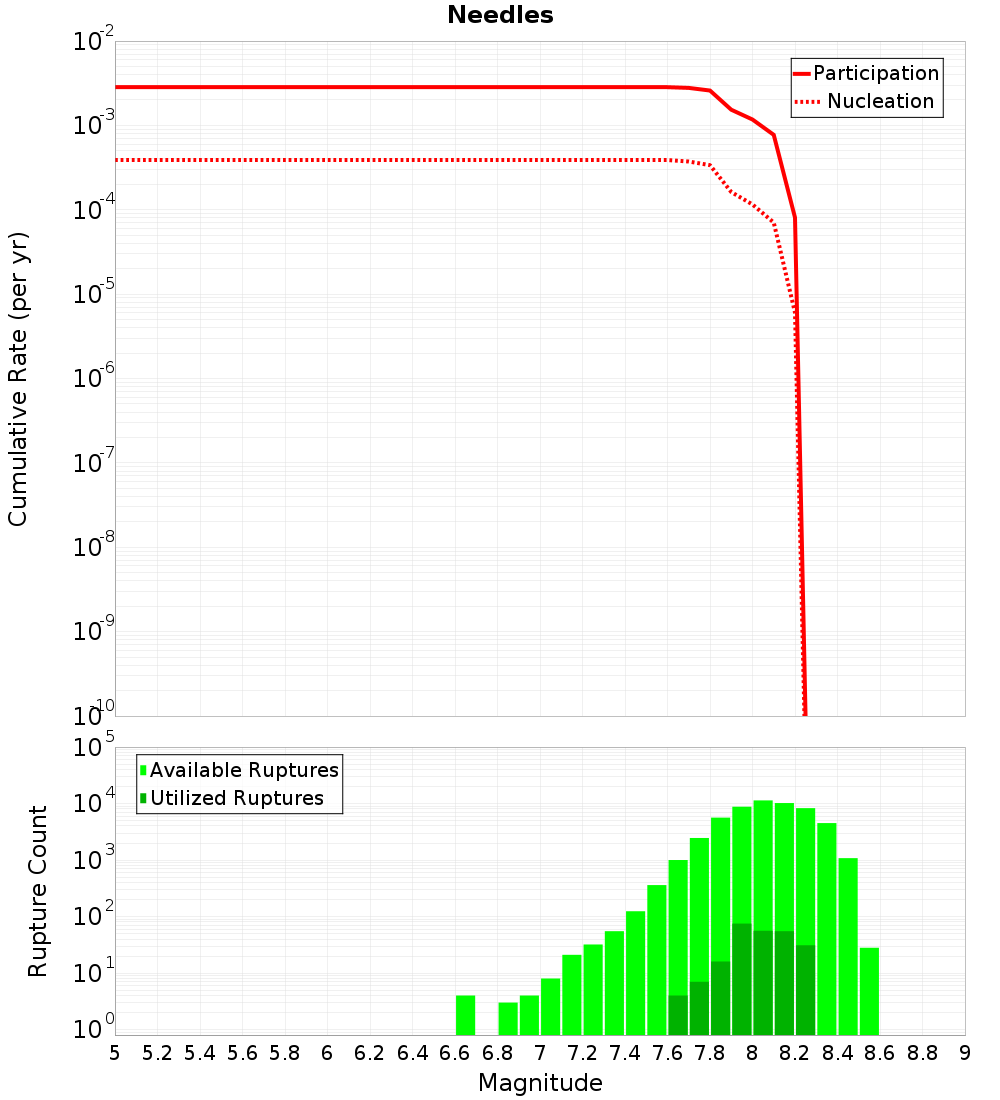

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

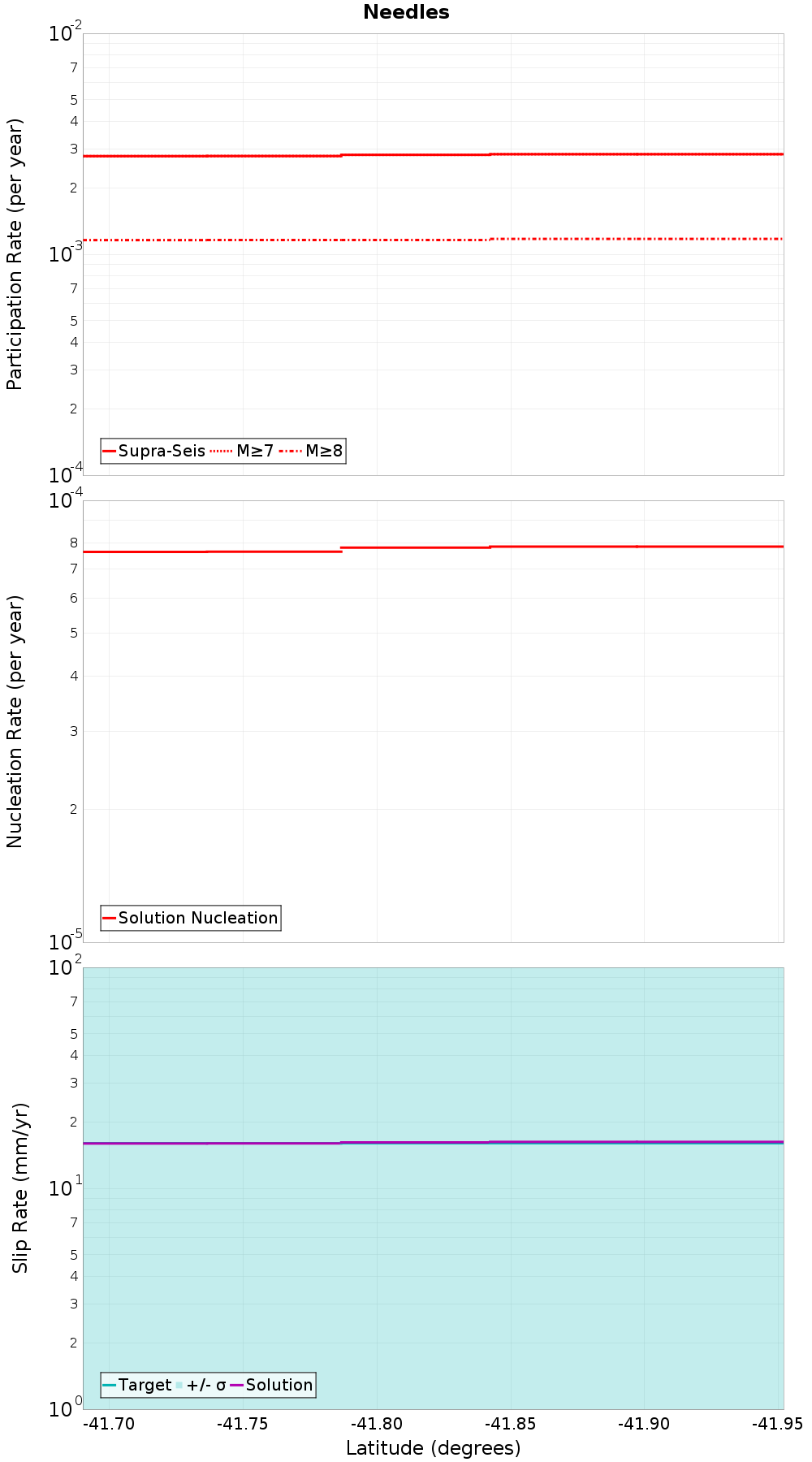

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

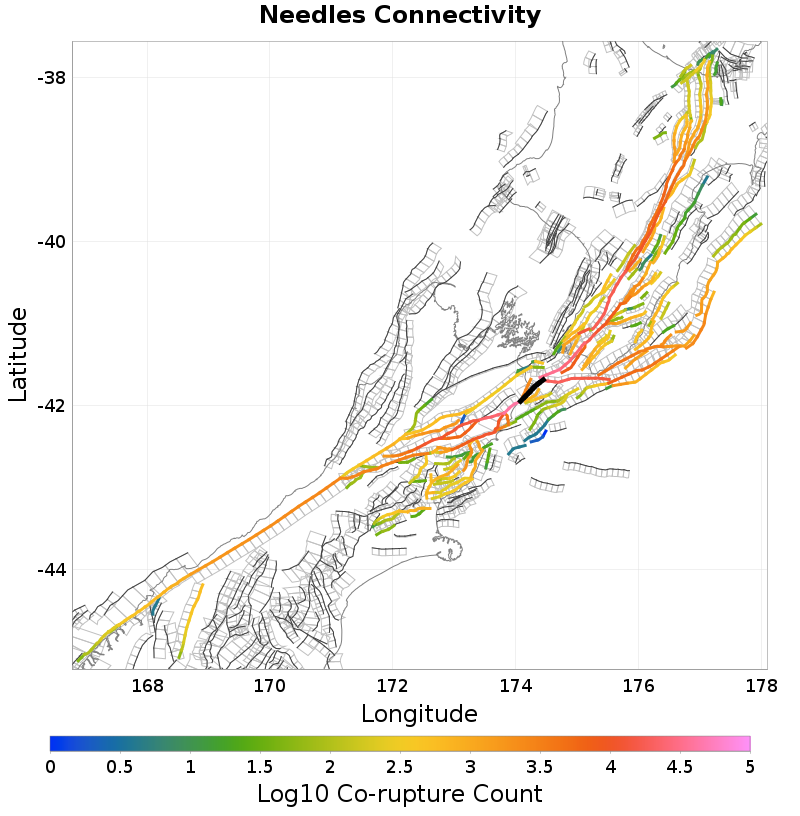

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kekerengu 1, 0 km away
London Hill, 0 km away
BooBoo, 0.17 km away
Needles East 2, 0.22 km away
Vernon 4, 3.69 km away
Wairarapa: Needles, 4.57 km away
Chancet, 6.52 km away
Cloudy 3, 9.38 km away
Wharanui, 10.35 km away
Clarence: Northeast, 11.97 km away
Upper Slope, 14.3 km away
Vernon 3, 14.87 km away

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?true
Directly Connected?true
Co-rupture Count40,777
Co-rupture Rate0.0028349317

London Hill, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?true
Directly Connected?true
Co-rupture Count3,448
Co-rupture Rate0.0

BooBoo, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?true
Directly Connected?true
Co-rupture Count19,770
Co-rupture Rate0.0014362124

Needles East 2, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?true
Directly Connected?true
Co-rupture Count788
Co-rupture Rate0.0

Vernon 4, 3.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?true
Directly Connected?false
Co-rupture Count46
Co-rupture Rate7.038481E-4

Wairarapa: Needles, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?true
Directly Connected?true
Co-rupture Count33,033
Co-rupture Rate0.0011618064

Chancet, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?true
Directly Connected?true
Co-rupture Count625
Co-rupture Rate3.713321E-5

Cloudy 3, 9.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?true
Directly Connected?false
Co-rupture Count438
Co-rupture Rate7.9431295E-5

Wharanui, 10.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Northeast, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Upper Slope, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?true
Directly Connected?false
Co-rupture Count247
Co-rupture Rate1.5716858E-5

Vernon 3, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc4MzguMGhjalBZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
