Dunback Hill Details

PropertyValue
Rupture Count131
Ruptures Above Sect Min Mag129
Ruptures w/ Nonzero Rates17
Magnitude Range[6.94, 7.93]
Length Range[25, 220] km
Total Rate2.5124586E-5 /yr
Multi-Fault Rate9.147445E-6 /yr (36.41%)
Directly-Connected Faults6
All Co-Rupturing Faults23

Table Of Contents

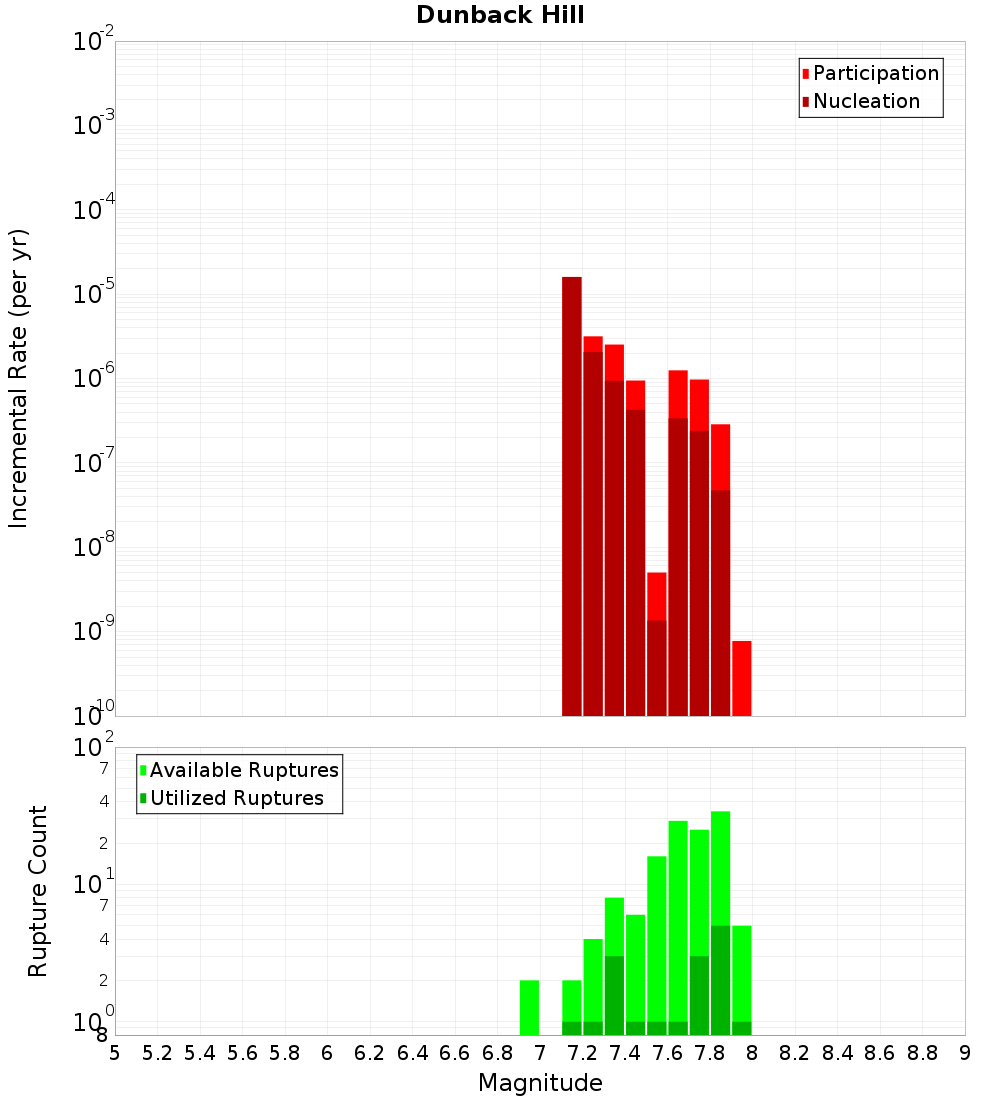

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

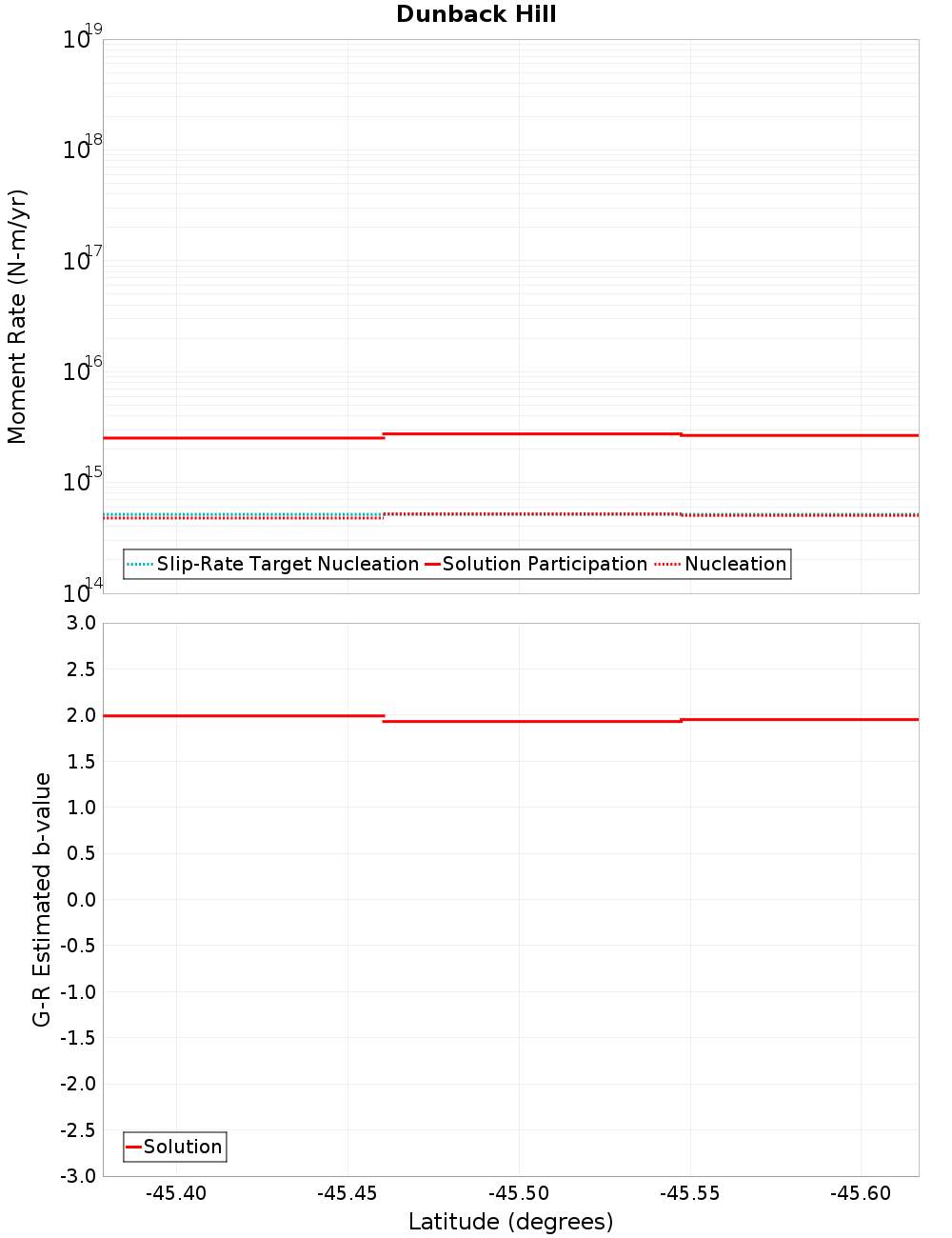

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waipiata, 0.51 km away
Murphys Creek, 2.53 km away
Flat Stream - Glenpark, 2.82 km away
Waihemo, 3.36 km away
Nichols Rock, 3.53 km away
Logan Burn, 3.59 km away
Ranfurly, 4.86 km away
Billys Ridge, 5.55 km away
Horse Flat, 9.22 km away
Pylap, 9.81 km away
Sliver Stream - Merton, 11.65 km away
Hyde North, 14.52 km away

Waipiata, 0.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate7.555031E-9

Murphys Creek, 2.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate1.8353652E-6

Flat Stream - Glenpark, 2.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate6.9967376E-7

Waihemo, 3.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?true
Directly Connected?true
Co-rupture Count54
Co-rupture Rate6.9215457E-6

Logan Burn, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate7.23566E-18

Ranfurly, 4.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Billys Ridge, 5.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Horse Flat, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pylap, 9.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sliver Stream - Merton, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?true
Directly Connected?true
Co-rupture Count27
Co-rupture Rate2.2216004E-6

Hyde North, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
