Houtunui Details
| Property | Value |
|---|---|
| Rupture Count | 36 |
| Ruptures Above Sect Min Mag | 22 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.64, 7.39] |
| Length Range | [18, 99] km |
| Total Rate | 0.0018350382 /yr |
| Multi-Fault Rate | 0.0012386527 /yr (67.50%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

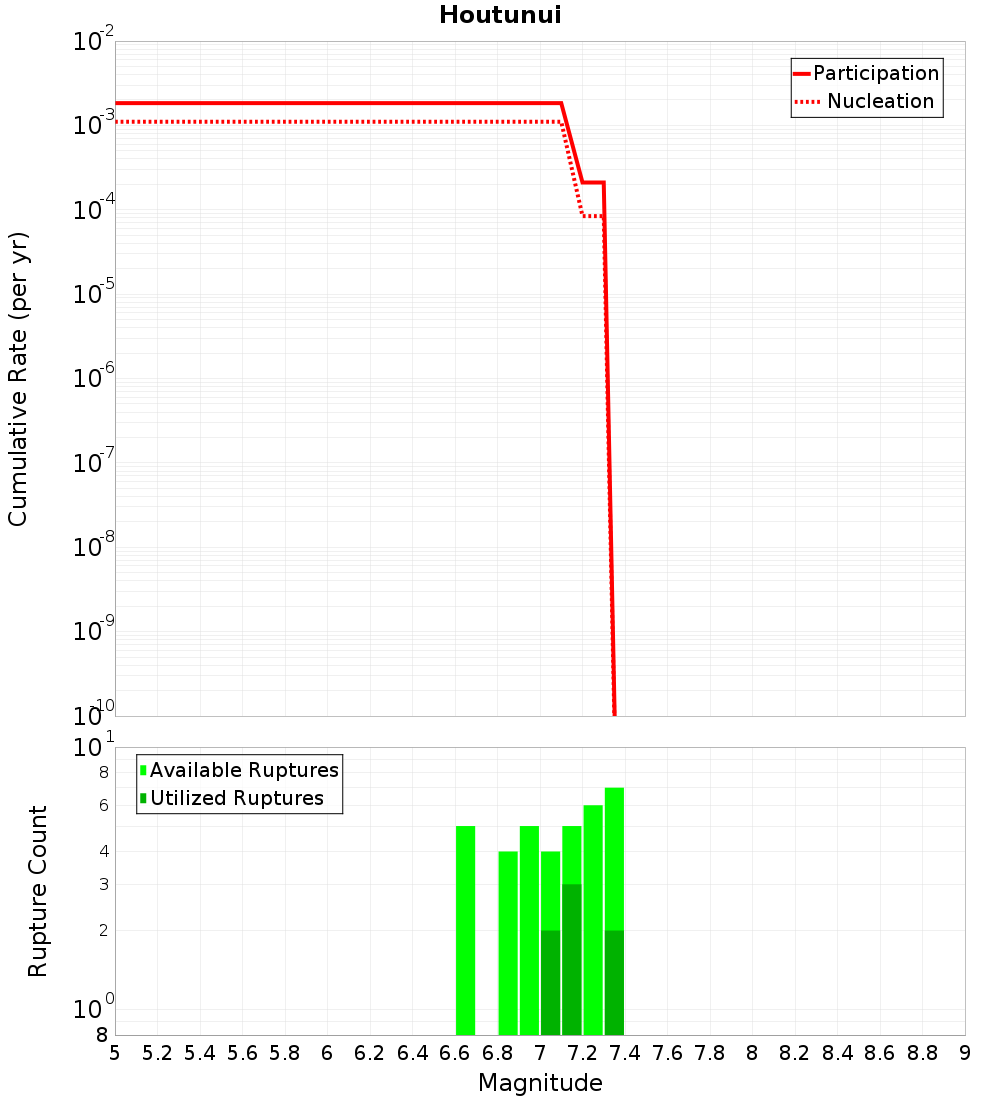

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

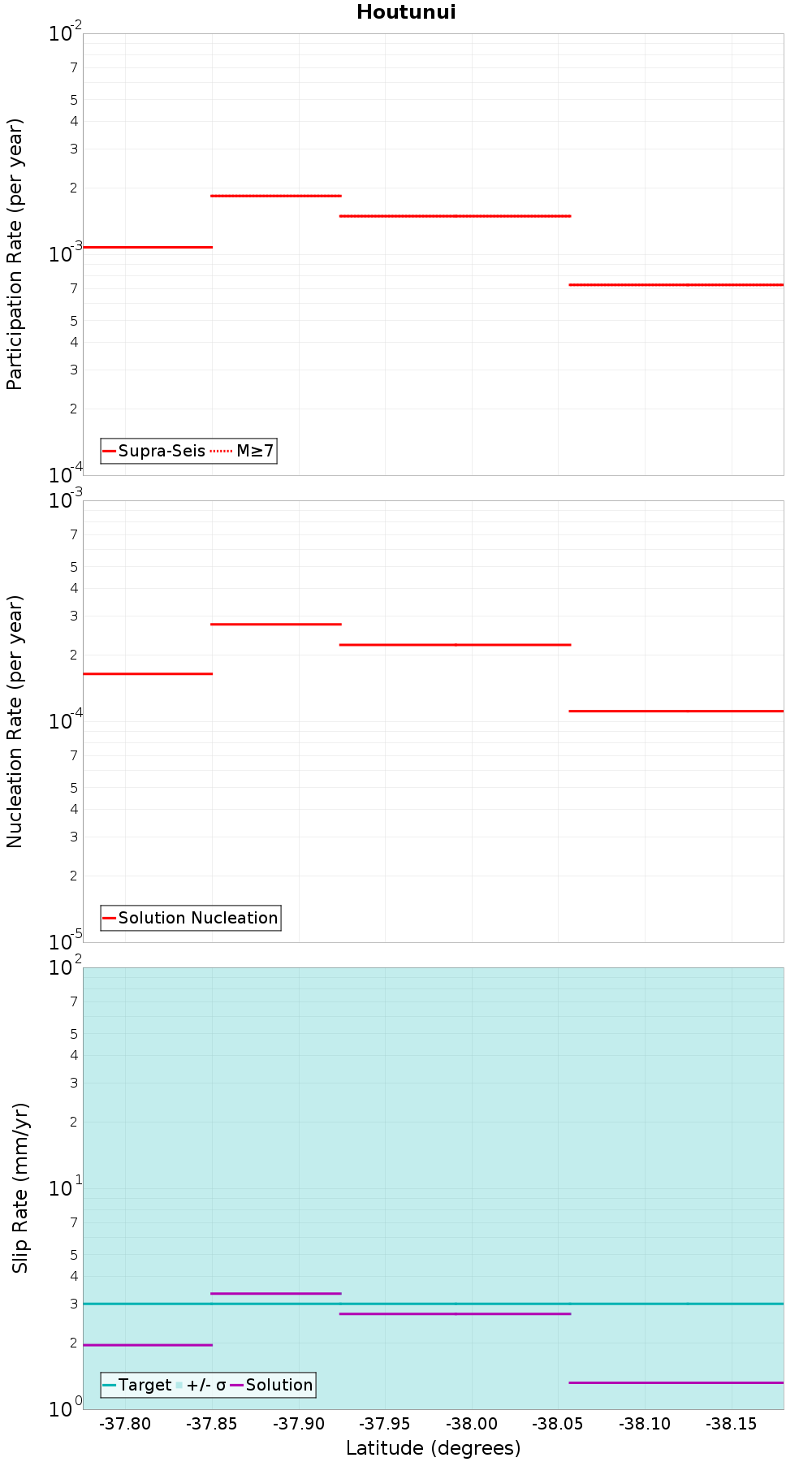

Along-Strike Values
Moment-Rates and b-Values

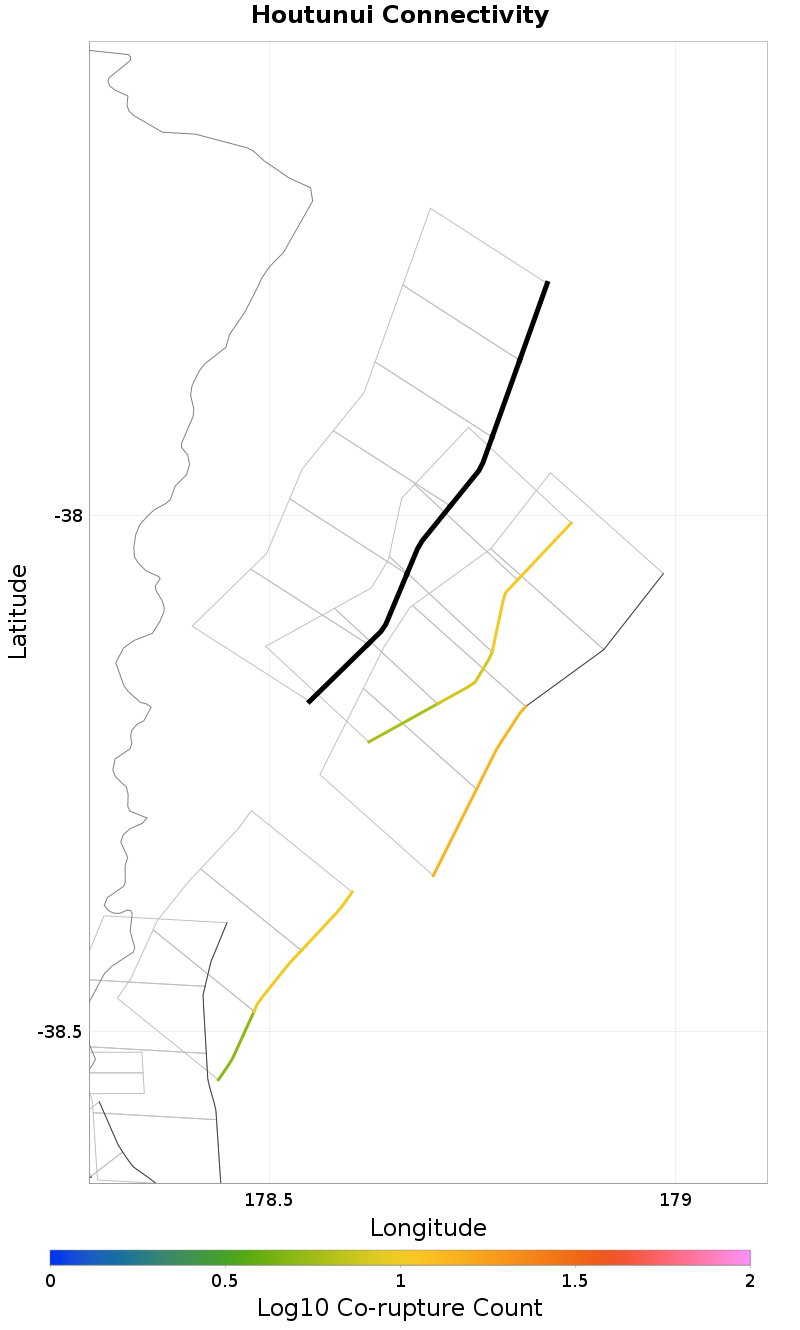

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria South 4, 4.74 km away |
| Ruatoria South 3, 11.22 km away |
Ruatoria South 4, 4.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 0.0011082285 |
Ruatoria South 3, 11.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMDRkUktL | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 2.1008447E-4 |
