Ruataniwha Details

PropertyValue
Rupture Count1,322
Ruptures Above Sect Min Mag1,318
Ruptures w/ Nonzero Rates14
Magnitude Range[6.68, 8.04]
Length Range[17, 381] km
Total Rate8.571334E-5 /yr
Multi-Fault Rate8.571334E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults78

Table Of Contents

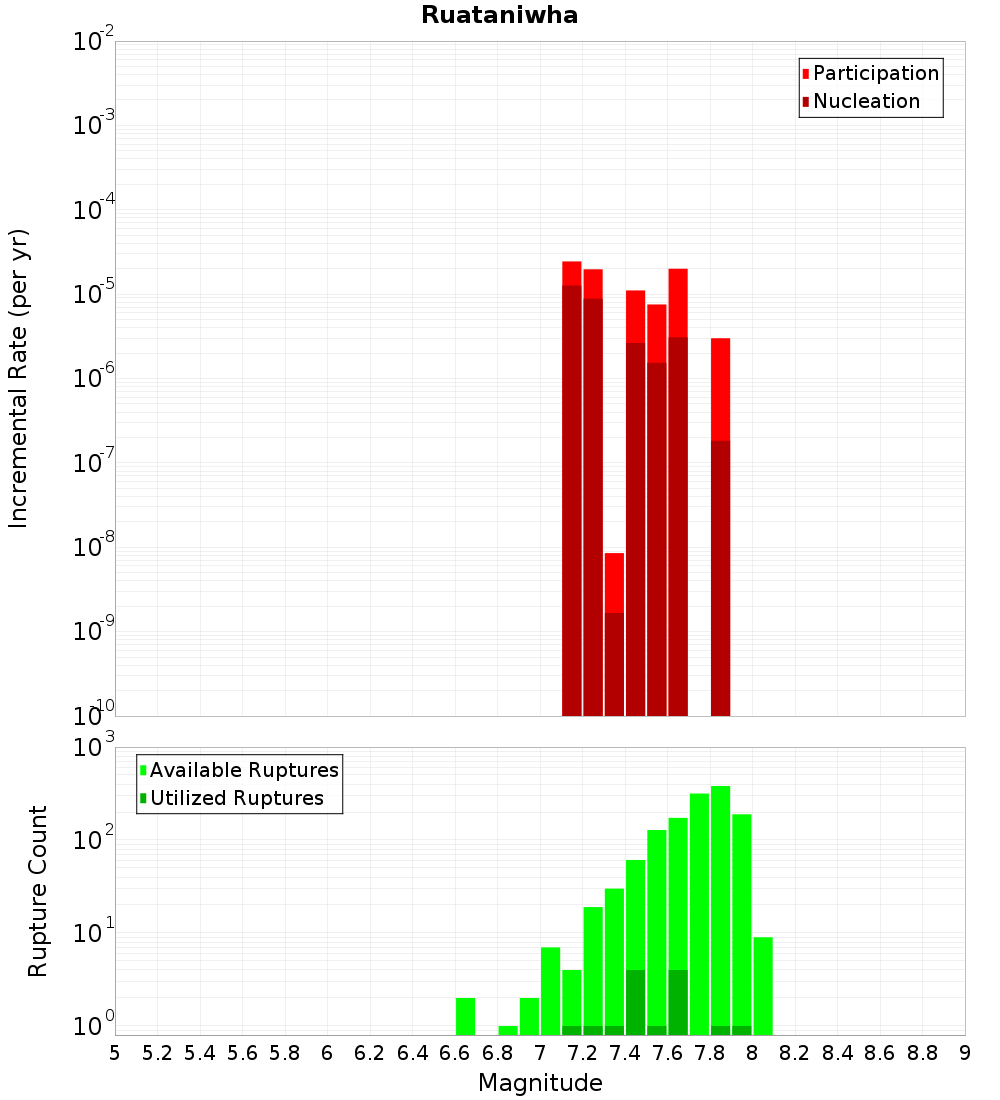

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

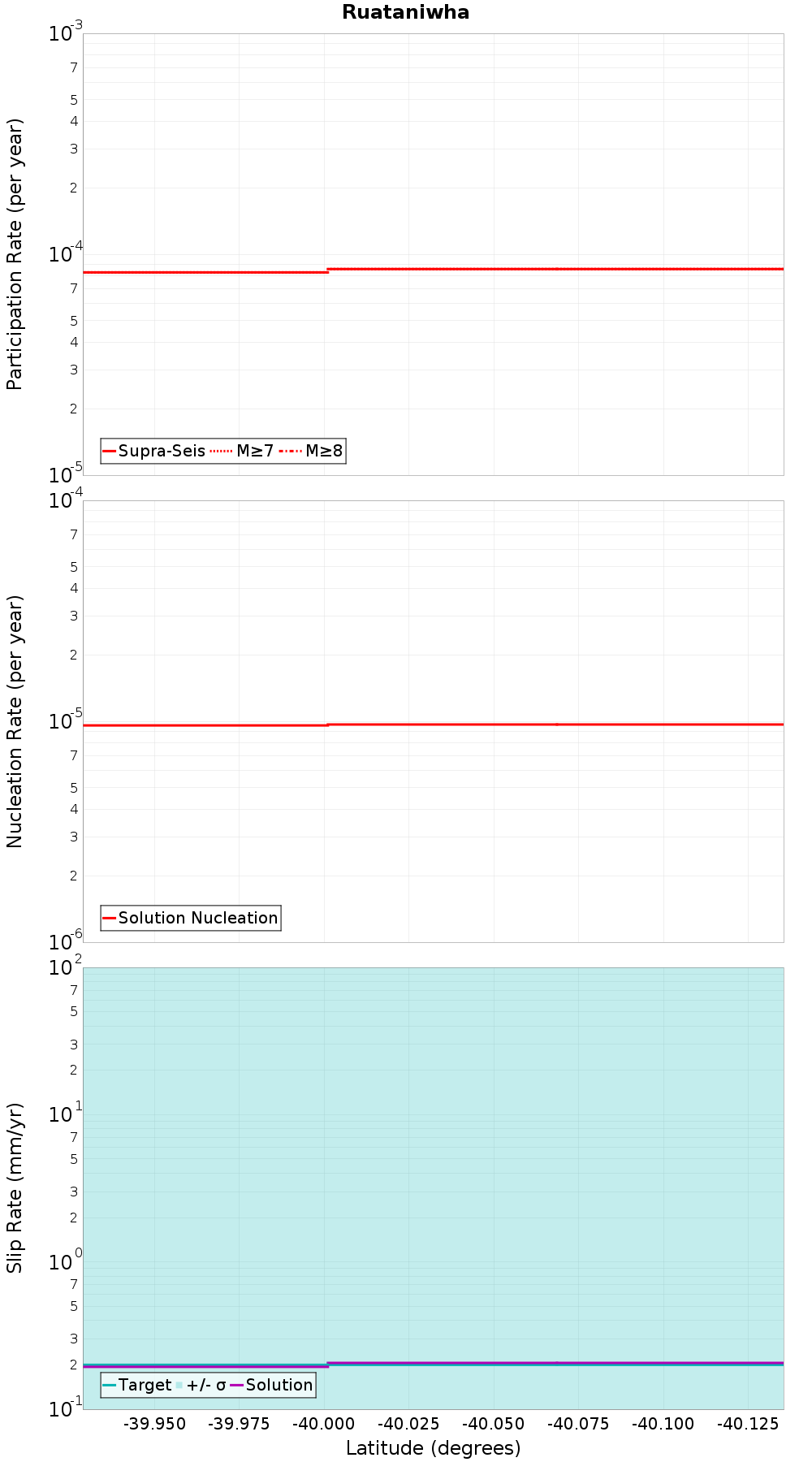

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maunga, 3.9 km away
Clear Hills - Waikopiro, 4.28 km away
Oruawharo - Mangatoro, 5.67 km away
Mohaka: South, 6.61 km away
Rangefront, 8.95 km away
Ruahine: South, 9.87 km away
Ruahine: Central, 9.9 km away
Te Heka, 12.04 km away
Waipukurau - Poukawa, 13.21 km away
Wakarara, 13.37 km away
Waewaepa, 13.99 km away
Pahiatua, 14.82 km away

Maunga, 3.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?true
Co-rupture Count468
Co-rupture Rate8.571334E-5

Clear Hills - Waikopiro, 4.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?true
Co-rupture Count217
Co-rupture Rate0.0

Oruawharo - Mangatoro, 5.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Mohaka: South, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?true
Co-rupture Count1,094
Co-rupture Rate7.7141485E-6

Rangefront, 8.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?true
Co-rupture Count414
Co-rupture Rate3.8599323E-5

Ruahine: South, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate0.0

Ruahine: Central, 9.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?false
Co-rupture Count149
Co-rupture Rate2.2834254E-5

Te Heka, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Waipukurau - Poukawa, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Wakarara, 13.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate1.1069174E-5

Waewaepa, 13.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahiatua, 14.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MTMuMFI2UGsz
Connected?true
Directly Connected?false
Co-rupture Count233
Co-rupture Rate1.9699999E-5
