Kakapo Details

Property	Value
Rupture Count	8,213
Ruptures Above Sect Min Mag	8,205
Ruptures w/ Nonzero Rates	1,275
Magnitude Range	[6.76, 8.39]
Length Range	[20, 862] km
Total Rate	0.0011392228 /yr
Multi-Fault Rate	0.0011392228 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	137

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

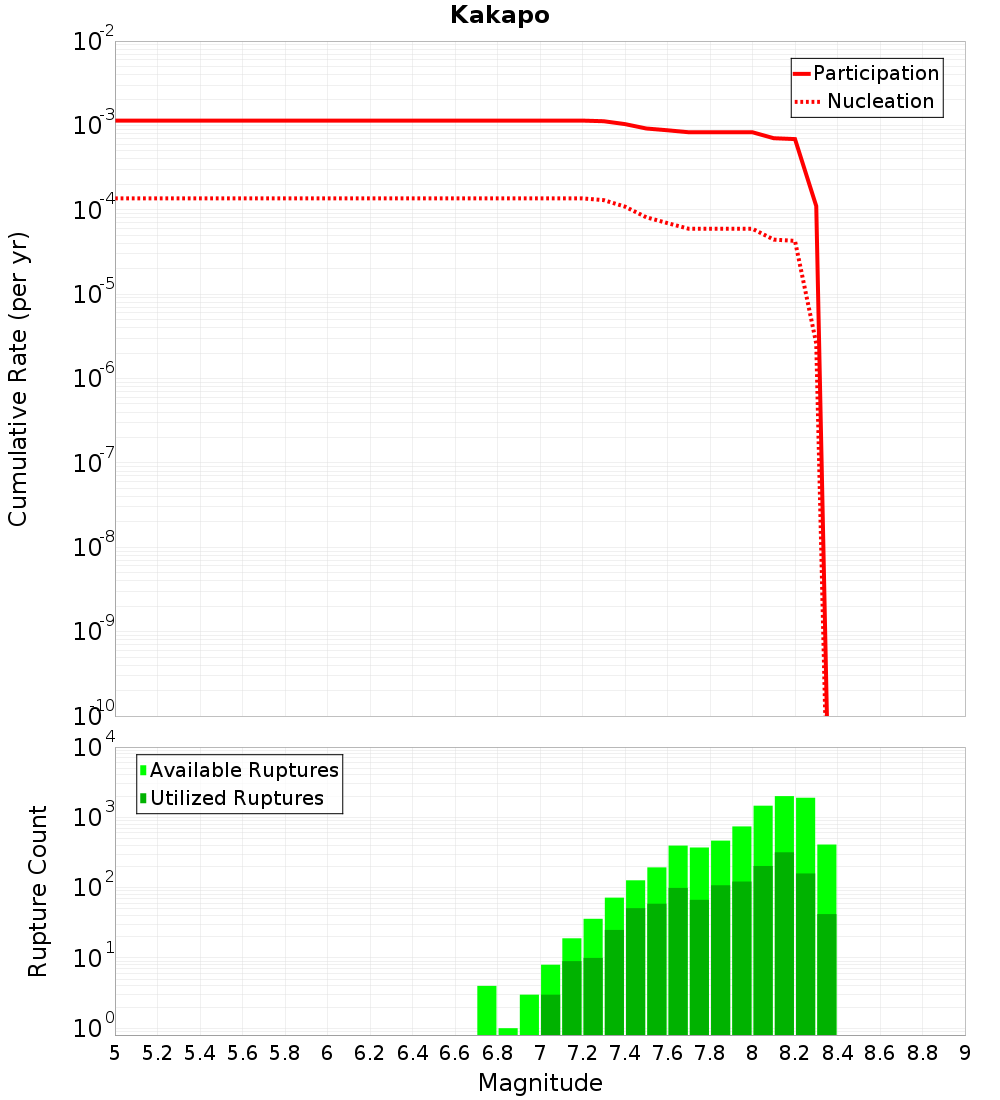

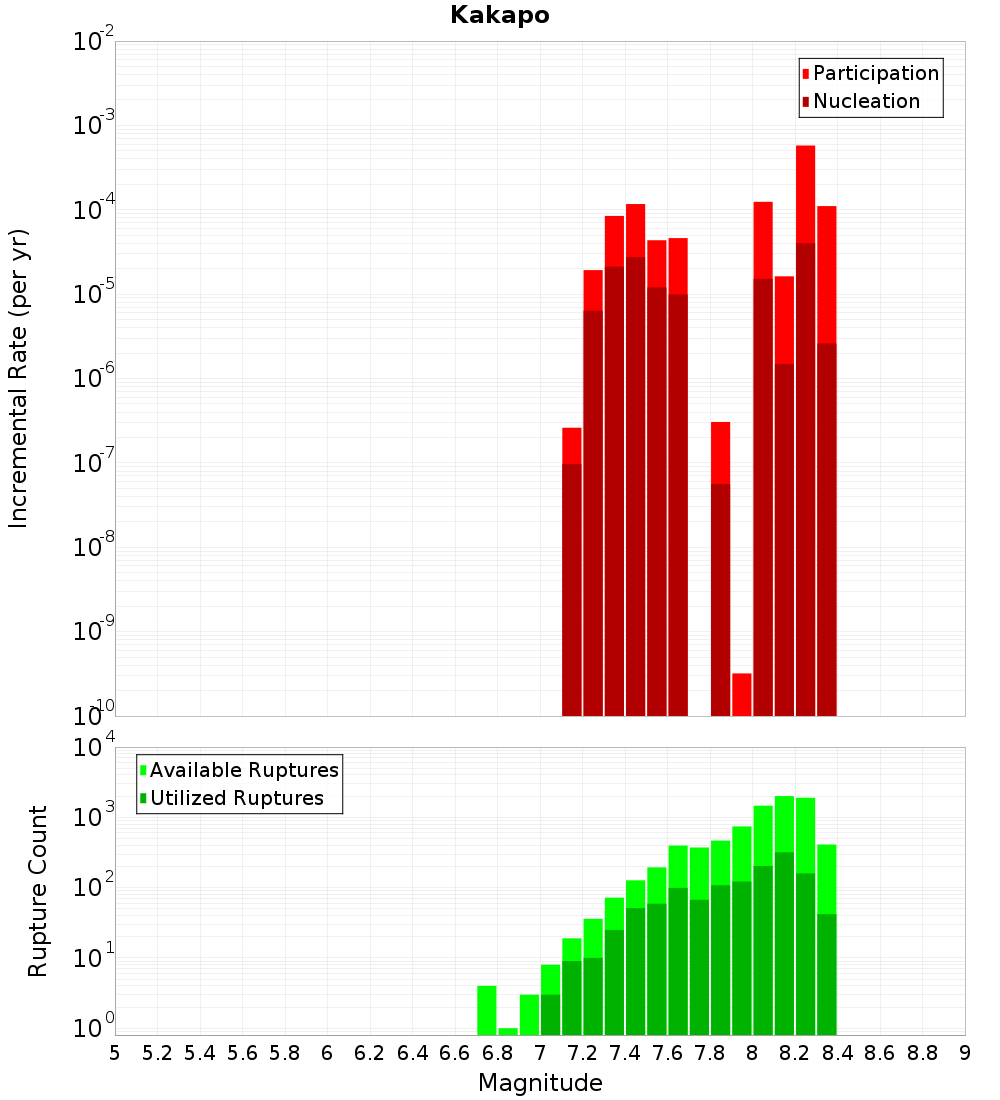

Magnitude-Frequency Distribution

Incremental	Cumulative

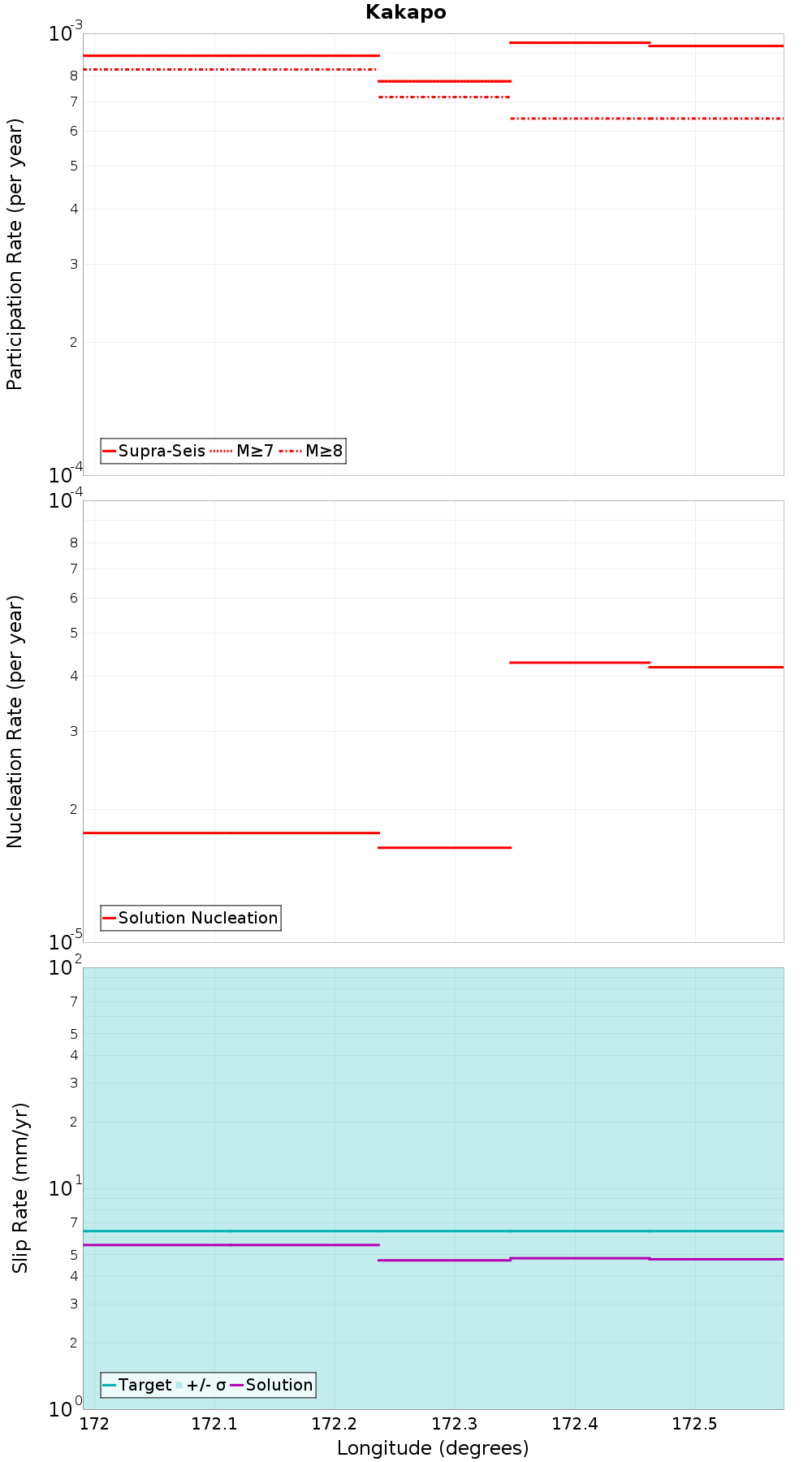

Along-Strike Values

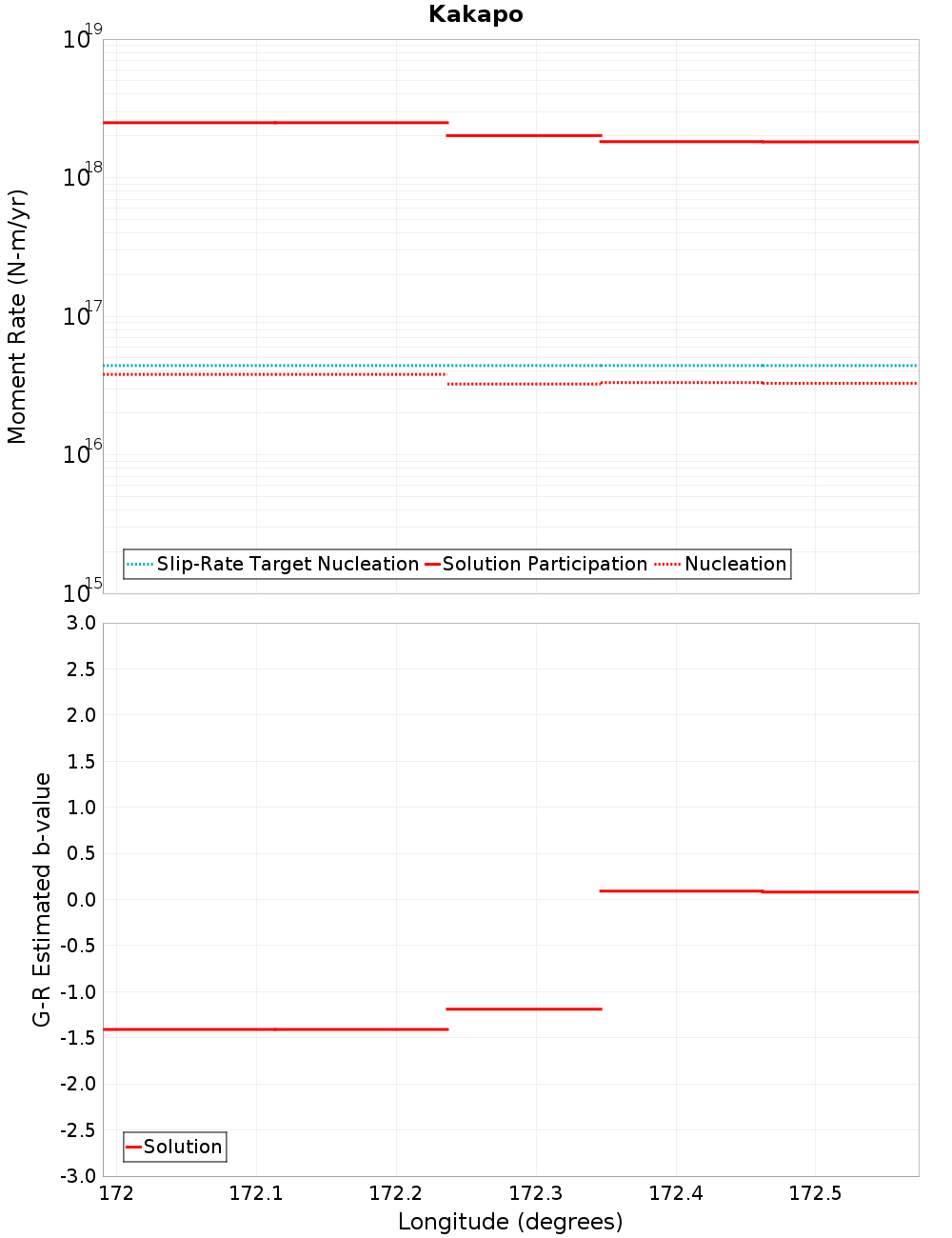

Moment-Rates and b-Values

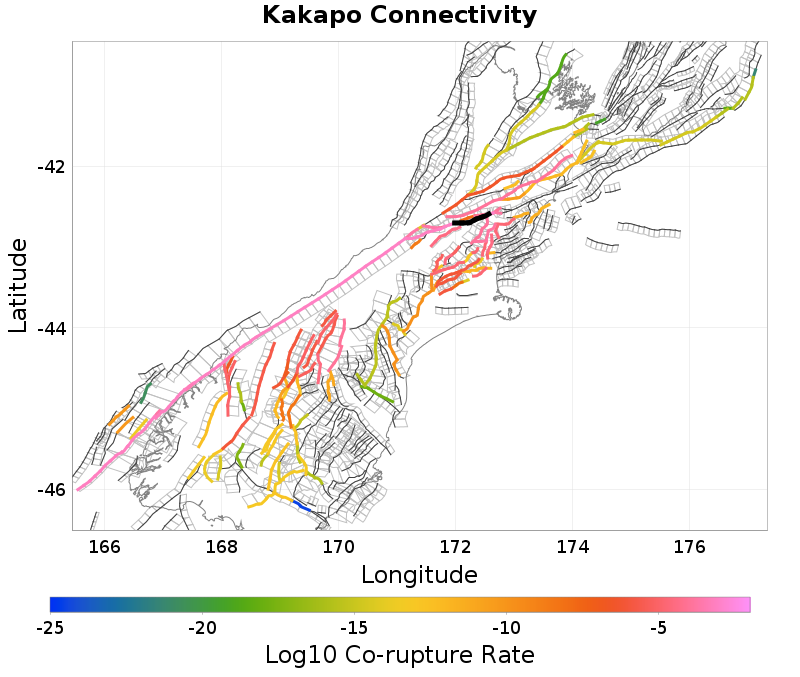

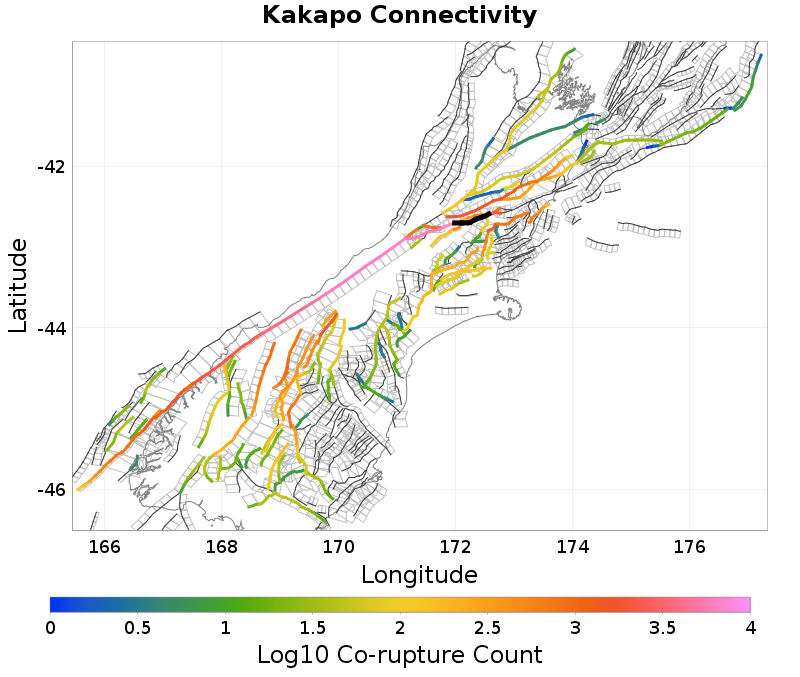

Connectivity

Nearby Sections

Fault Section
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hurunui, 0 km away
Hope: Hope River, 0 km away
Esk North, 0.09 km away
Poulter, 5.65 km away
Hurunui Peak, 5.94 km away
Hope: Hanmer NW, 6.3 km away
Hope: Hamner SW, 6.3 km away
Alpine: Kaniere to Springs Junction, 6.32 km away
Clarence: Southwest, 8.64 km away
Hanmer, 12.92 km away
Hope: Taramakau, 14.38 km away
Kelly, 14.38 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,436
Co-rupture Rate	0.0010025514

Hope: Hurunui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	true
Co-rupture Count	6,997
Co-rupture Rate	8.400664E-4

Hope: Hope River, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	true
Co-rupture Count	686
Co-rupture Rate	7.6228716E-5

Esk North, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	true
Co-rupture Count	107
Co-rupture Rate	1.1218779E-4

Poulter, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	true
Co-rupture Count	522
Co-rupture Rate	4.9461418E-5

Hurunui Peak, 5.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,326
Co-rupture Rate	1.5339459E-4

Hope: Hanmer NW, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	false
Co-rupture Count	847
Co-rupture Rate	9.352174E-5

Hope: Hamner SW, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	false
Co-rupture Count	1,618
Co-rupture Rate	1.4978141E-4

Alpine: Kaniere to Springs Junction, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	false
Co-rupture Count	939
Co-rupture Rate	1.7206112E-4

Clarence: Southwest, 8.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,940
Co-rupture Rate	1.10861685E-4

Hanmer, 12.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Taramakau, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	false
Co-rupture Count	1,146
Co-rupture Rate	1.8845777E-4

Kelly, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5MjYuMGtEZFY1
Connected?	true
Directly Connected?	false
Co-rupture Count	7,156
Co-rupture Rate	8.5646514E-4
