Maimai Details

Property	Value
Rupture Count	2,768
Ruptures Above Sect Min Mag	2,768
Ruptures w/ Nonzero Rates	255
Magnitude Range	[7.19, 8.33]
Length Range	[25, 383] km
Total Rate	2.21125E-4 /yr
Multi-Fault Rate	2.021884E-4 /yr (91.44%)
Directly-Connected Faults	5
All Co-Rupturing Faults	19

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

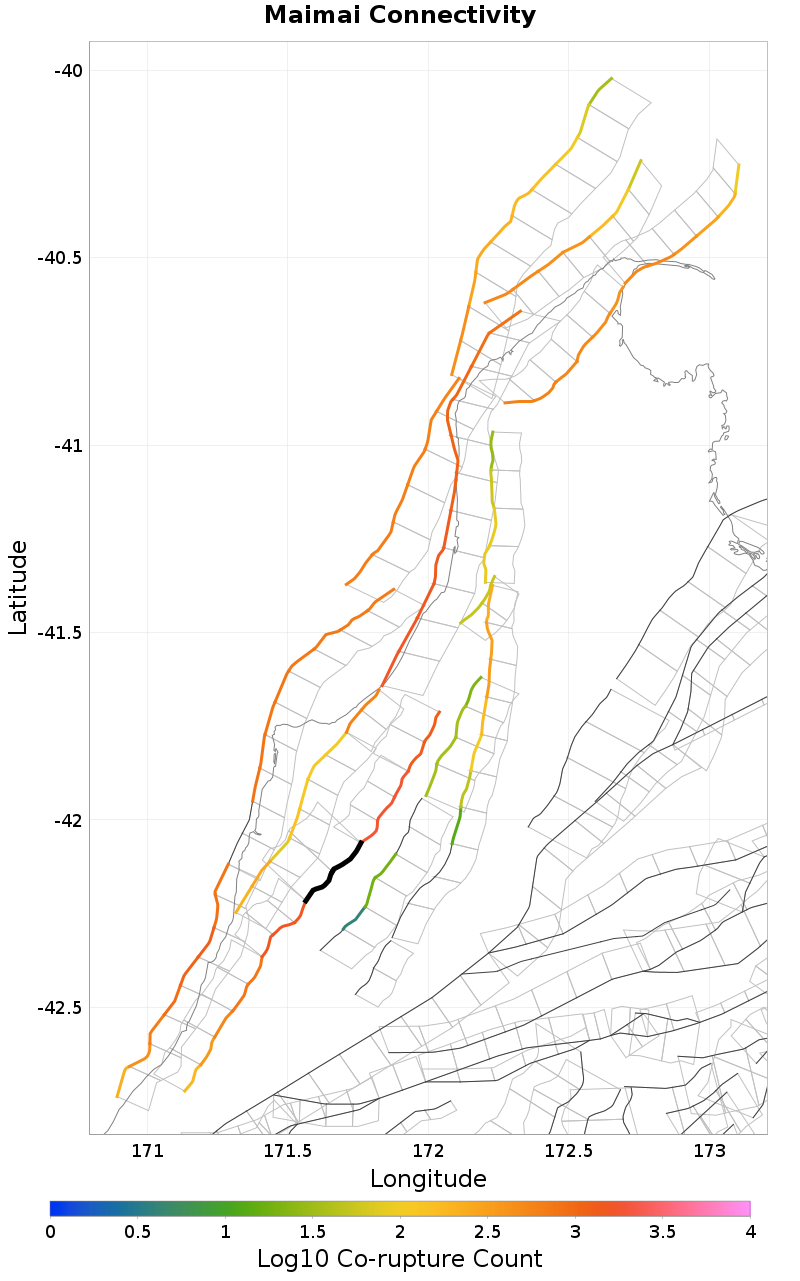

Connectivity
- Nearby Sections

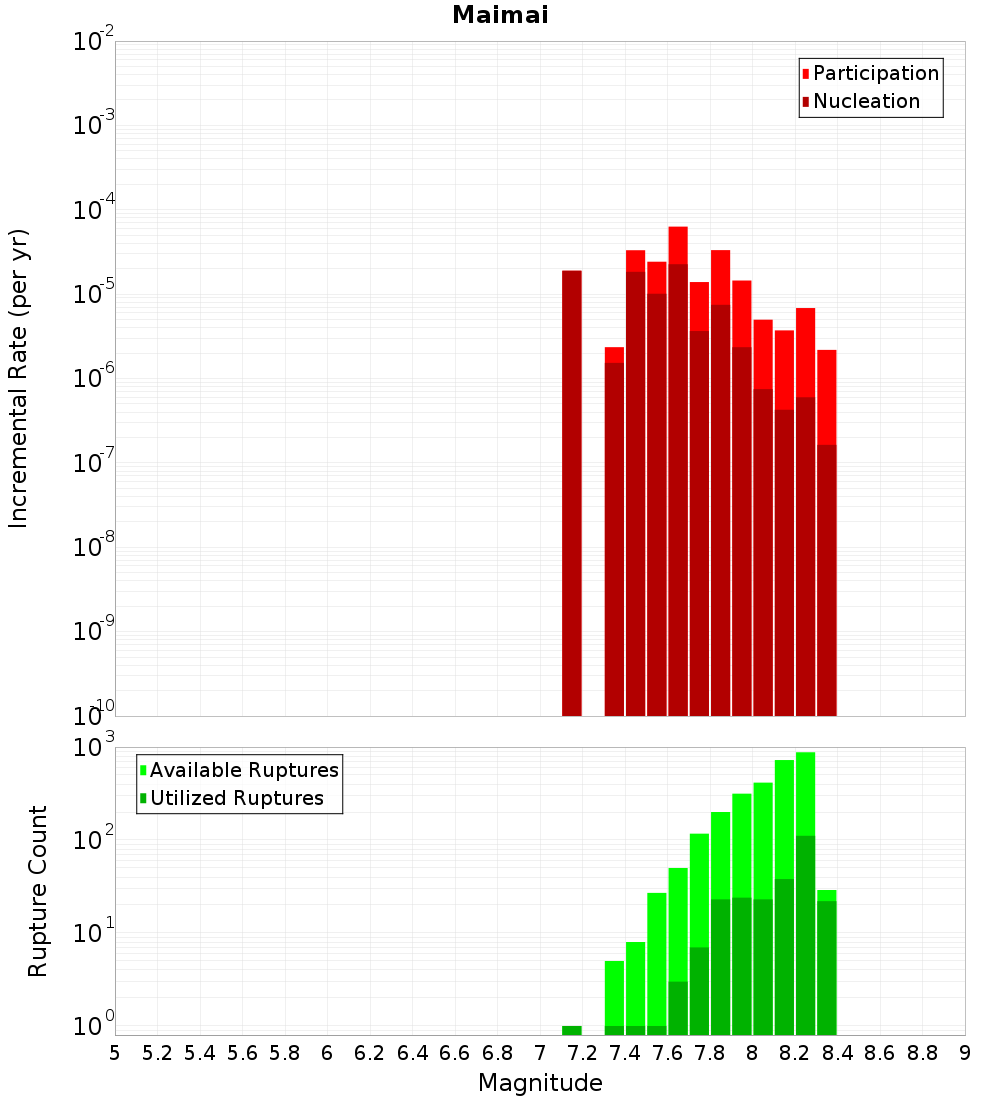

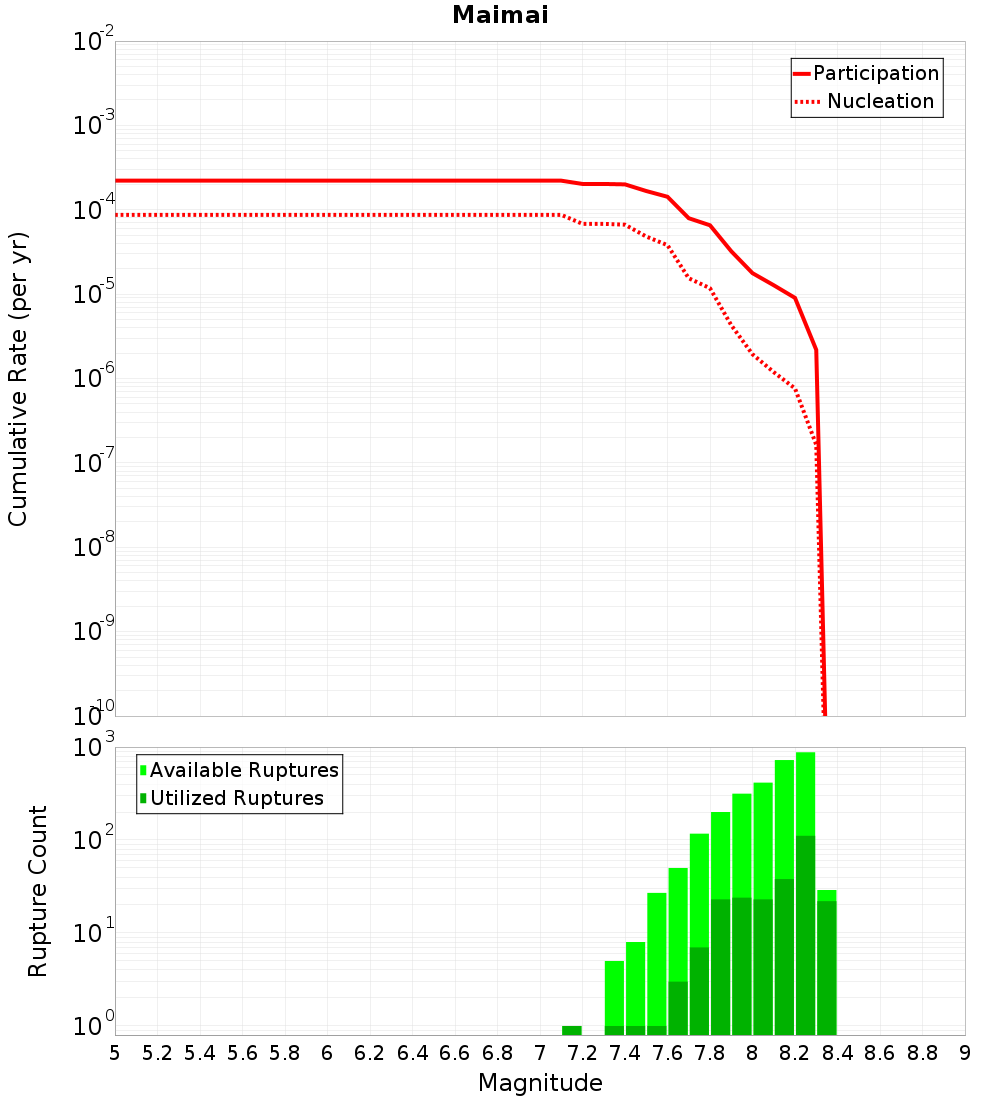

Magnitude-Frequency Distribution

Incremental	Cumulative

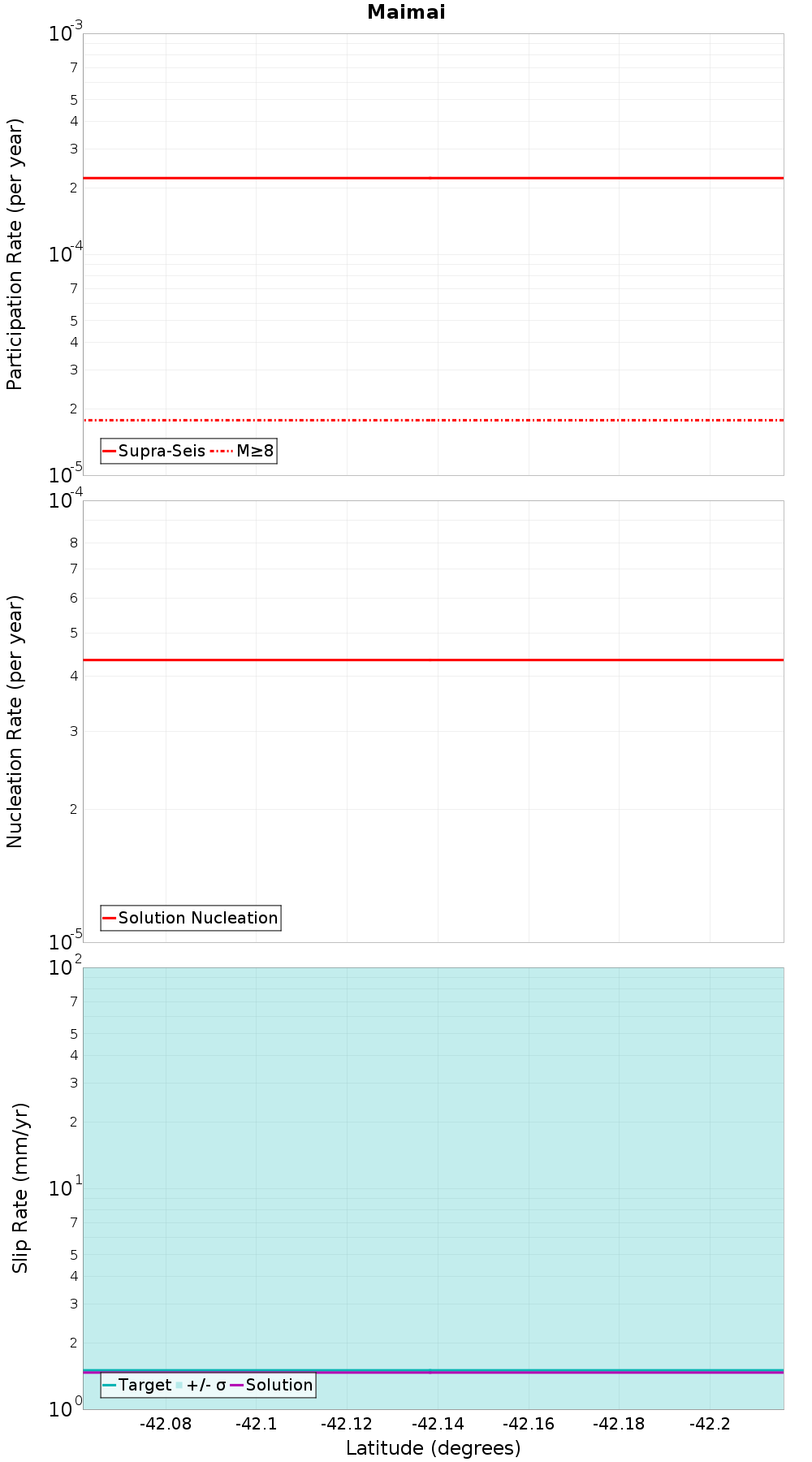

Along-Strike Values

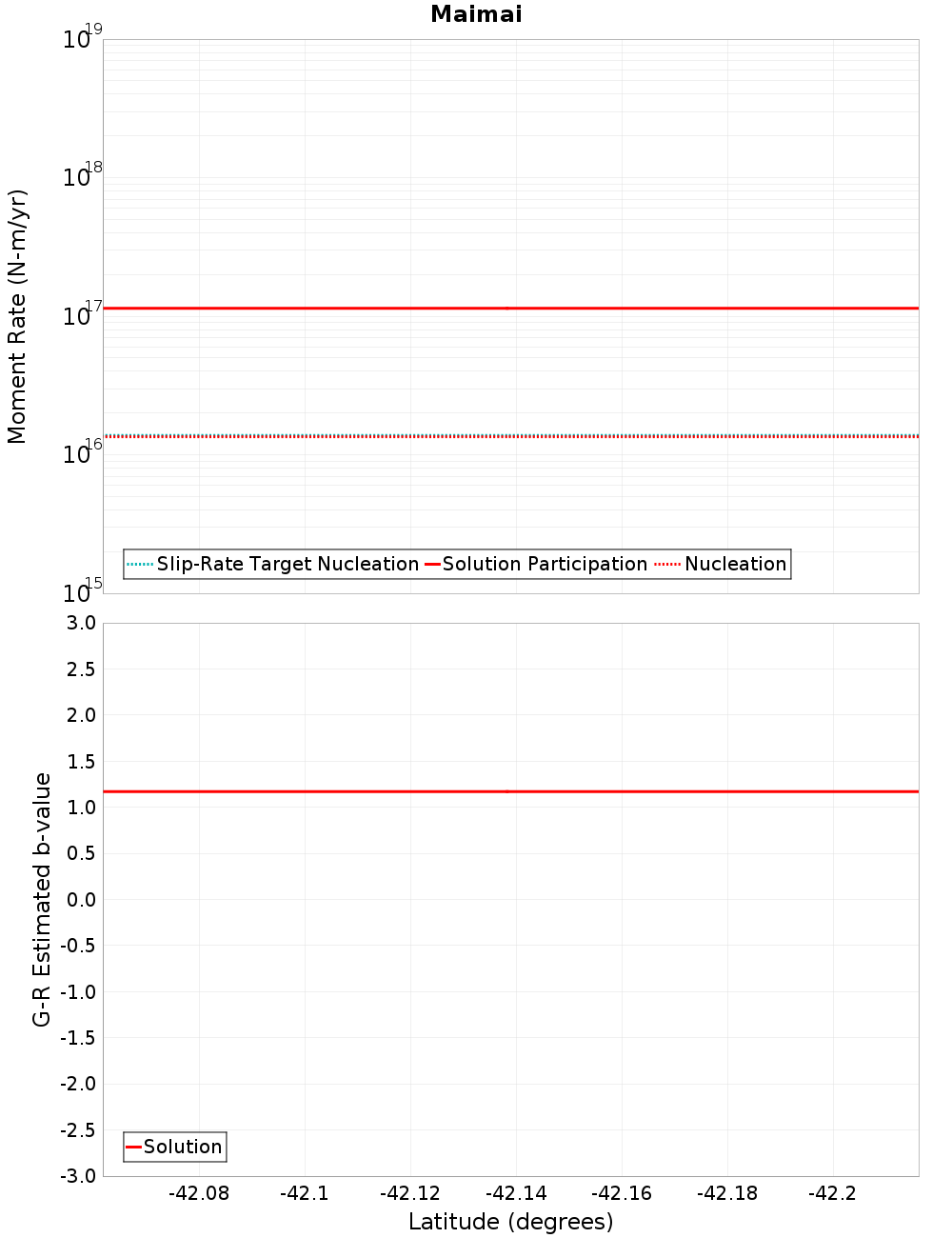

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Maimai: North, 0 km away
Maimai: South, 0.09 km away
Paparoa West, 0.14 km away
Cape Foulwind 2, 0.27 km away
Cape Foulwind 1, 4.83 km away
Lyell South, 9.15 km away

Maimai: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDUuMFpudTZy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,846
Co-rupture Rate	1.1307849E-4

Maimai: South, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDUuMFpudTZy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,552
Co-rupture Rate	5.61913E-6

Paparoa West, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDUuMFpudTZy
Connected?	true
Directly Connected?	true
Co-rupture Count	350
Co-rupture Rate	1.8616527E-4

Cape Foulwind 2, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDUuMFpudTZy
Connected?	true
Directly Connected?	true
Co-rupture Count	805
Co-rupture Rate	2.773906E-5

Cape Foulwind 1, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDUuMFpudTZy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,465
Co-rupture Rate	2.6774647E-5

Lyell South, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDUuMFpudTZy
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	3.05307E-11
