Barrier Range Details

PropertyValue
Rupture Count12,349
Ruptures Above Sect Min Mag12,347
Ruptures w/ Nonzero Rates105
Magnitude Range[6.99, 8.54]
Length Range[23, 810] km
Total Rate8.132702E-6 /yr
Multi-Fault Rate8.132702E-6 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults109

Table Of Contents

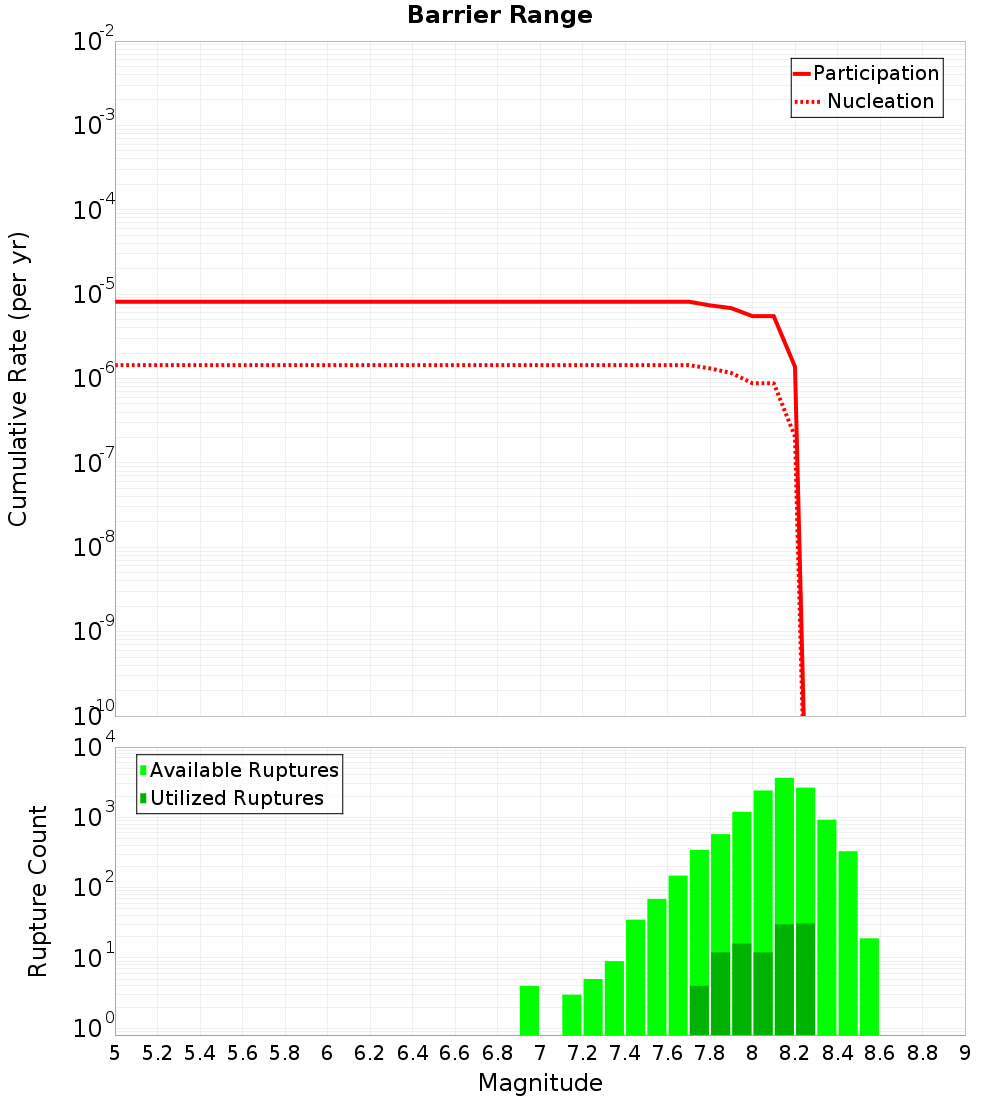

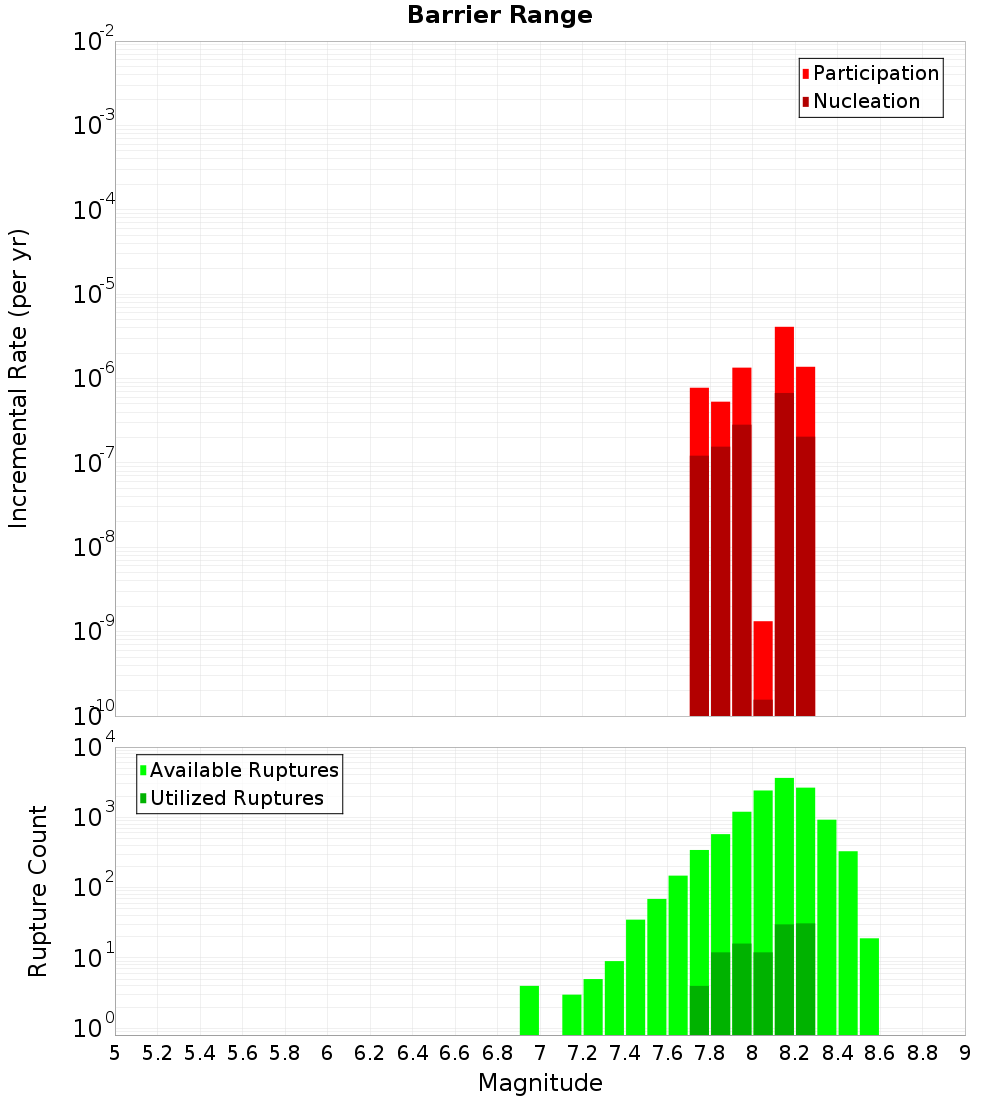

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

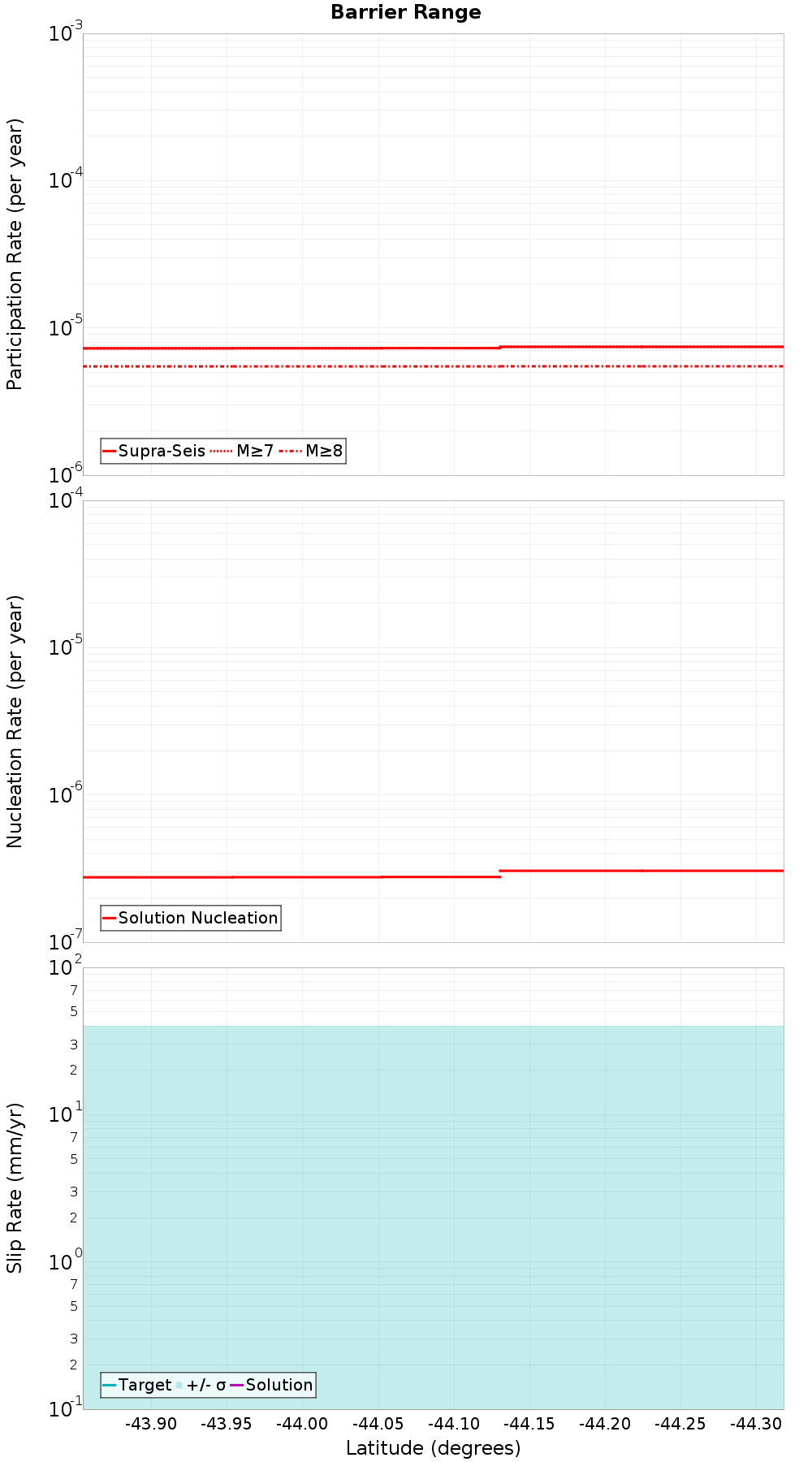

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

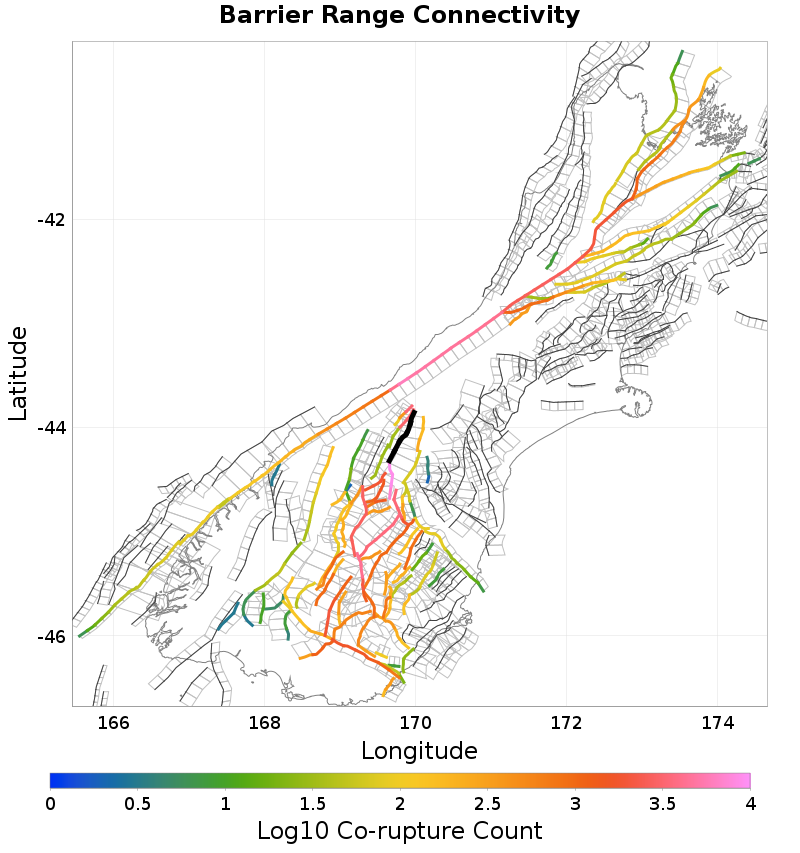

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dromedary, 1.72 km away
Hopkins, 1.83 km away
Ostler North, 2.09 km away
Huxley, 5.8 km away
Dingle, 7.44 km away
Wanaka, 8.72 km away
Timaru Creek, 9.19 km away
Alpine: Jacksons to Kaniere, 9.21 km away
Ostler South, 12.24 km away
Hunter Valley, 14.29 km away

Dromedary, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguME1BS0tk
Connected?true
Directly Connected?true
Co-rupture Count8,900
Co-rupture Rate5.2159777E-7

Hopkins, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguME1BS0tk
Connected?true
Directly Connected?true
Co-rupture Count3,128
Co-rupture Rate5.4119782E-6

Ostler North, 2.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguME1BS0tk
Connected?true
Directly Connected?true
Co-rupture Count252
Co-rupture Rate7.082738E-7

Huxley, 5.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguME1BS0tk
Connected?true
Directly Connected?true
Co-rupture Count3,319
Co-rupture Rate3.959006E-7

Dingle, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguME1BS0tk
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate0.0

Wanaka, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguME1BS0tk
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate0.0

Timaru Creek, 9.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguME1BS0tk
Connected?true
Directly Connected?true
Co-rupture Count1,879
Co-rupture Rate6.9163843E-6

Alpine: Jacksons to Kaniere, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguME1BS0tk
Connected?true
Directly Connected?false
Co-rupture Count6,002
Co-rupture Rate5.7144325E-6

Ostler South, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguME1BS0tk
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate6.946119E-7

Hunter Valley, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguME1BS0tk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
