Gibson Details

Property	Value
Rupture Count	1,000
Ruptures Above Sect Min Mag	999
Ruptures w/ Nonzero Rates	30
Magnitude Range	[7.14, 8.43]
Length Range	[19, 352] km
Total Rate	9.86946E-6 /yr
Multi-Fault Rate	9.436242E-6 /yr (95.61%)
Directly-Connected Faults	7
All Co-Rupturing Faults	47

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

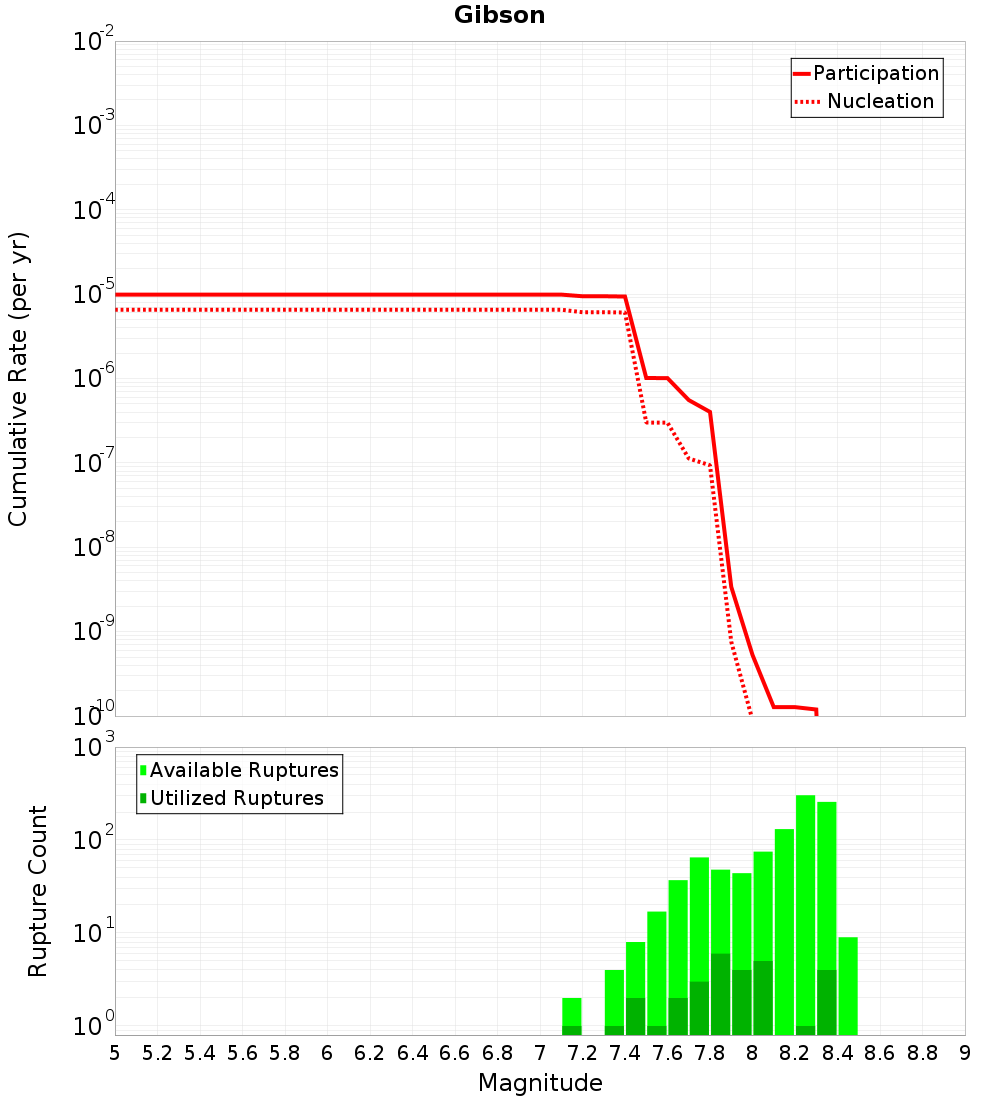

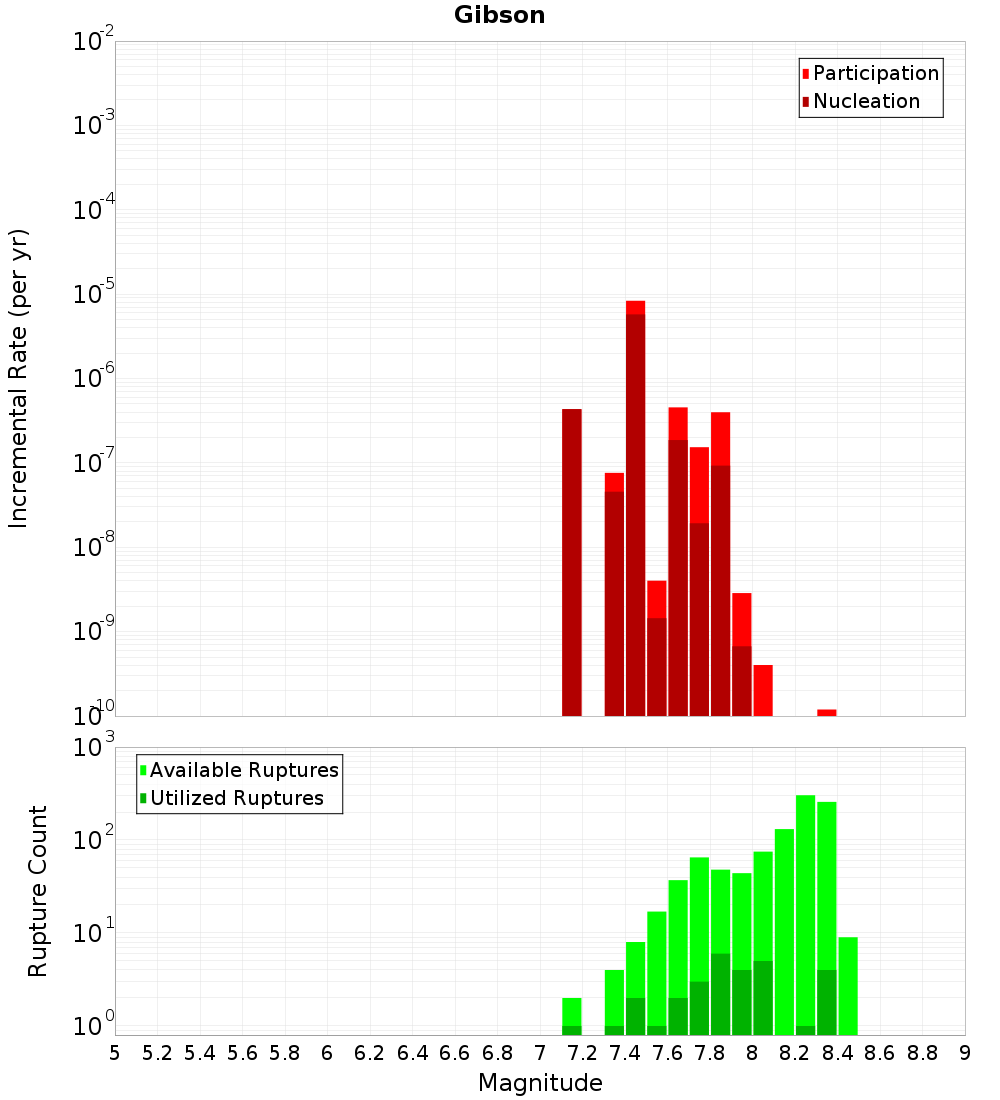

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

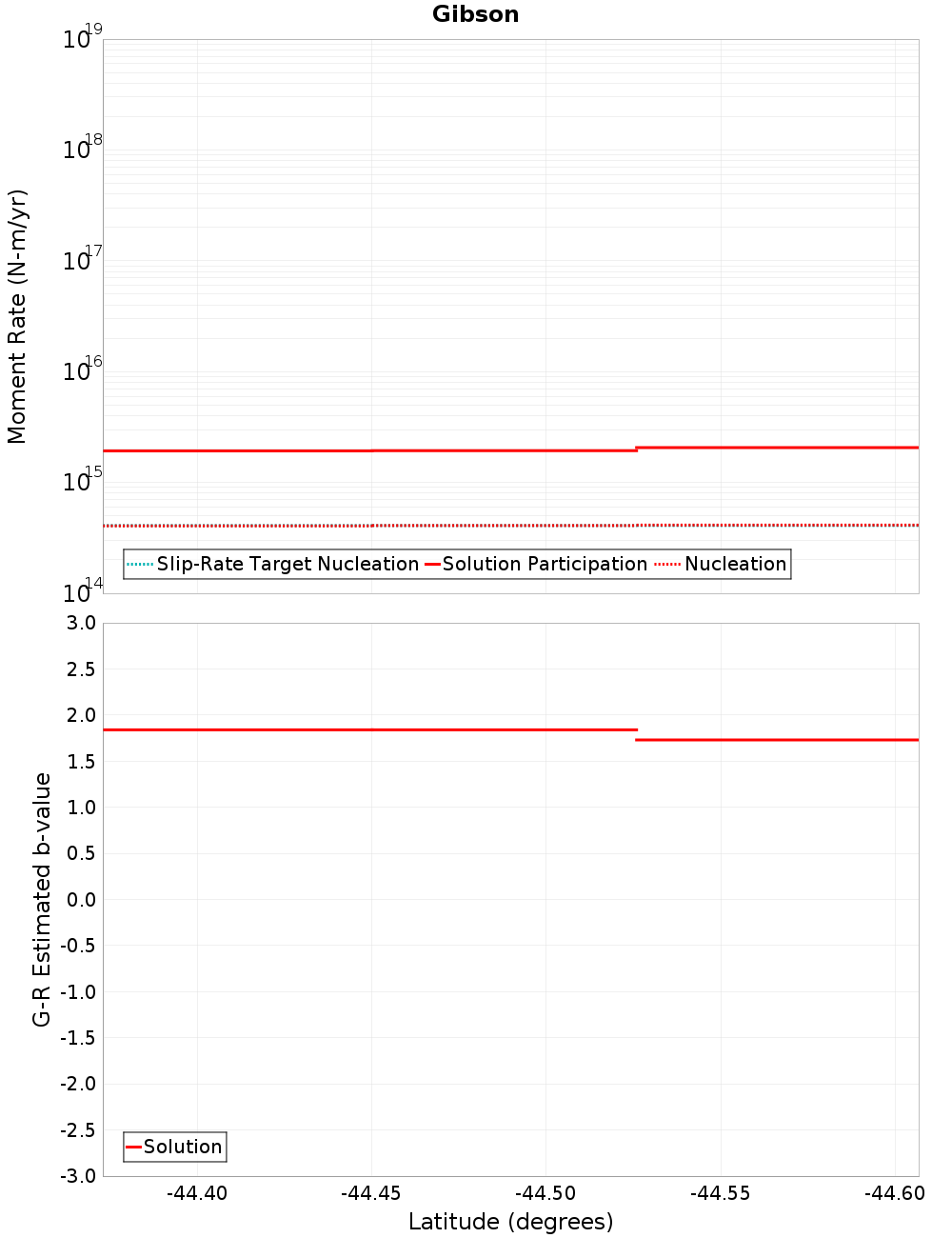

Moment-Rates and b-Values

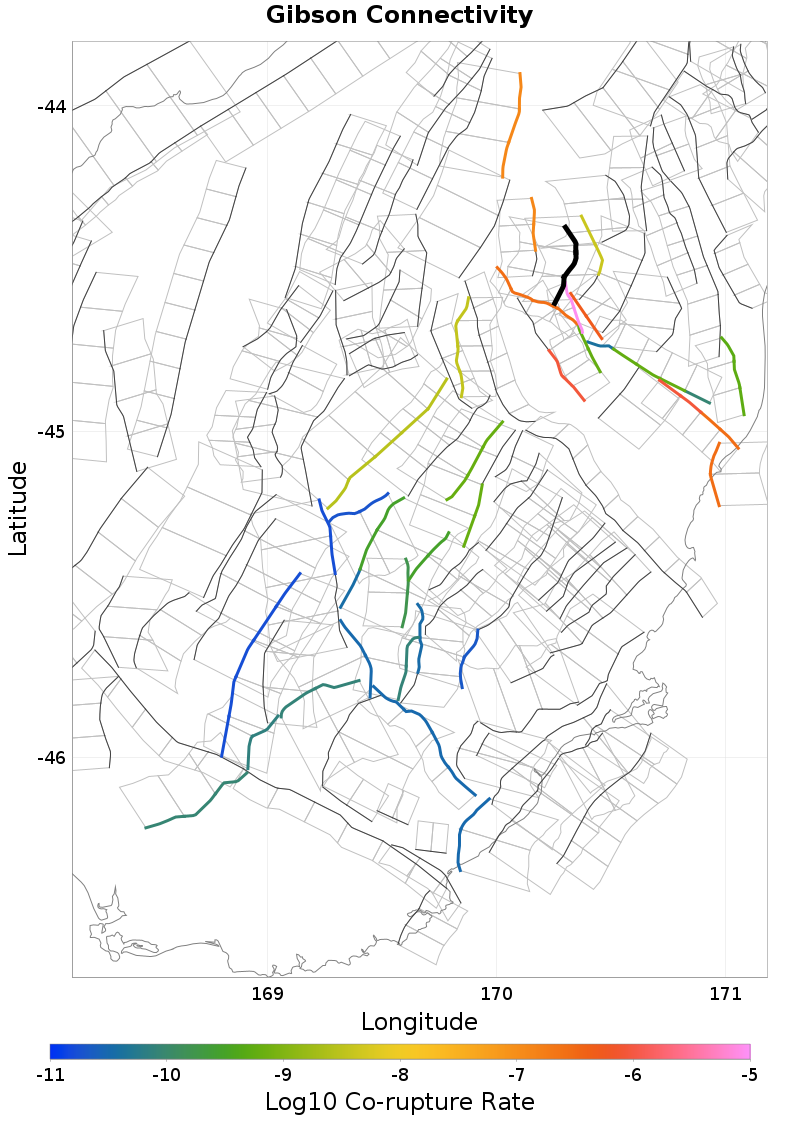

Connectivity

Nearby Sections

Fault Section
Fern Gully, 0.31 km away
Middle Range, 0.32 km away
Waitangi, 0.56 km away
Omarama Saddle, 1.5 km away
Falstone, 1.61 km away
Hawkdun, 2.41 km away
Mt Sutton, 2.87 km away
Dryburgh, 3.37 km away
Grampian, 6.29 km away
Awahokomo, 10.93 km away
Blue Lake, 13.94 km away
Kirkliston, 14.93 km away

Fern Gully, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	38
Co-rupture Rate	2.6598423E-7

Middle Range, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	70
Co-rupture Rate	8.8311833E-7

Waitangi, 0.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	64
Co-rupture Rate	8.934685E-6

Omarama Saddle, 1.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	851
Co-rupture Rate	3.5051804E-9

Falstone, 1.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	49
Co-rupture Rate	1.2260146E-7

Hawkdun, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Sutton, 2.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	30
Co-rupture Rate	4.0165355E-9

Dryburgh, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	4.97472E-7

Grampian, 6.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awahokomo, 10.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	5.794307E-10

Blue Lake, 13.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kirkliston, 14.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NDguMEtpVnNz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
