Awanui Details

Property	Value
Rupture Count	1,899
Ruptures Above Sect Min Mag	1,897
Ruptures w/ Nonzero Rates	45
Magnitude Range	[7.29, 8.25]
Length Range	[26, 408] km
Total Rate	1.5728046E-4 /yr
Multi-Fault Rate	1.2583833E-4 /yr (80.01%)
Directly-Connected Faults	6
All Co-Rupturing Faults	49

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

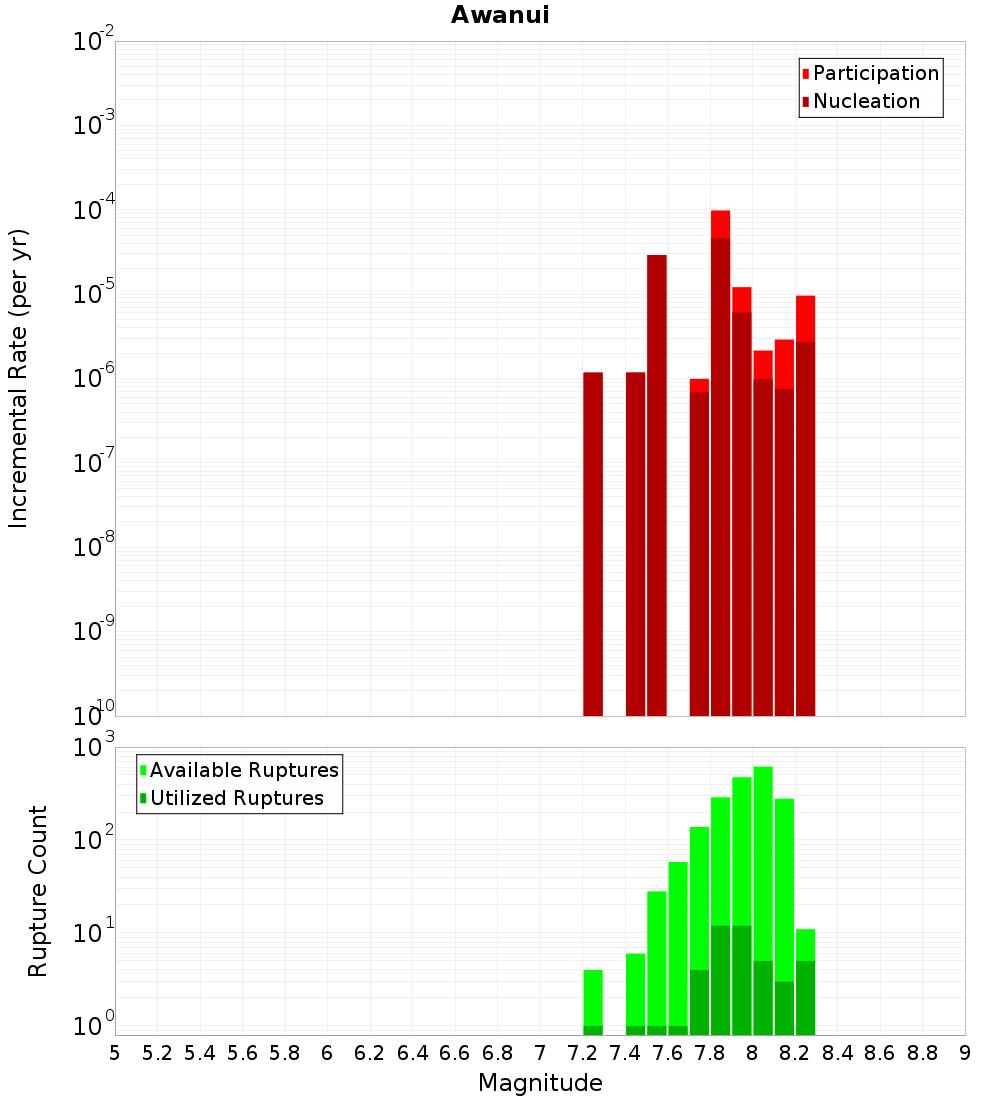

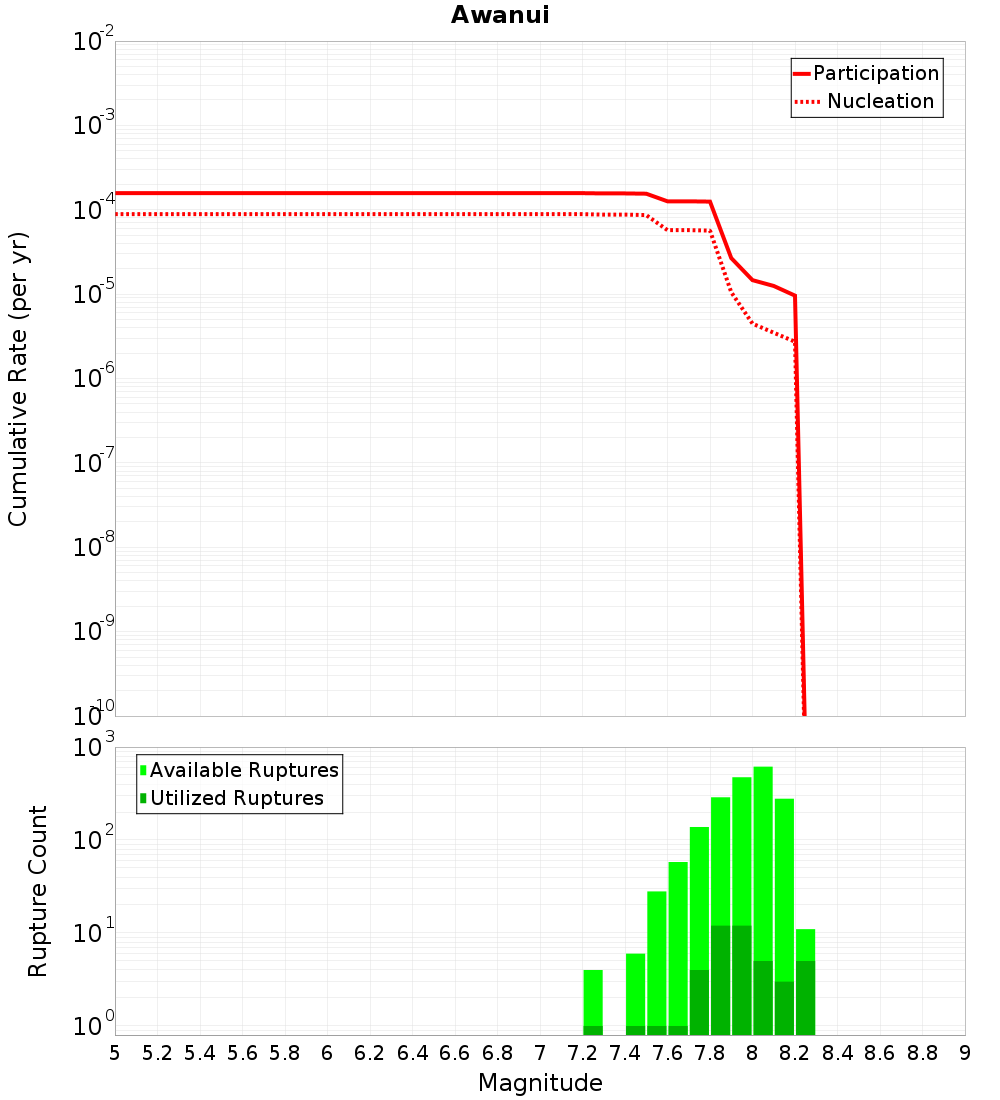

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waipukurau - Poukawa, 0 km away
Te Heka, 0.14 km away
Patoka - Rangiora, 3.5 km away
Tukituki Thrust, 3.57 km away
Hawke Bay 1, 4.64 km away
Hawke Bay 8, 6.81 km away
Mohaka: North, 11.19 km away
Mohaka: South, 12.7 km away

Waipukurau - Poukawa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	1,110
Co-rupture Rate	8.830069E-5

Te Heka, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	383
Co-rupture Rate	1.4351455E-5

Patoka - Rangiora, 3.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	236
Co-rupture Rate	3.2081192E-5

Tukituki Thrust, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	216
Co-rupture Rate	2.1663465E-5

Hawke Bay 1, 4.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	117
Co-rupture Rate	5.573867E-6

Hawke Bay 8, 6.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mohaka: North, 11.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	1,289
Co-rupture Rate	3.116265E-6

Mohaka: South, 12.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	false
Co-rupture Count	289
Co-rupture Rate	0.0
