Hauroko: South Details
| Property | Value |
|---|---|
| Rupture Count | 454 |
| Ruptures Above Sect Min Mag | 450 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [7.24, 8.59] |
| Length Range | [26, 627] km |
| Total Rate | 9.667028E-5 /yr |
| Multi-Fault Rate | 3.2601114E-5 /yr (33.72%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 19 |
Table Of Contents

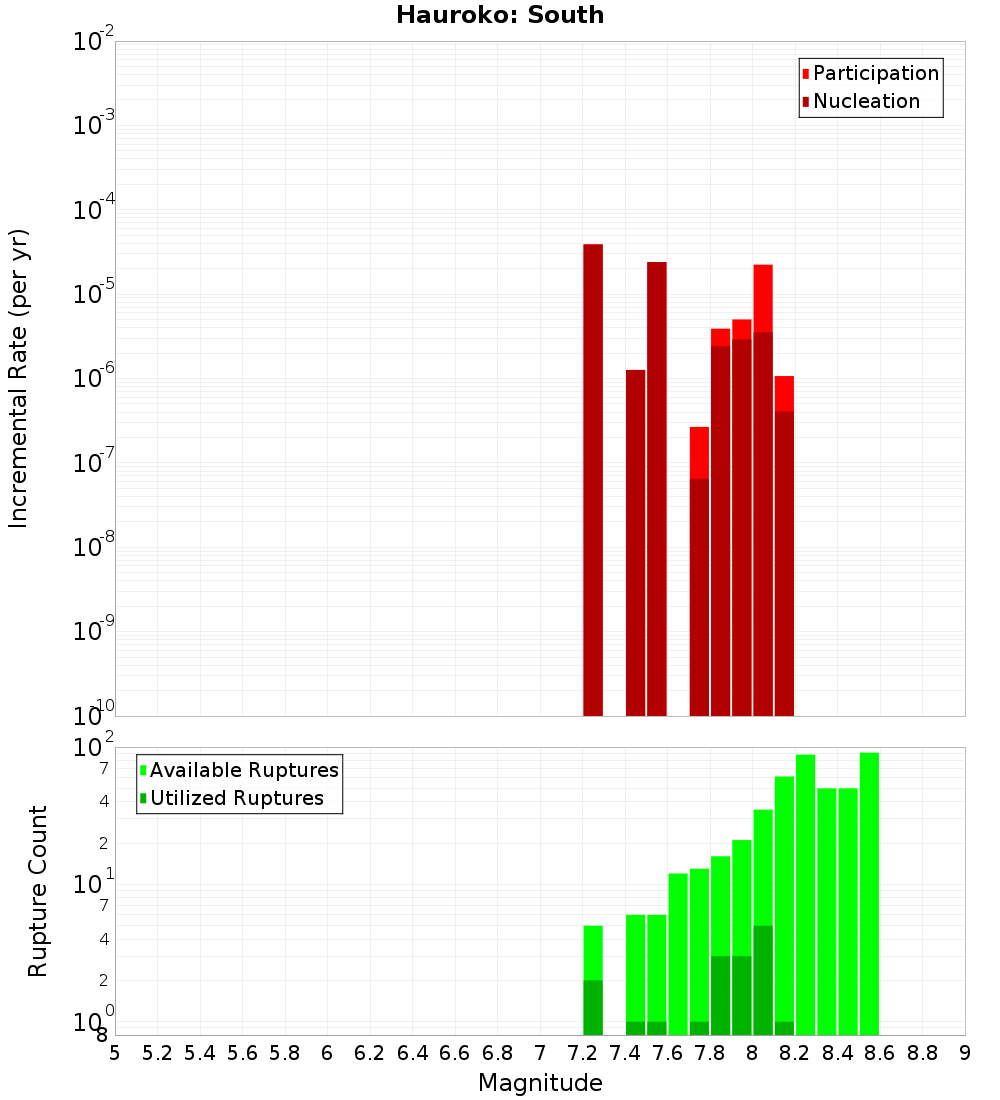

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

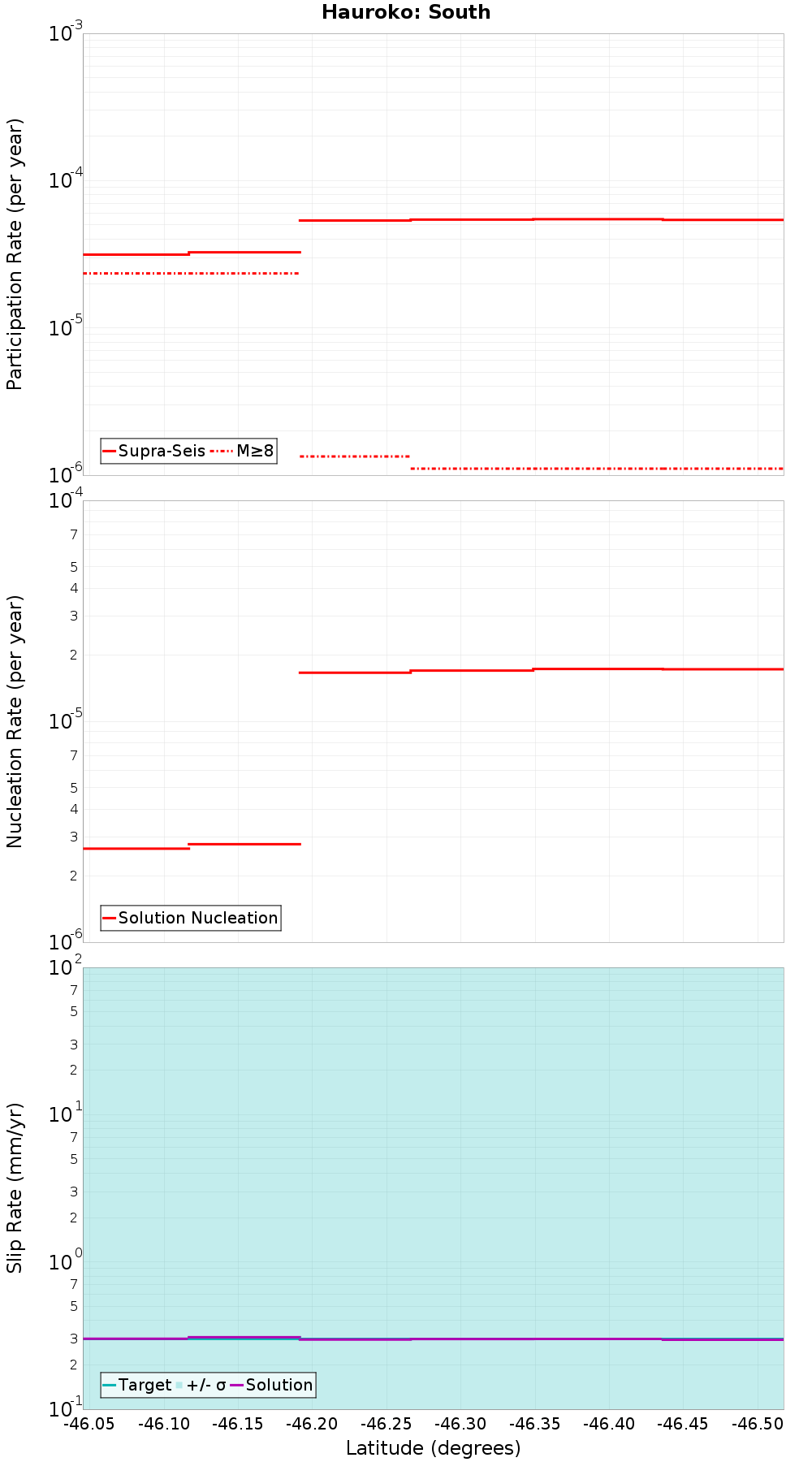

Along-Strike Values

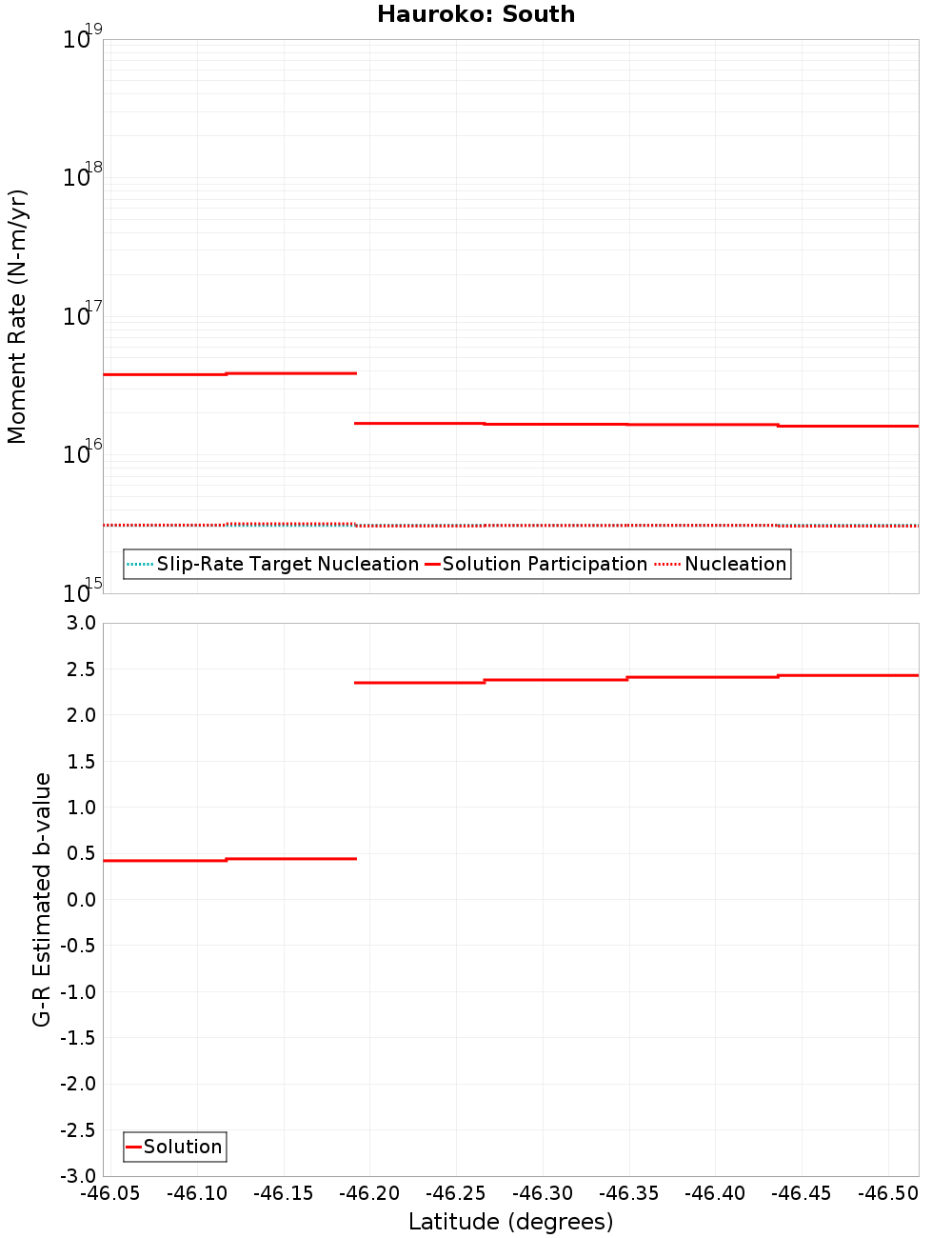

Moment-Rates and b-Values

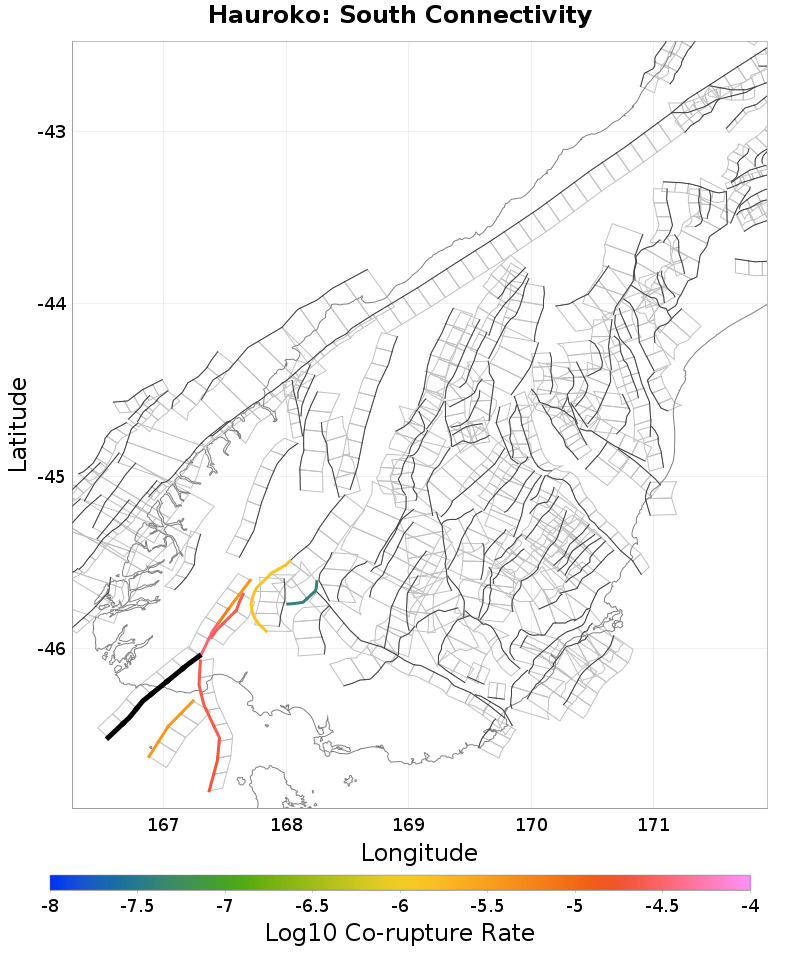

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: North, 0.32 km away |
| Hump Ridge, 3.03 km away |
| Monowai, 14.37 km away |
Hauroko: North, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 423 |
| Co-rupture Rate | 3.1423915E-5 |
Hump Ridge, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 61 |
| Co-rupture Rate | 2.3263148E-5 |
Monowai, 14.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 2.4393272E-5 |
