Ohiwa 1 Details

PropertyValue
Rupture Count2,652
Ruptures Above Sect Min Mag2,651
Ruptures w/ Nonzero Rates30
Magnitude Range[6.73, 8.45]
Length Range[9, 625] km
Total Rate1.42874E-4 /yr
Multi-Fault Rate1.42874E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults66

Table Of Contents

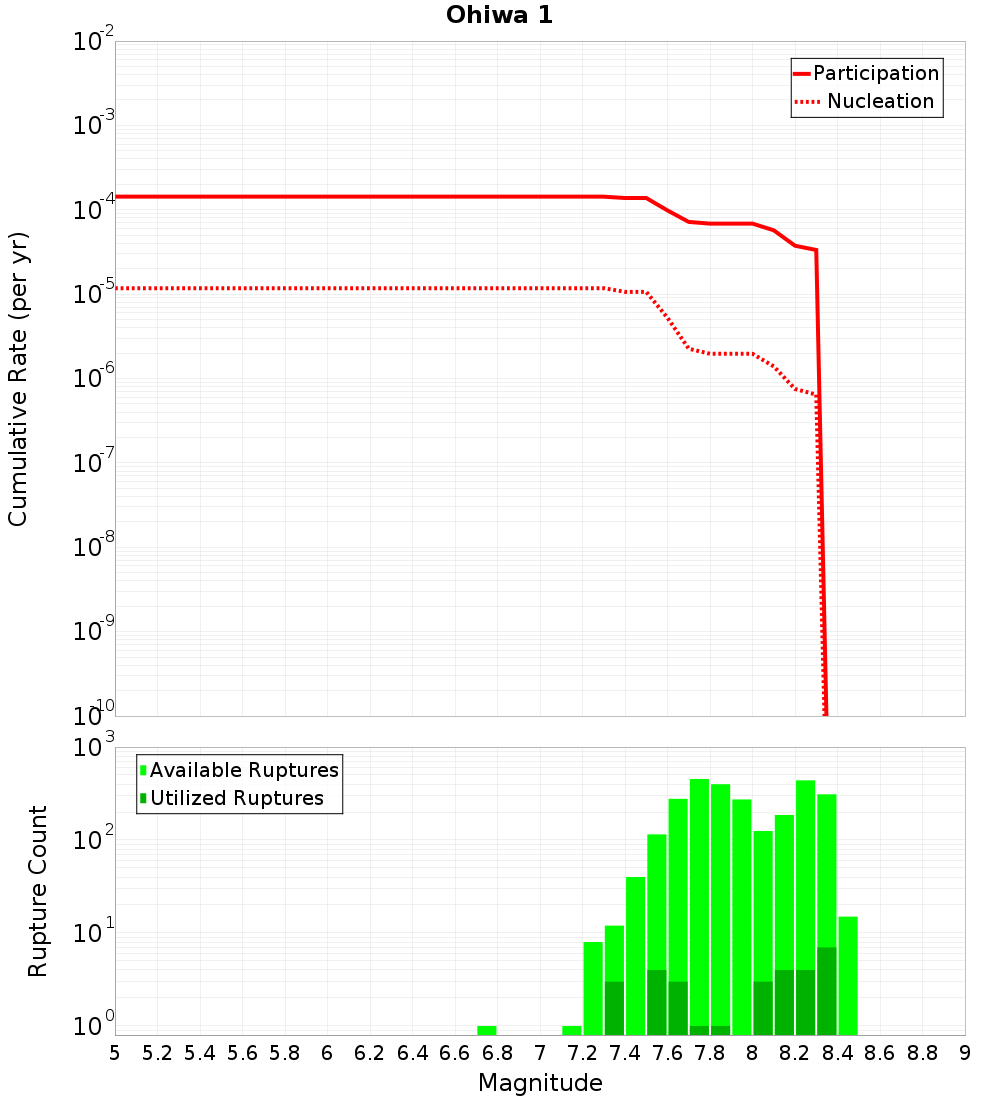

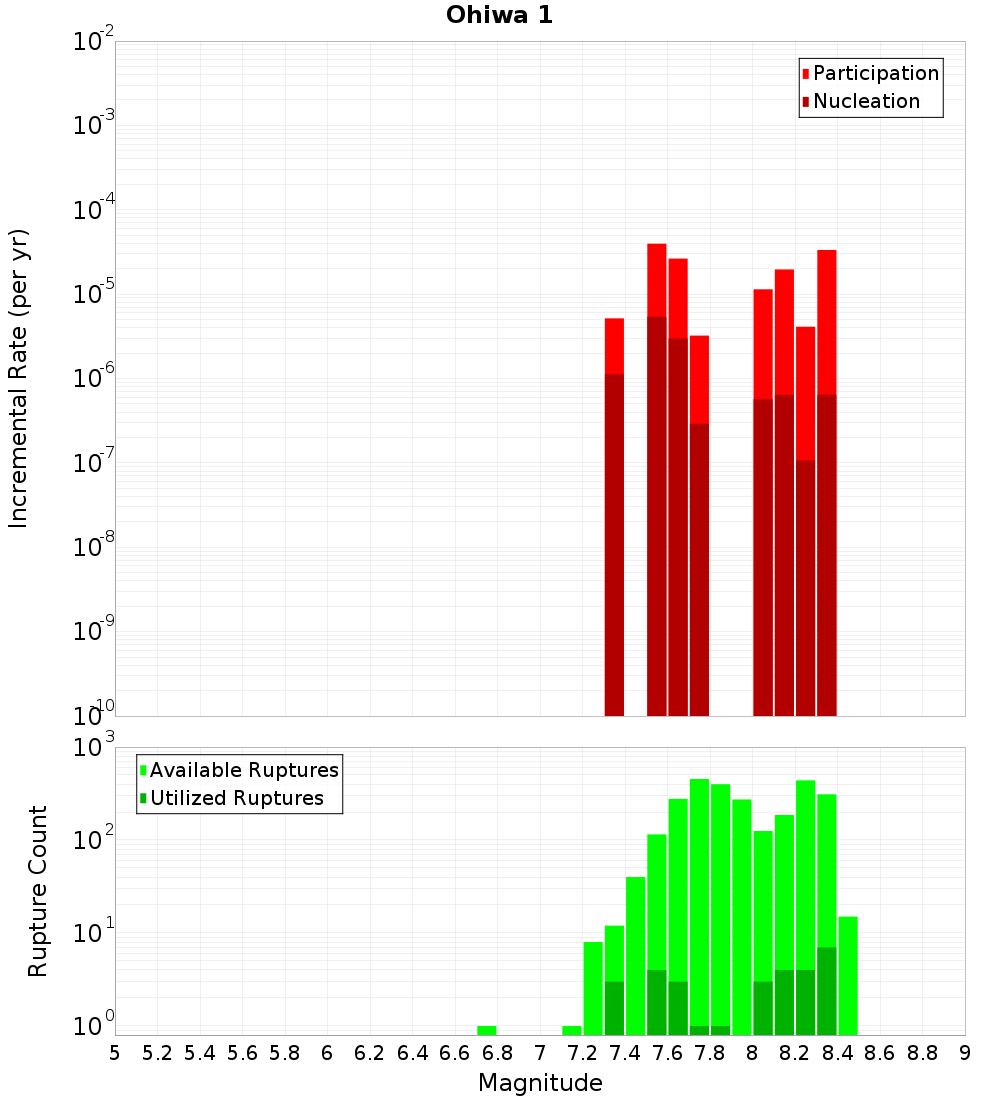

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

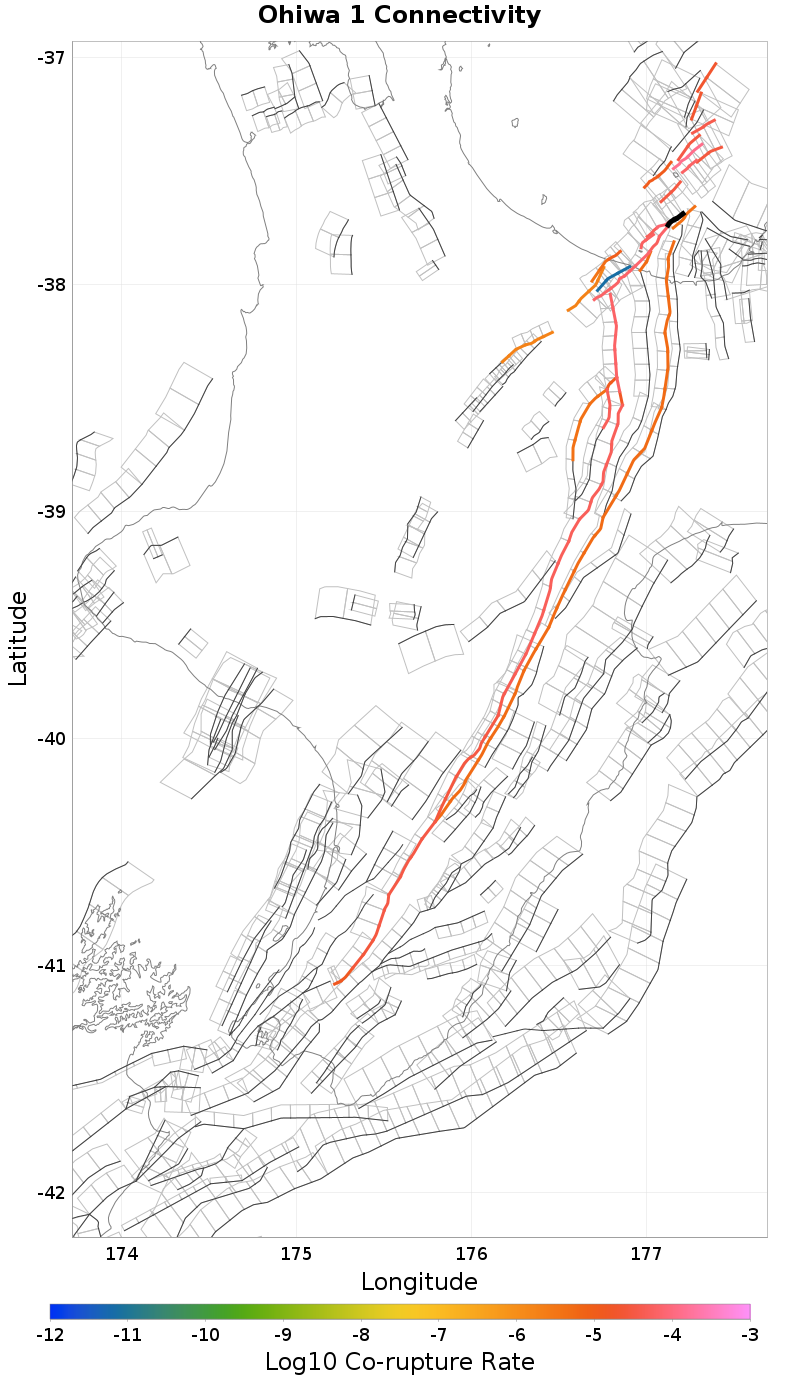

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Whakaari 4, 0.14 km away
White Island 1, 0.17 km away
Rangitaiki 2, 0.42 km away
White Island 2, 0.88 km away
Waimanawa - Waikaremoana, 4.14 km away
Calypso 2, 8.32 km away
Opotiki 3, 8.42 km away
Te Arawa 1, 8.65 km away
Waimana: North, 8.65 km away
Rangitaiki 1, 8.72 km away
Ohae 1, 8.74 km away
Tuatoru 1, 11.29 km away
Ohae 2, 14.04 km away
Waiotahi: North, 14.52 km away
Te Arawa 2, 14.95 km away

Whakaari 4, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?true
Directly Connected?false
Co-rupture Count211
Co-rupture Rate1.0969556E-5

White Island 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?true
Directly Connected?true
Co-rupture Count3,041
Co-rupture Rate8.37205E-5

Rangitaiki 2, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?true
Directly Connected?true
Co-rupture Count837
Co-rupture Rate7.33894E-5

White Island 2, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?true
Directly Connected?false
Co-rupture Count234
Co-rupture Rate3.890369E-6

Waimanawa - Waikaremoana, 4.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate3.1062842E-5

Opotiki 3, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?true
Directly Connected?true
Co-rupture Count1,646
Co-rupture Rate1.3281404E-4

Waimana: North, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?true
Directly Connected?false
Co-rupture Count351
Co-rupture Rate5.108878E-6

Rangitaiki 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?true
Directly Connected?false
Co-rupture Count1,184
Co-rupture Rate5.652591E-5

Ohae 1, 8.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?true
Directly Connected?false
Co-rupture Count235
Co-rupture Rate6.2325766E-5

Ohae 2, 14.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 14.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?true
Directly Connected?false
Co-rupture Count269
Co-rupture Rate3.428815E-5
