Uruti Basin Details

Property	Value
Rupture Count	14,675
Ruptures Above Sect Min Mag	14,645
Ruptures w/ Nonzero Rates	223
Magnitude Range	[6.47, 8.42]
Length Range	[12, 566] km
Total Rate	5.977306E-4 /yr
Multi-Fault Rate	5.977306E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	87

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

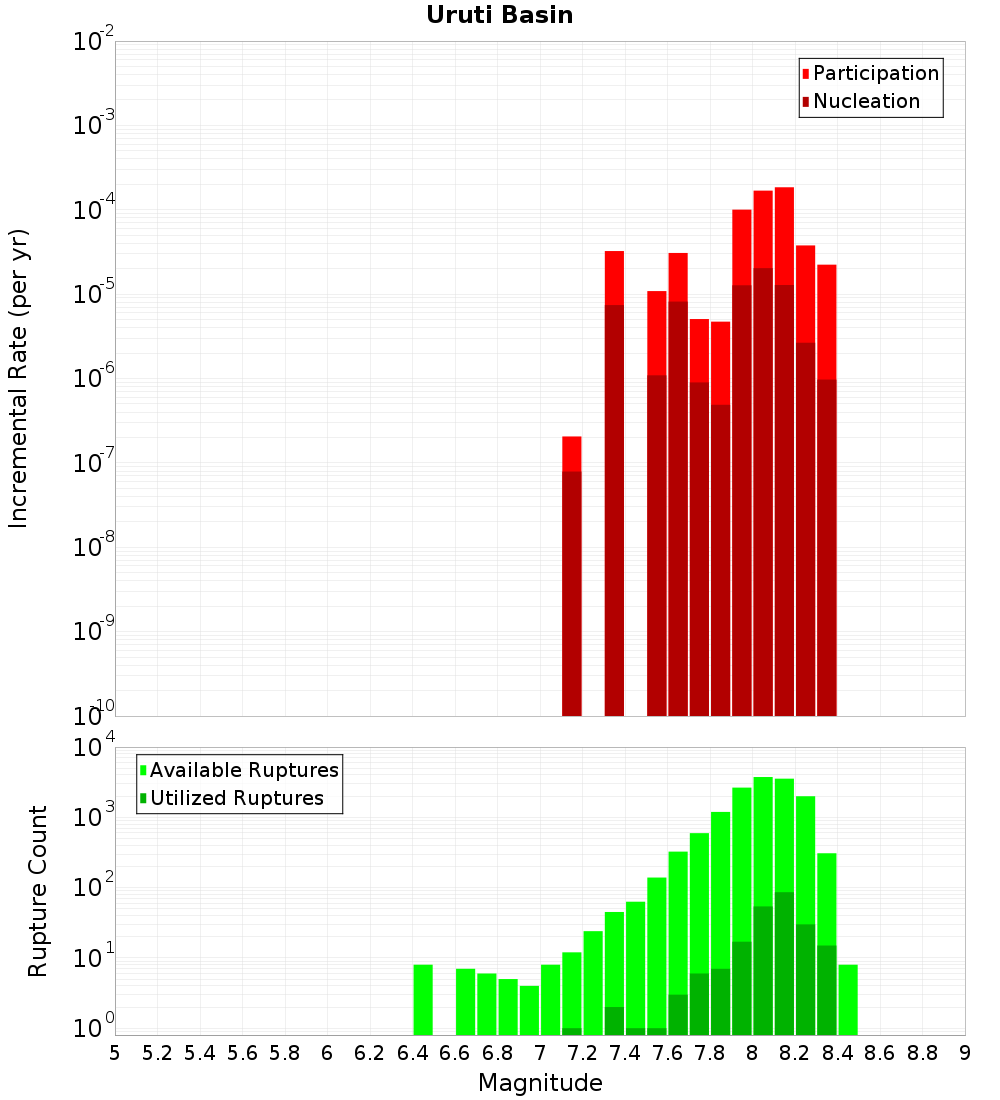

Magnitude-Frequency Distribution

Incremental	Cumulative

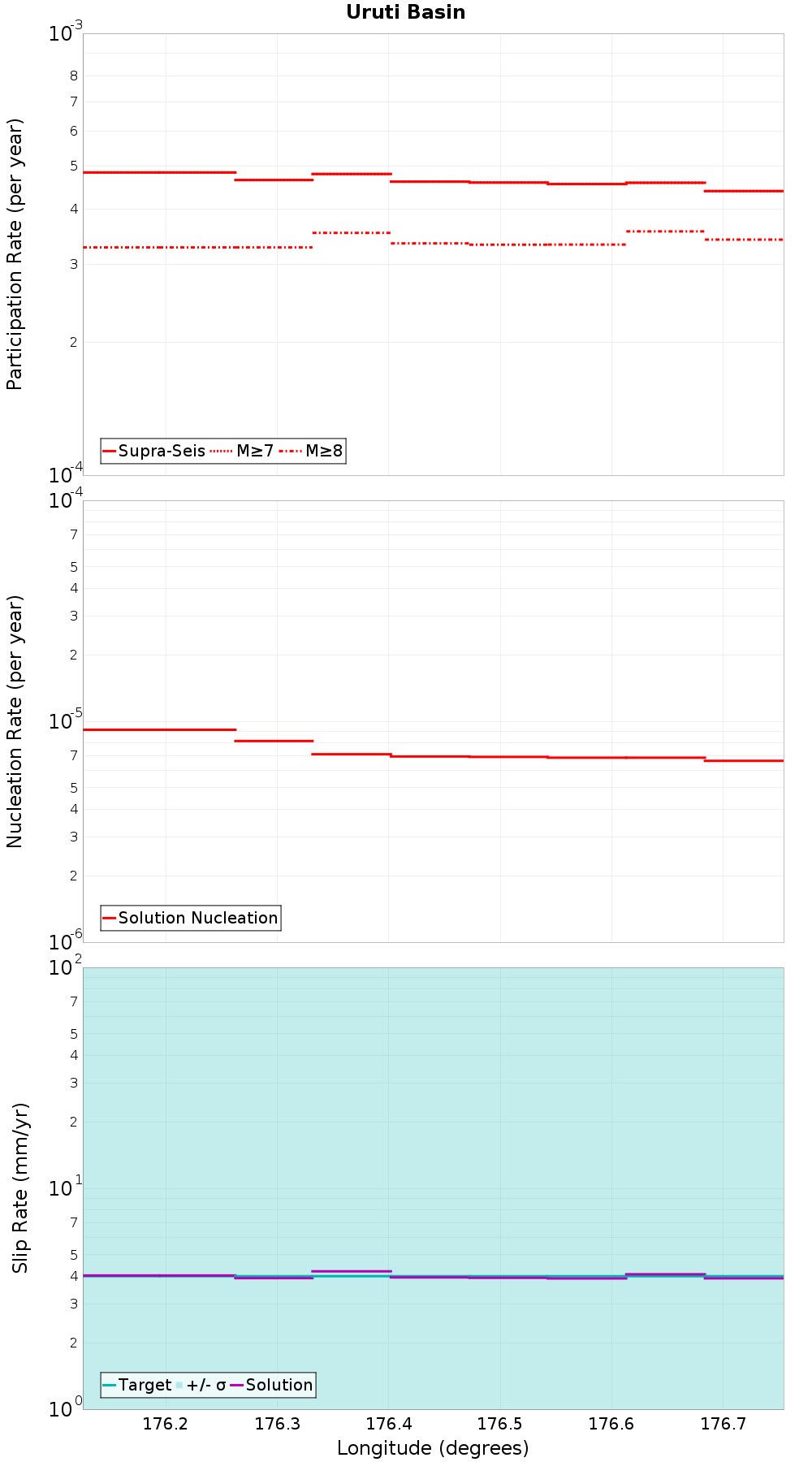

Along-Strike Values

Moment-Rates and b-Values

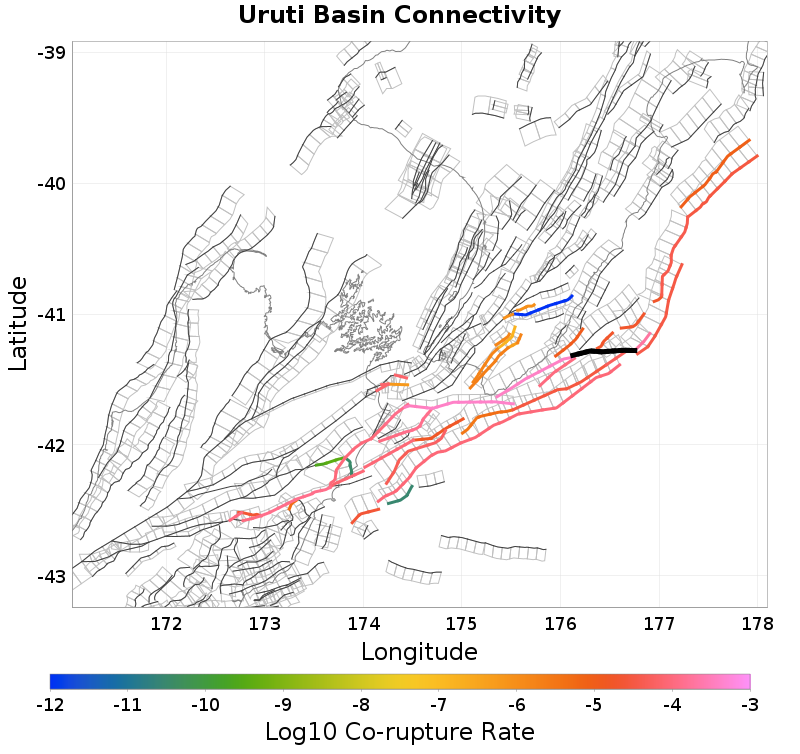

Connectivity

Nearby Sections

Fault Section
Uruti Ridge 2, 0 km away
Uruti Basin 2, 0.15 km away
Opouawe - Uruti, 0.16 km away
Pahaua, 0.28 km away
Uruti East - PorWest 1, 0.29 km away
Honeycomb, 0.57 km away
Palliser - Kaiwhata, 1.36 km away
Whareama Bank, 3.49 km away
Riversdale, 8.5 km away

Uruti Ridge 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	3,659
Co-rupture Rate	1.9477734E-4

Uruti Basin 2, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	3,345
Co-rupture Rate	1.8704523E-5

Opouawe - Uruti, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	6,279
Co-rupture Rate	5.177731E-5

Pahaua, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	3,436
Co-rupture Rate	1.1747551E-4

Uruti East - PorWest 1, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	7,469
Co-rupture Rate	6.5734464E-5

Honeycomb, 0.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	3,974
Co-rupture Rate	1.0309125E-4

Palliser - Kaiwhata, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	6,821
Co-rupture Rate	3.8151586E-4

Whareama Bank, 3.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	0.0

Riversdale, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	1.0866211E-5
