Waipukurau - Poukawa Details

Property	Value
Rupture Count	1,338
Ruptures Above Sect Min Mag	1,334
Ruptures w/ Nonzero Rates	47
Magnitude Range	[6.98, 8.25]
Length Range	[19, 408] km
Total Rate	2.9052087E-4 /yr
Multi-Fault Rate	2.2634123E-4 /yr (77.91%)
Directly-Connected Faults	5
All Co-Rupturing Faults	45

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

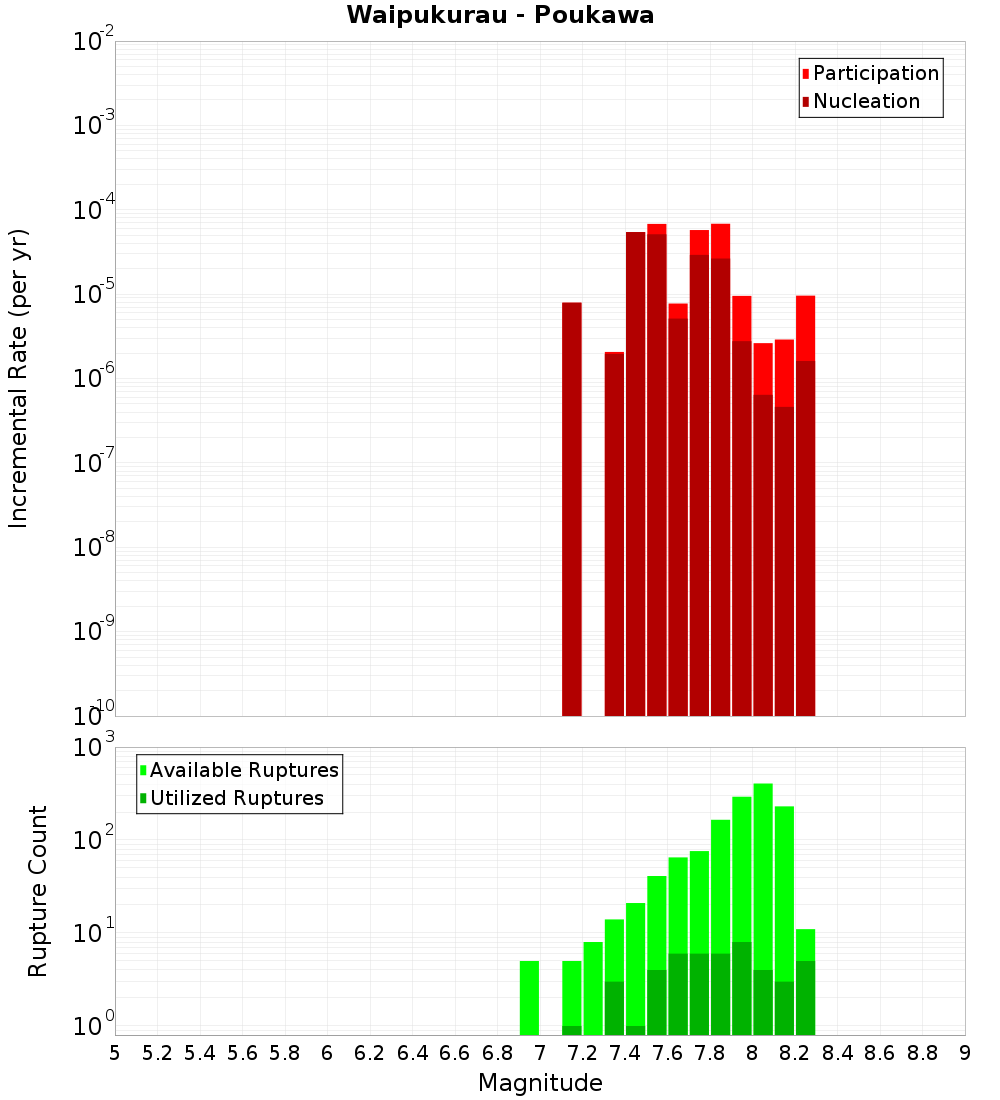

Magnitude-Frequency Distribution

Incremental	Cumulative

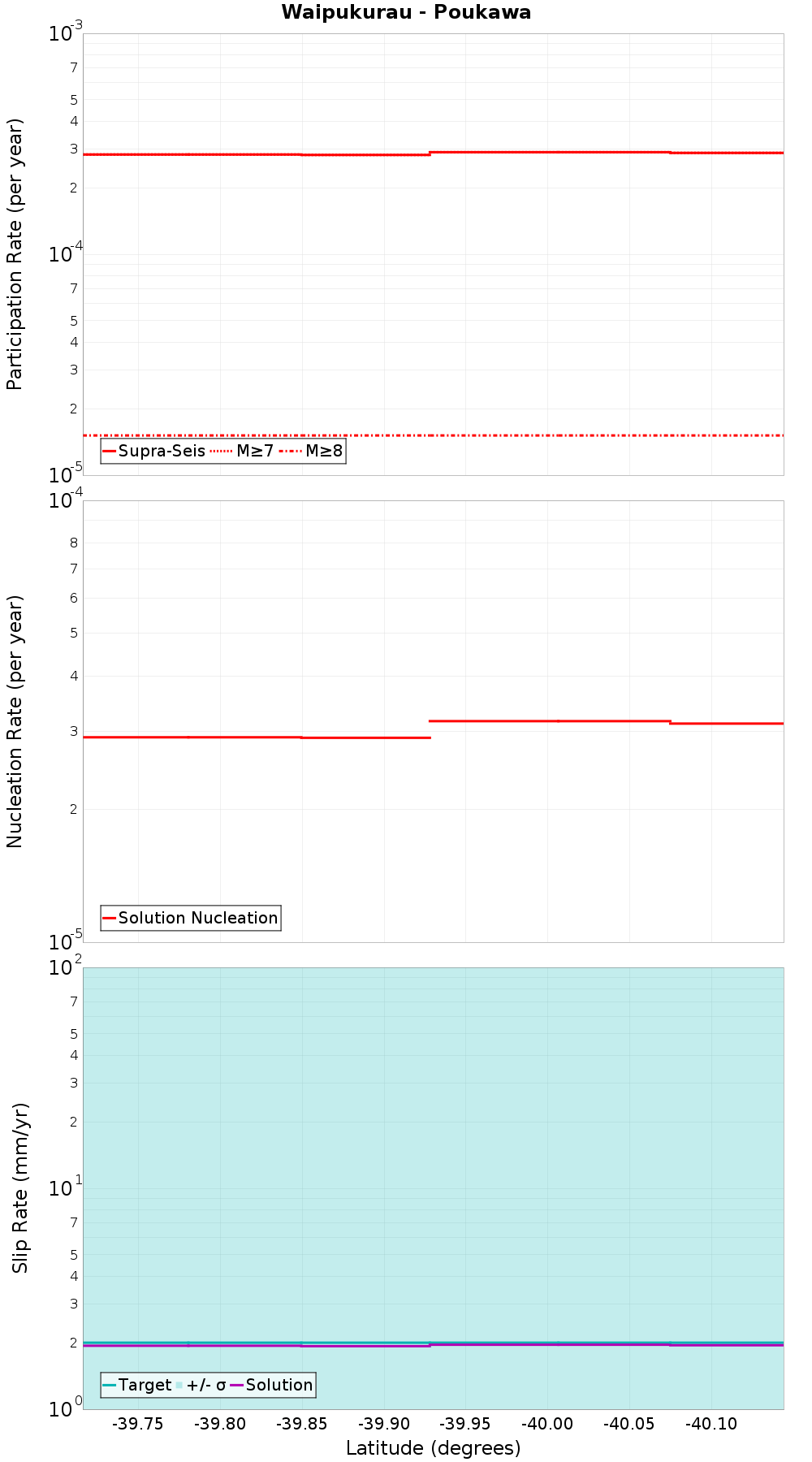

Along-Strike Values

Moment-Rates and b-Values

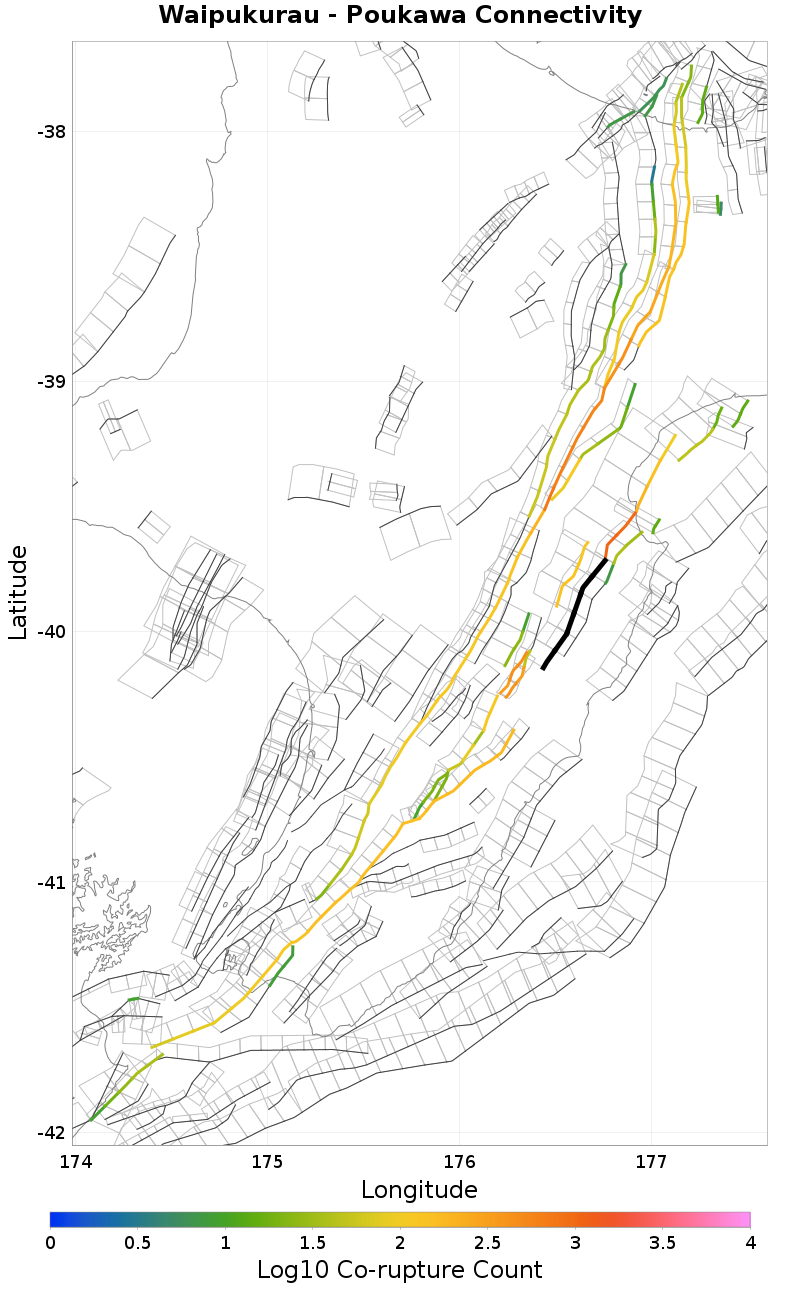

Connectivity

Nearby Sections

Fault Section
Awanui, 0 km away
Clear Hills - Waikopiro, 0.34 km away
Oruawharo - Mangatoro, 3.21 km away
Tukituki Thrust, 3.57 km away
Te Heka, 5.65 km away
Ruataniwha, 13.21 km away

Awanui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	1,110
Co-rupture Rate	8.830069E-5

Clear Hills - Waikopiro, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	464
Co-rupture Rate	1.6064676E-5

Oruawharo - Mangatoro, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	464
Co-rupture Rate	8.4115374E-5

Tukituki Thrust, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	1.1540124E-4

Te Heka, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	true
Co-rupture Count	138
Co-rupture Rate	1.6175619E-16

Ruataniwha, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NTUuMHRlQ1FT
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	2.6911488E-7
