Dry River - Huangarua: 2 Details

Property	Value
Rupture Count	626
Ruptures Above Sect Min Mag	621
Ruptures w/ Nonzero Rates	18
Magnitude Range	[6.38, 8.11]
Length Range	[9, 371] km
Total Rate	1.5263626E-4 /yr
Multi-Fault Rate	1.5263626E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	60

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

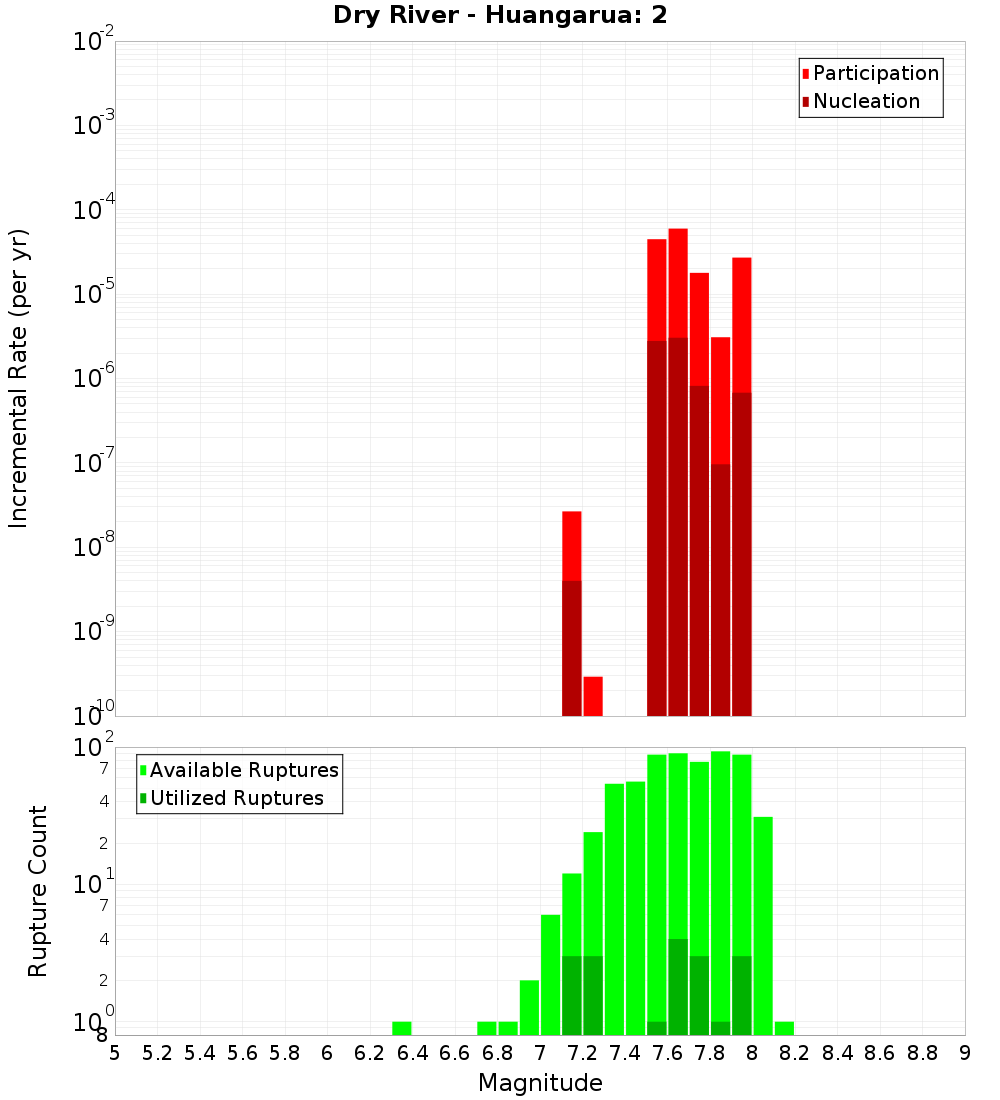

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

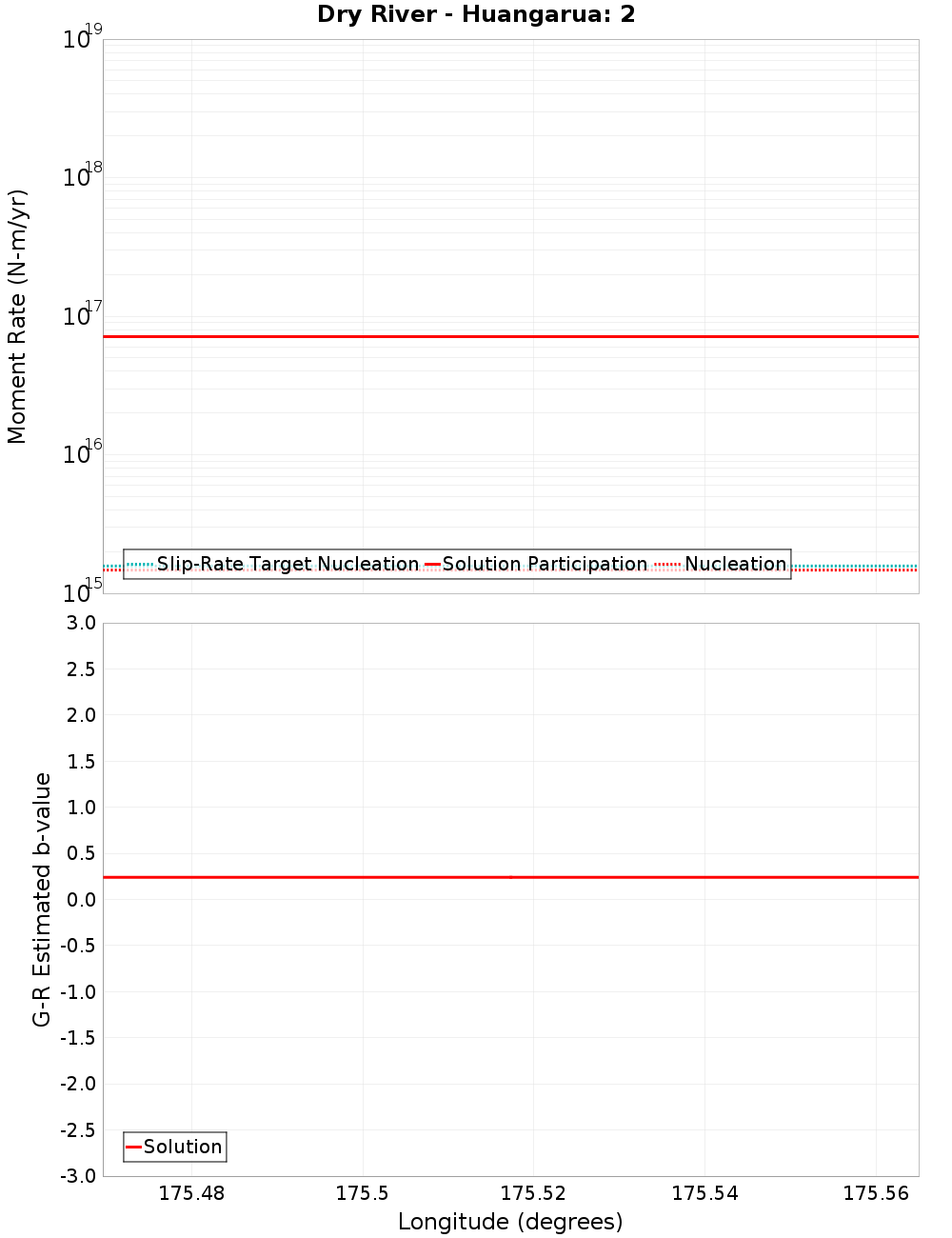

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Dry River - Huangarua: 3, 0 km away
Dry River - Huangarua: 1, 0.11 km away
Martinborough, 4.43 km away
Bidwill, 7.05 km away
Otaraia, 7.52 km away
Masterton, 11.51 km away
Carterton, 12.78 km away

Dry River - Huangarua: 3, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjQuMDZSYW82
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 1, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjQuMDZSYW82
Connected?	true
Directly Connected?	true
Co-rupture Count	546
Co-rupture Rate	9.8429686E-5

Martinborough, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjQuMDZSYW82
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	1.835127E-12

Bidwill, 7.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjQuMDZSYW82
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	2.689825E-8

Otaraia, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjQuMDZSYW82
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	2.655912E-8

Masterton, 11.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjQuMDZSYW82
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Carterton, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjQuMDZSYW82
Connected?	true
Directly Connected?	true
Co-rupture Count	377
Co-rupture Rate	5.4206914E-5
