Kairakau South Details
| Property | Value |
|---|---|
| Rupture Count | 94 |
| Ruptures Above Sect Min Mag | 91 |
| Ruptures w/ Nonzero Rates | 23 |
| Magnitude Range | [6.91, 7.86] |
| Length Range | [17, 140] km |
| Total Rate | 6.463955E-4 /yr |
| Multi-Fault Rate | 4.5850288E-4 /yr (70.93%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

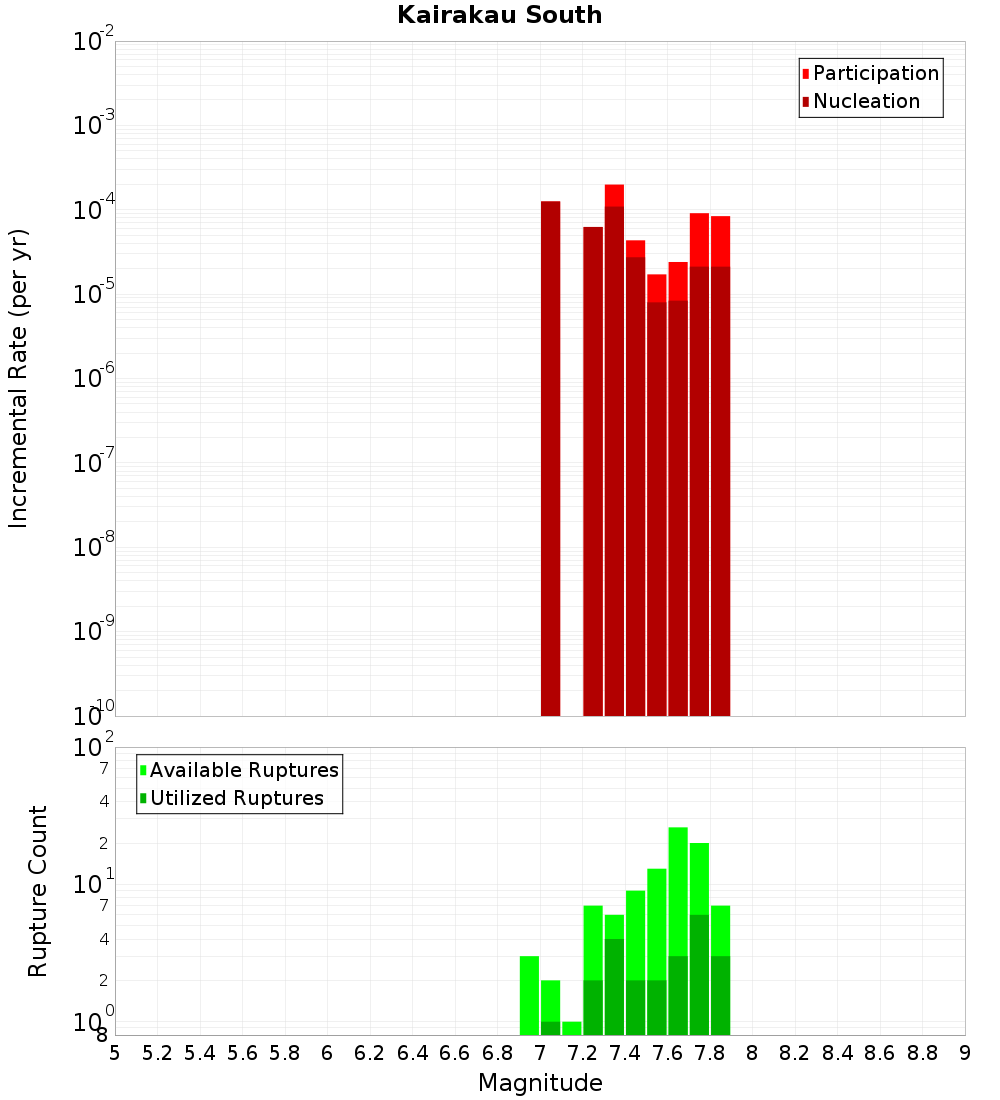

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

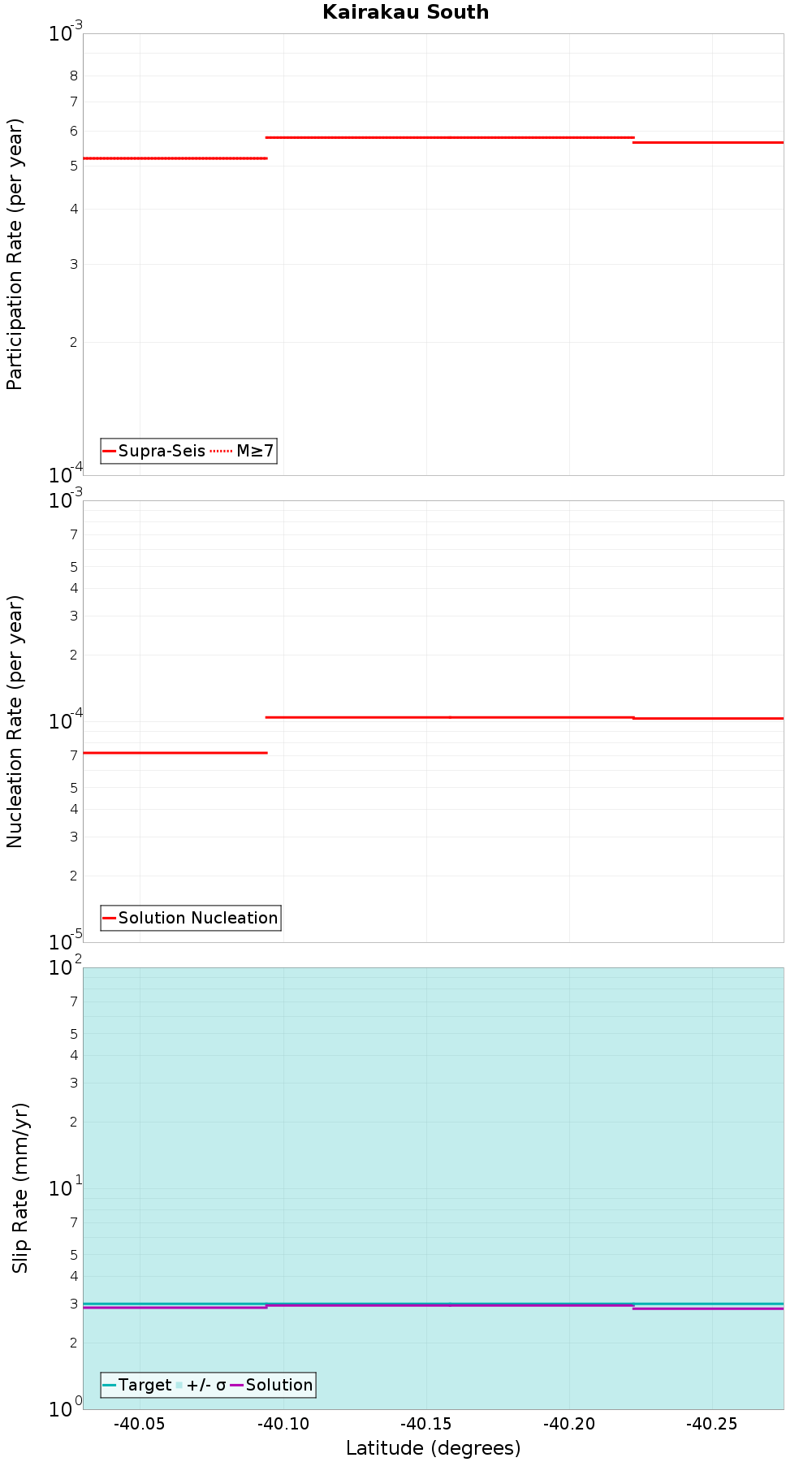

Along-Strike Values
Moment-Rates and b-Values

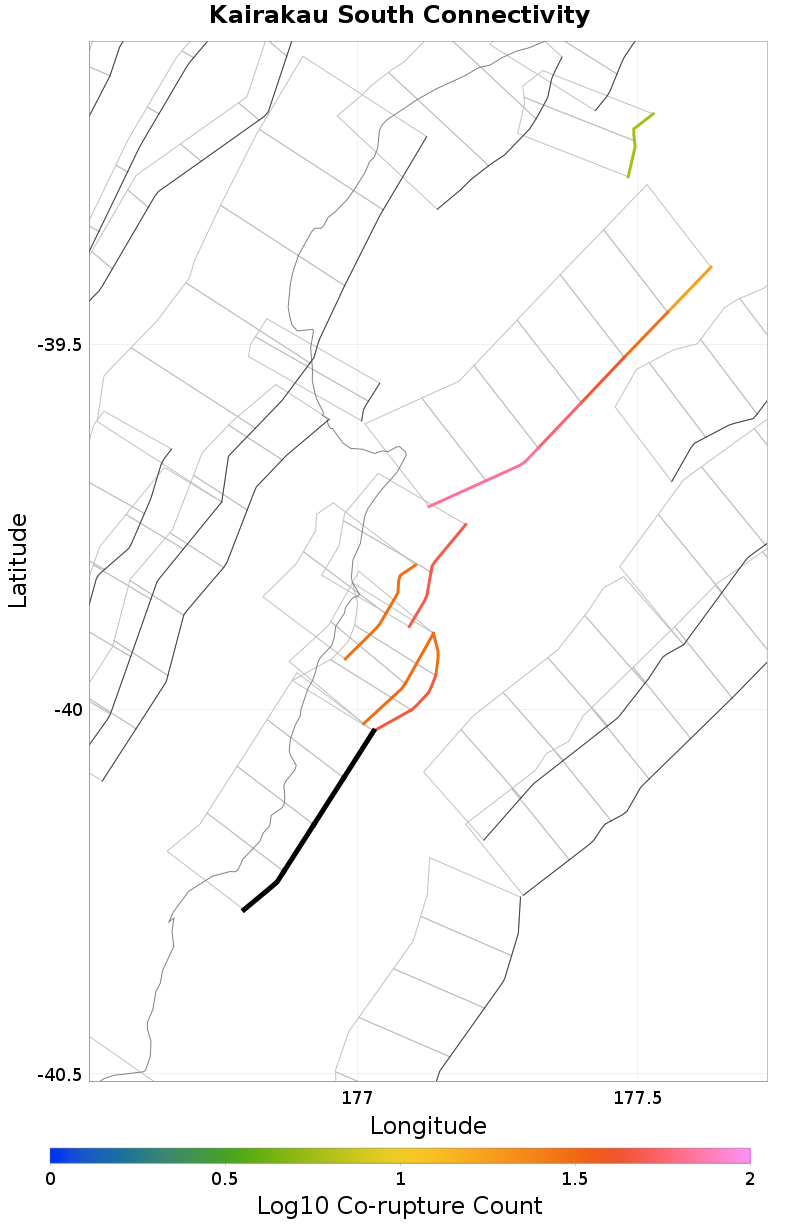

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kairakau 2, 0 km away |
| Kairakau North, 1.29 km away |
| Waimarama 1 & 2, 8.89 km away |
| Waimarama 3 & 4, 14.88 km away |
Kairakau 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjguNXN1S0Ry | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 46 |
| Co-rupture Rate | 1.6365339E-4 |
Kairakau North, 1.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjguNXN1S0Ry | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 1.8985504E-4 |
Waimarama 1 & 2, 8.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjguNXN1S0Ry | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 30 |
| Co-rupture Rate | 1.7052815E-4 |
Waimarama 3 & 4, 14.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NjguNXN1S0Ry | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 48 |
| Co-rupture Rate | 1.268966E-4 |
