Hauroko: North Details

PropertyValue
Rupture Count1,106
Ruptures Above Sect Min Mag1,103
Ruptures w/ Nonzero Rates36
Magnitude Range[7.18, 8.67]
Length Range[23, 793] km
Total Rate2.9975738E-4 /yr
Multi-Fault Rate8.606632E-5 /yr (28.71%)
Directly-Connected Faults3
All Co-Rupturing Faults34

Table Of Contents

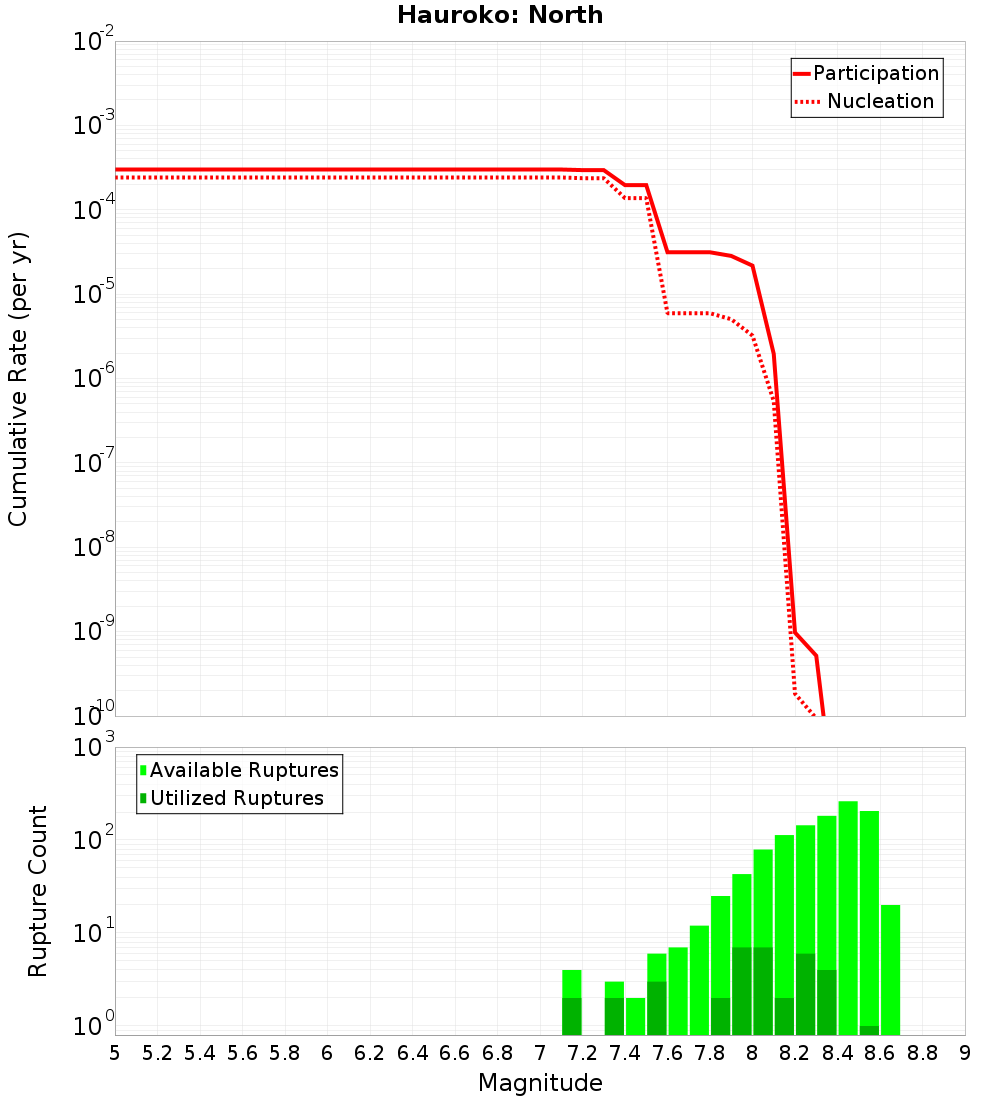

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

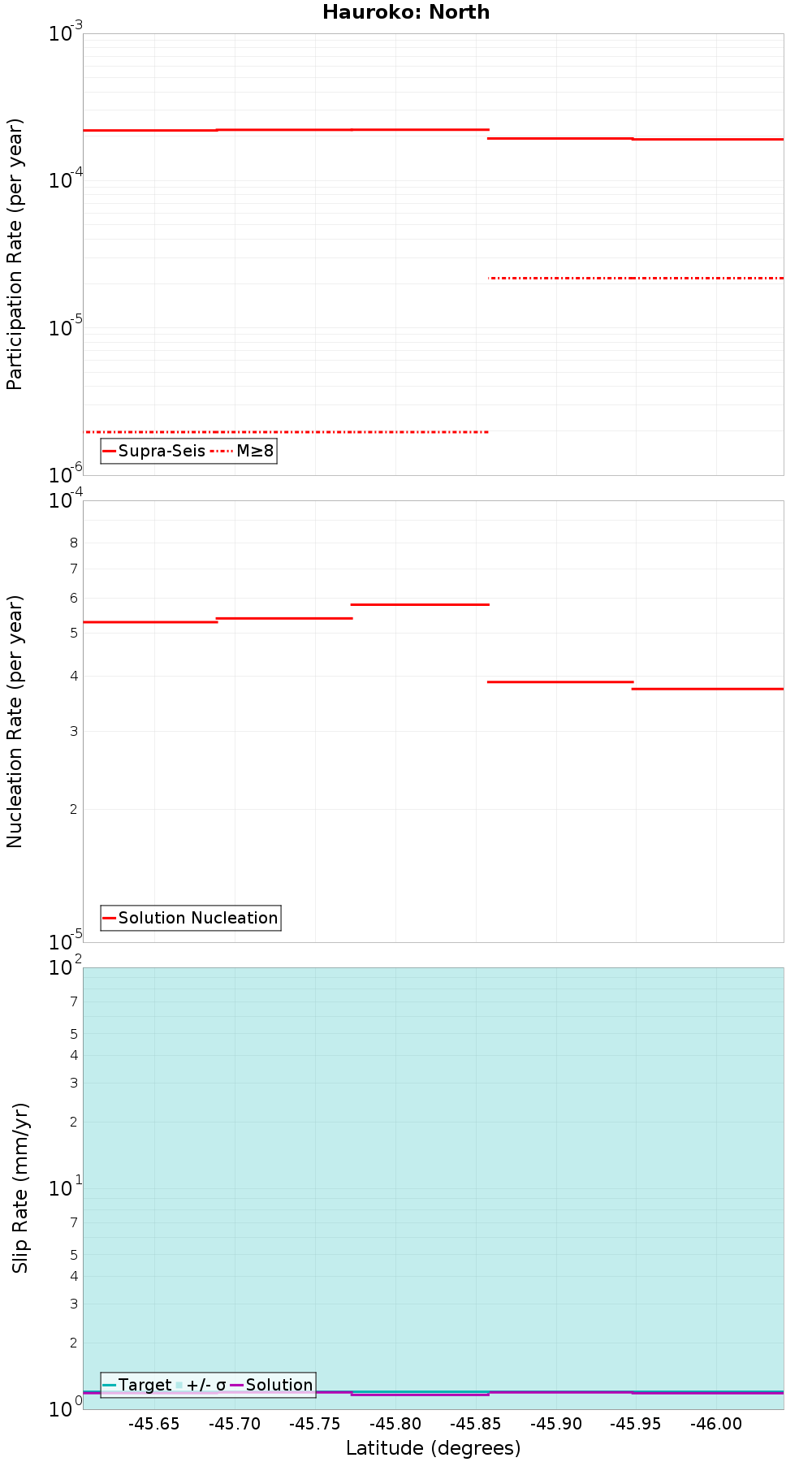

Along-Strike Values

(top)

Along-strike plot

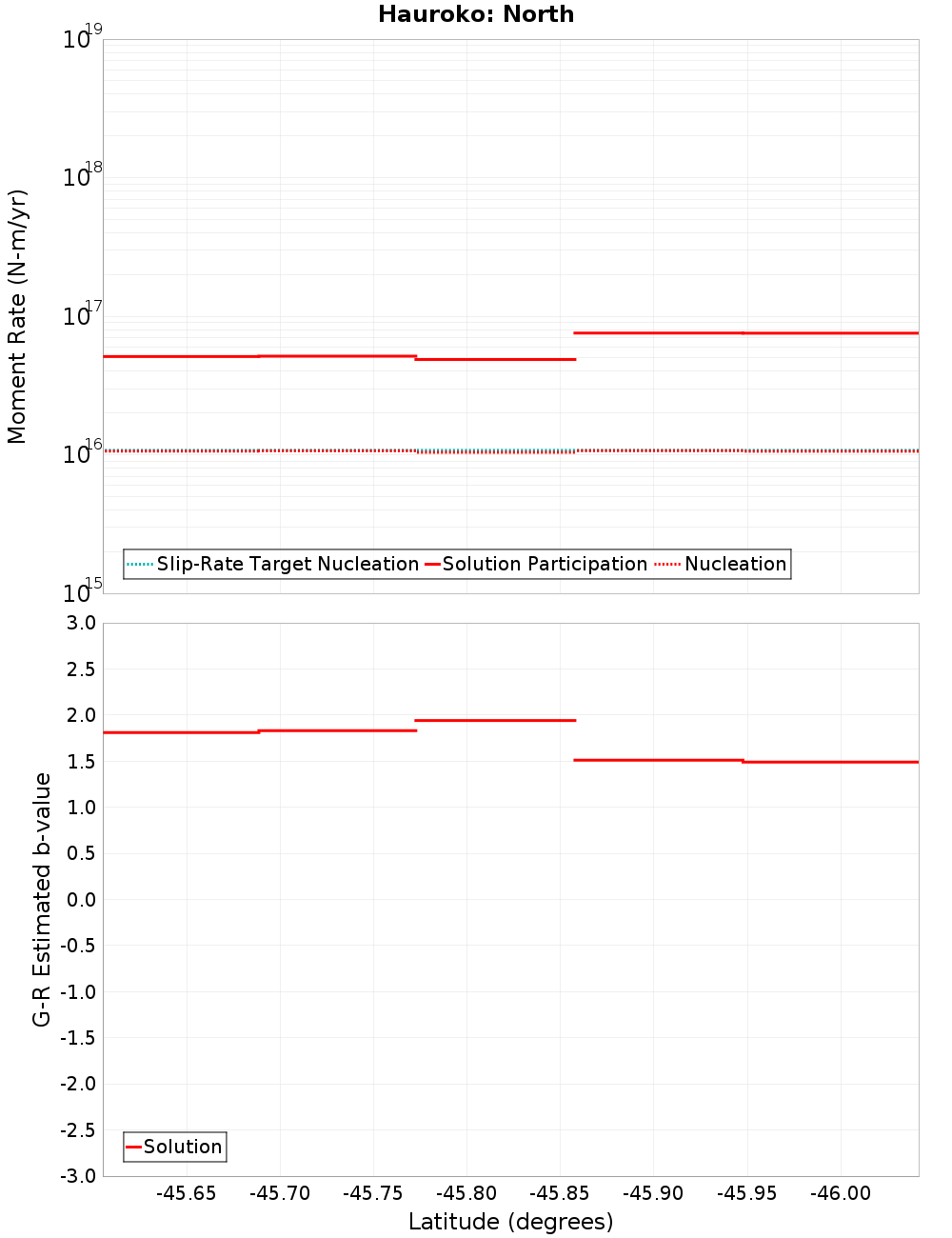

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hauroko: South, 0.32 km away
Monowai, 1.01 km away
Hump Ridge, 3.59 km away
McKerchar, 6.27 km away
Tin Hut, 14.05 km away
Moonlight South, 14.39 km away

Hauroko: South, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?true
Directly Connected?true
Co-rupture Count423
Co-rupture Rate3.1325904E-5

Monowai, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate7.837037E-5

Hump Ridge, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate1.9789517E-5

McKerchar, 6.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.9559402E-6

Tin Hut, 14.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Moonlight South, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?true
Directly Connected?true
Co-rupture Count1,056
Co-rupture Rate1.9586516E-6
