Waikuku Details

Property	Value
Rupture Count	581
Ruptures Above Sect Min Mag	579
Ruptures w/ Nonzero Rates	53
Magnitude Range	[6.79, 8.24]
Length Range	[14, 311] km
Total Rate	2.4246308E-5 /yr
Multi-Fault Rate	2.4246308E-5 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	29

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

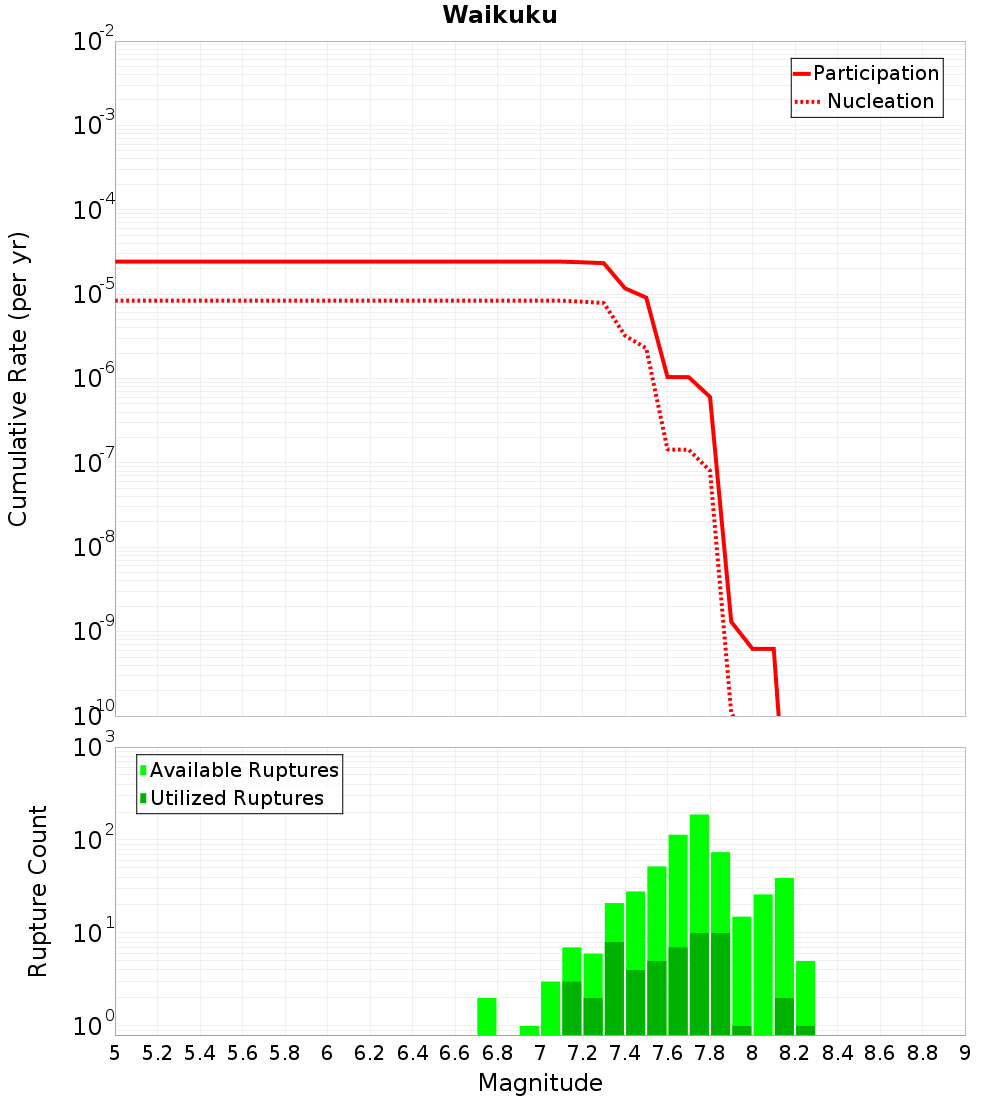

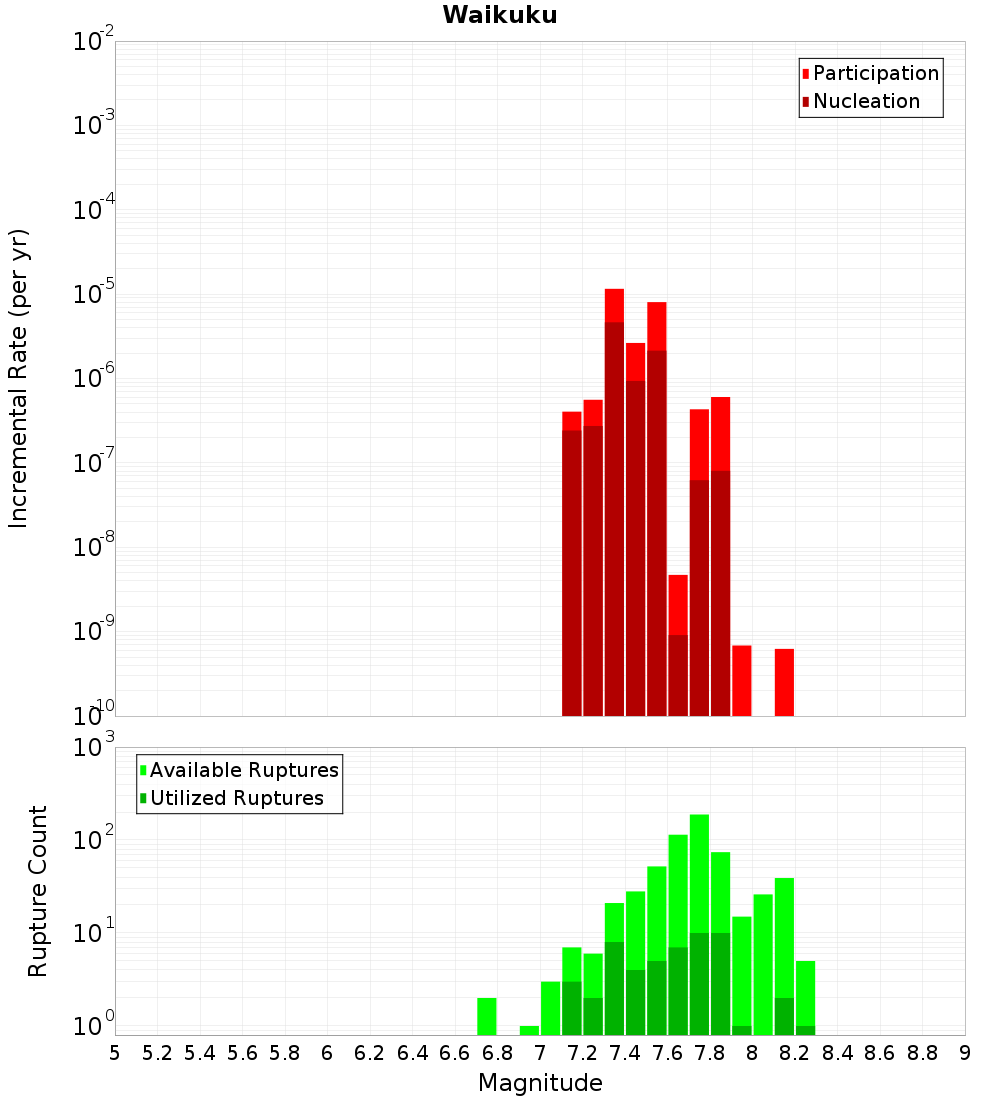

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Pegasus Bay, 3.19 km away
Leithfield - NCVI - NCVII, 4.07 km away
North Canterbury Shelf 2, 4.61 km away
North Canterbury Shelf 4, 5.12 km away
Motunau, 9.01 km away
AmberBlyth, 9.2 km away
Starvation - Ashley, 11.22 km away
CenPeg1n2, 11.9 km away
OmihiLwrHuru, 14.73 km away

Pegasus Bay, 3.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?	true
Directly Connected?	true
Co-rupture Count	44
Co-rupture Rate	2.0010607E-6

Leithfield - NCVI - NCVII, 4.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?	true
Directly Connected?	true
Co-rupture Count	221
Co-rupture Rate	1.5779286E-5

North Canterbury Shelf 2, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?	true
Directly Connected?	true
Co-rupture Count	96
Co-rupture Rate	3.6883375E-6

North Canterbury Shelf 4, 5.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?	true
Directly Connected?	true
Co-rupture Count	124
Co-rupture Rate	4.2955558E-6

Motunau, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	1.145871E-6

AmberBlyth, 9.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	8.8266596E-8

Starvation - Ashley, 11.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?	true
Directly Connected?	true
Co-rupture Count	474
Co-rupture Rate	9.5029696E-7

CenPeg1n2, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	2.0342588E-5

OmihiLwrHuru, 14.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzEuMHZwVDJW
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	1.8557621E-9
