White Creek Details
| Property | Value |
|---|---|
| Rupture Count | 9,157 |
| Ruptures Above Sect Min Mag | 9,151 |
| Ruptures w/ Nonzero Rates | 302 |
| Magnitude Range | [7.11, 8.62] |
| Length Range | [23, 816] km |
| Total Rate | 9.5751035E-5 /yr |
| Multi-Fault Rate | 9.5751035E-5 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 47 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

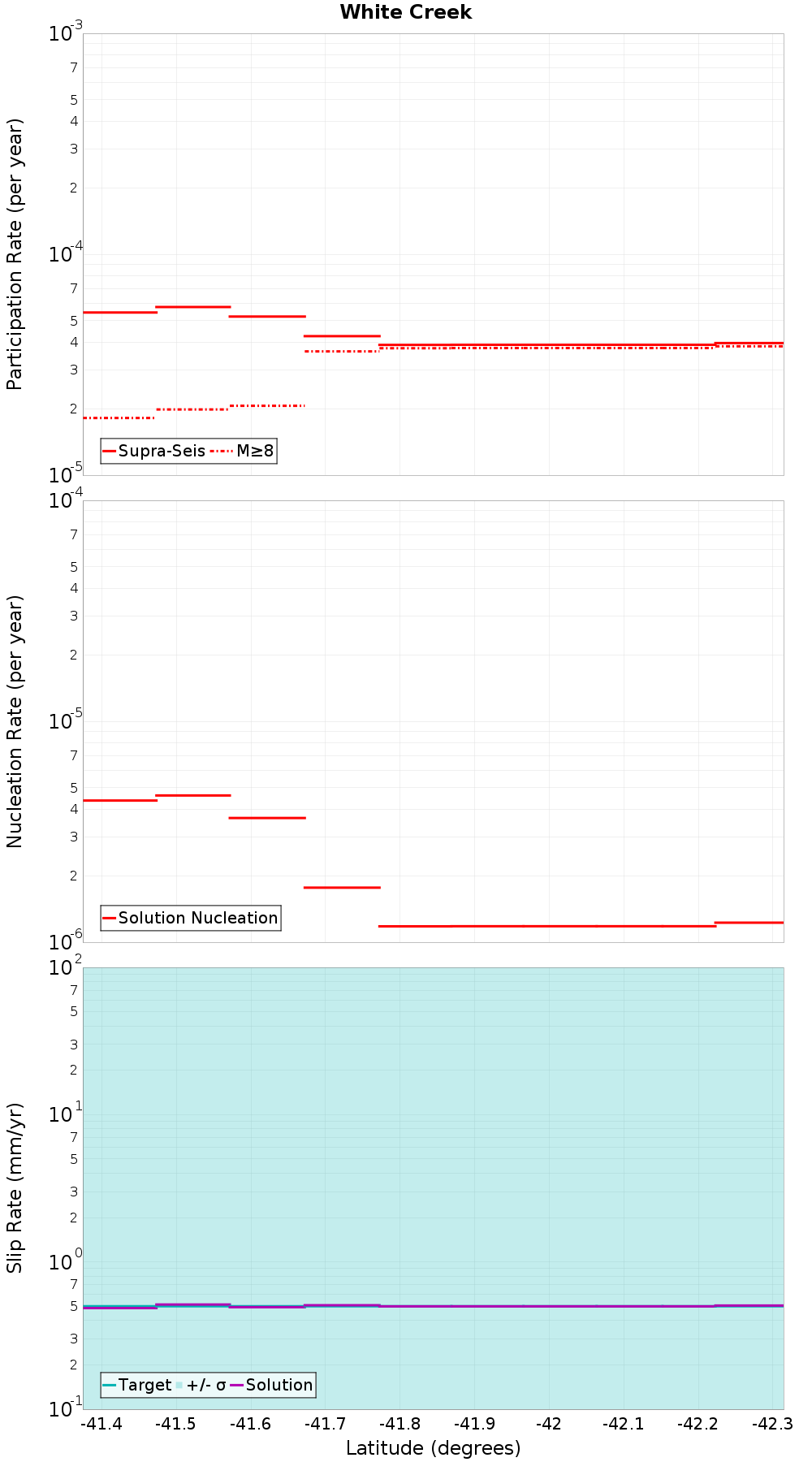

Along-Strike Values
Moment-Rates and b-Values

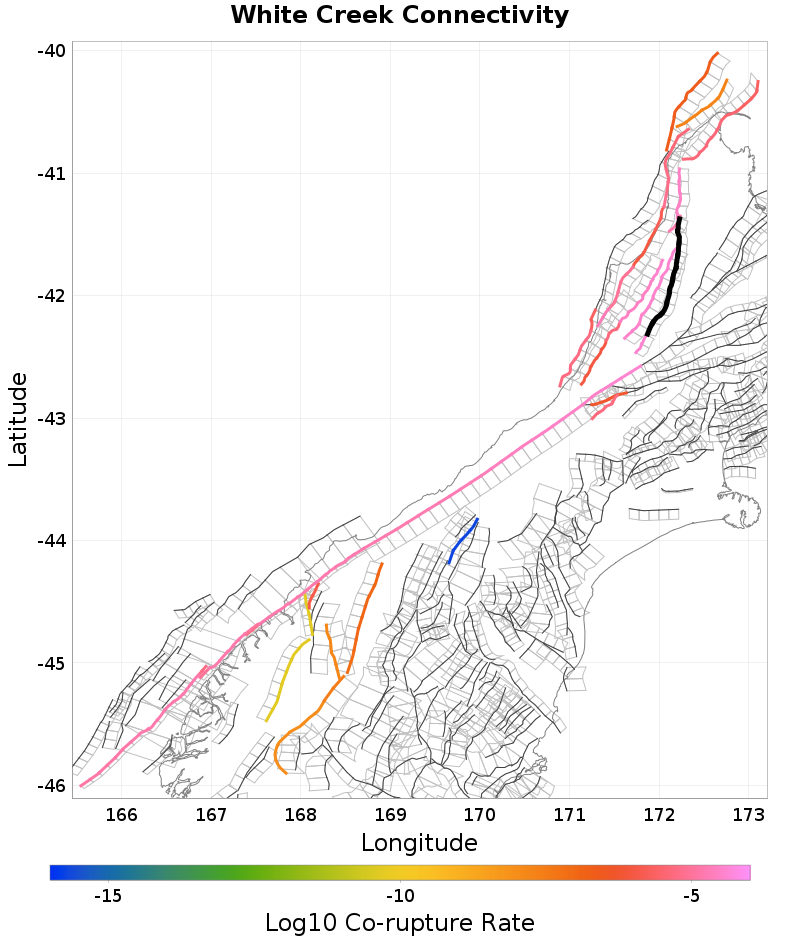

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Lyell, 0.23 km away |
| Kohaihai South, 0.56 km away |
| White Creek - buried, 0.99 km away |
| Kohaihai, 2.2 km away |
| Lyell South, 6.32 km away |
| Kongahau, 11.75 km away |
| Inangahua, 13.07 km away |
Lyell, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzMuMENoUjVB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,133 |
| Co-rupture Rate | 3.5654226E-5 |
Kohaihai South, 0.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzMuMENoUjVB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 889 |
| Co-rupture Rate | 1.5507223E-5 |
White Creek - buried, 0.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzMuMENoUjVB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,115 |
| Co-rupture Rate | 3.59676E-5 |
Kohaihai, 2.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzMuMENoUjVB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,065 |
| Co-rupture Rate | 2.7866648E-5 |
Lyell South, 6.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzMuMENoUjVB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,894 |
| Co-rupture Rate | 3.558196E-5 |
Kongahau, 11.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzMuMENoUjVB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,367 |
| Co-rupture Rate | 1.01332935E-5 |
Inangahua, 13.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5NzMuMENoUjVB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 618 |
| Co-rupture Rate | 3.3960747E-5 |
