Tuapeka Details

Property	Value
Rupture Count	4,722
Ruptures Above Sect Min Mag	4,721
Ruptures w/ Nonzero Rates	78
Magnitude Range	[6.98, 8.46]
Length Range	[27, 859] km
Total Rate	1.2491136E-5 /yr
Multi-Fault Rate	1.2491136E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	87

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

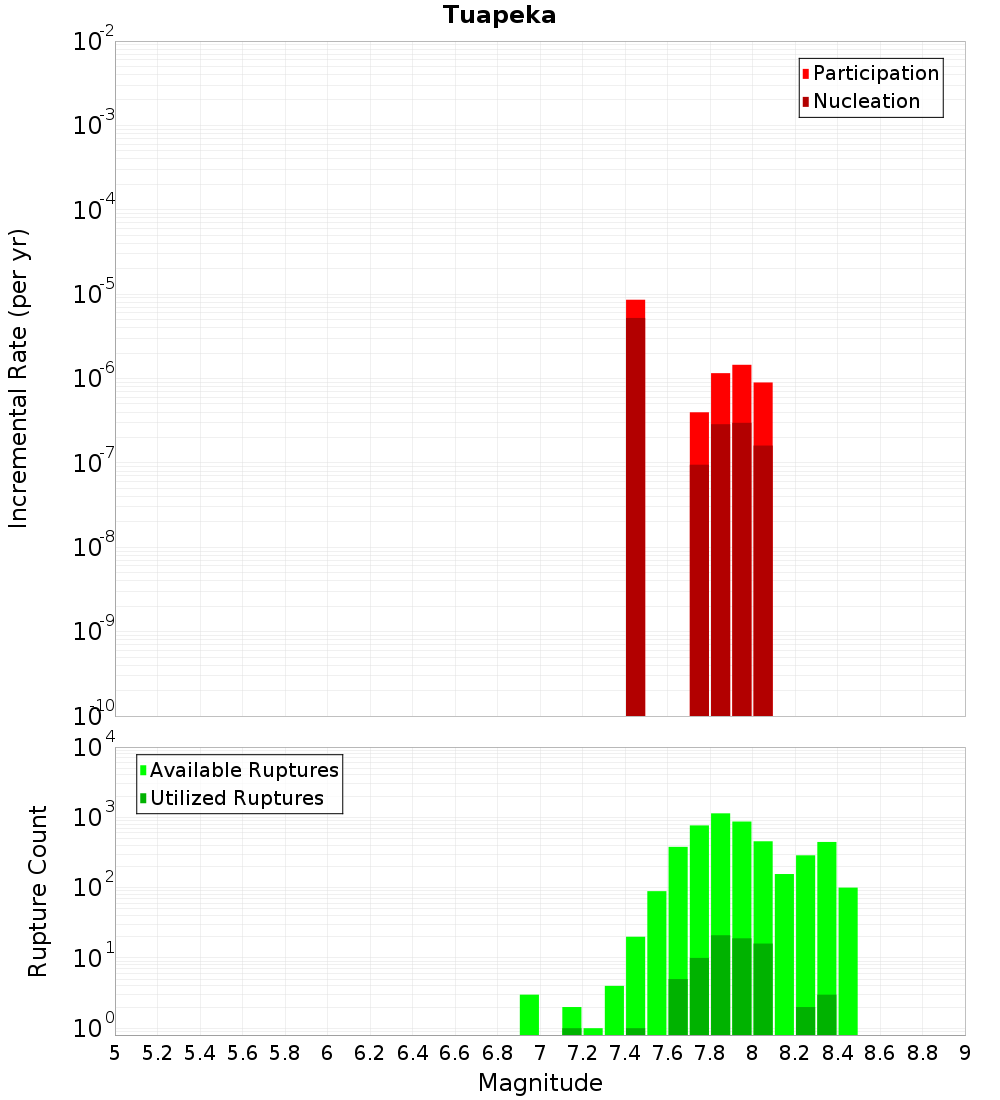

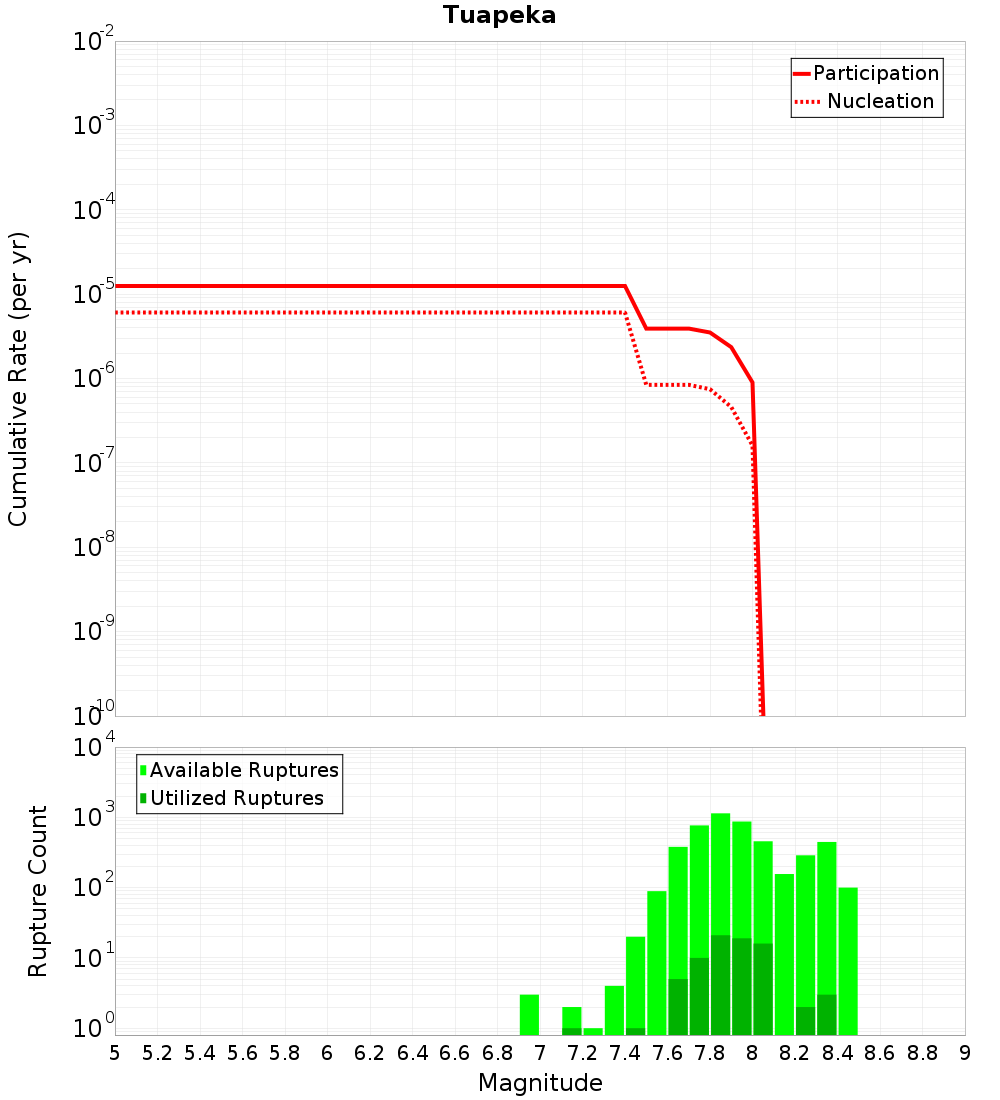

Magnitude-Frequency Distribution

Incremental	Cumulative

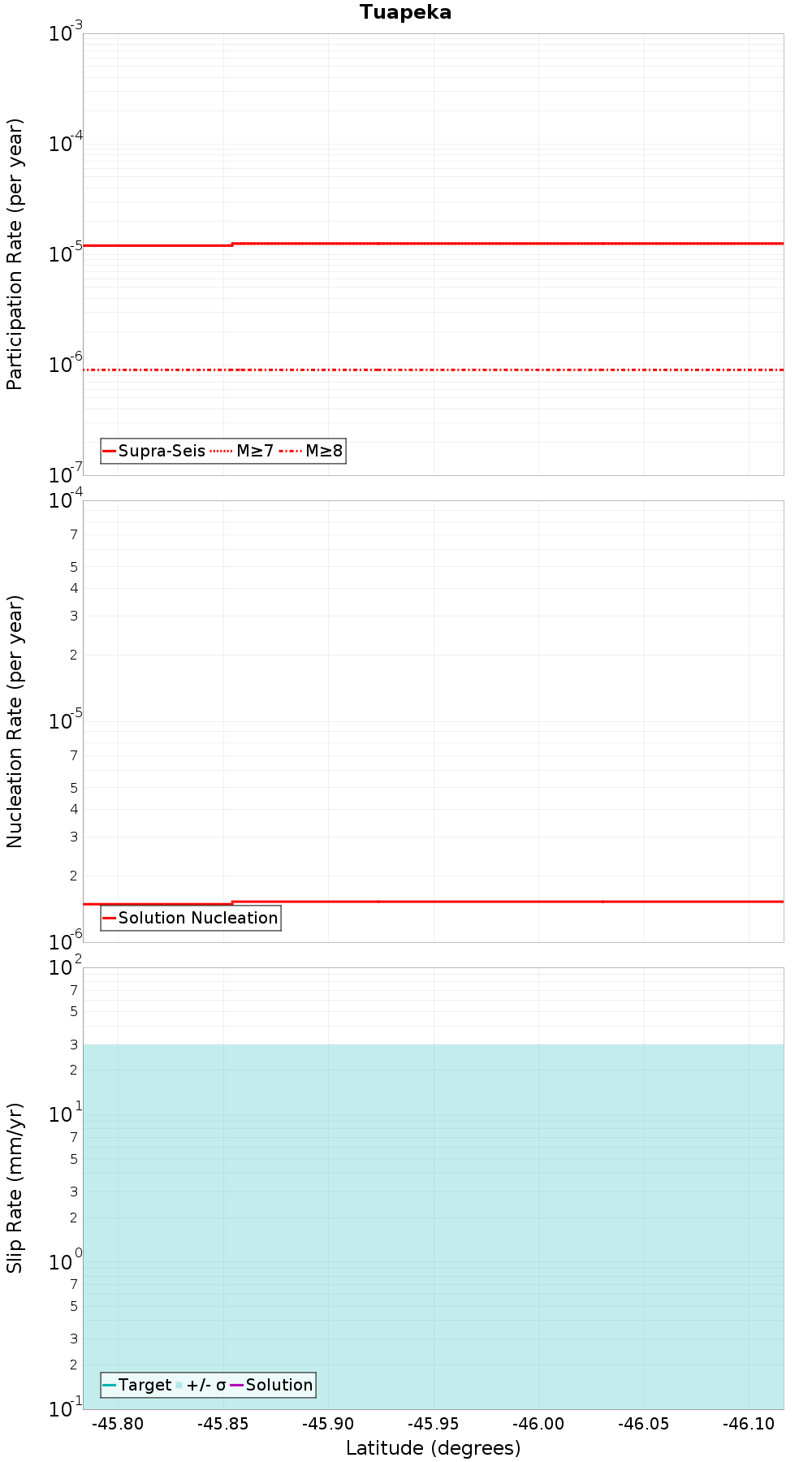

Along-Strike Values

Moment-Rates and b-Values

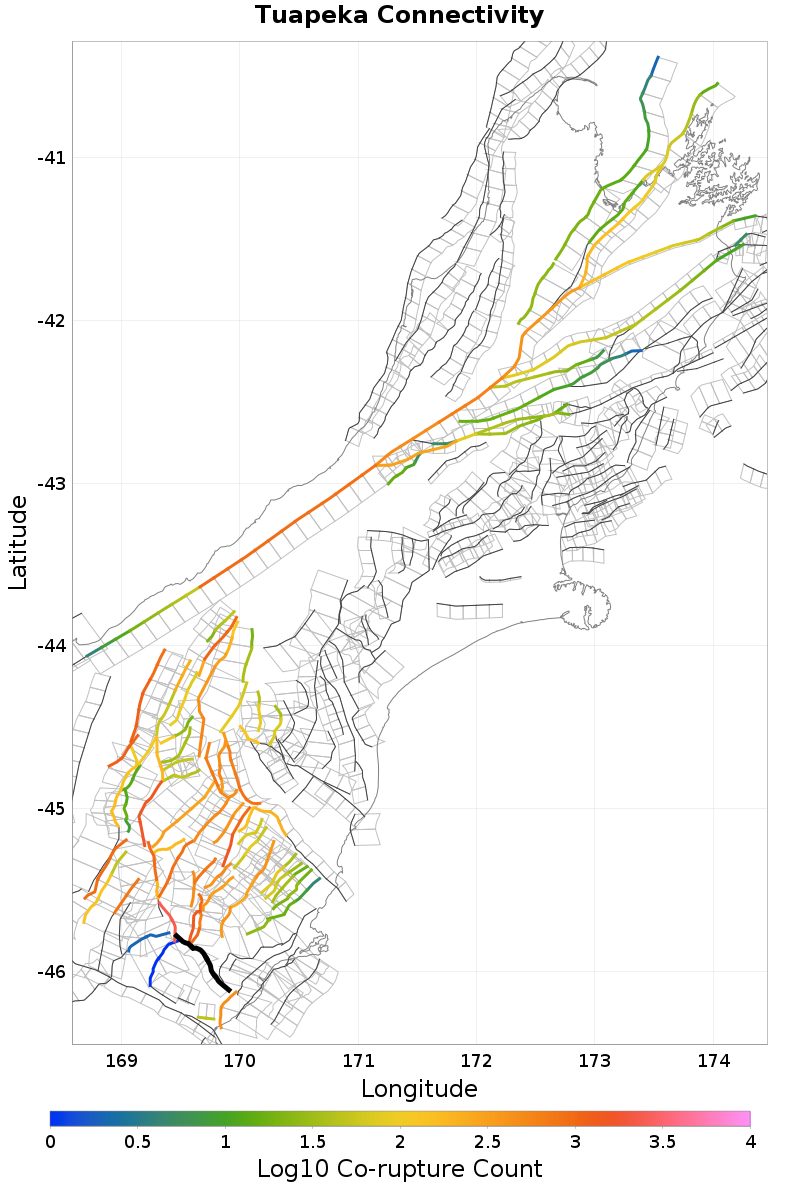

Connectivity

Nearby Sections

Fault Section
Blue Mountain, 0.23 km away
Beaumont River, 0.91 km away
Backbone, 1.03 km away
Teviot, 1.07 km away
Waitahuna 1, 1.92 km away
Spylaw, 2.17 km away
Titri South, 4.19 km away
Titri Central, 6.22 km away
Otanomomo, 6.25 km away
Clifton, 6.7 km away
Waitahuna 2, 10.05 km away
Akatore, 14.57 km away
Beacon Hill, 14.81 km away
Hyde South - The Twins, 14.98 km away

Blue Mountain, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Beaumont River, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	true
Directly Connected?	true
Co-rupture Count	1,261
Co-rupture Rate	5.102275E-7

Backbone, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	true
Directly Connected?	true
Co-rupture Count	1,429
Co-rupture Rate	6.997782E-15

Teviot, 1.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	true
Directly Connected?	true
Co-rupture Count	2,460
Co-rupture Rate	3.3966132E-6

Waitahuna 1, 1.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Spylaw, 2.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Titri South, 4.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	true
Directly Connected?	true
Co-rupture Count	460
Co-rupture Rate	1.249108E-5

Titri Central, 6.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otanomomo, 6.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	true
Directly Connected?	false
Co-rupture Count	46
Co-rupture Rate	5.2053764E-7

Clifton, 6.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 10.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Akatore, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Beacon Hill, 14.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hyde South - The Twins, 14.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODIuMHd2eVVH
Connected?	true
Directly Connected?	false
Co-rupture Count	418
Co-rupture Rate	1.12371445E-7
