Vernon 4 Details
| Property | Value |
|---|---|
| Rupture Count | 392 |
| Ruptures Above Sect Min Mag | 391 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.71, 8.38] |
| Length Range | [16, 829] km |
| Total Rate | 6.4843526E-4 /yr |
| Multi-Fault Rate | 6.4843526E-4 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 77 |
Table Of Contents

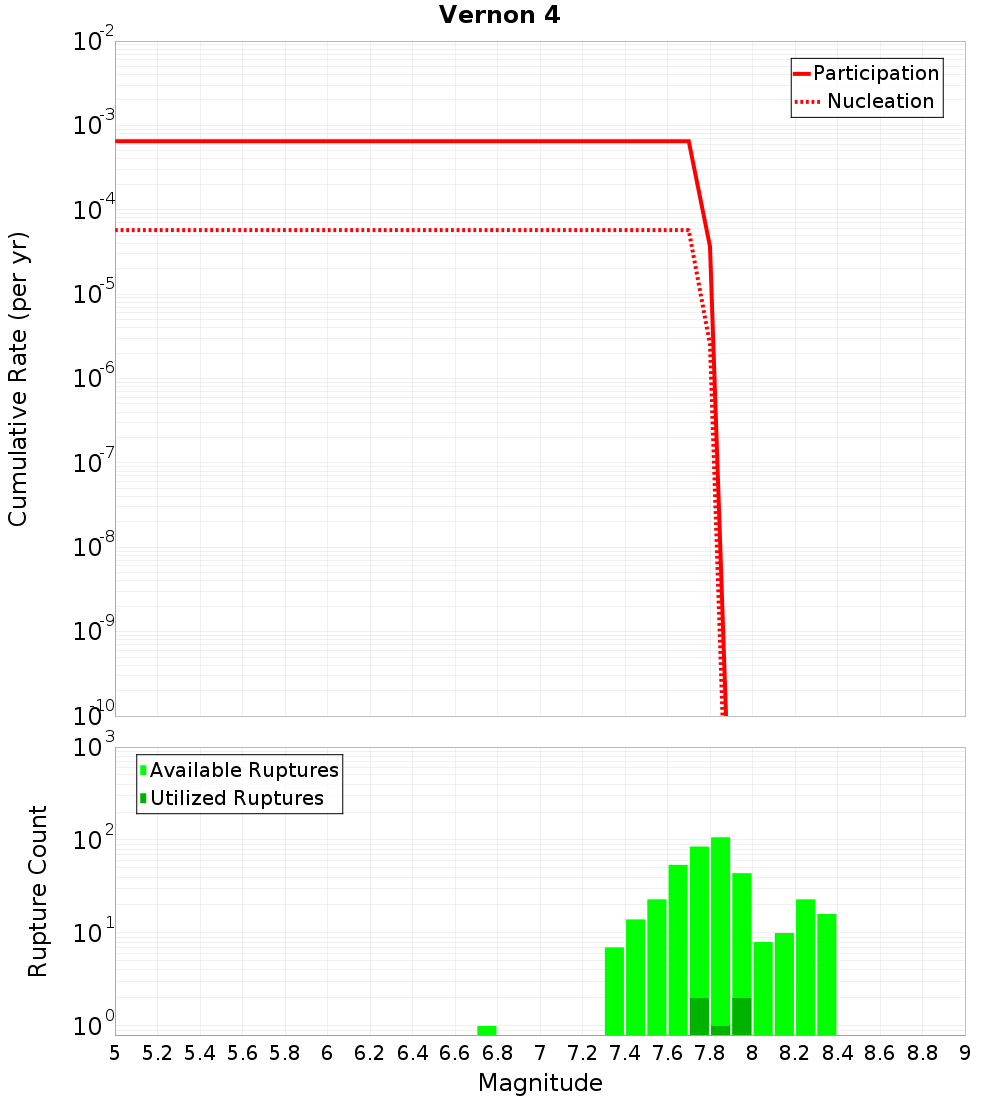

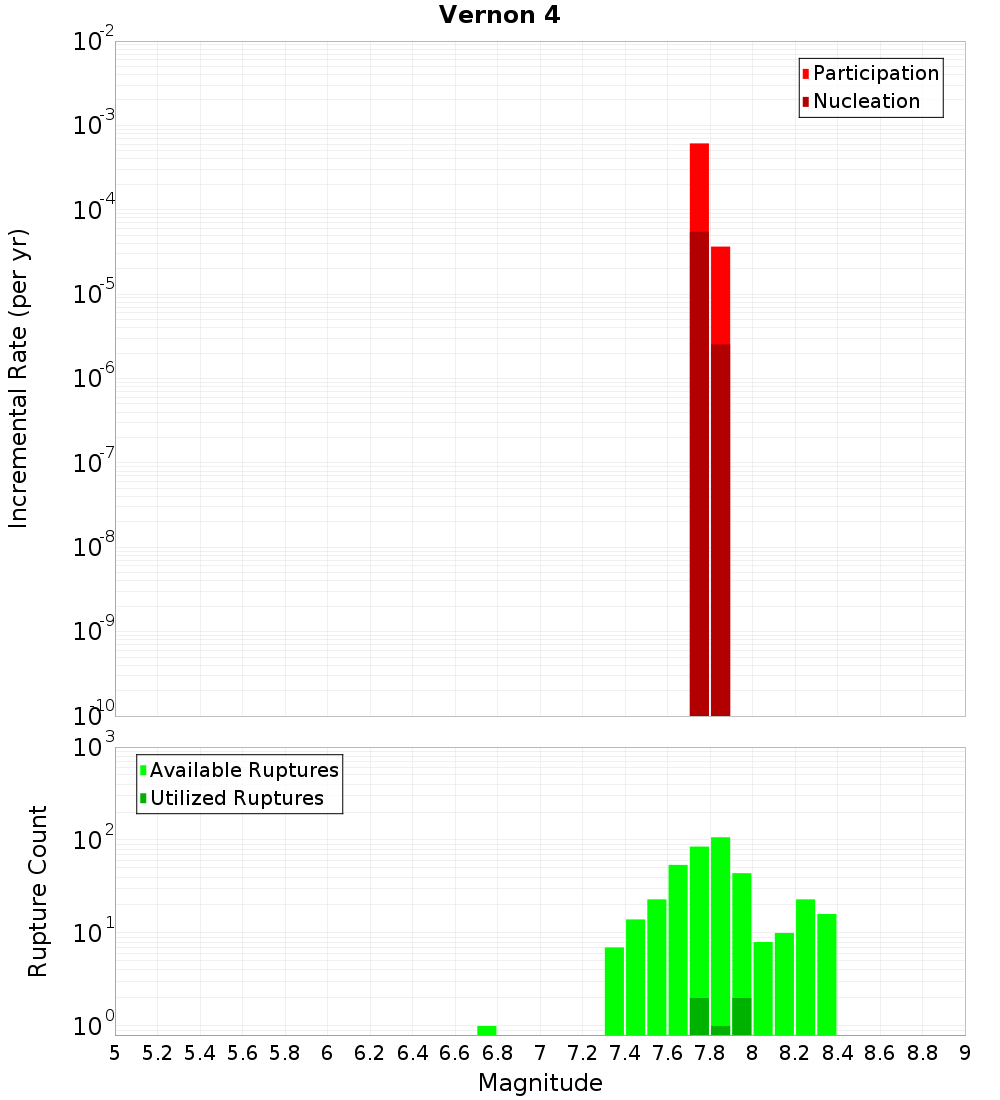

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

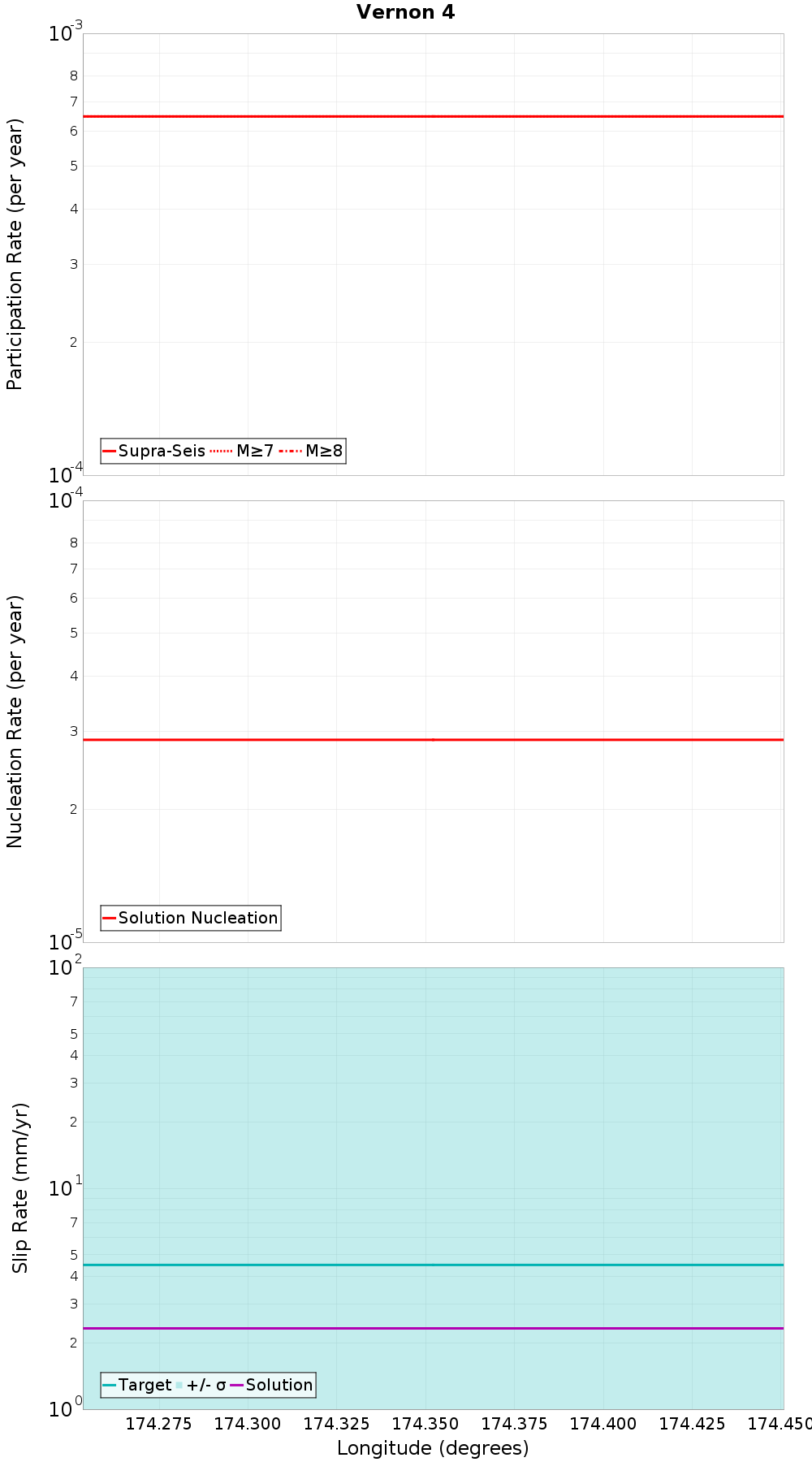

Along-Strike Values

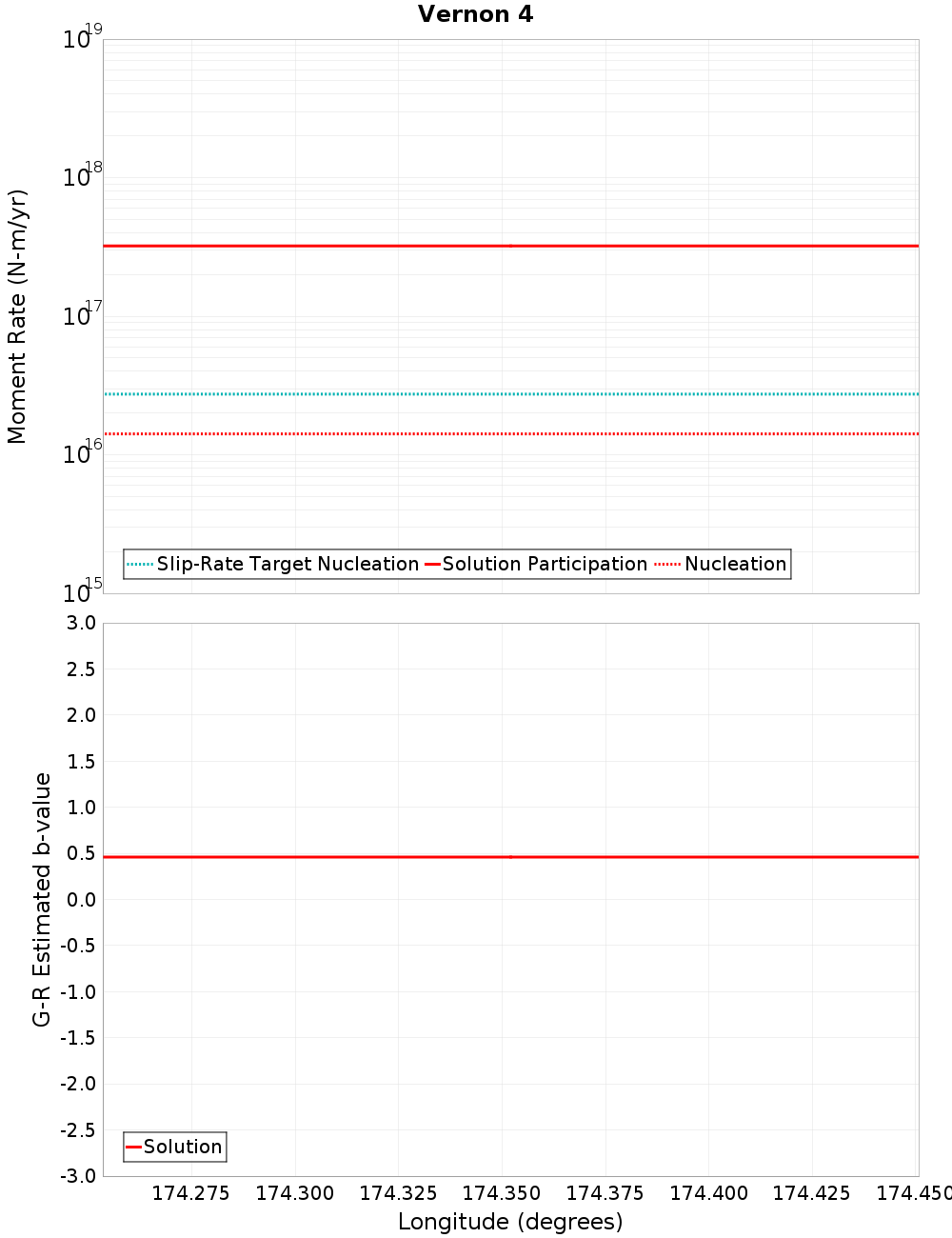

Moment-Rates and b-Values

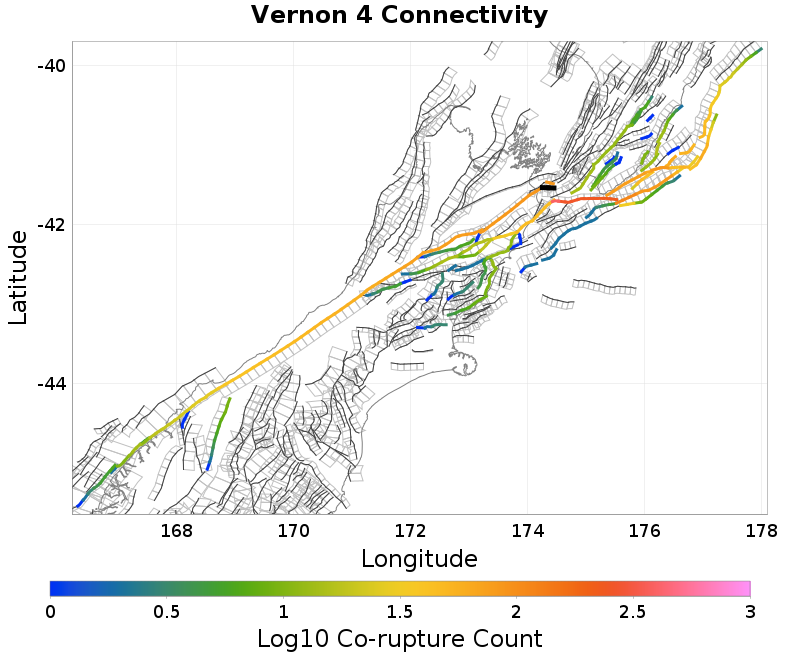

Connectivity
 |  |
|---|
Nearby Sections
Vernon 3, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awatere: Northeast 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 86 |
| Co-rupture Rate | 0.0 |
Wairarapa: Needles, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
BooBoo, 1.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 391 |
| Co-rupture Rate | 6.4843526E-4 |
Cloudy 1, 3.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Needles, 3.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 46 |
| Co-rupture Rate | 6.1183167E-4 |
Needles East 2, 4.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 3, 5.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 86 |
| Co-rupture Rate | 0.0 |
Vernon 2, 5.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 2, 6.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohariu South 1, 8.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 1, 9.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 1, 9.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
London Hill, 10.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc5ODkuME1TdVdD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
