Solution Report: Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcwMjcuMHY1aFhC
| Num Ruptures | 23,675 |
|---|---|
| Num Single-Stranded Ruptures | 23,675 (100.00%) |
| Total Supra-Seis Rupture Rate | 0.24178772 |
| Total Supra-Seis Recurrence Interval | 4.14 yrs |
| Total Moment Rate | 2.3372403e20 N-m/yr |
| Deformation Model Total Moment Rate | 2.3409067e20 N-m/yr |
| Magnitude Range | [6.80,9.46] |
| Length Range | [29.64,2354.91] km |
| Rupture Section Count Range | [1,452] |
Table Of Contents
- General Information
- Logic Tree Branch

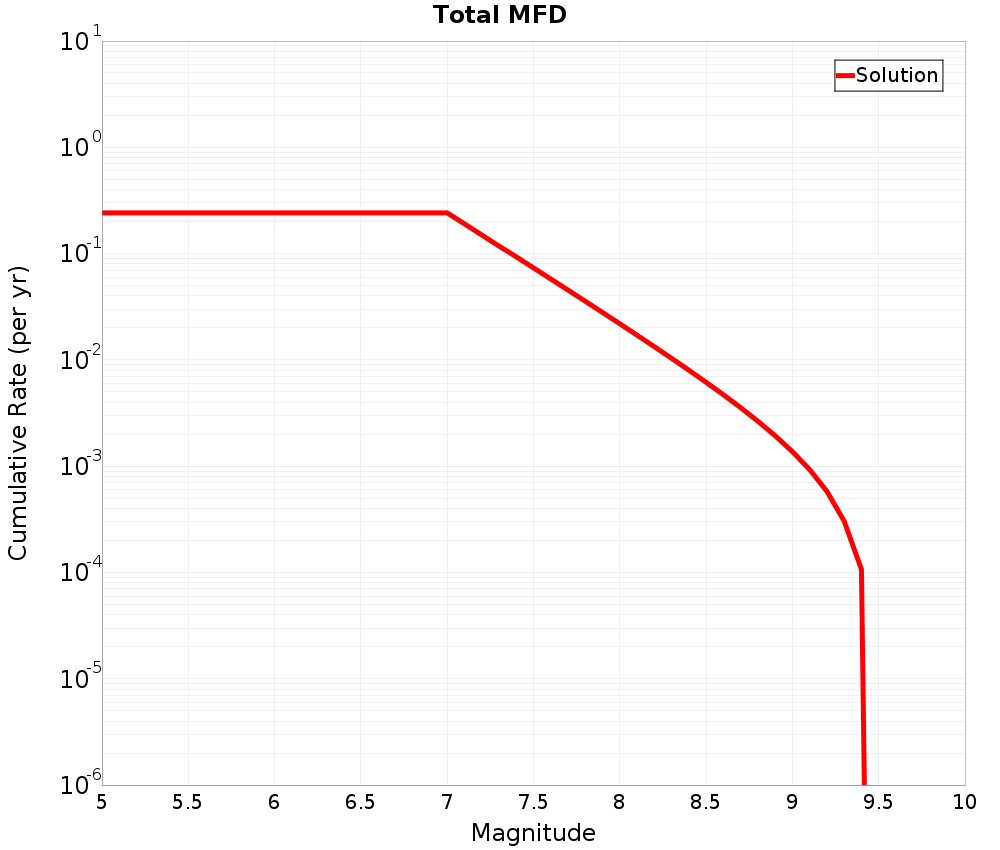

- Solution MFDs
- Simulated Annealing Energy
- Rupture Rate Distribution
- Participation Rates
- Section b-values
- Plausibility Configuration
- Rupture Scalar Histograms
- Attached Modules
- Fault Section Connections

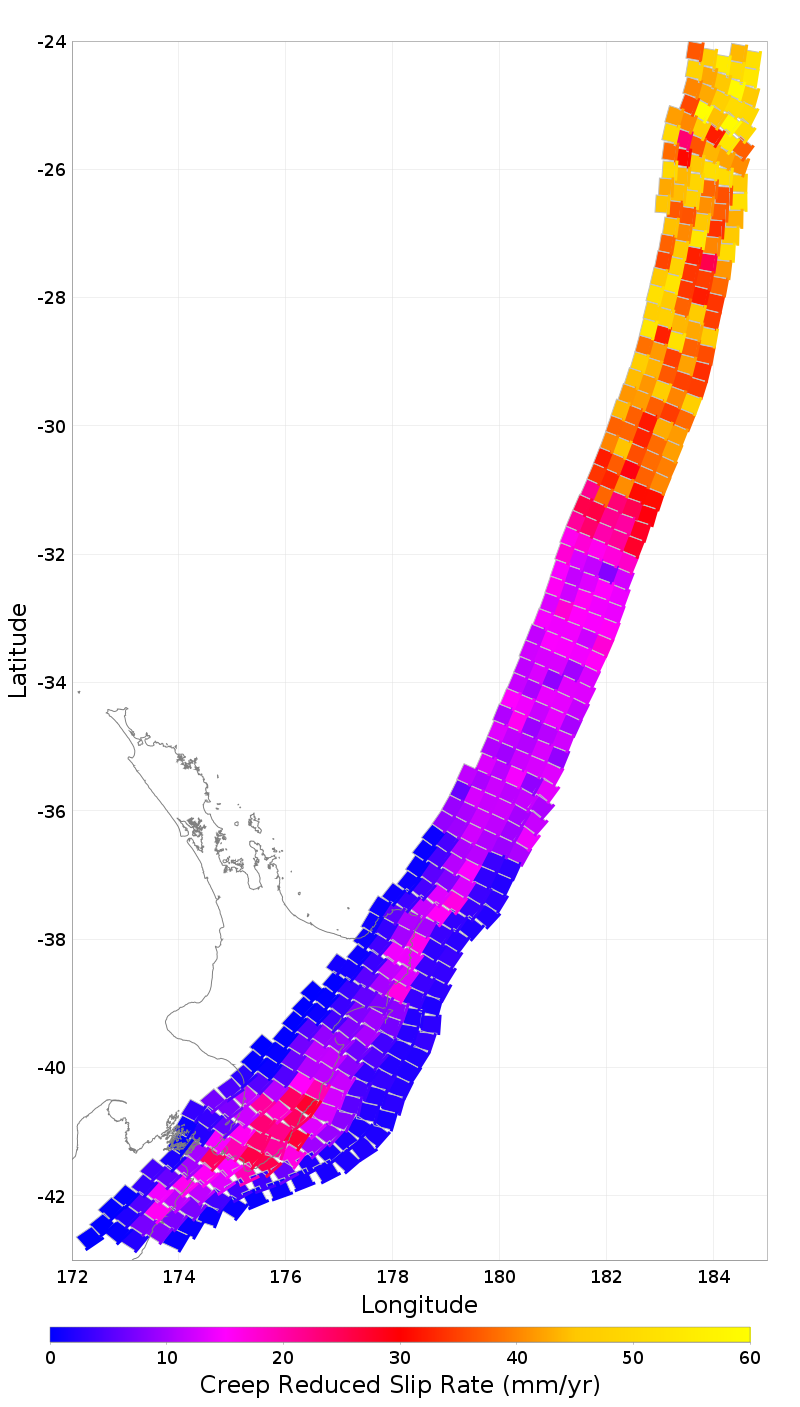

- Slip Rates
- Jump Counts Over Distance
- Hazard Maps
- Parent Section Detail Pages
General Information
Test down-dip subsectioning rup set
Logic Tree Branch
| Level | Choice |
|---|---|
| Fault Regime | Fault Regime |
| NZSHM22_SpatialSeisPDF | NZSHM22_1346 |
| Slip Along Rupture Model (Dsr) | Uniform |
| Inversion Model | Characteristic (Constrained) |
| NZSHM22_ScalingRelationship | NZSHM22_ScalingRelationship |
| NZSHM22_DeformationModel | SBD_0_2_HKR_LR_30_CTP1 |

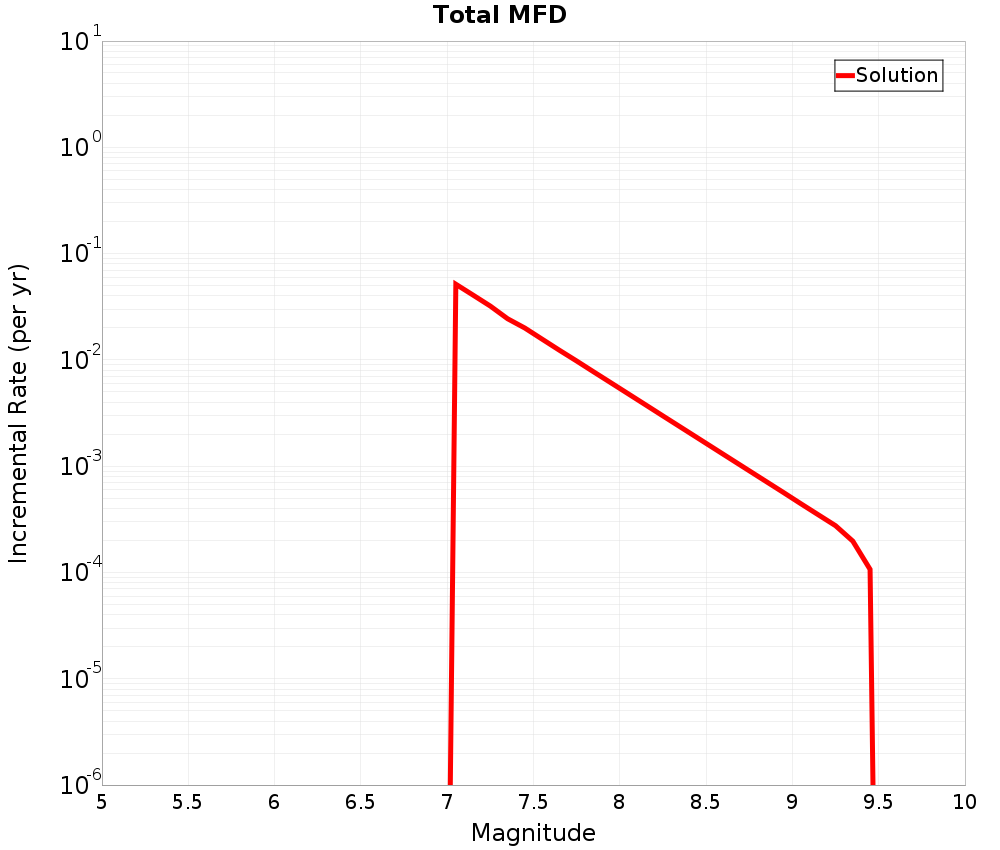

Solution MFDs
| Incremental MFDs | Cumulative MFDs |
|---|---|
 |  |
Simulated Annealing Energy
| Iterations | 188,974,866 |
|---|---|
| Time | 30 mins 27.8 secs |
| Iterations Per Sec. | 103,389 |
| Perturbations | 4,223,524 |
| Iterations Per Perturb. | 44.74 |
| Total Energy | 6.8861638E8 |
Final Energies
| Energy Type | Final Energy (30 mins 27.8 secs) | % of Total | After 15 mins |
|---|---|---|---|
| Total Energy | 6.8861638E8 | 6.8900096E8 | |
| Equality Energy | 6.8861638E8 | 100.00% | 6.8900096E8 |
| Entropy Energy | 0.0 | 0.00% | 0.0 |
| Inequality Energy | 0.0 | 0.00% | 0.0 |
| Normalized Slip Rate | 3.787588E7 | 5.50% | 3.784736E7 |
| Unnormlized Slip Rate | 2.0068382E7 | 2.91% | 2.0367114E7 |
| Rupture Rate Minimization | 0.0 | 0.00% | 0.0 |
| Normalized MFD Equality | 3.15336064E8 | 45.79% | 3.15393248E8 |
| Normalized MFD Equality | 3.15336064E8 | 45.79% | 3.15393248E8 |

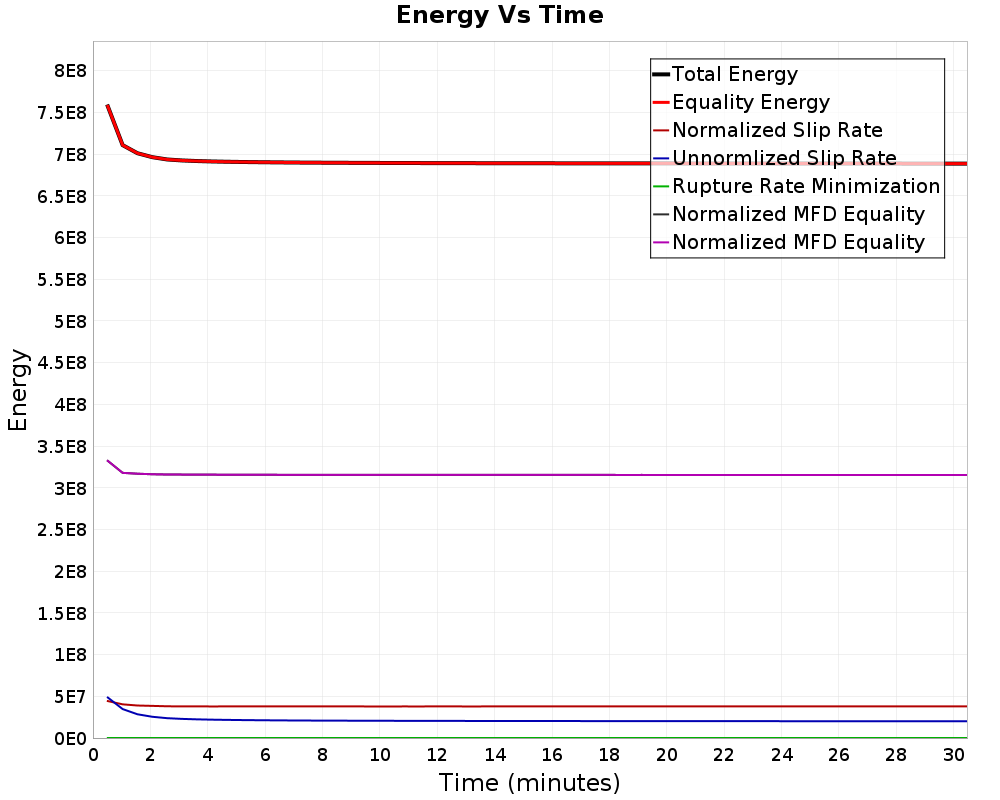

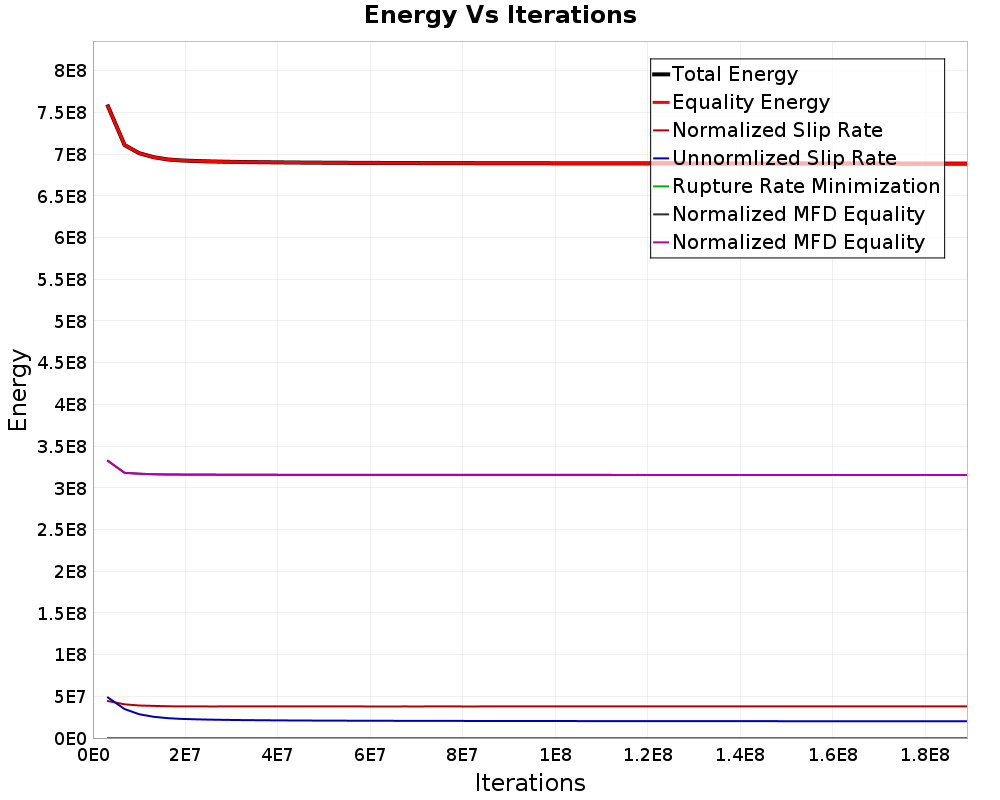

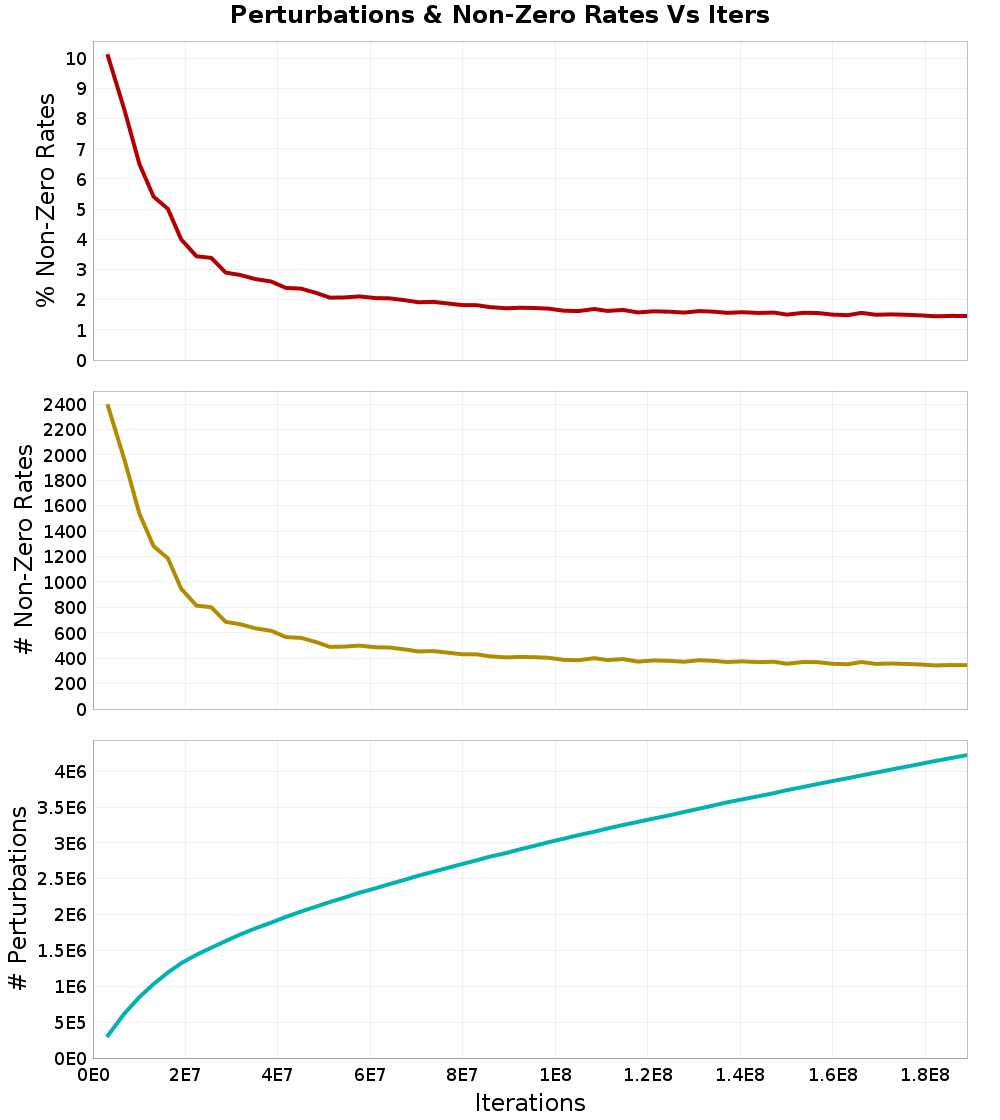

Energy Progress

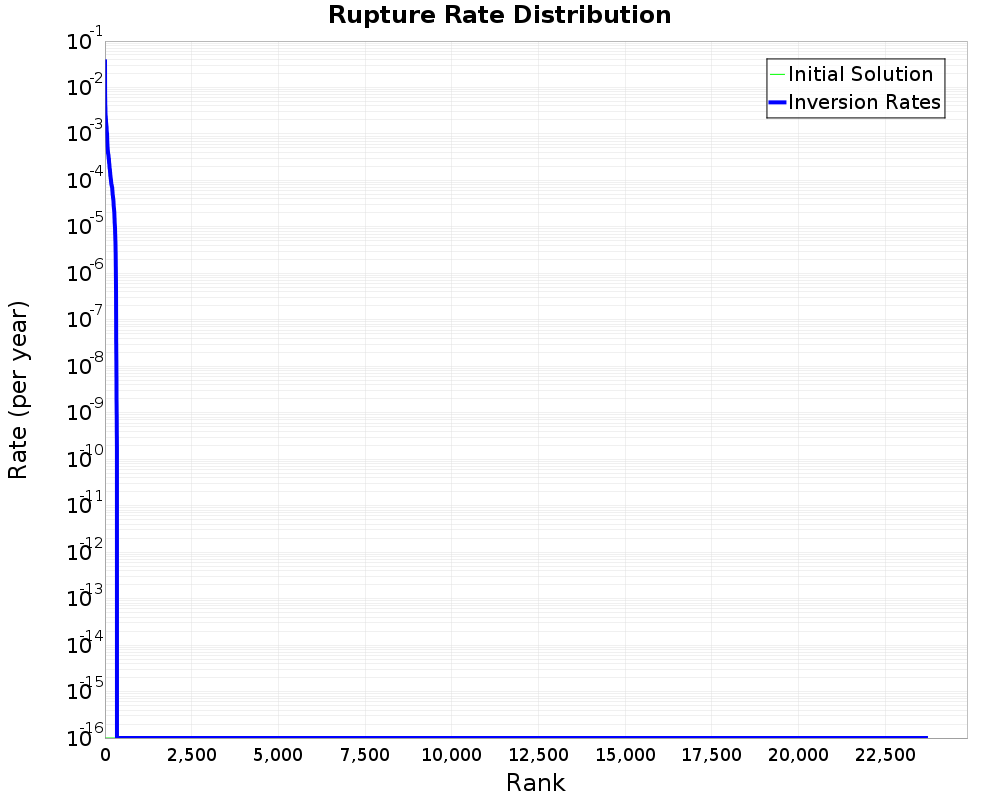

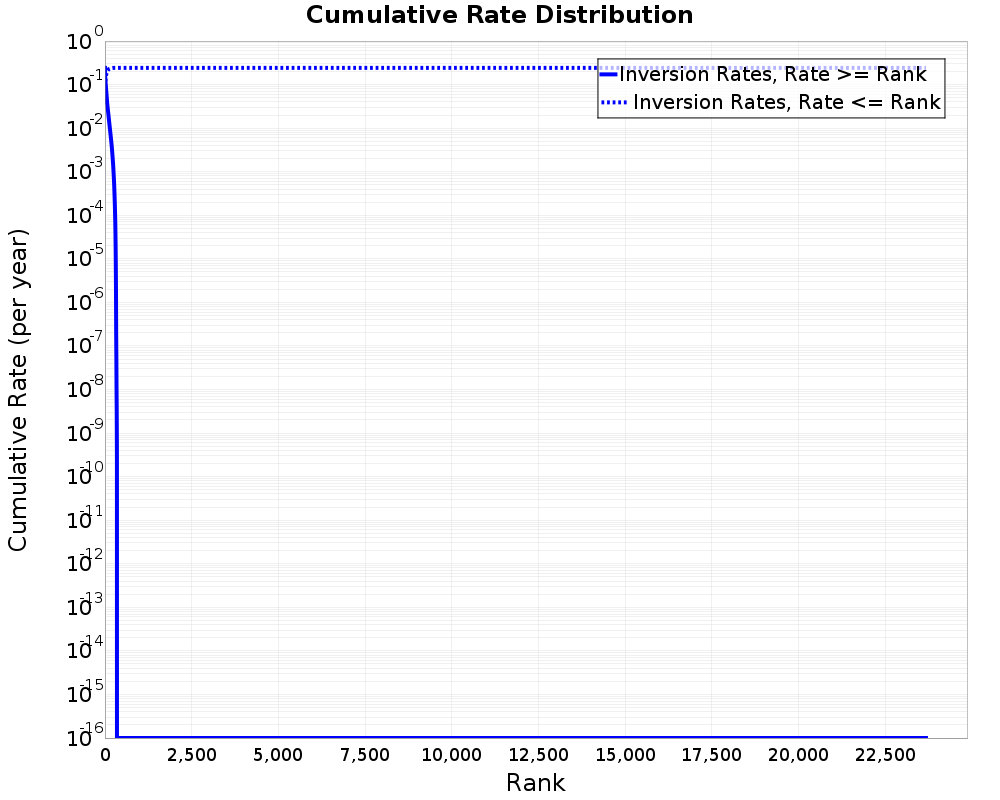

Rupture Rate Distribution
| Non-zero ruptures | 345 (1.46%) |
|---|---|
| Avg. # perturbations per rupture | 178.39595 |
| Avg. # perturbations per non-zero rupture | 12242.099 |
Participation Rates

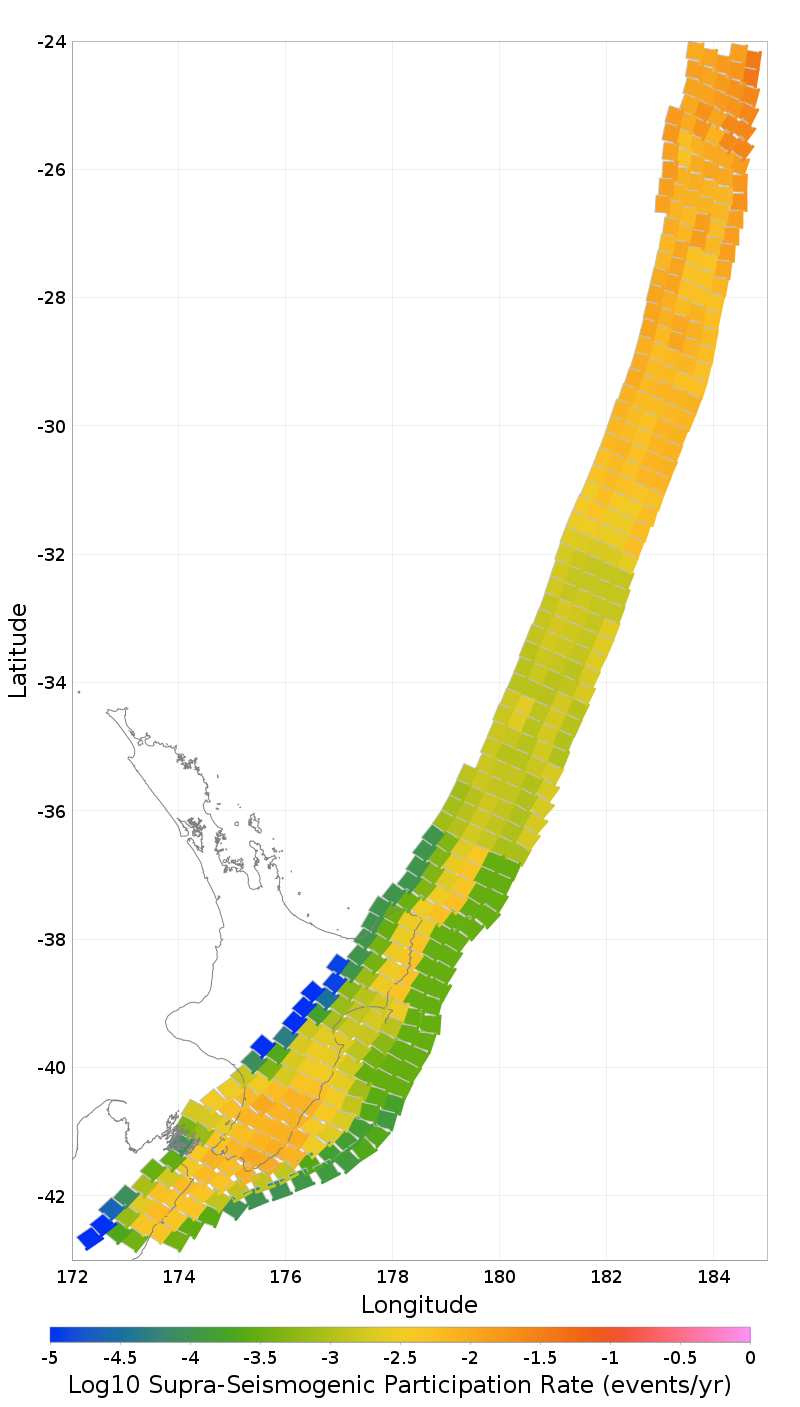

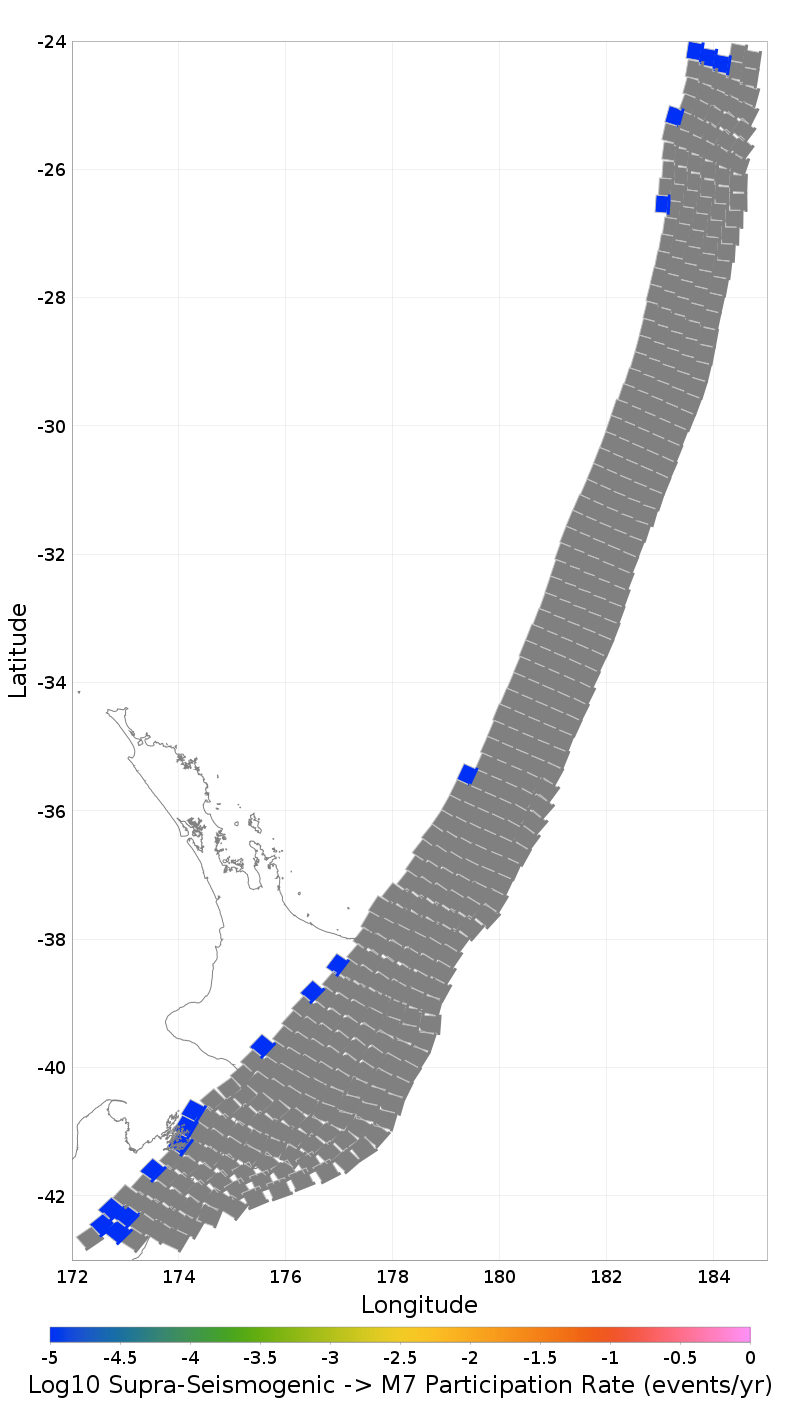

Supra-Seismogenic | Range: M≤7 |
|---|---|
 |  |
| Download GeoJSON | Download GeoJSON |

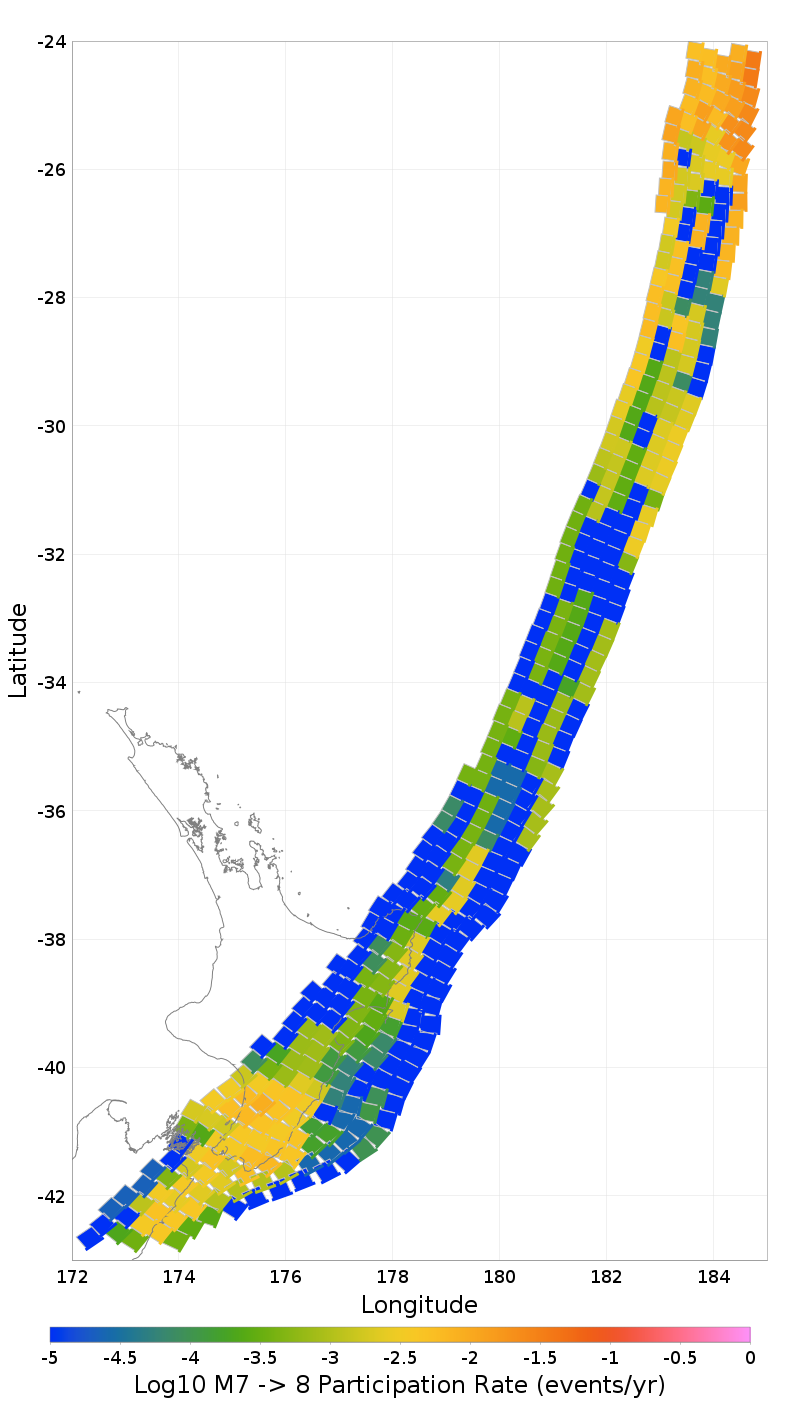

M≥7 | Range: M∈[7, 8] |
 |  |
| Download GeoJSON | Download GeoJSON |

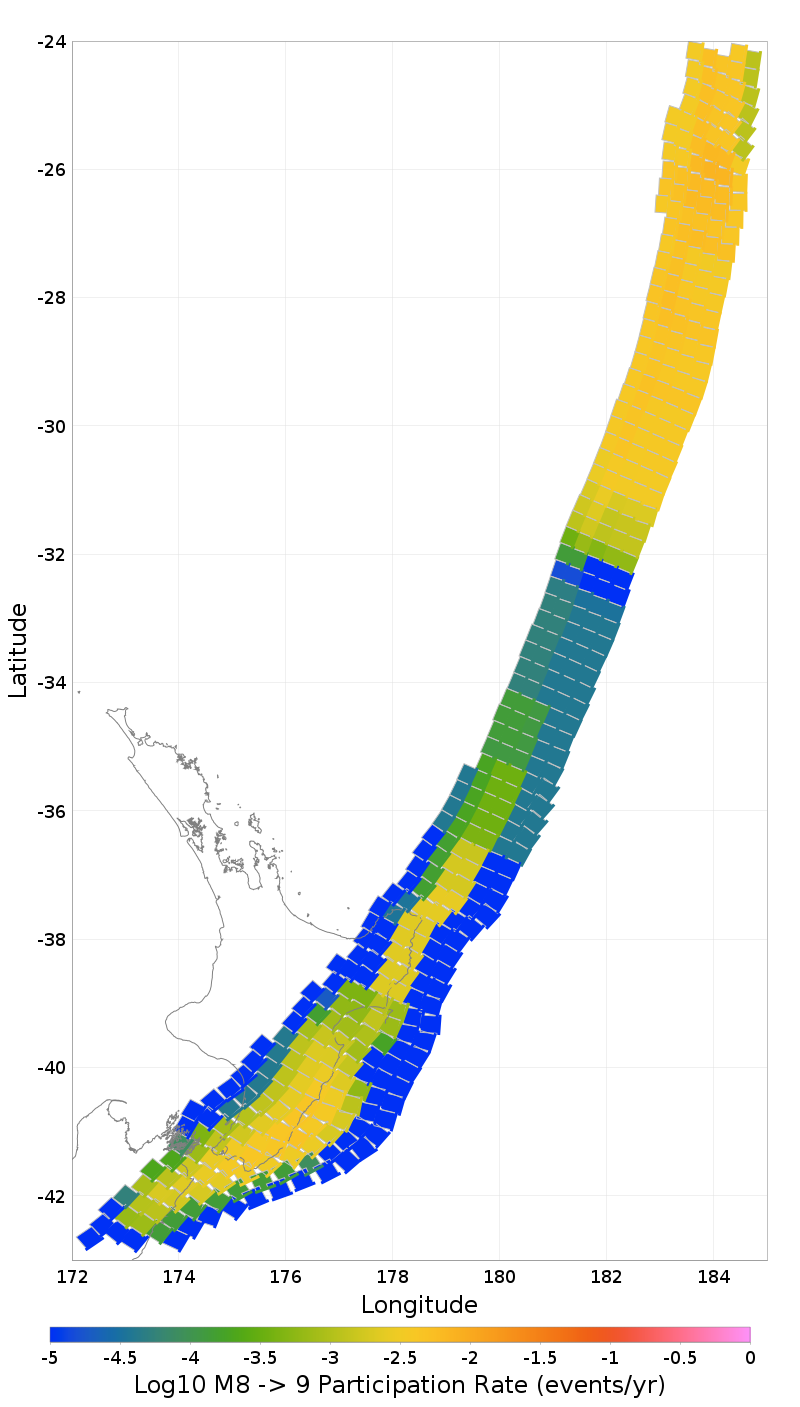

M≥8 | Range: M∈[8, 9] |
 |  |
| Download GeoJSON | Download GeoJSON |

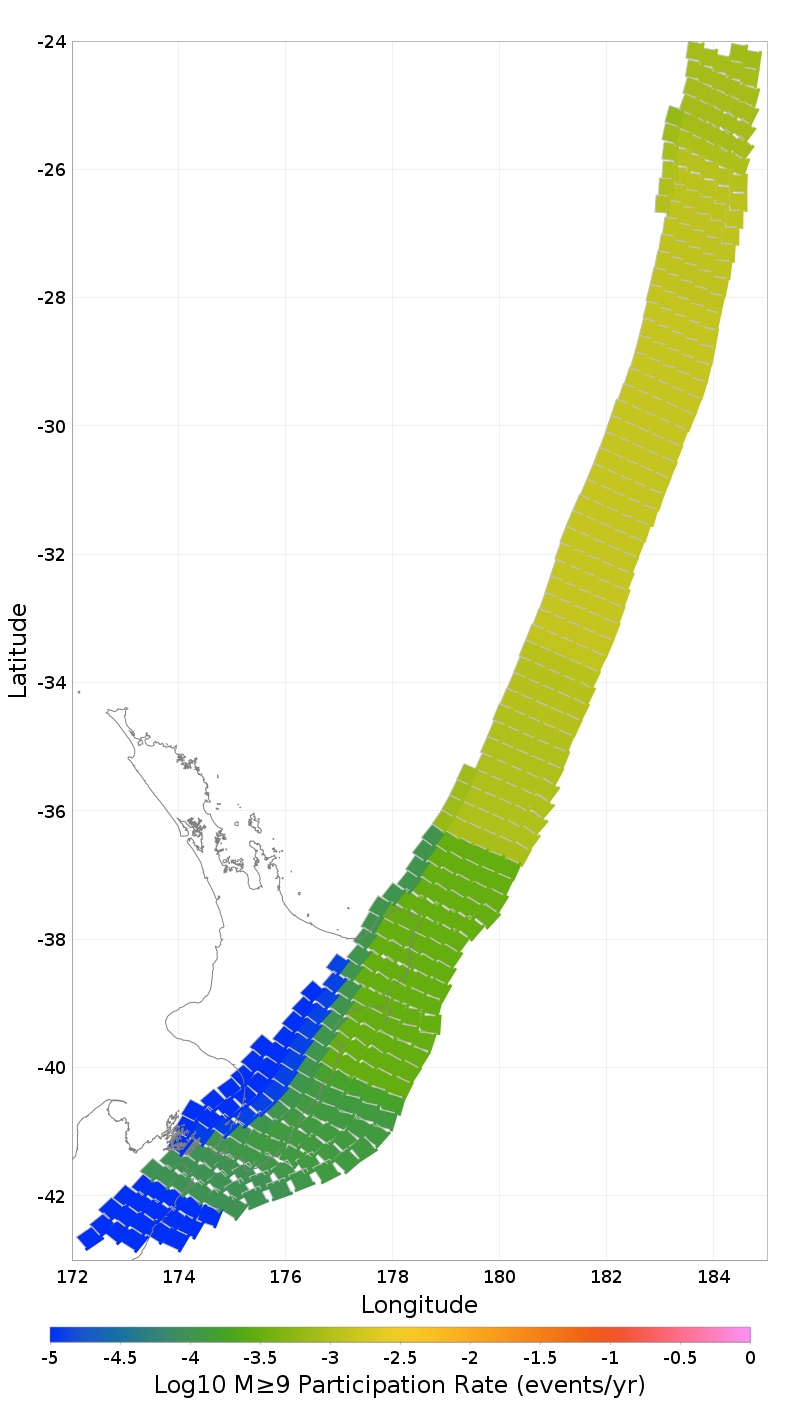

M≥9 | |
 | |
| Download GeoJSON |
Section b-values

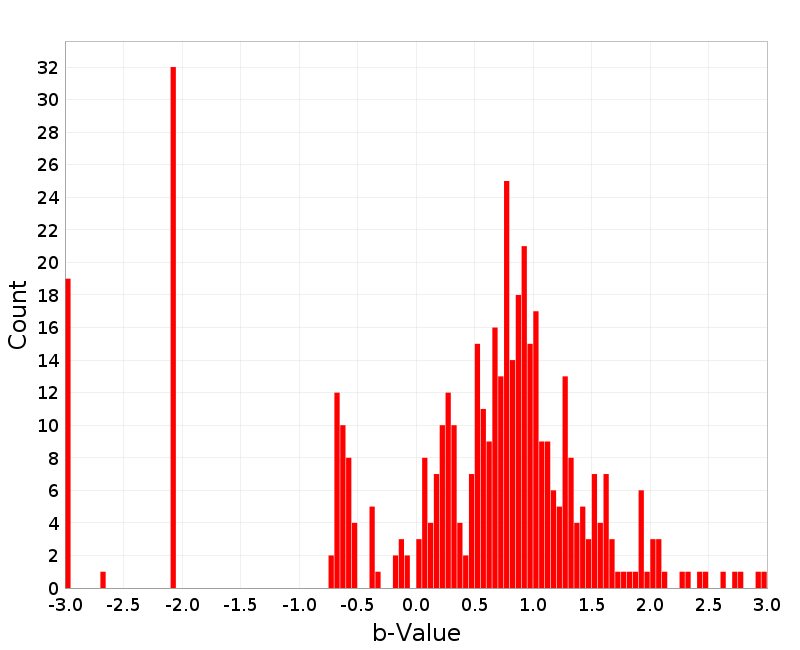

Subsection b-values

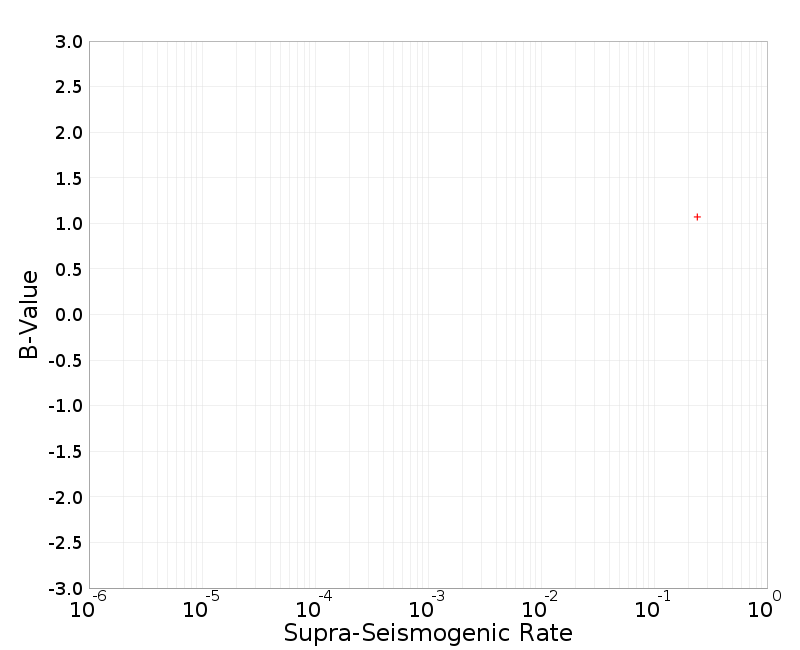

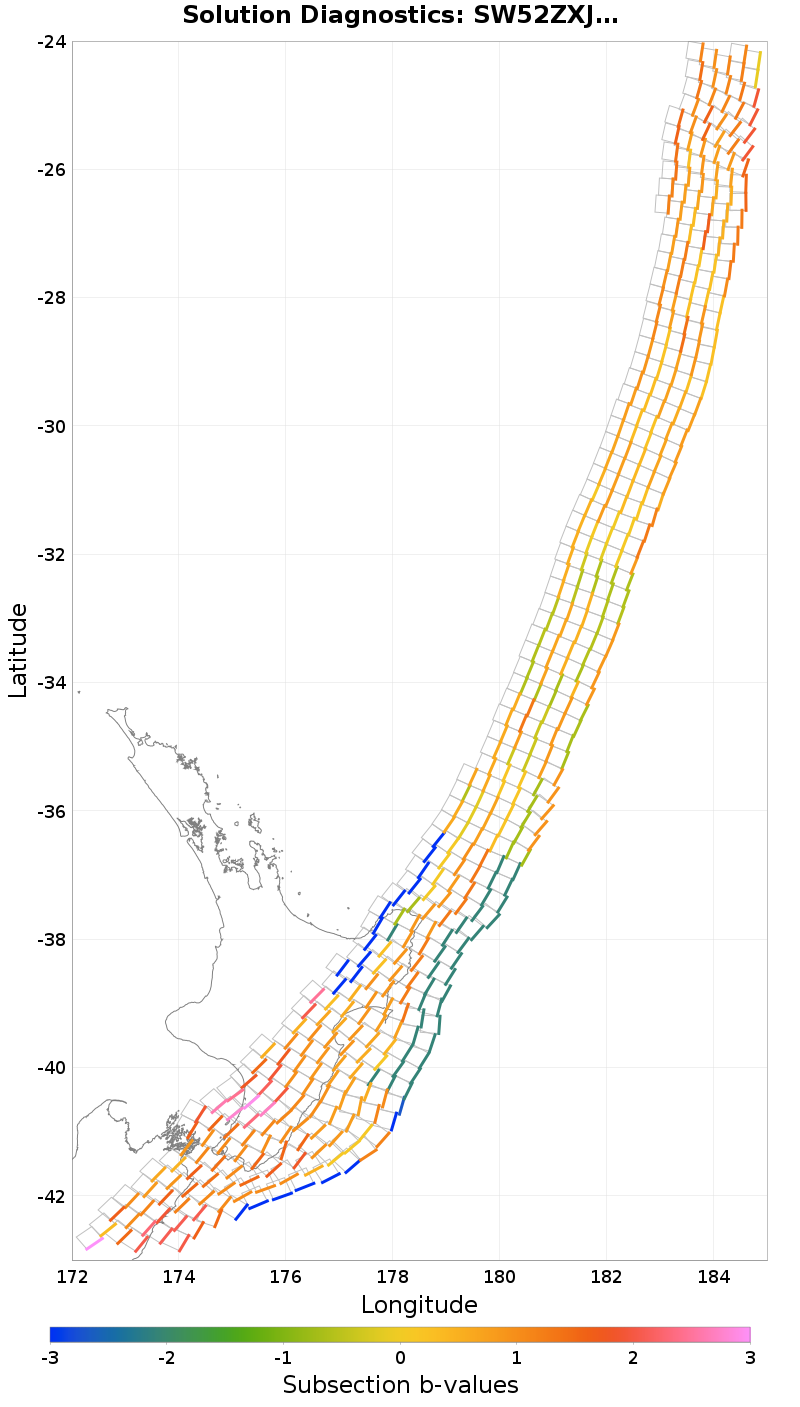

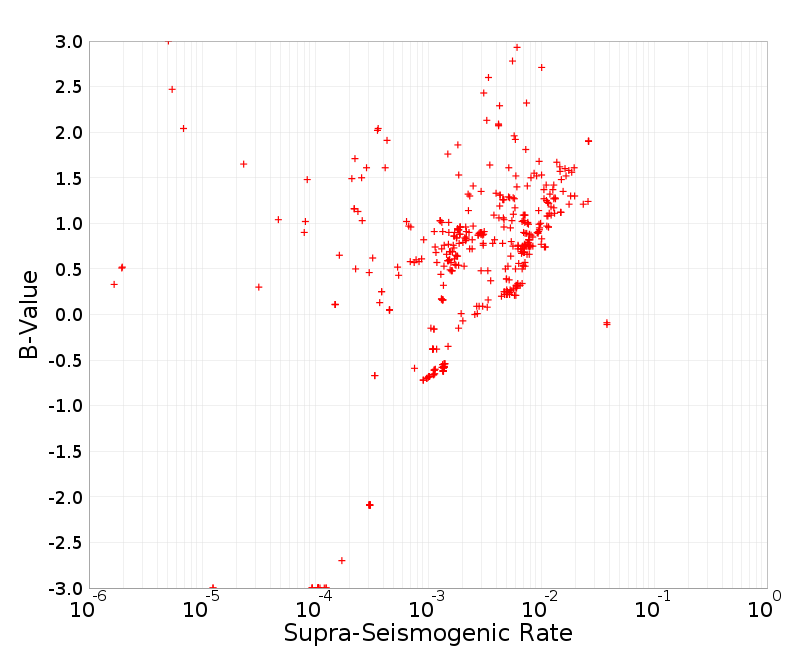

These plots estimate a Gutenberg-Richter b-value for each subsection and parent section nucleation MFD. This is a rough approximation, and is intended primarily for model comparisons.
Download b-value CSV file: sect_b_values.csv
| b-Value Distribution | b-Value Rate-Dependence |
|---|---|
 |  |
Parent Section b-values
Download b-value CSV file: parent_sect_b_values.csv

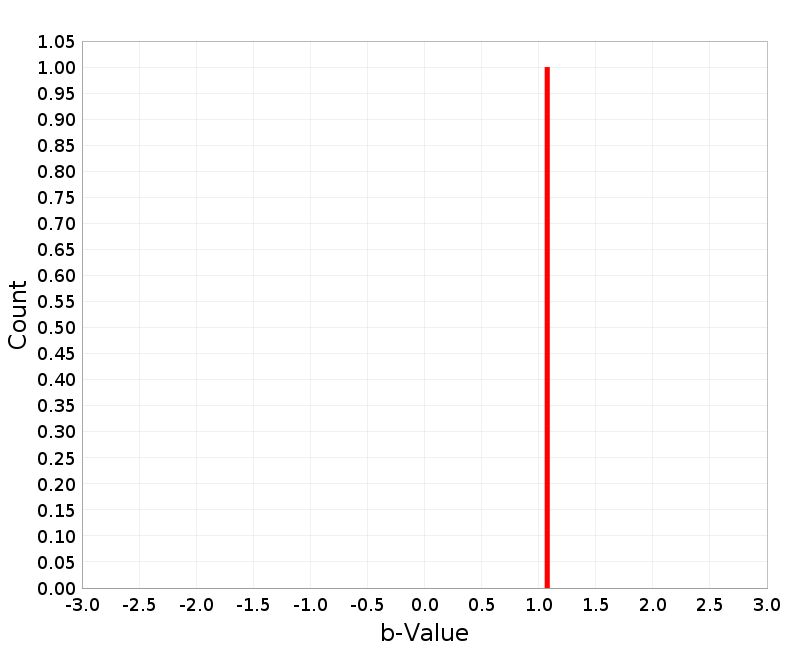

| b-Value Distribution | b-Value Rate-Dependence |
|---|---|
 |  |
Plausibility Configuration
Connection Strategy
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcwMjcuMHY1aFhC | |
|---|---|
| Name | ClosestSectPair: maxDist=5 km |
| Max Jump Dist | 5 km |

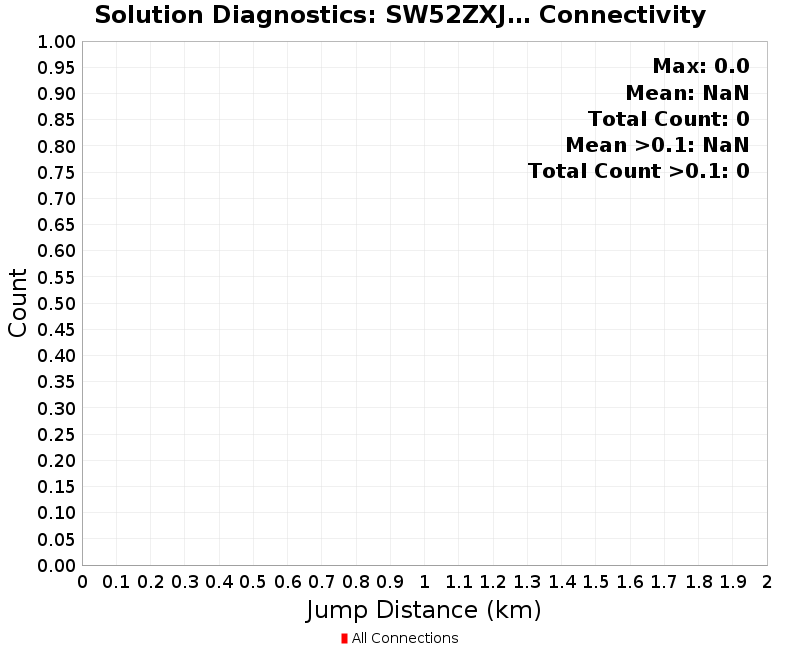

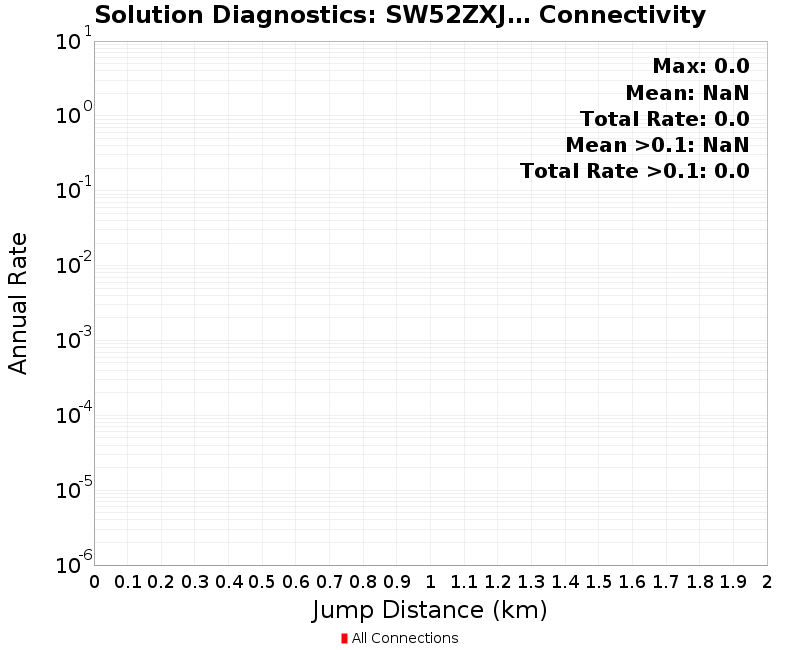

| Possible parent-section connections | Total: 0, Avg: 0.00, Range: [0,0] |
| Actual connections (after applying filters) | Total: 0, Avg: NaN, Range: [2147483647,-2147483648] |
Splays
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcwMjcuMHY1aFhC | |
|---|---|
| Max Allowed Splays | 0 |
Plausibility Filters
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcwMjcuMHY1aFhC |
|---|
Rupture Scalar Histograms

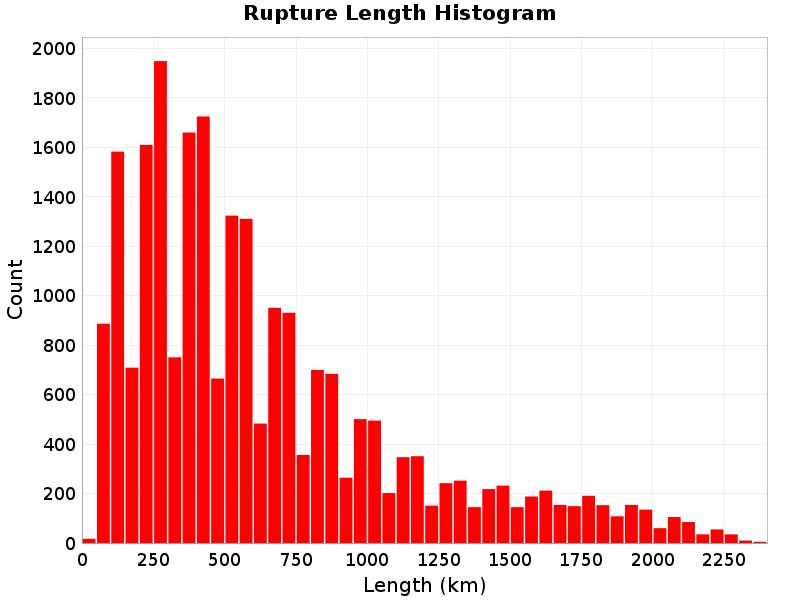

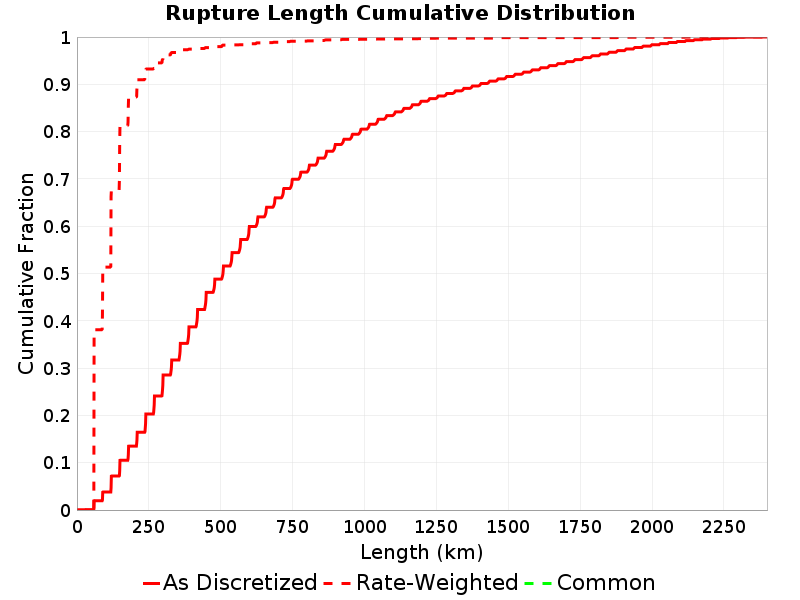

Rupture Length
Total length (km) of the rupture, not including jumps or gaps.
 |
|---|
 |
 |
 |

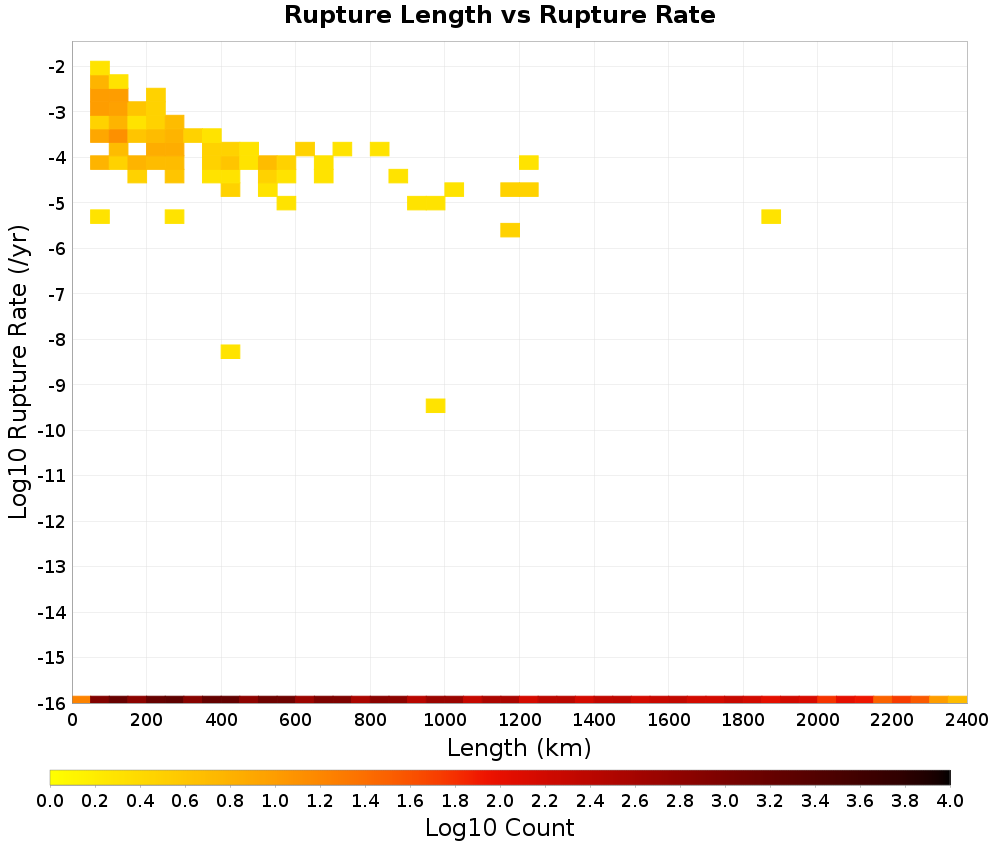

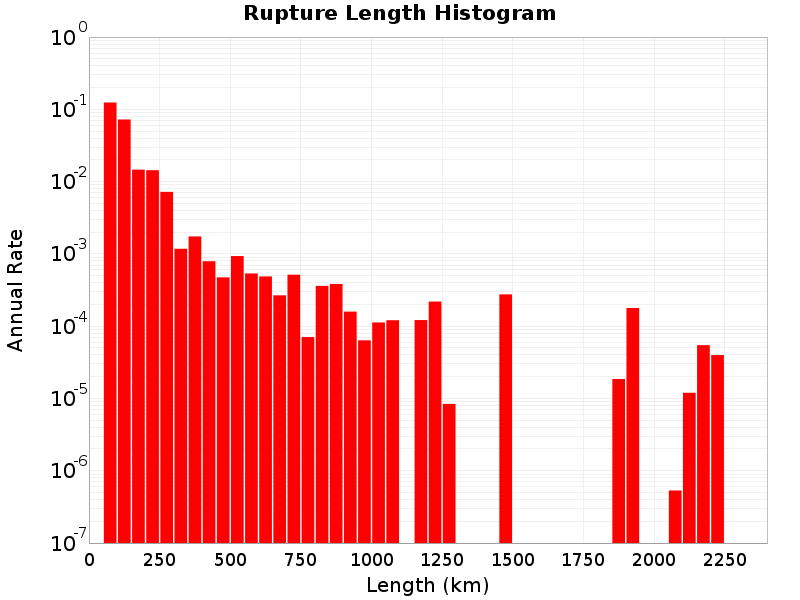

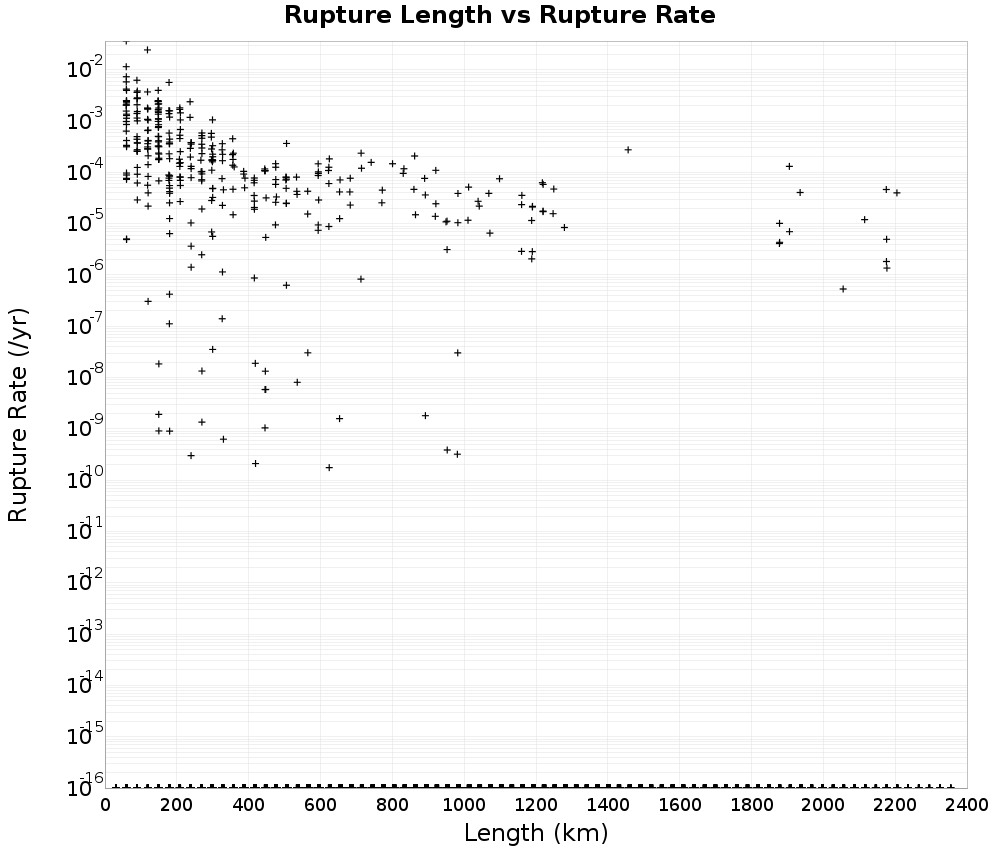

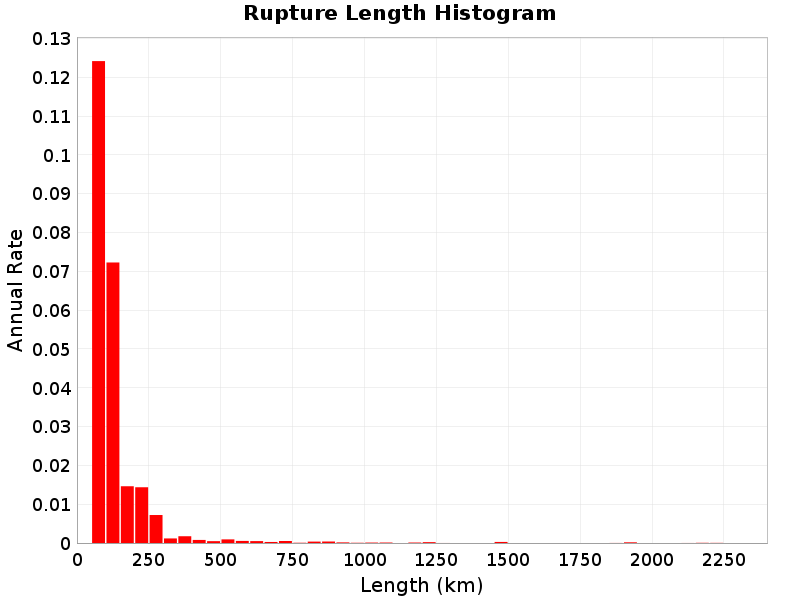

Rupture Length vs Rupture Rate
 |  |
|---|
Rupture Magnitude

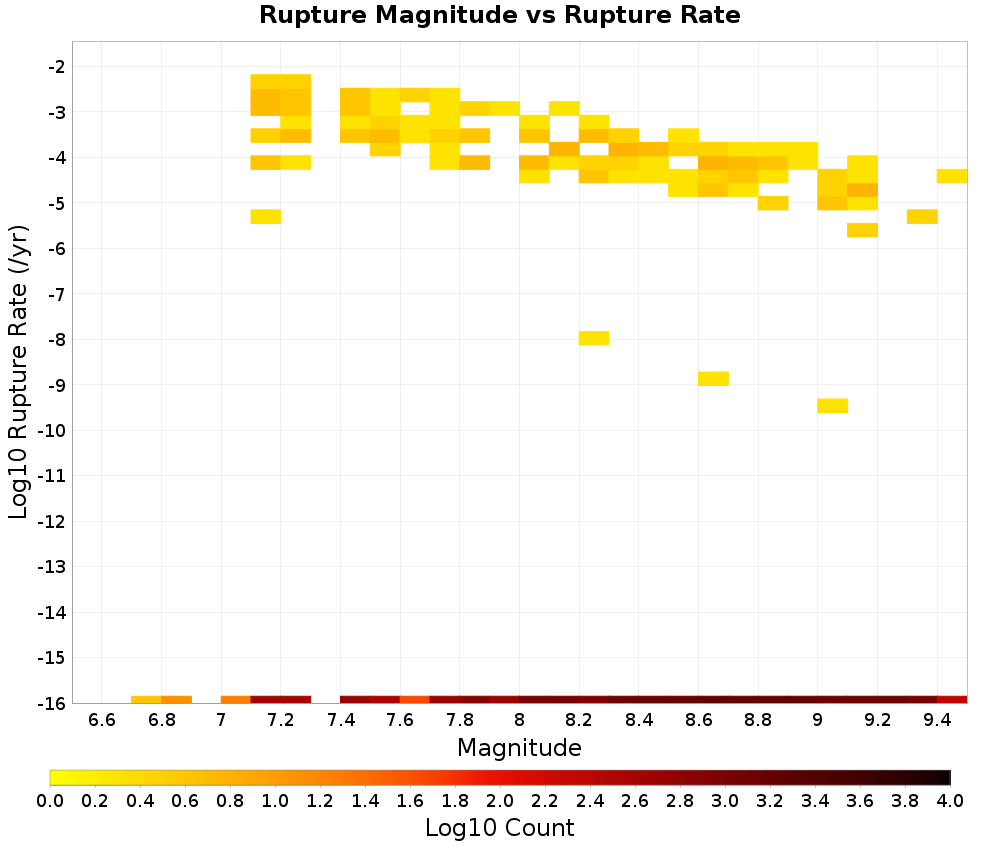

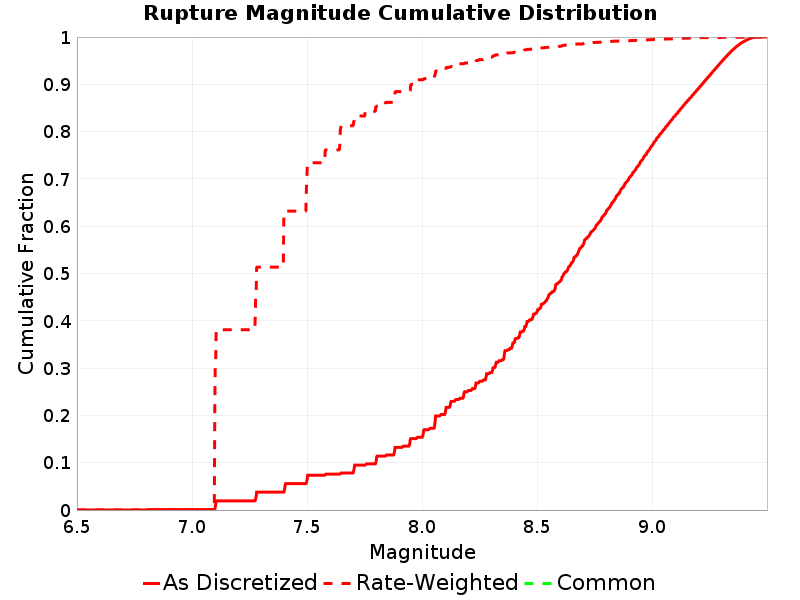

Magnitude of the rupture.
 |
|---|
 |
 |
 |

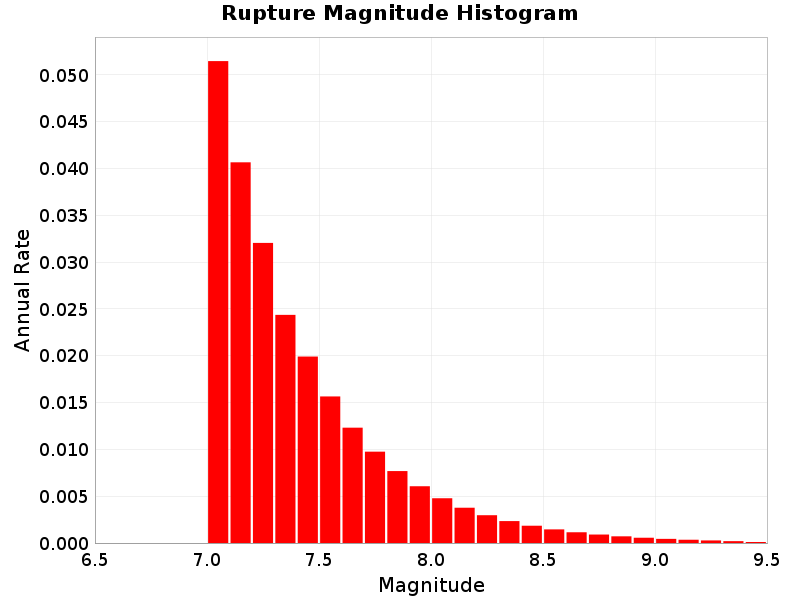

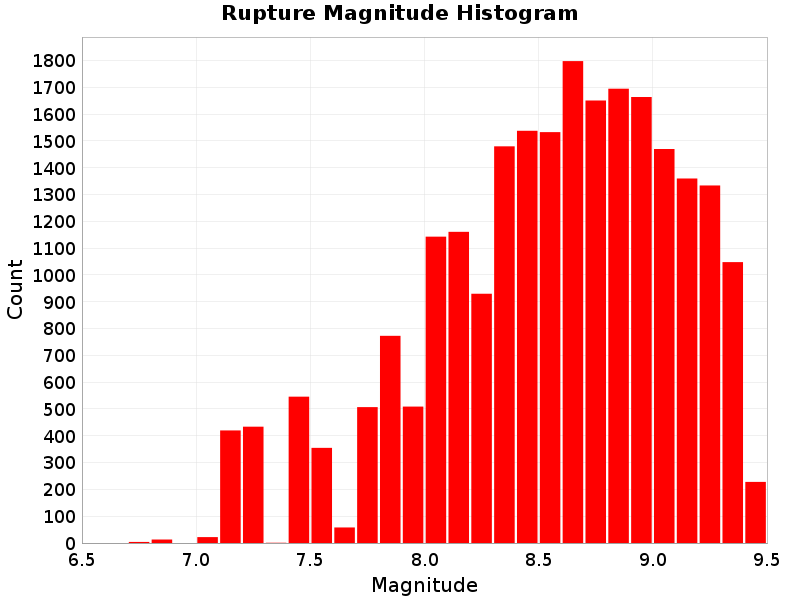

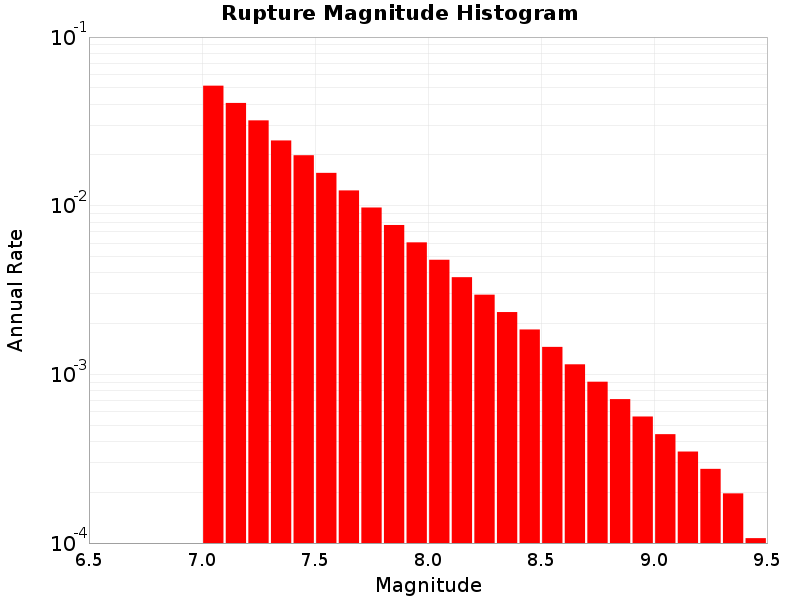

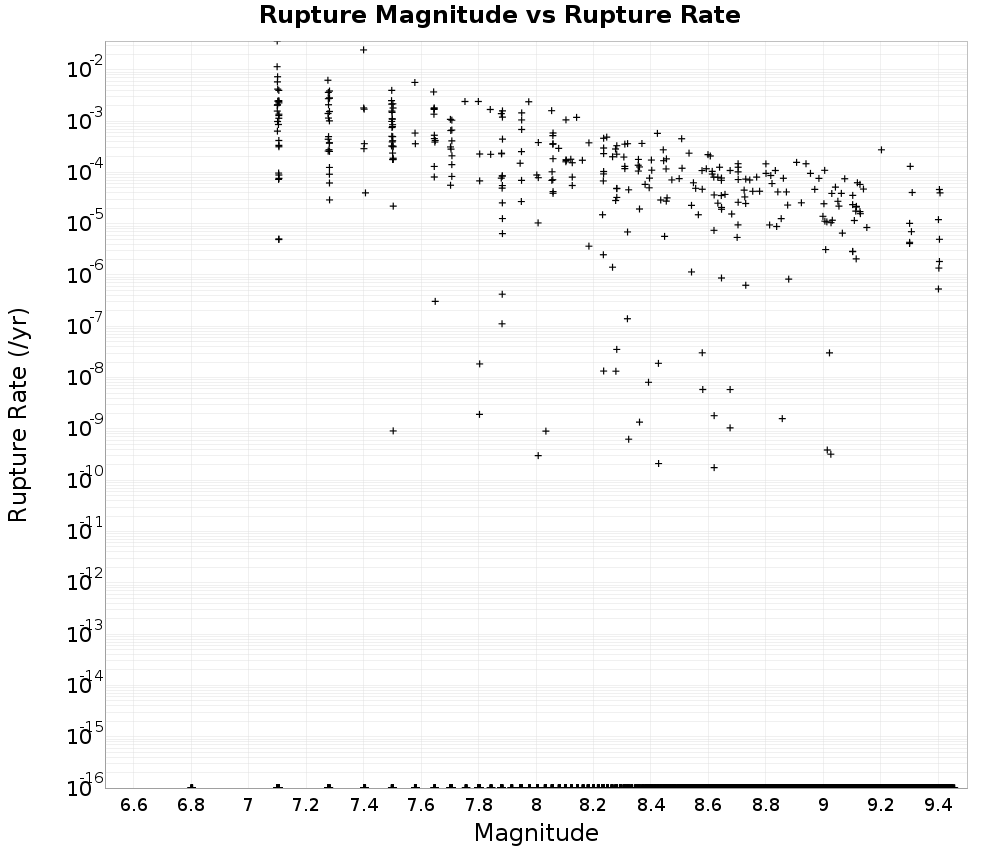

Rupture Magnitude vs Rupture Rate
 |  |
|---|

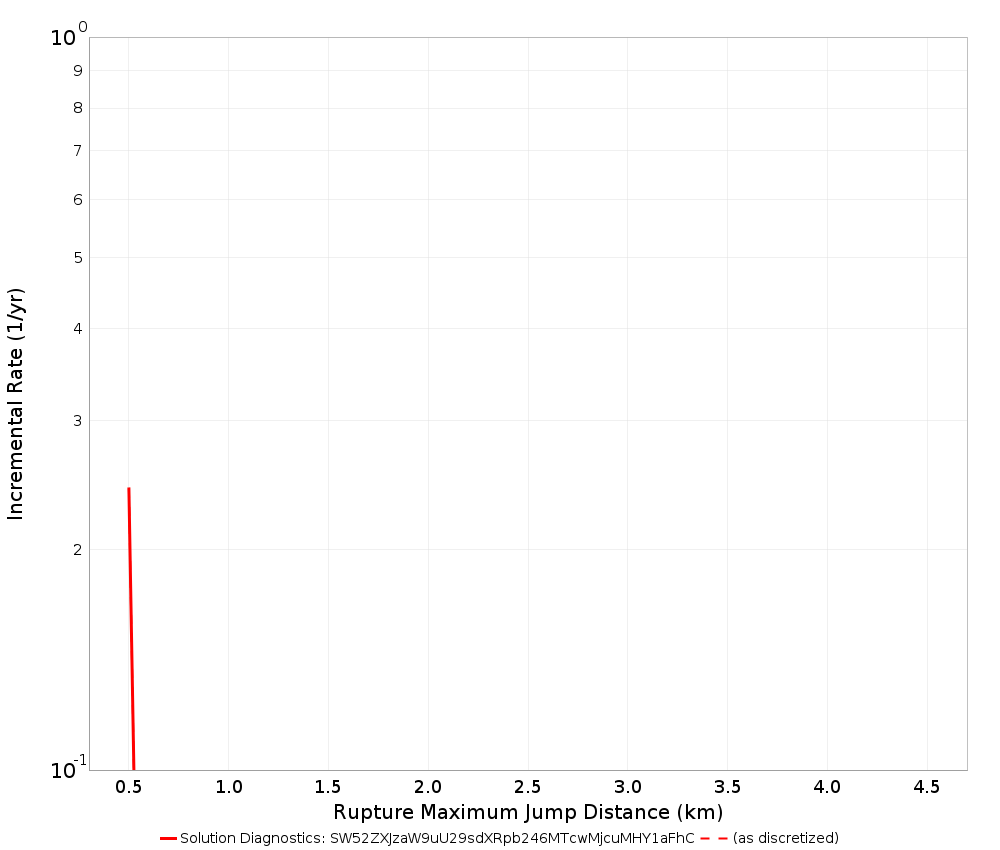

Maximum Jump Dist
The maximum jump distance in the rupture.

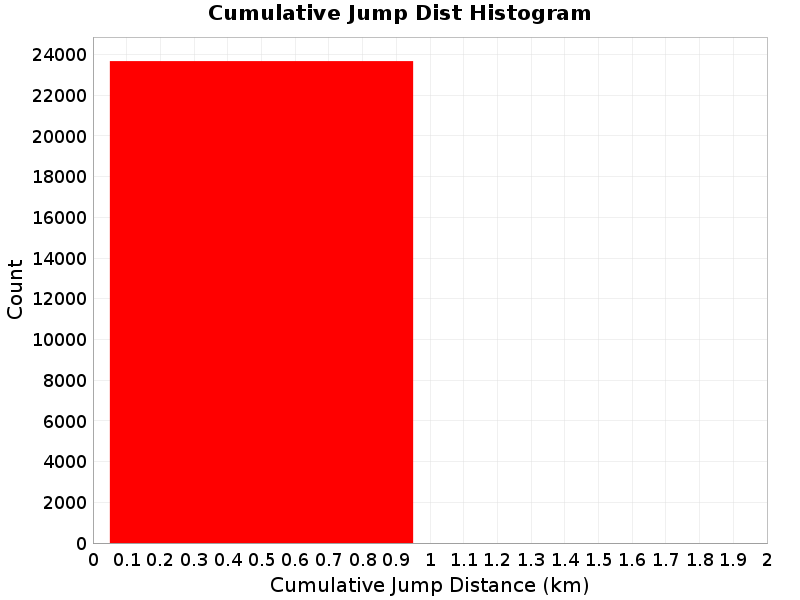

Cumulative Jump Dist
The total cumulative jump distance summed over all jumps in the rupture.
 |
|---|
 |
 |
 |

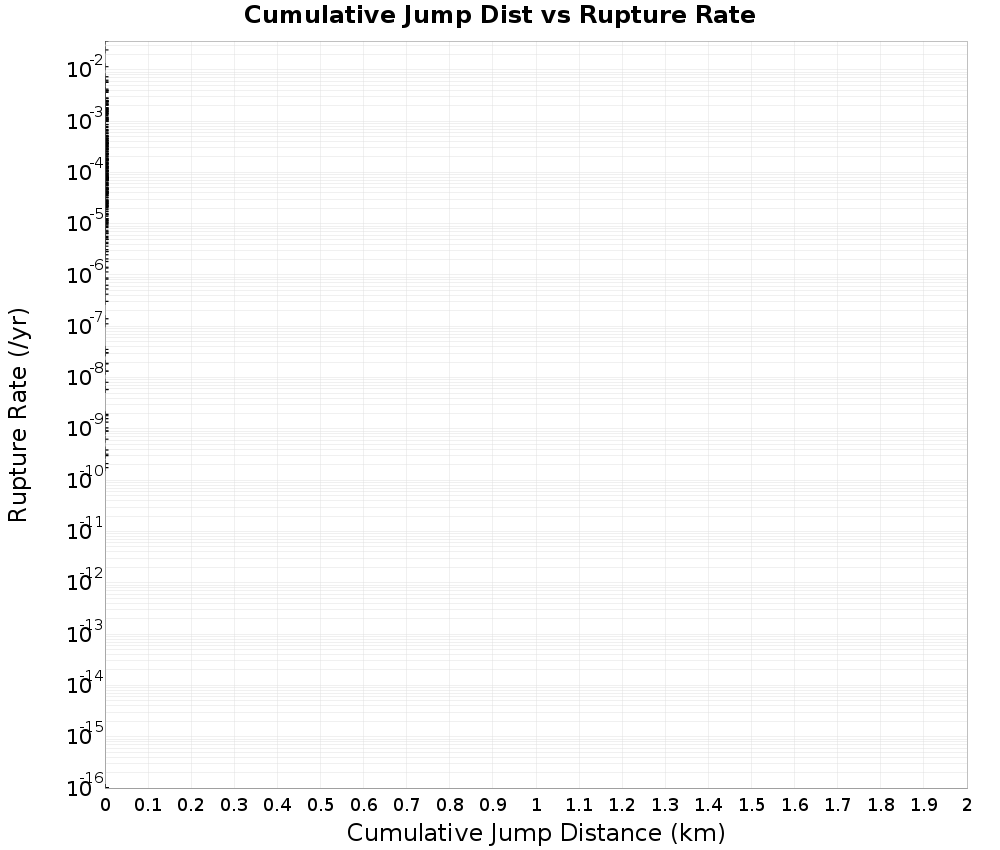

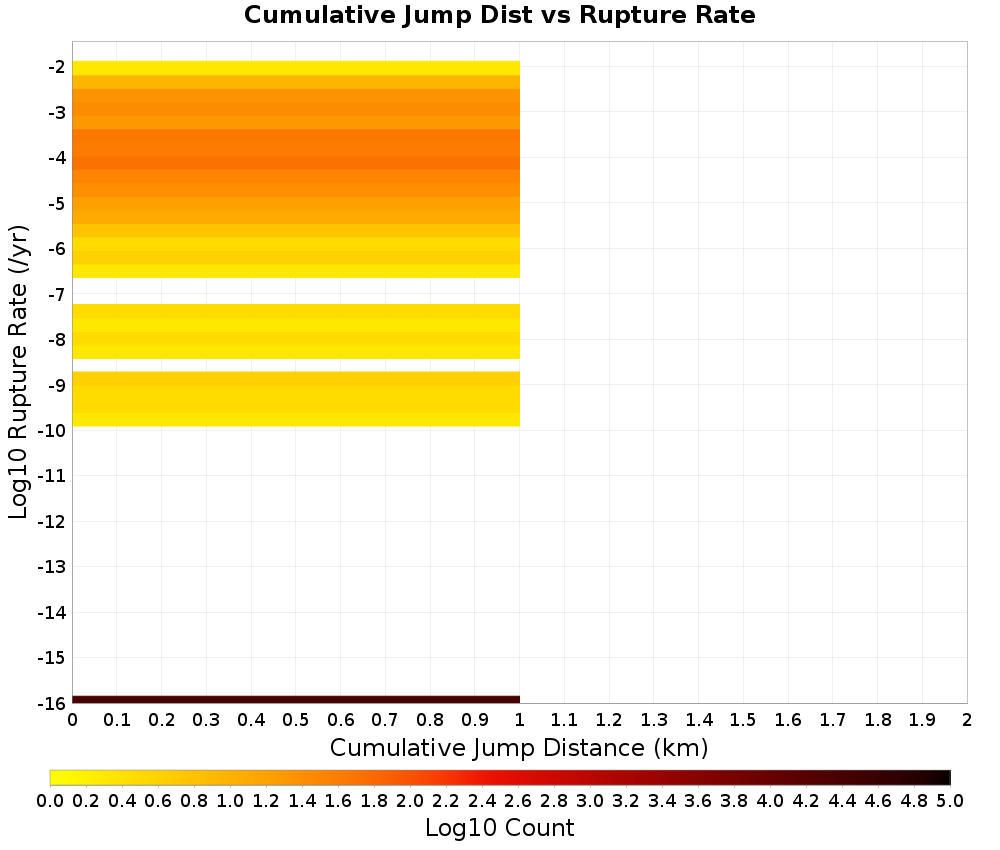

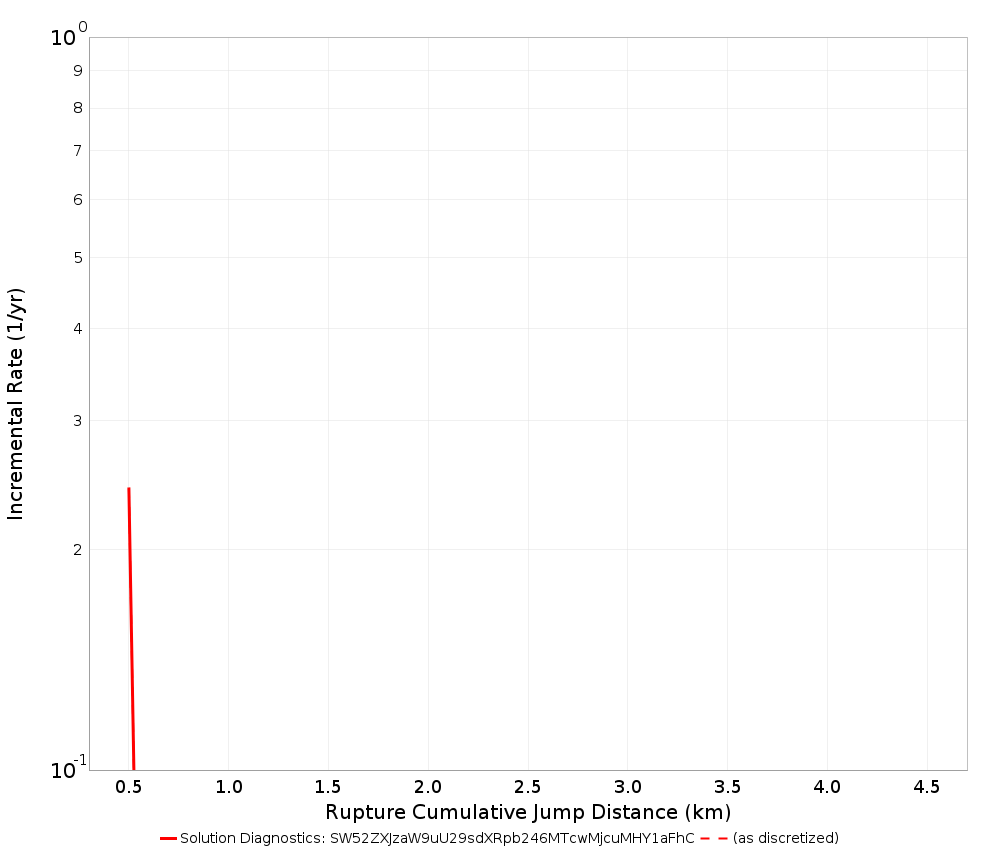

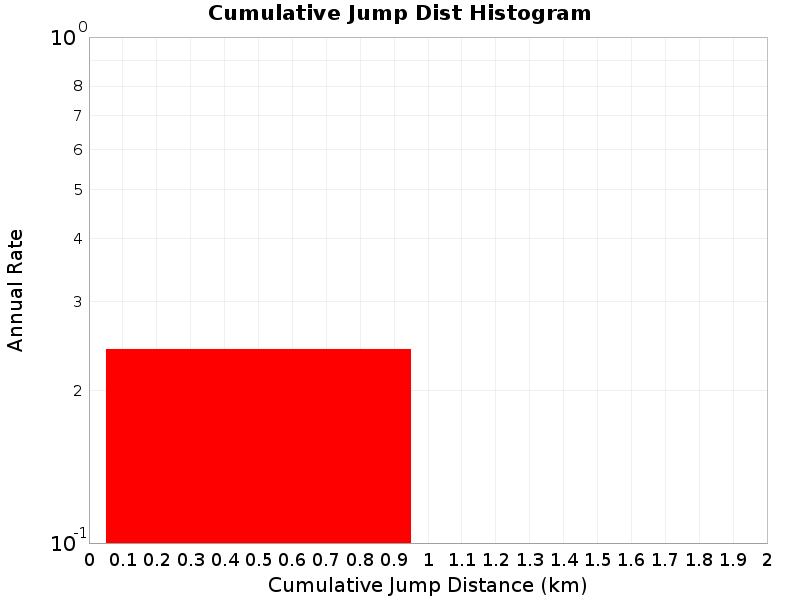

Cumulative Jump Dist vs Rupture Rate
 |  |
|---|
Cumulative Rake Change
Cumulative rake change for this rupture.
Max Slip Rate Difference

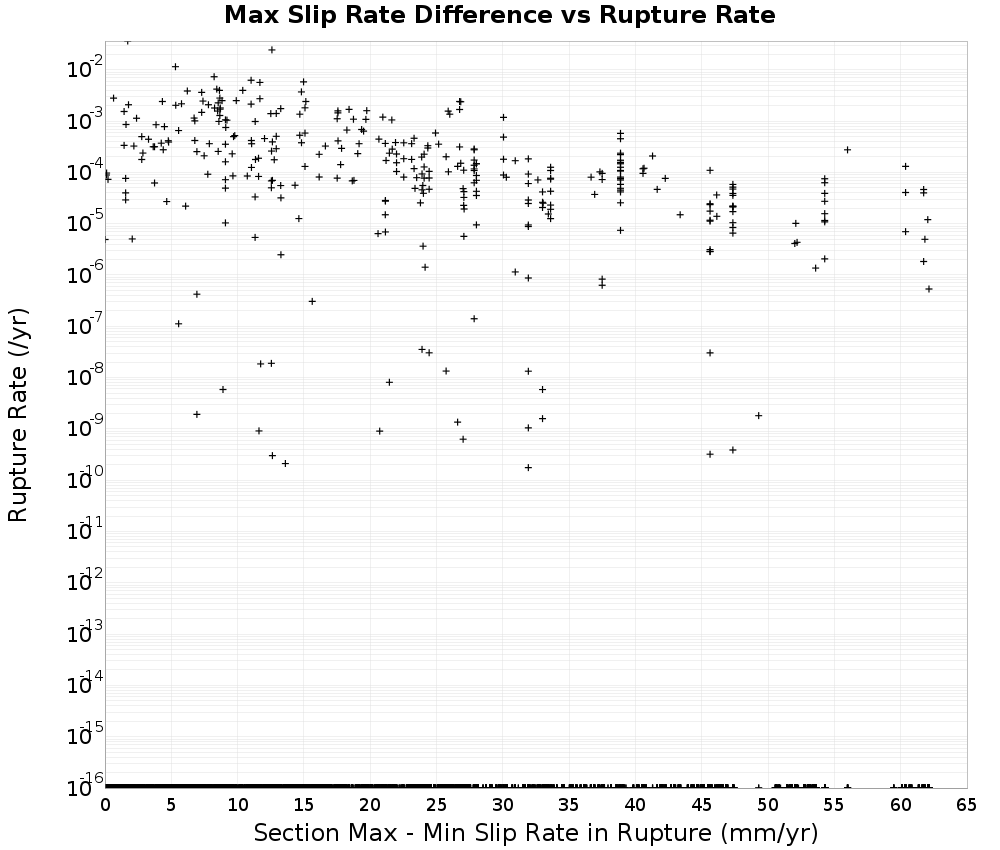

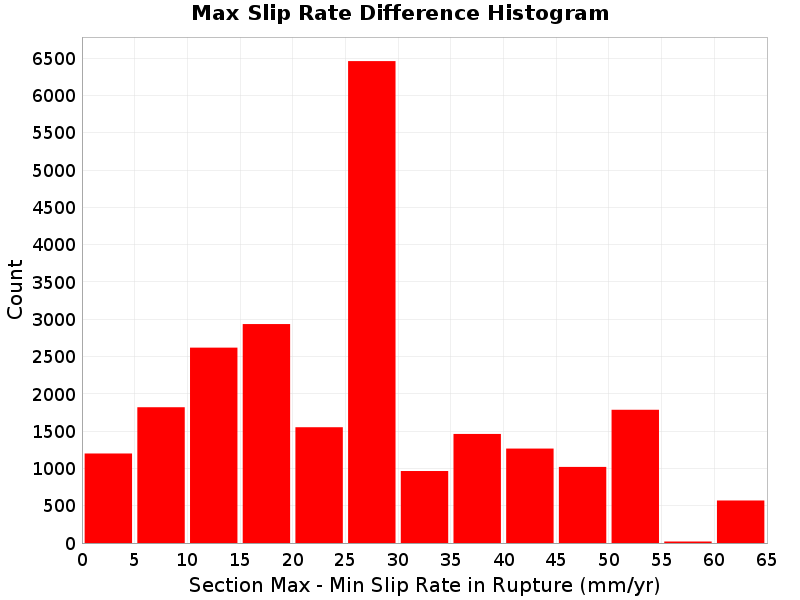

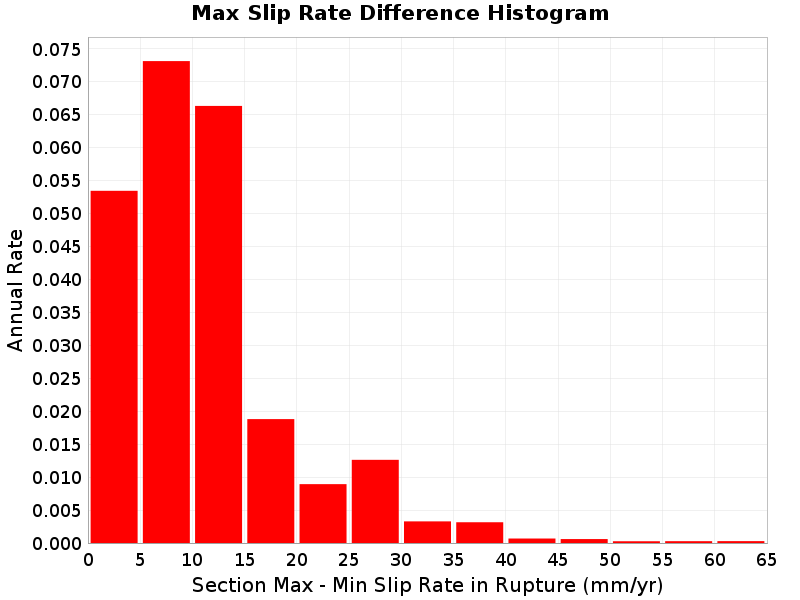

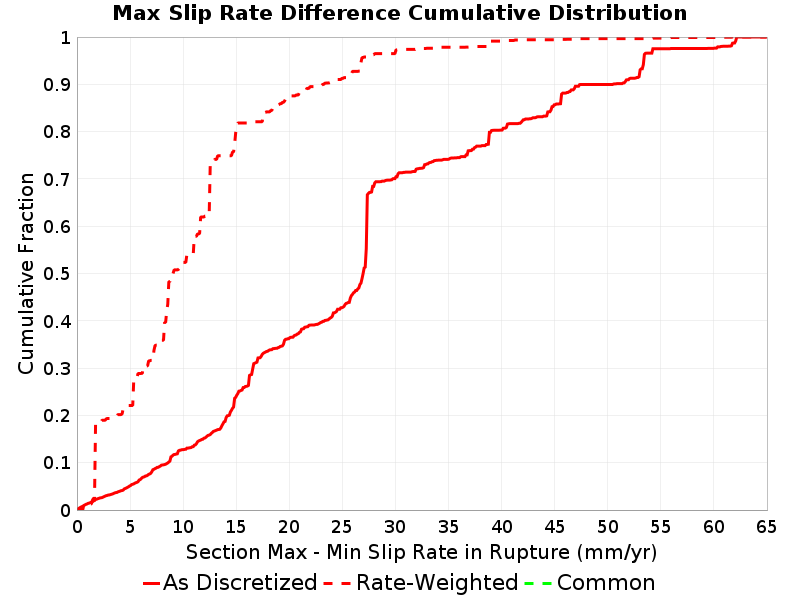

The difference between the slip rate of the sections with the highest and lowest slip rate in the rupture.
 |
|---|
 |
 |
 |

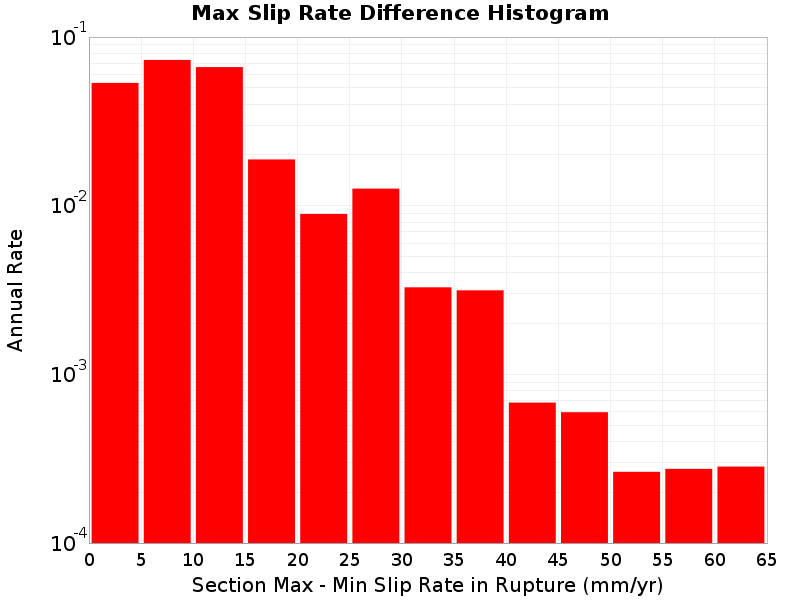

Max Slip Rate Difference vs Rupture Rate
 |  |
|---|
Attached Modules
List of all modules that have been attached to this Solution.
Note: Modules classes in the standard modules package, org.opensha.sha.earthquake.faultSysSolution.modules, have been shortened to omit the package name.
Rupture Set Modules
| Name | Implementing Class |
|---|---|
| Single-Strand Cluster Ruptures | ClusterRuptures$SingleStranded |
| Plausibility Configuration | org.opensha.sha.earthquake.faultSysSolution.ruptures.plausibility.PlausibilityConfiguration |
| Logic Tree Branch | nz.cri.gns.NZSHM22.opensha.enumTreeBranches.NZSHM22_LogicTreeBranch |
| Section Distance-Azimuth Calculator | org.opensha.sha.earthquake.faultSysSolution.ruptures.util.SectionDistanceAzimuthCalculator |
| Rupture Connection Search | org.opensha.sha.earthquake.faultSysSolution.ruptures.util.RuptureConnectionSearch |
| Section Slip Rates | SectSlipRates$Precomputed |
| Section Areas | SectAreas$Precomputed |
| Info | InfoModule |
| Rupture Average Slips | AveSlipModule$Precomputed |
| Modified Section Minimum Magnitudes | ModSectMinMags$Precomputed |
| Uniform Slip Along Rupture | SlipAlongRuptureModel$Uniform |
Solution Modules
| Name | Implementing Class |
|---|---|
| Annealing Progress | org.opensha.sha.earthquake.faultSysSolution.inversion.sa.completion.AnnealingProgress |
| OpenSHA Build Information | BuildInfoModule |
Fault Section Connections
 |
|---|
| Download GeoJSON |
 |
 |
 |

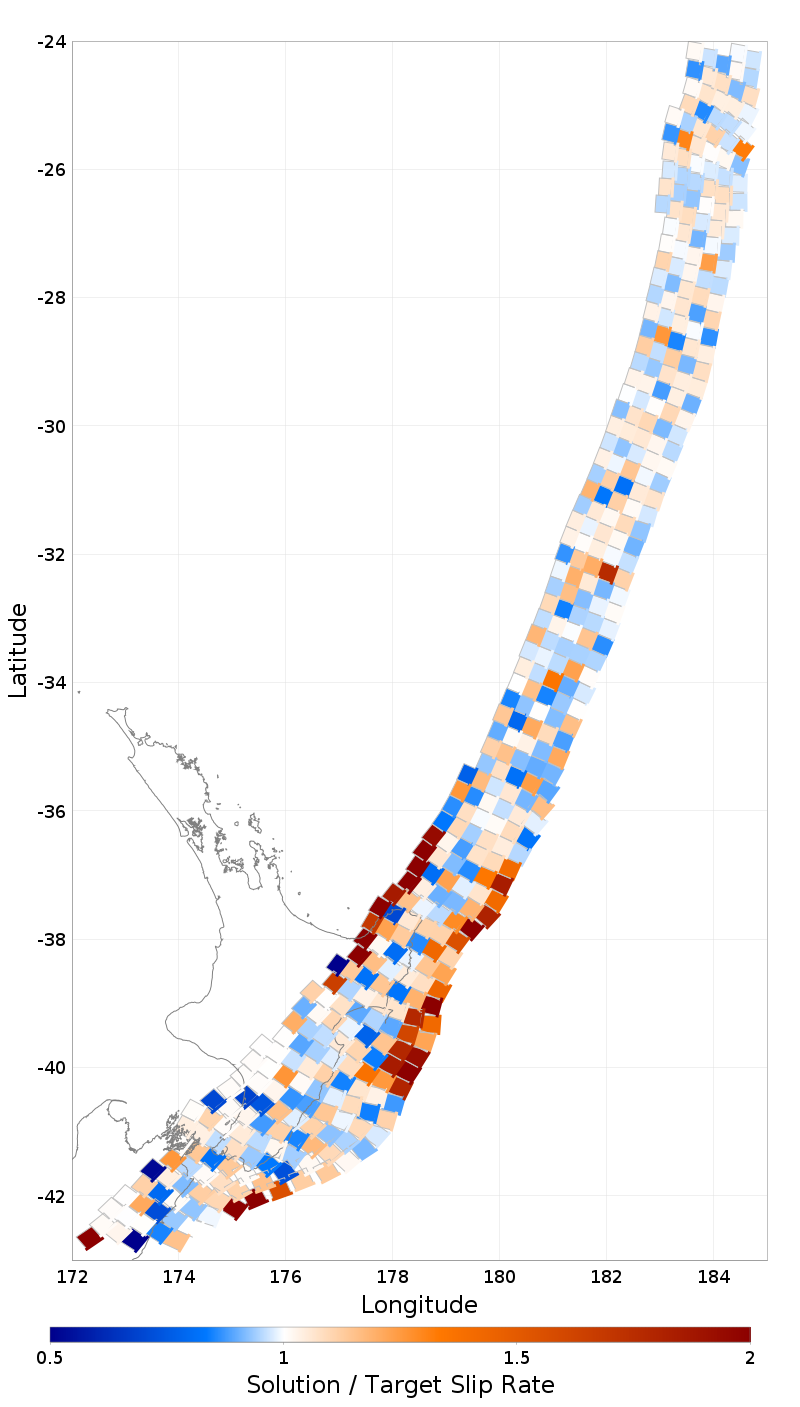

Slip Rates

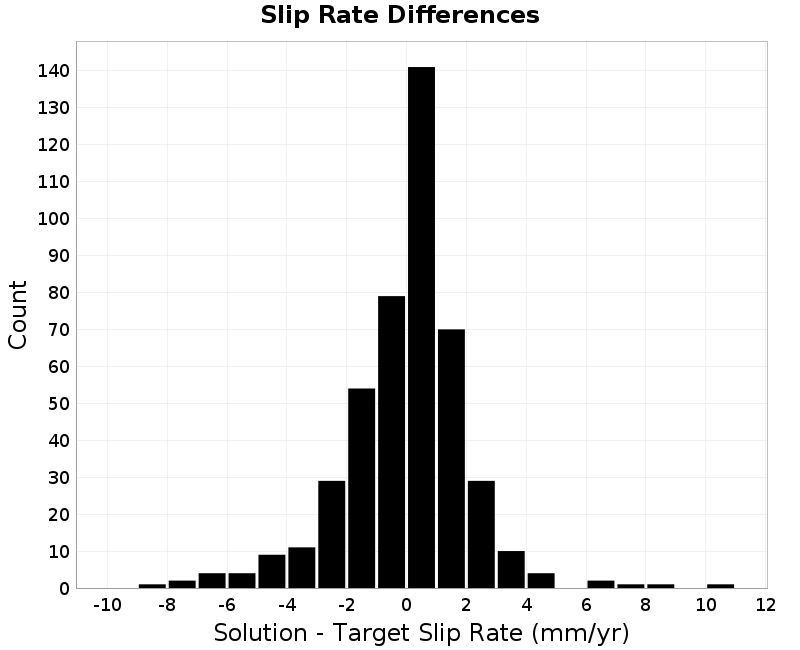

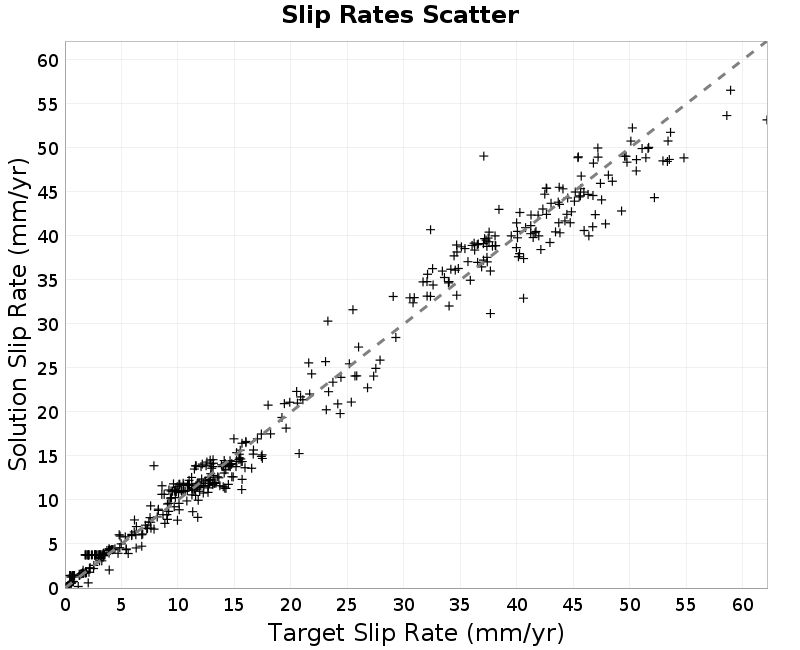

Linear Slip Rate Plots
 |  |
|---|---|
| Download GeoJSON | Download GeoJSON |
 |  |
| Download GeoJSON | Download GeoJSON |
 |  |
| Download GeoJSON | Download GeoJSON |
 |  |

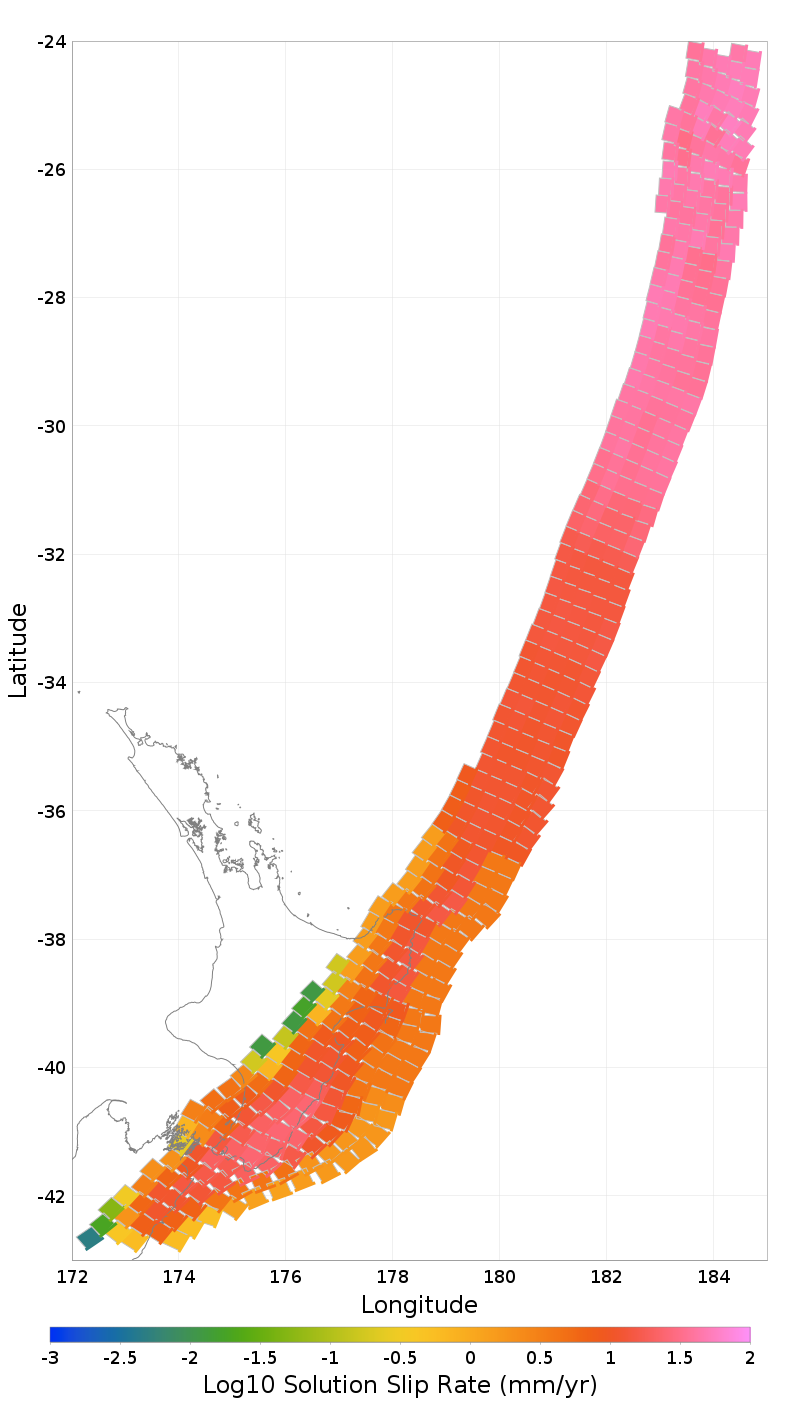

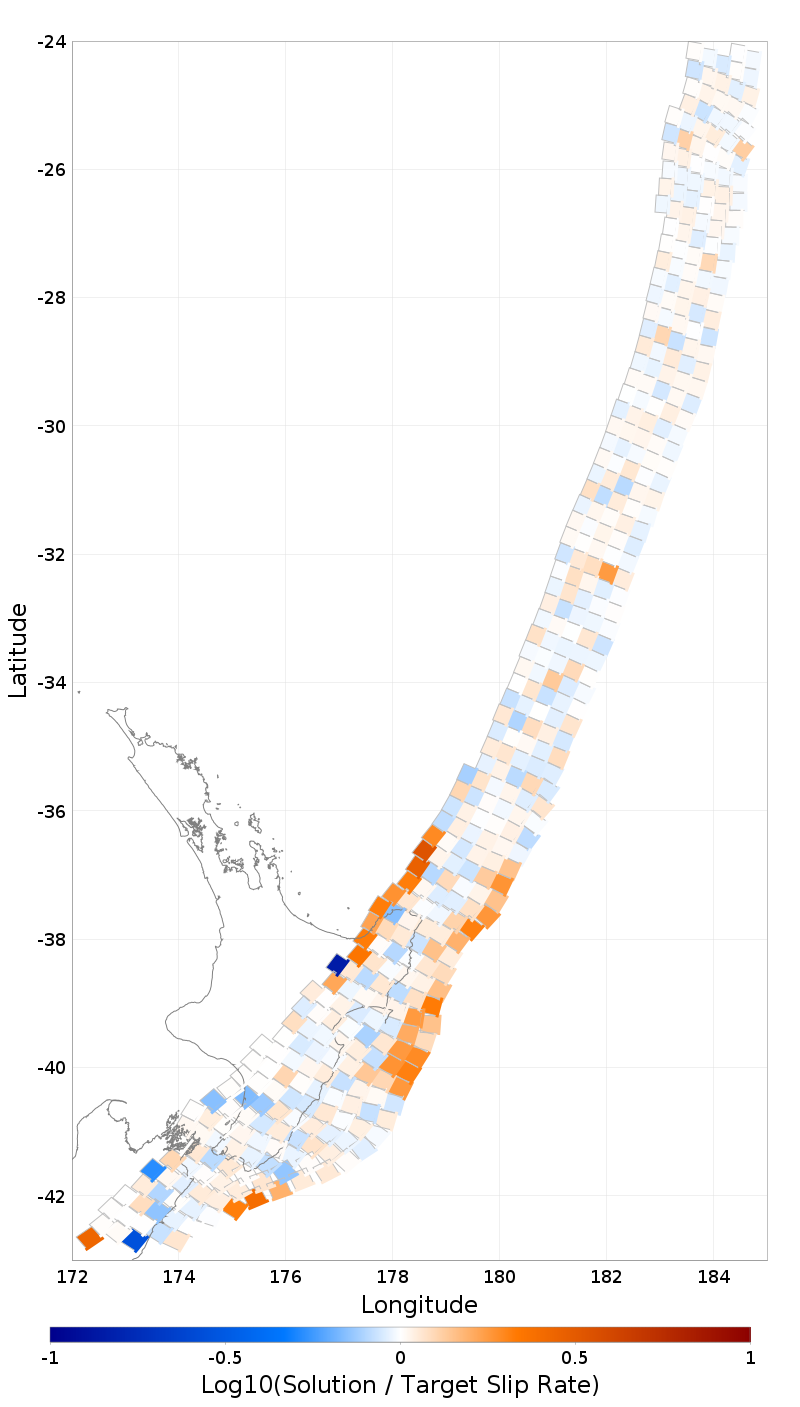

Log10 Slip Rate Plots
 |  |
|---|---|
| Download GeoJSON | Download GeoJSON |
 |  |
| Download GeoJSON | Download GeoJSON |
 |  |
| Download GeoJSON |
Jump Counts Over Distance

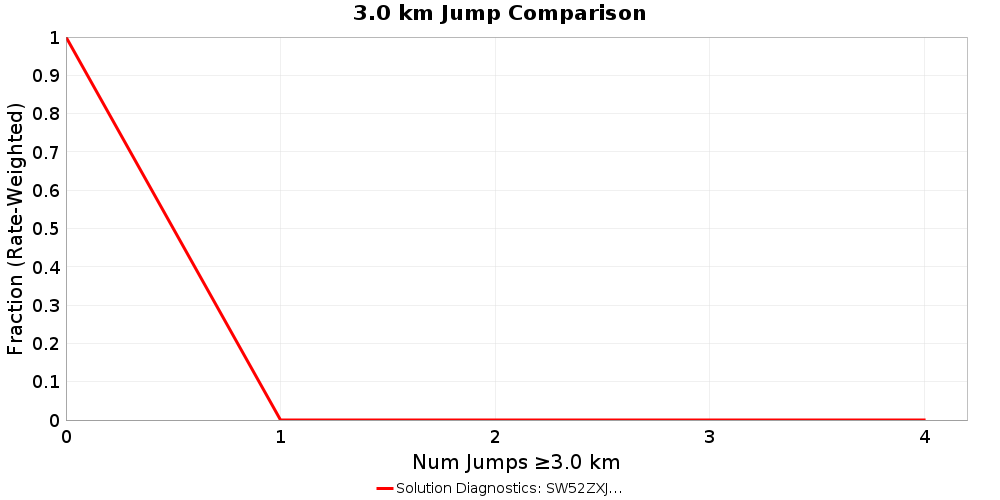

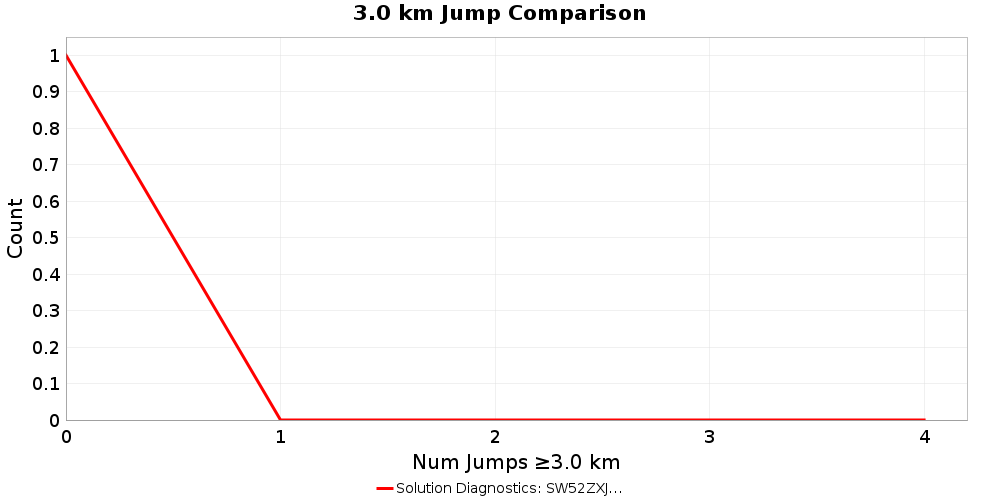

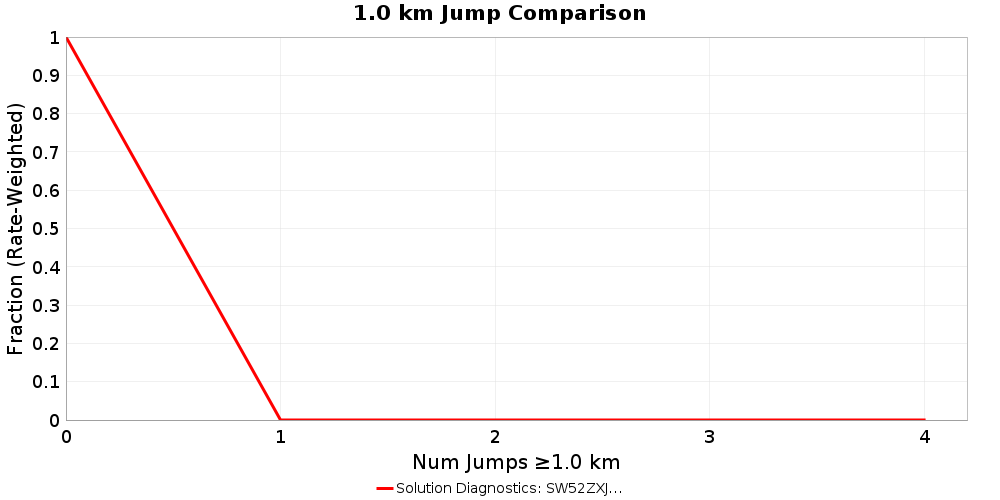

Supra-seismogenic Jump Counts
| As Discretized | Rate Weighted |
|---|---|
 |  |
 |  |
 |  |

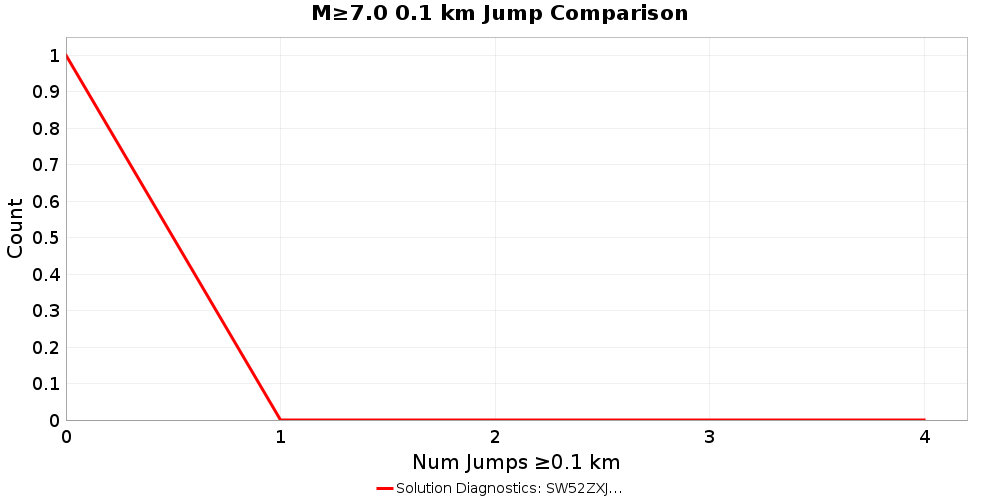

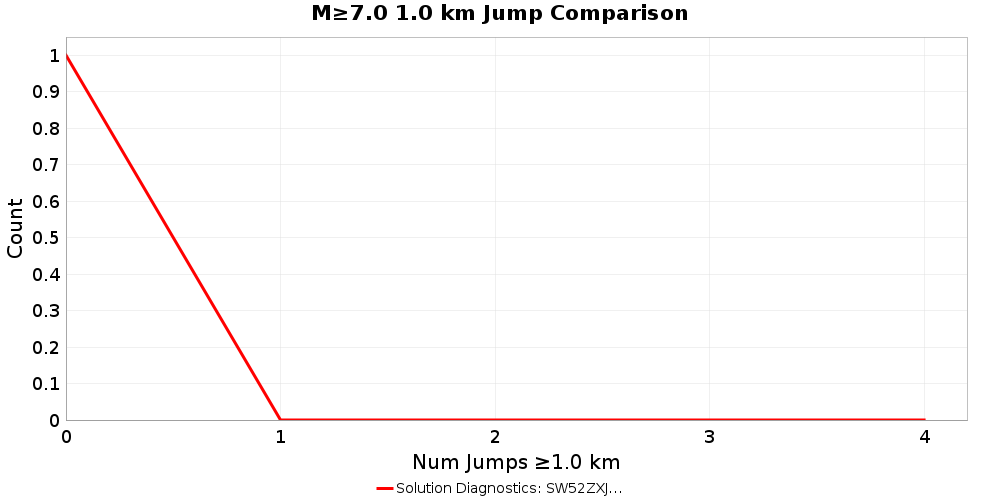

M≥7 Jump Counts

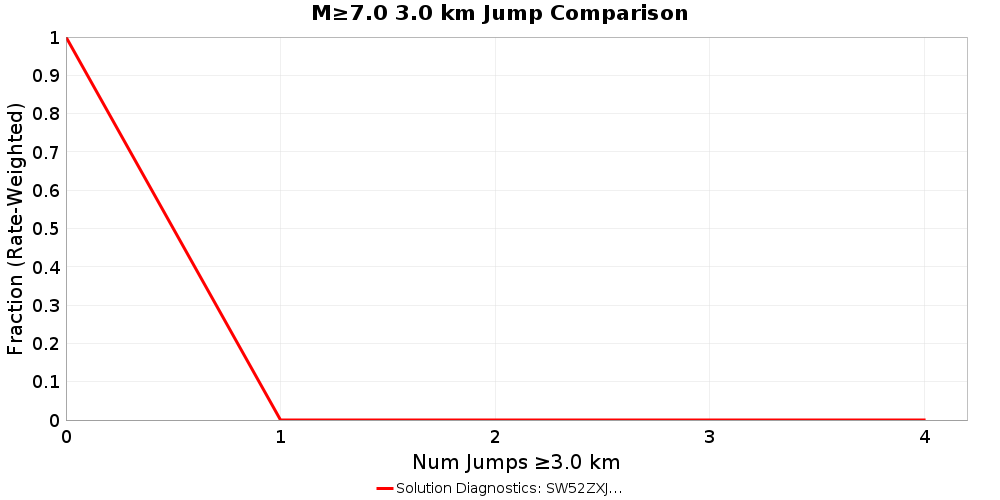

| As Discretized | Rate Weighted |
|---|---|
 |  |
 |  |
 |  |
Max Jump Distance Distribution
Cumulative Jump Distance Distribution
Hazard Maps
Hazard map comparisons with a resolution of 1 degrees (260 sites). Hazard is computed with the ASK2014 GMPE, default site parameters, and supra-seismogenic fault sources only.
PGA Hazard Maps
PGA, 2% in 50 year Hazard Maps

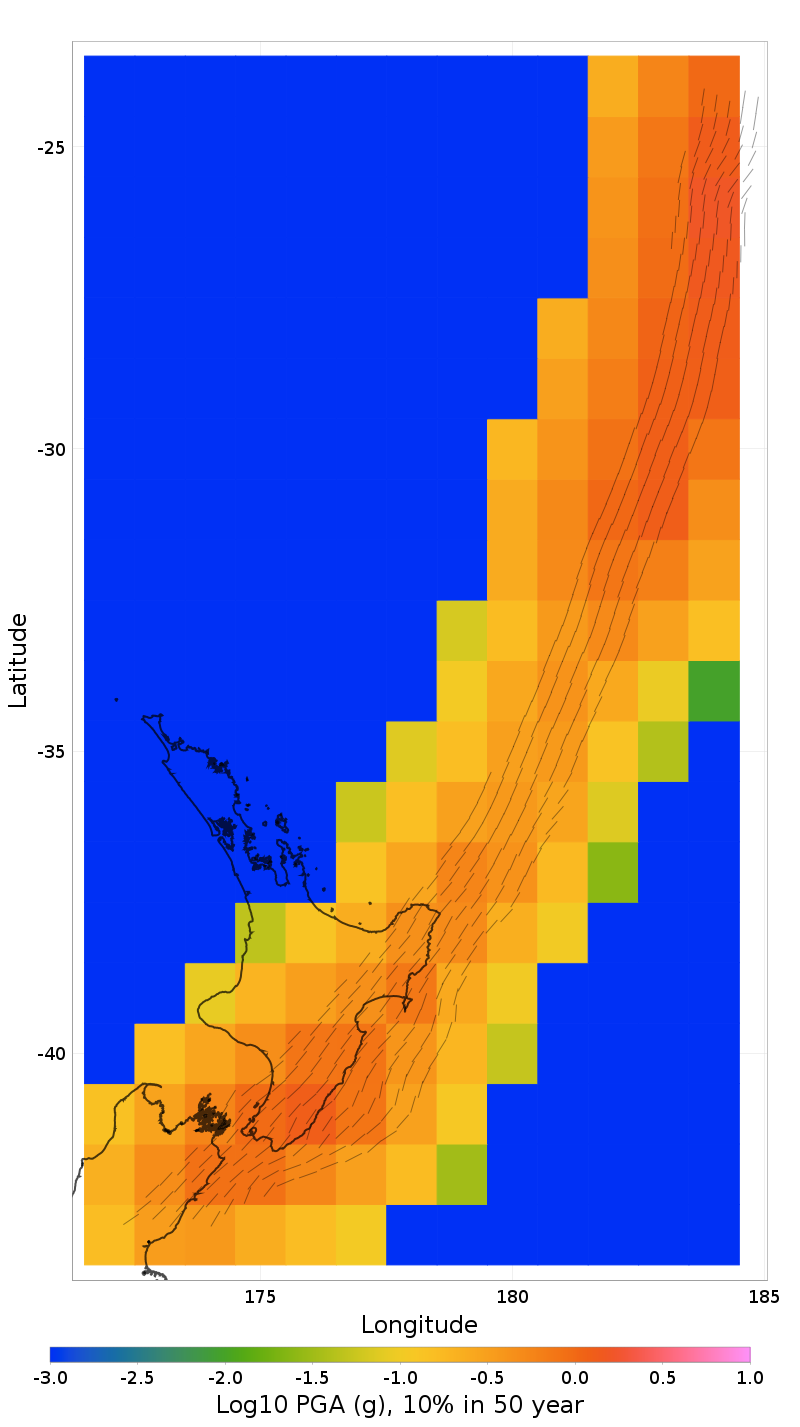

PGA, 10% in 50 year Hazard Maps
1s SA Hazard Maps

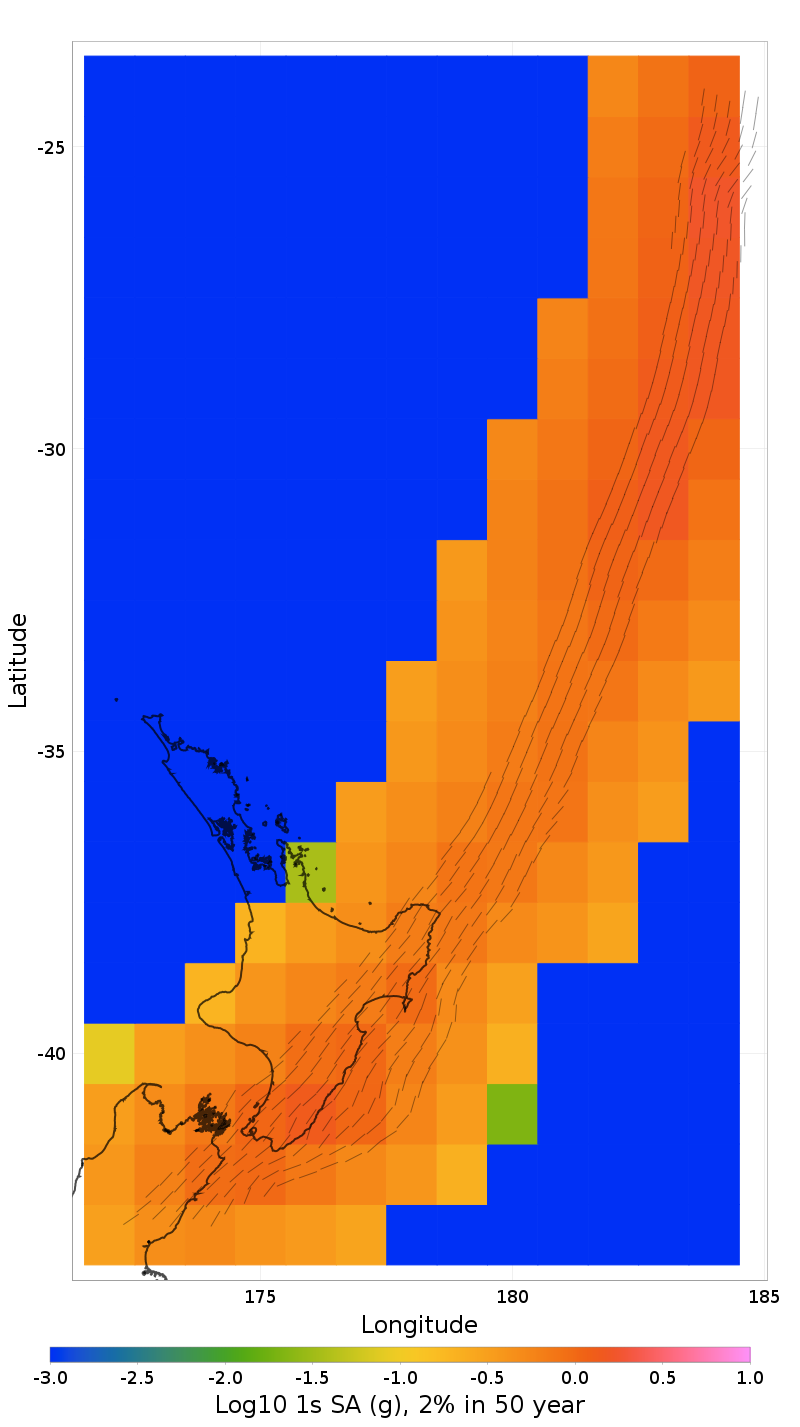

1s SA, 2% in 50 year Hazard Maps

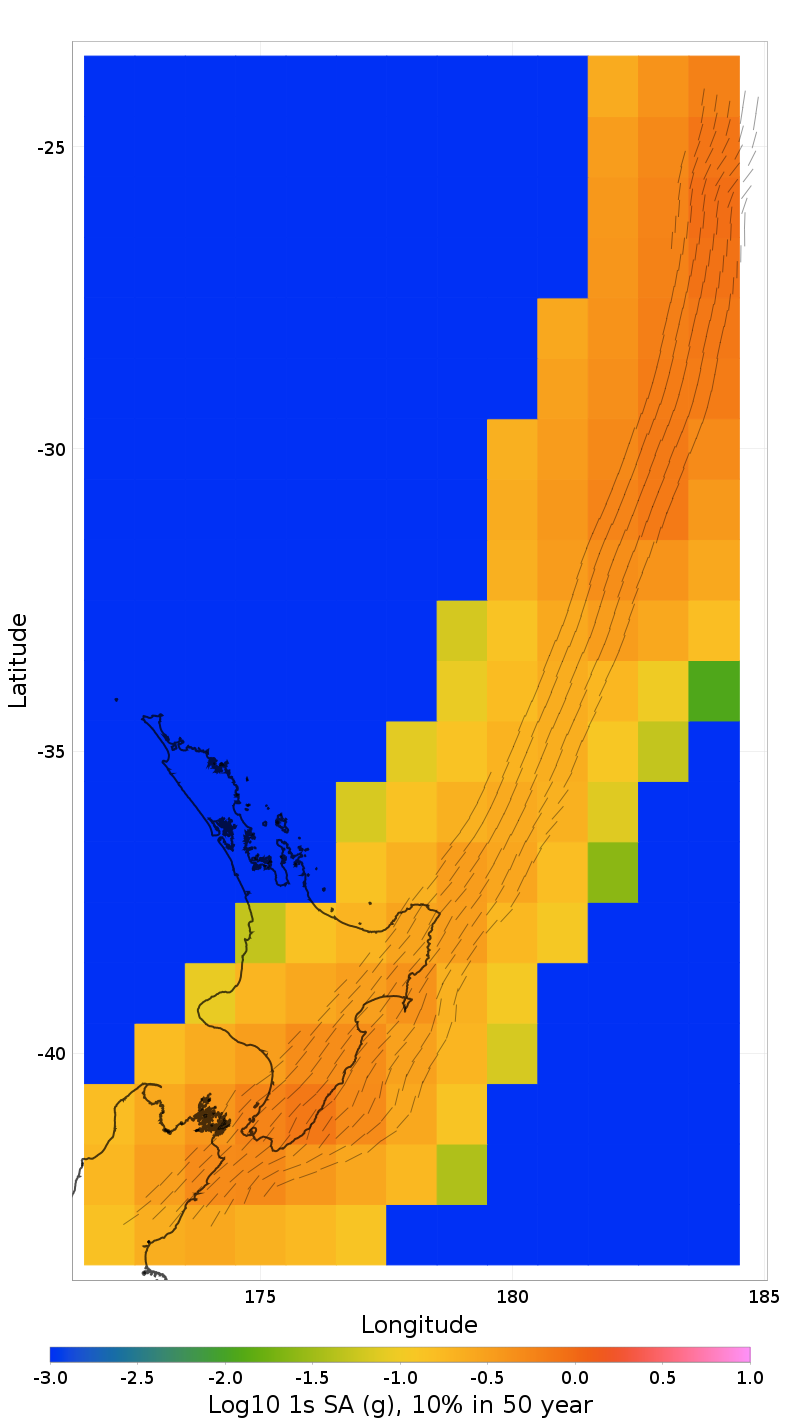

1s SA, 10% in 50 year Hazard Maps
Parent Section Detail Pages
| Fault Section |
|---|
| Hikurangi, Kermadec to Louisville ridge, 30km - with slip deficit smoothed near East Cape and locked near trench. |
