Monowai Details
| Property | Value |
|---|---|
| Rupture Count | 243 |
| Ruptures Above Sect Min Mag | 242 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [6.98, 8.54] |
| Length Range | [23, 871] km |
| Total Rate | 4.2219533E-4 /yr |
| Multi-Fault Rate | 3.5303264E-4 /yr (83.62%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 34 |
Table Of Contents

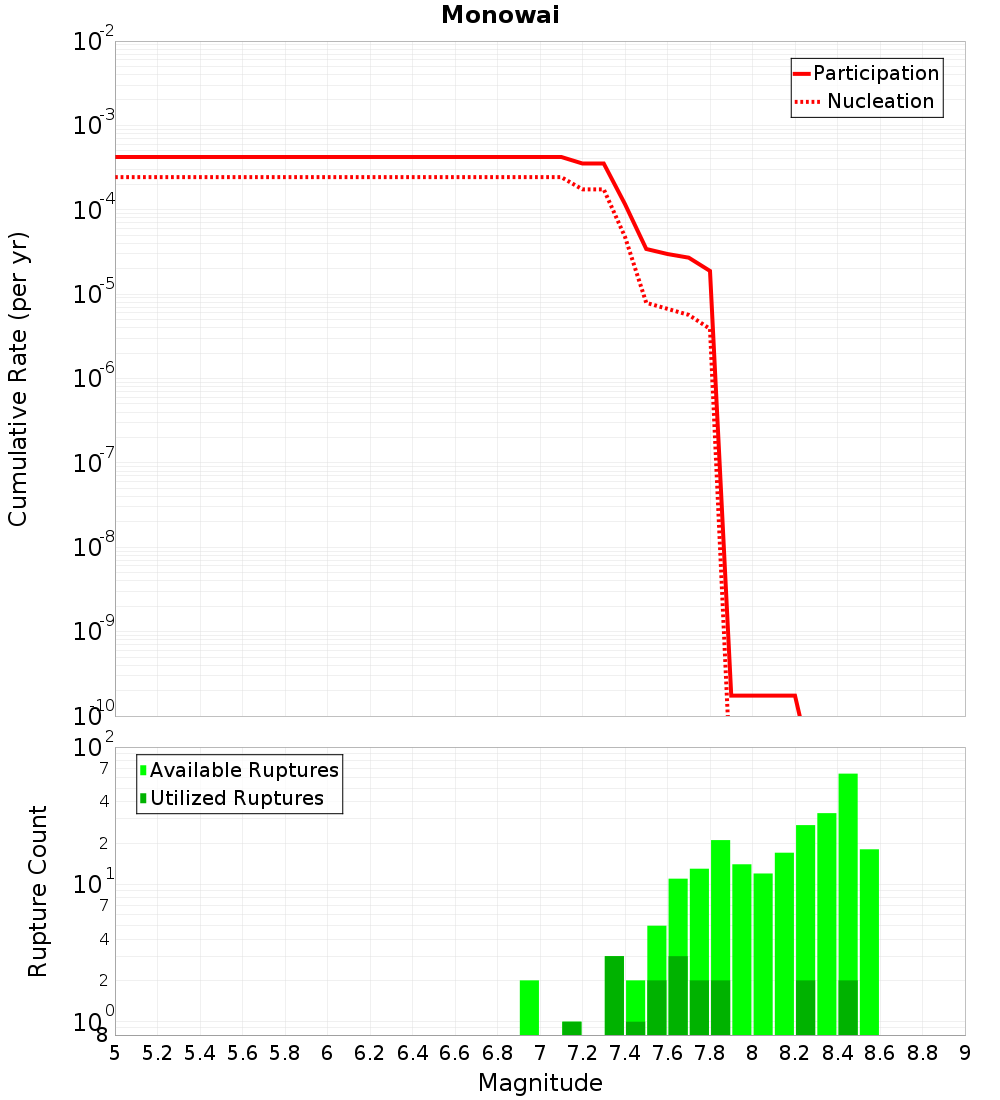

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

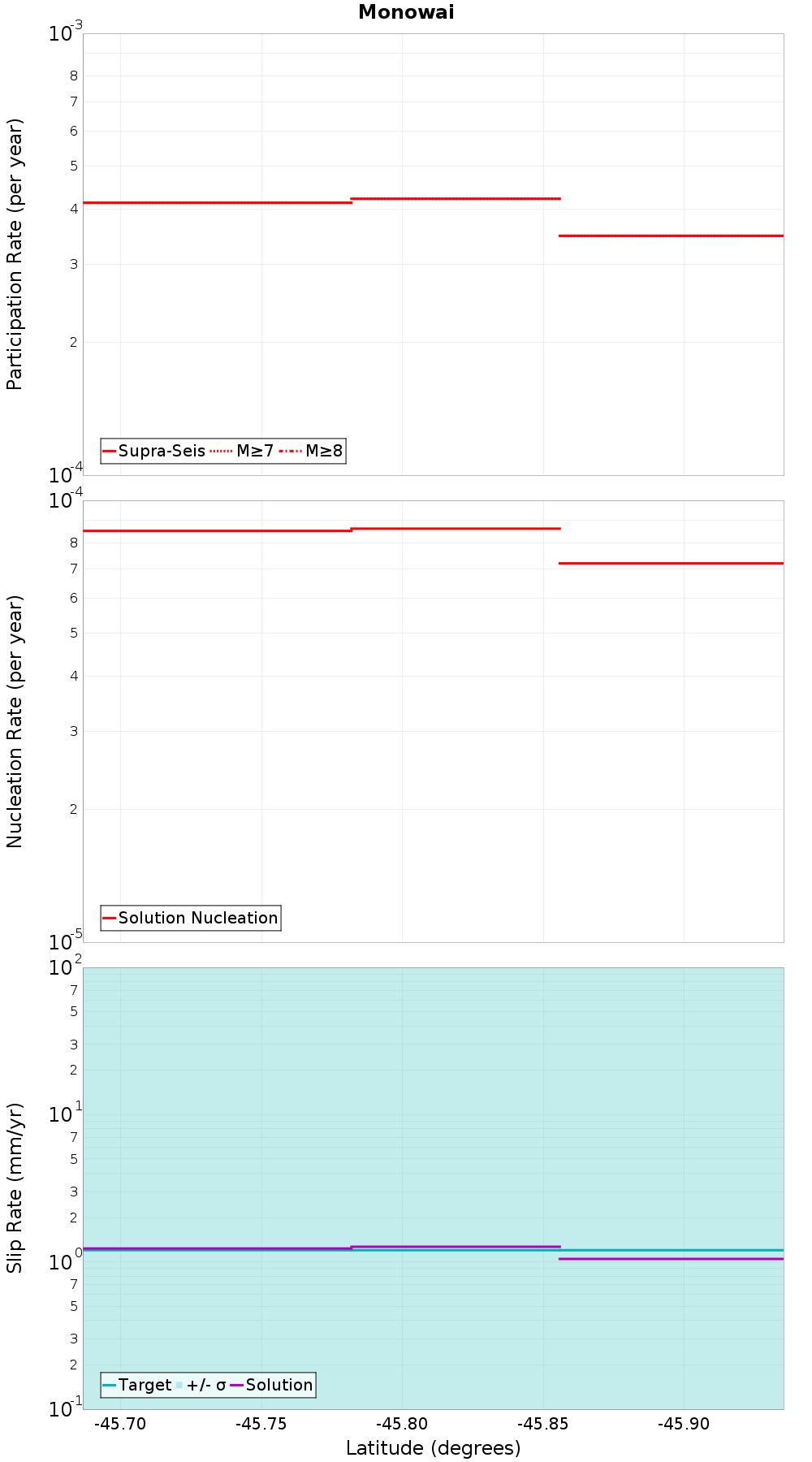

Along-Strike Values
Moment-Rates and b-Values

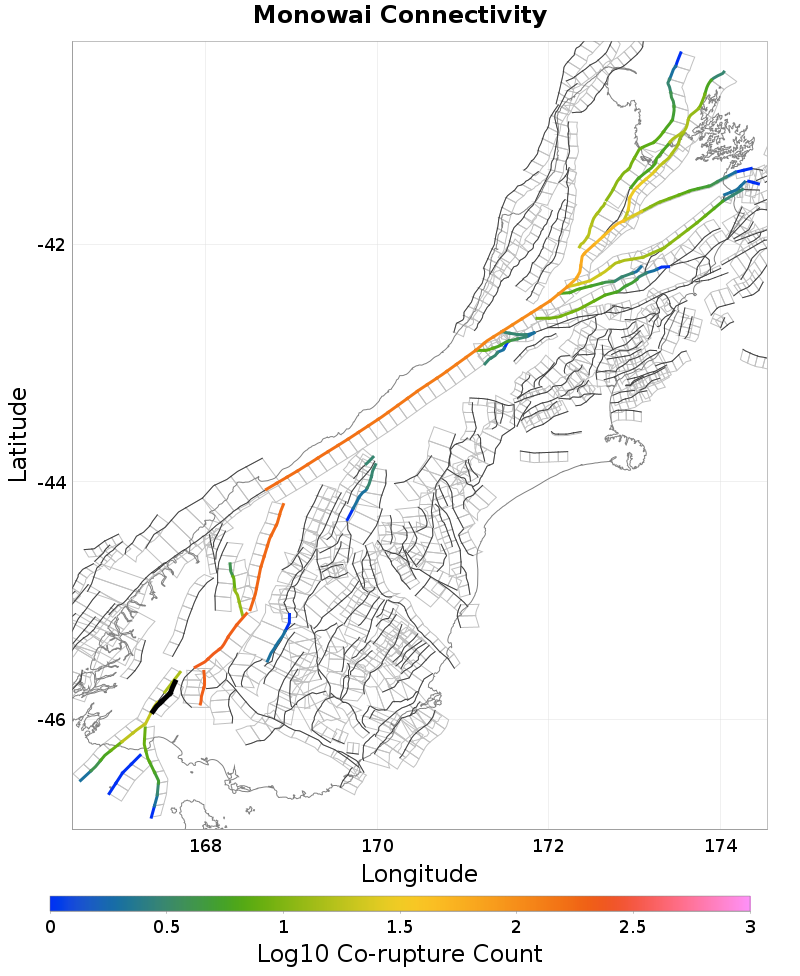

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: North, 1.01 km away |
| Tin Hut, 3.53 km away |
| McKerchar, 6.1 km away |
| Hump Ridge, 10.79 km away |
| Hauroko: South, 14.37 km away |
Hauroko: North, 1.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjAuMFJNd2FK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 34 |
| Co-rupture Rate | 1.9668014E-4 |
Tin Hut, 3.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjAuMFJNd2FK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 206 |
| Co-rupture Rate | 1.563525E-4 |
McKerchar, 6.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjAuMFJNd2FK | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hump Ridge, 10.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjAuMFJNd2FK | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 1.8815377E-5 |
Hauroko: South, 14.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjAuMFJNd2FK | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 3.428209E-5 |
