Kowai - View Hill Details

PropertyValue
Rupture Count5,857
Ruptures Above Sect Min Mag5,846
Ruptures w/ Nonzero Rates197
Magnitude Range[6.59, 8.24]
Length Range[15, 537] km
Total Rate6.8247864E-5 /yr
Multi-Fault Rate6.8247864E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults75

Table Of Contents

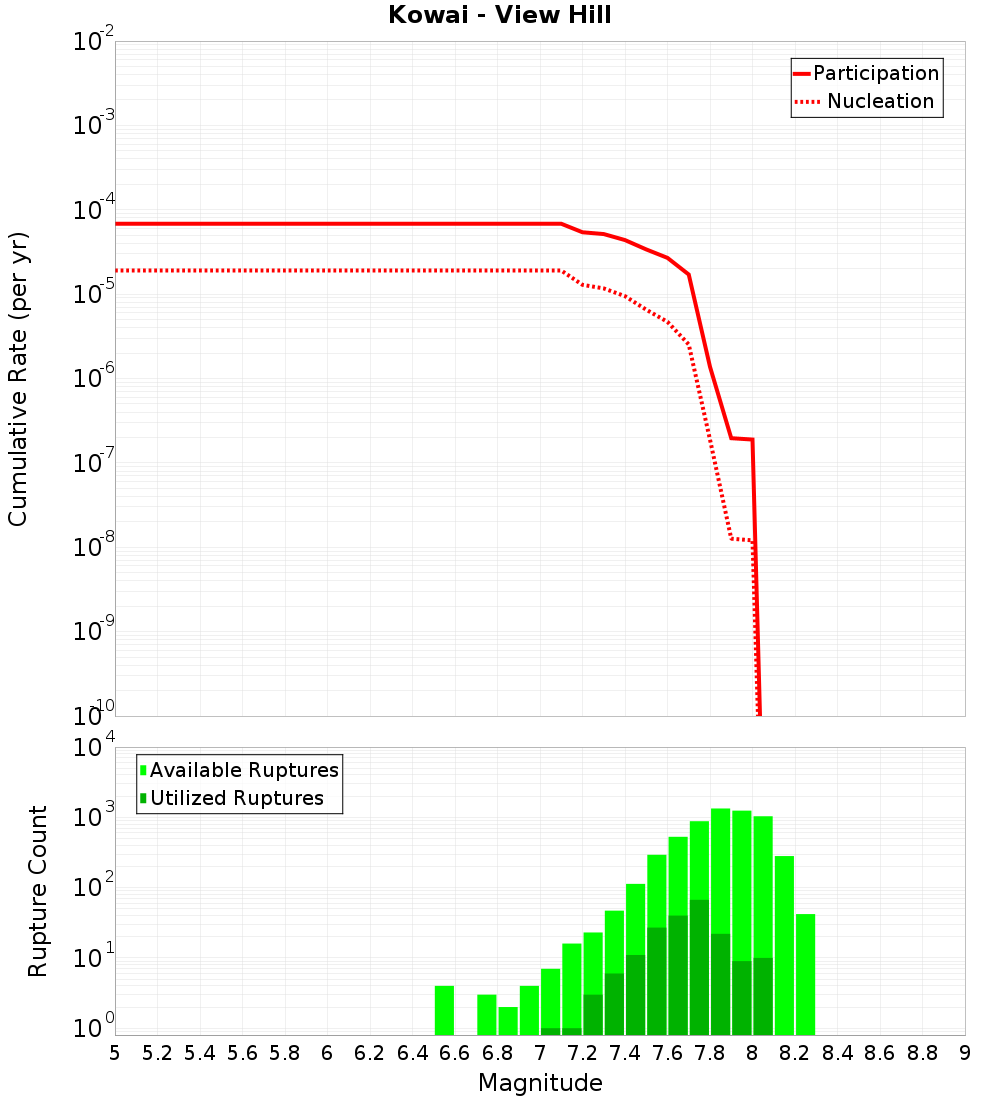

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

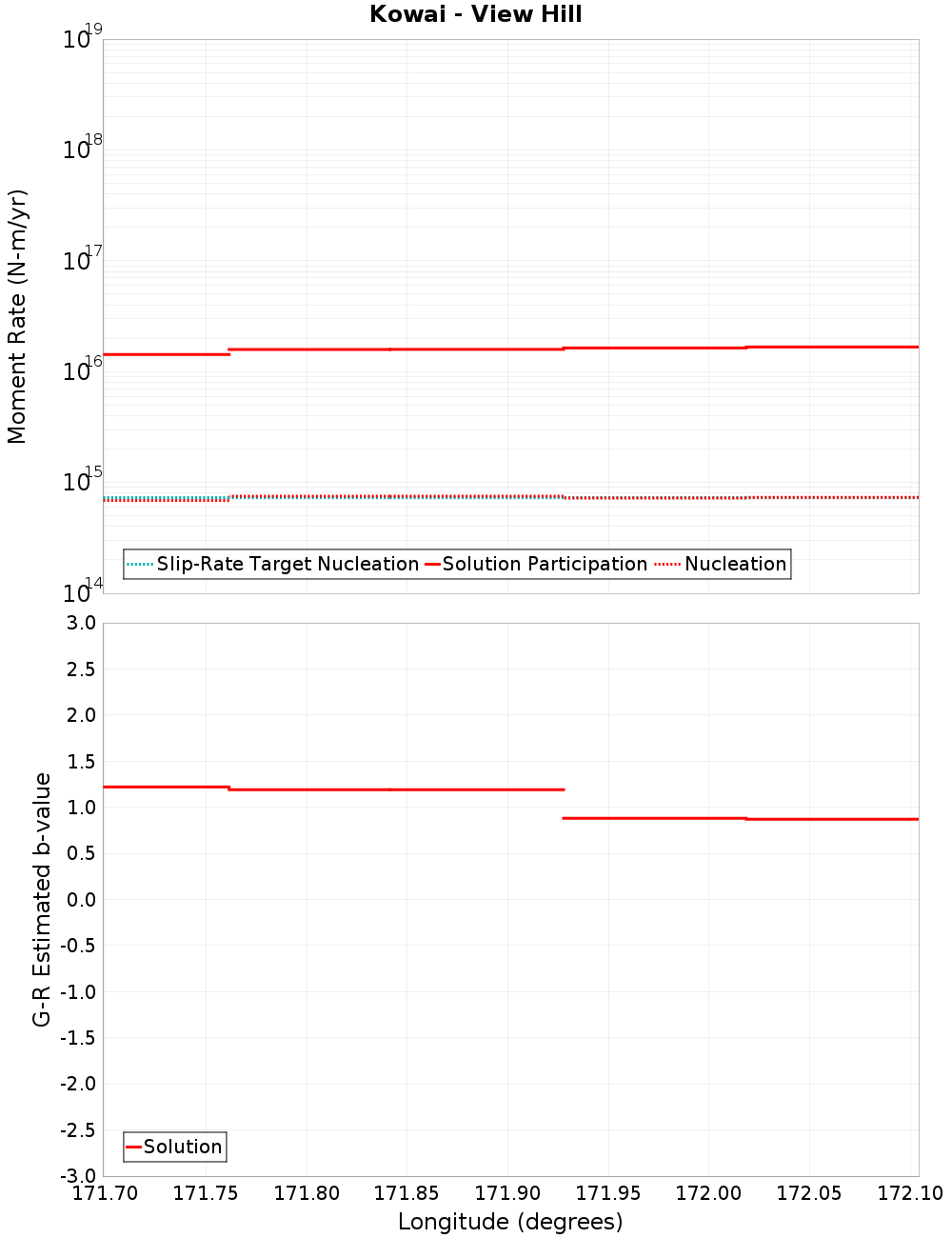

Moment-Rates and b-Values

(top)

Along-strike plot

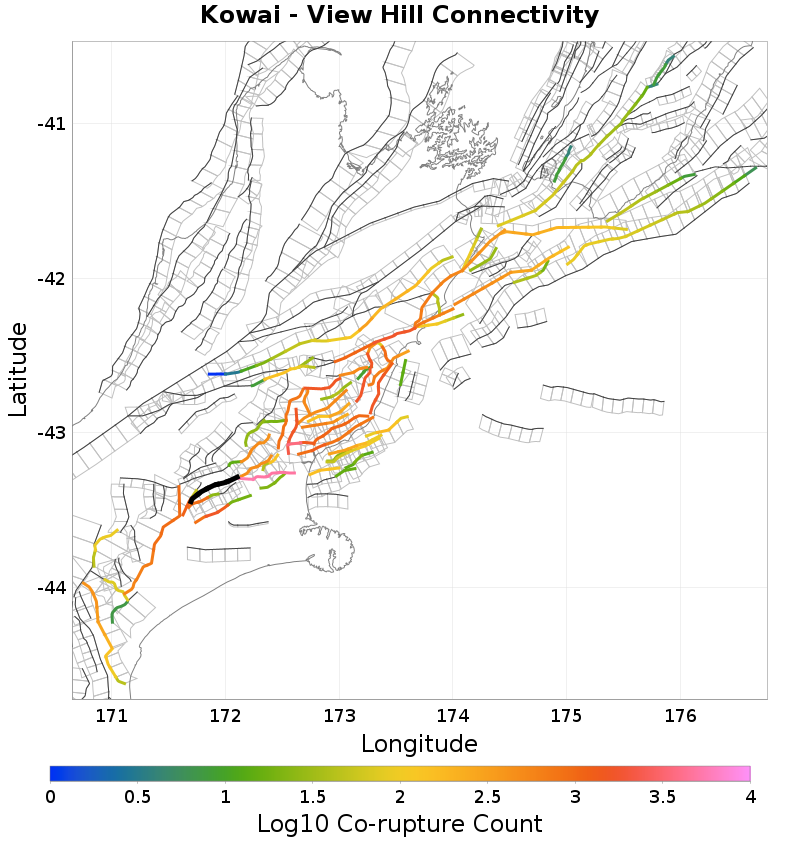

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hororata, 0.21 km away
Big Ben, 0.83 km away
Starvation - Ashley, 0.87 km away
High Peak - Sheffield, 1.73 km away
Knowles Top, 2.87 km away
Hutt Peel, 8.24 km away
Porters Pass, 8.66 km away
Lees Valley, 8.8 km away
Esk South, 9.99 km away
Springbank, 10.45 km away
Double Hill, 13.14 km away
Torlesse, 13.54 km away

Hororata, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?true
Directly Connected?true
Co-rupture Count1,604
Co-rupture Rate1.4179654E-5

Big Ben, 0.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?true
Directly Connected?true
Co-rupture Count1,211
Co-rupture Rate4.764973E-6

Starvation - Ashley, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?true
Directly Connected?true
Co-rupture Count5,335
Co-rupture Rate3.8140646E-5

High Peak - Sheffield, 1.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?true
Directly Connected?true
Co-rupture Count908
Co-rupture Rate0.0

Knowles Top, 2.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?true
Directly Connected?true
Co-rupture Count481
Co-rupture Rate1.657124E-5

Hutt Peel, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?true
Directly Connected?false
Co-rupture Count940
Co-rupture Rate2.0014613E-7

Porters Pass, 8.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 8.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?true
Directly Connected?false
Co-rupture Count500
Co-rupture Rate1.0990807E-5

Esk South, 9.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 10.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate1.2804949E-11

Double Hill, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTcyNjYuMFhwUTJp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
