Awamoa Details
| Property | Value |
|---|---|
| Rupture Count | 159 |
| Ruptures Above Sect Min Mag | 158 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.92, 8.05] |
| Length Range | [22, 277] km |
| Total Rate | 1.7220904E-5 /yr |
| Multi-Fault Rate | 1.7220904E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 26 |
Table Of Contents

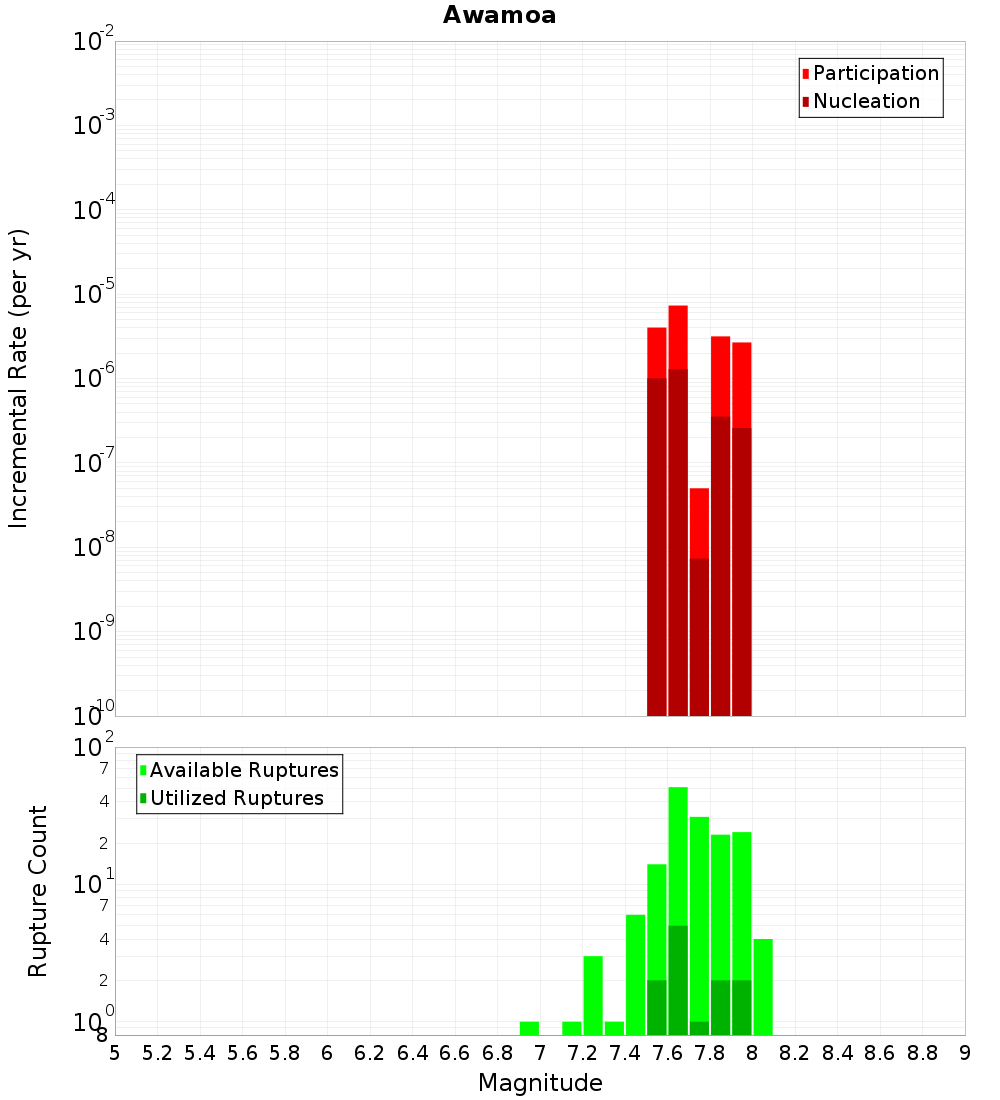

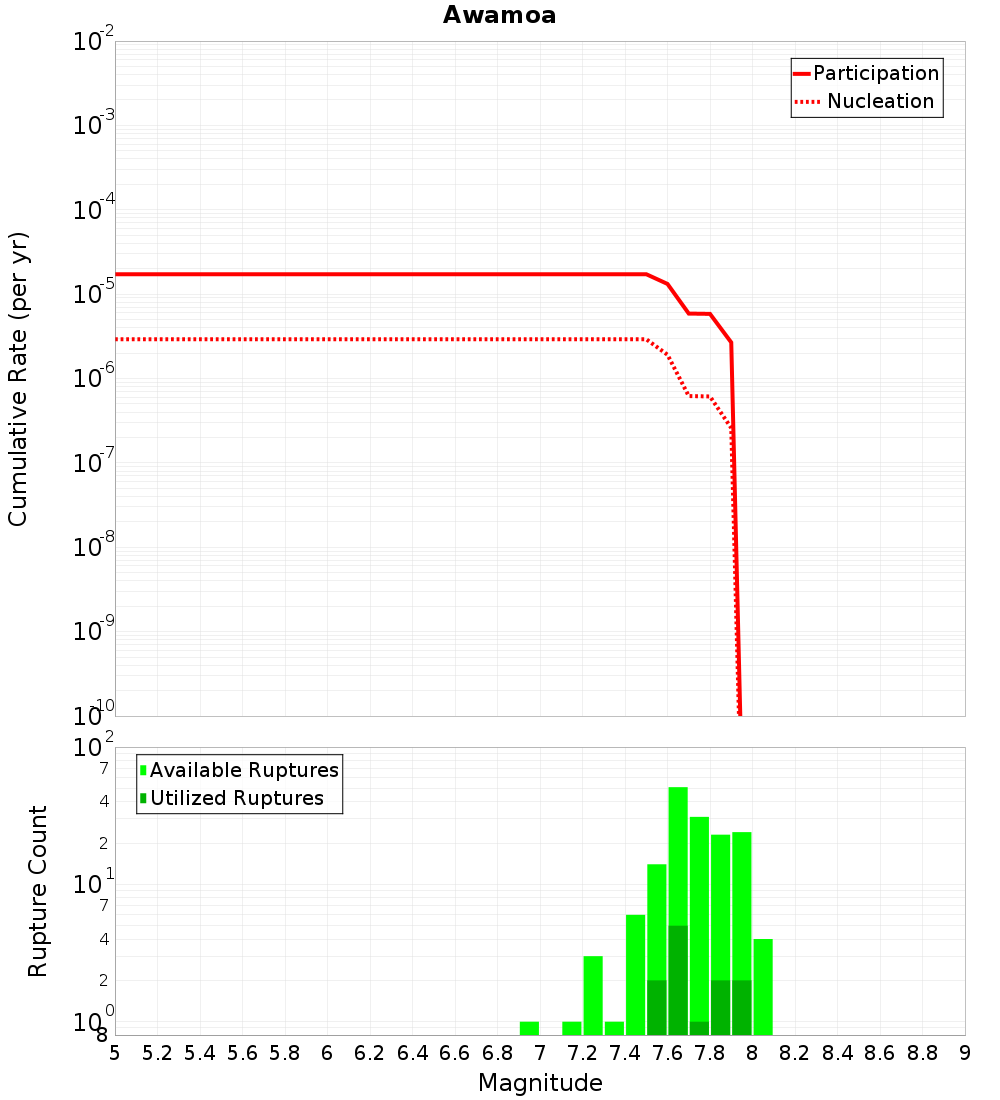

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Waitaki, 0.28 km away |
| Waimate, 8.62 km away |
| Stonewall, 14.16 km away |
Waitaki, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTczNjYuMHdvck1F | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 158 |
| Co-rupture Rate | 1.7220904E-5 |
Waimate, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTczNjYuMHdvck1F | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 59 |
| Co-rupture Rate | 6.335125E-6 |
Stonewall, 14.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTczNjYuMHdvck1F | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 65 |
| Co-rupture Rate | 4.2651914E-6 |
