Leithfield - NCVI - NCVII Details

PropertyValue
Rupture Count557
Ruptures Above Sect Min Mag545
Ruptures w/ Nonzero Rates30
Magnitude Range[6.66, 7.78]
Length Range[17, 195] km
Total Rate1.7886916E-4 /yr
Multi-Fault Rate1.14639E-4 /yr (64.09%)
Directly-Connected Faults7
All Co-Rupturing Faults23

Table Of Contents

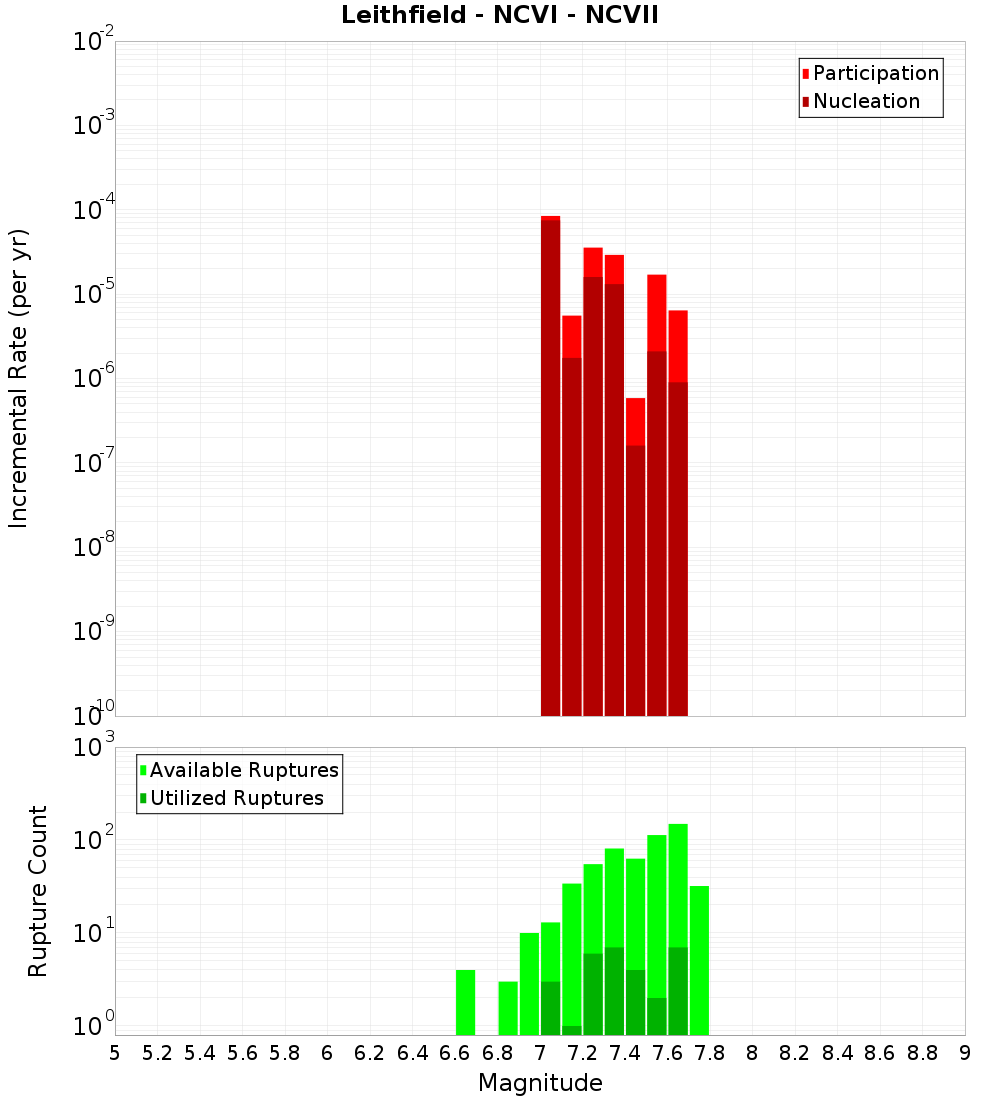

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 2, 0.49 km away
North Canterbury Shelf 11, 1.13 km away
Motunau, 1.34 km away
Point Gibson, 3.66 km away
Waikuku, 4.07 km away
North Canterbury Shelf 4, 4.53 km away
AmberBlyth, 5.71 km away
Pegasus Bay, 7.81 km away
OmihiLwrHuru, 11.17 km away
Boby Stream, 14.97 km away

North Canterbury Shelf 2, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDYuMExGeUE3
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate2.5732546E-5

North Canterbury Shelf 11, 1.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDYuMExGeUE3
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate8.616709E-6

Motunau, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDYuMExGeUE3
Connected?true
Directly Connected?true
Co-rupture Count199
Co-rupture Rate1.375822E-5

Point Gibson, 3.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDYuMExGeUE3
Connected?true
Directly Connected?true
Co-rupture Count325
Co-rupture Rate1.3134392E-5

Waikuku, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDYuMExGeUE3
Connected?true
Directly Connected?true
Co-rupture Count221
Co-rupture Rate2.7451882E-5

North Canterbury Shelf 4, 4.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDYuMExGeUE3
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate3.91642E-5

AmberBlyth, 5.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDYuMExGeUE3
Connected?true
Directly Connected?false
Co-rupture Count173
Co-rupture Rate4.434666E-6

Pegasus Bay, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDYuMExGeUE3
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate2.7351109E-5

OmihiLwrHuru, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDYuMExGeUE3
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate1.7027116E-5

Boby Stream, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDYuMExGeUE3
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate0.0
