Ohena 2 Details
| Property | Value |
|---|---|
| Rupture Count | 83 |
| Ruptures Above Sect Min Mag | 81 |
| Ruptures w/ Nonzero Rates | 22 |
| Magnitude Range | [7.00, 7.85] |
| Length Range | [20, 126] km |
| Total Rate | 7.0299505E-4 /yr |
| Multi-Fault Rate | 6.636919E-4 /yr (94.41%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

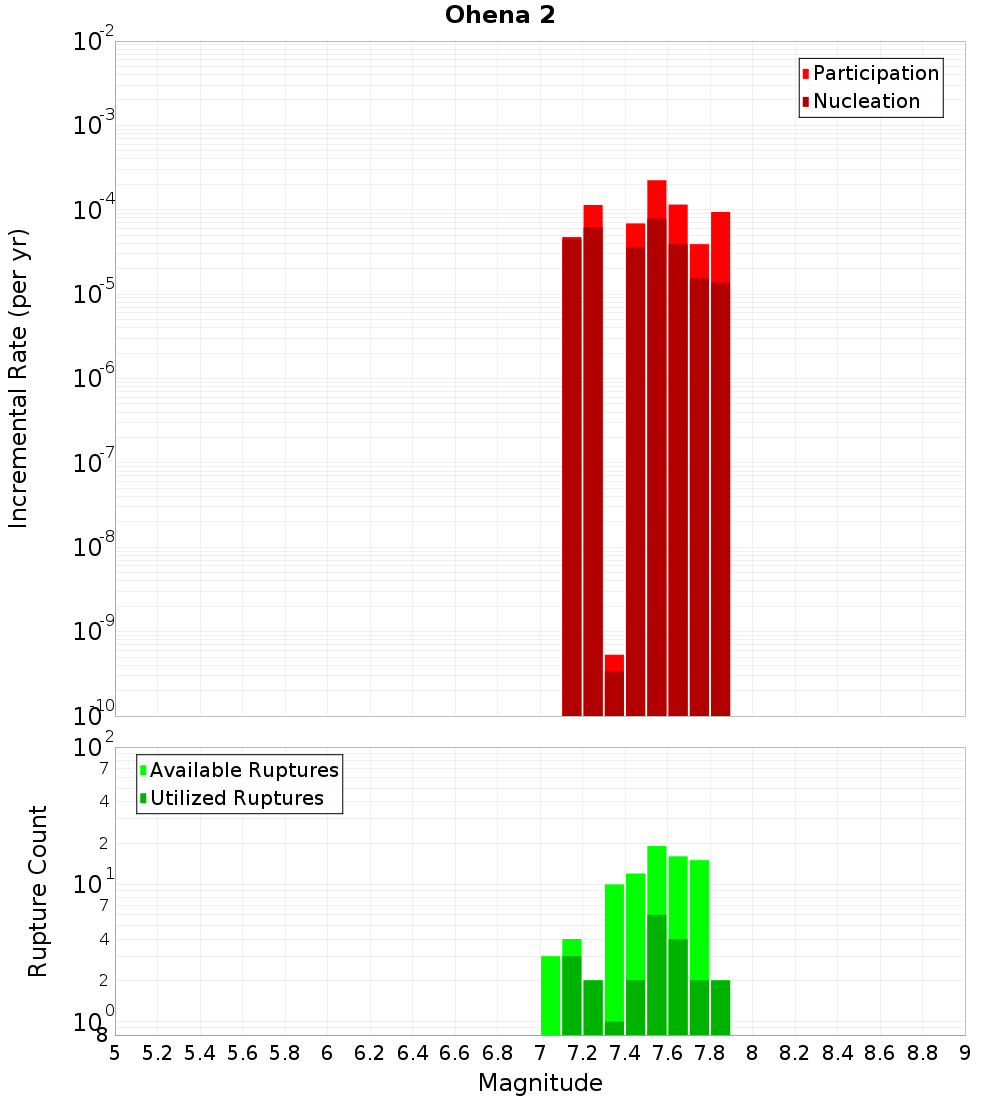

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

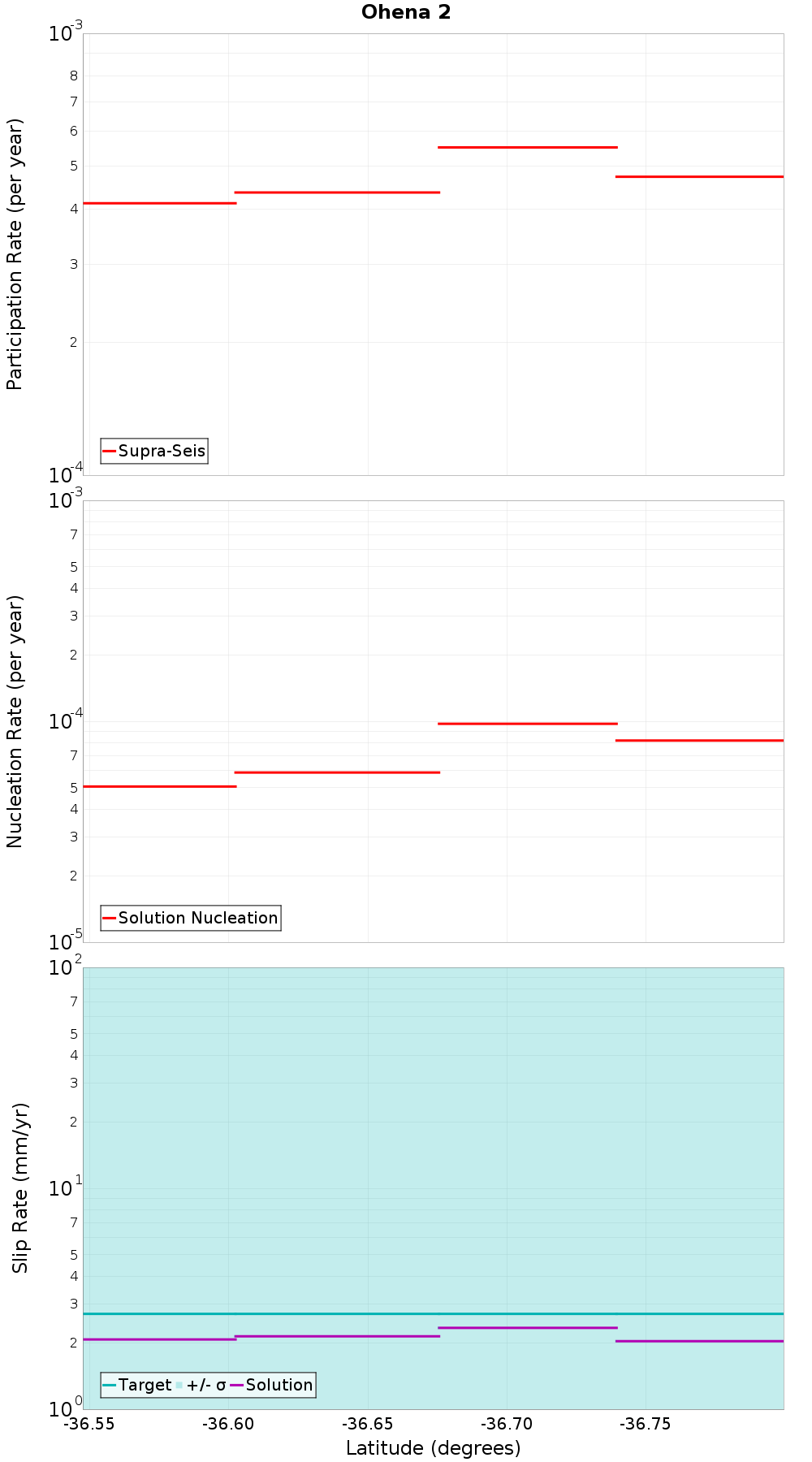

Along-Strike Values

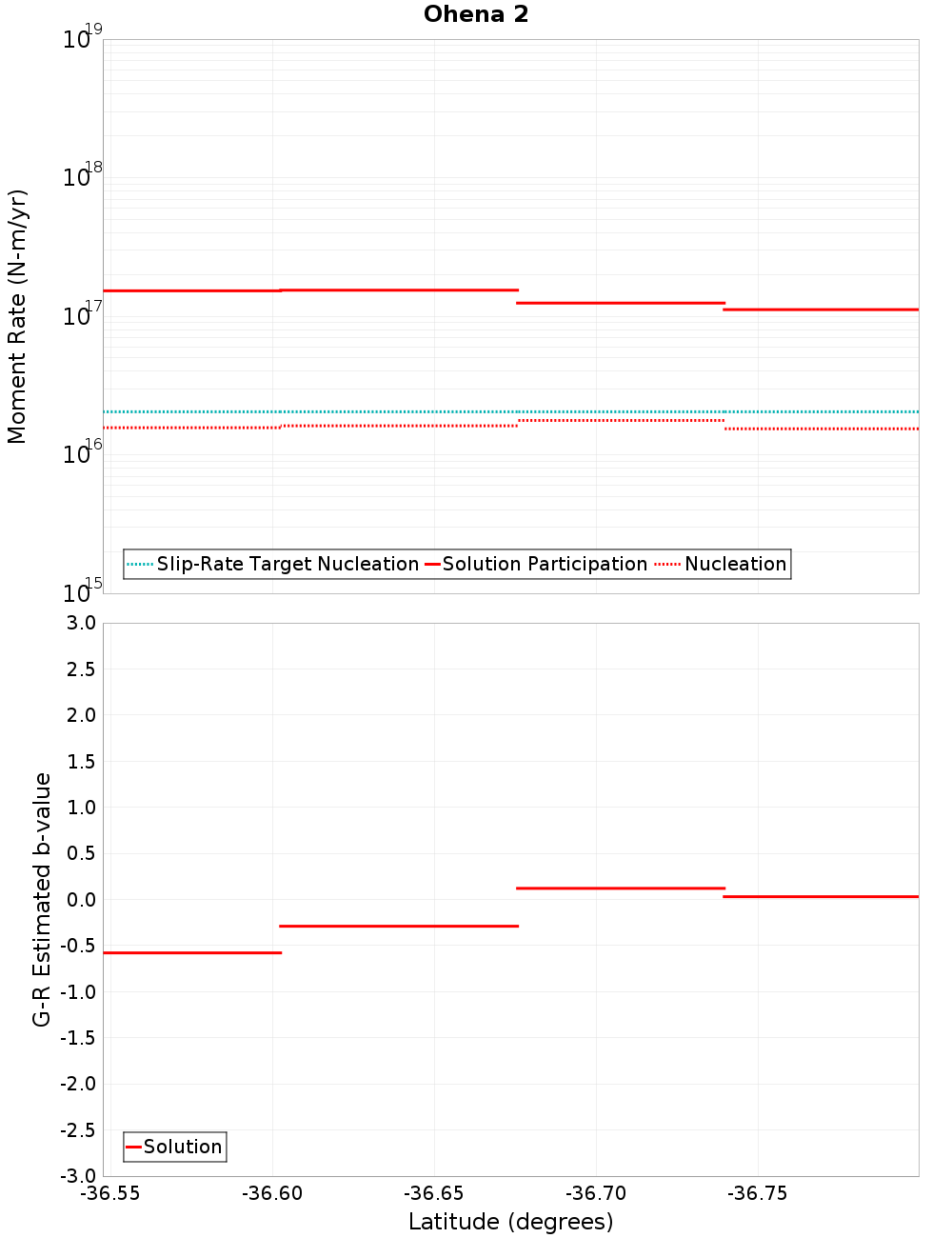

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Tauranga Trough West 2, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDguMEpldTVv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 29 |
| Co-rupture Rate | 9.6287884E-5 |
Ngatoro South 5, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDguMEpldTVv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 25 |
| Co-rupture Rate | 3.9513048E-4 |
Ohena 3, 0.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDguMEpldTVv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 21 |
| Co-rupture Rate | 2.9282062E-4 |
Tauranga Trough East 2, 2.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDguMEpldTVv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 32 |
| Co-rupture Rate | 2.4097836E-4 |
Ohena 4, 4.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDguMEpldTVv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.0733488E-4 |
Ngatoro South 2, 6.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDguMEpldTVv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 2, 14.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MDguMEpldTVv | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 1.4751269E-4 |
