Wellington: Pahiatua Details

Property	Value
Rupture Count	77,042
Ruptures Above Sect Min Mag	77,039
Ruptures w/ Nonzero Rates	188
Magnitude Range	[6.82, 8.51]
Length Range	[21, 1,132] km
Total Rate	3.6045996E-4 /yr
Multi-Fault Rate	3.6045996E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	140

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

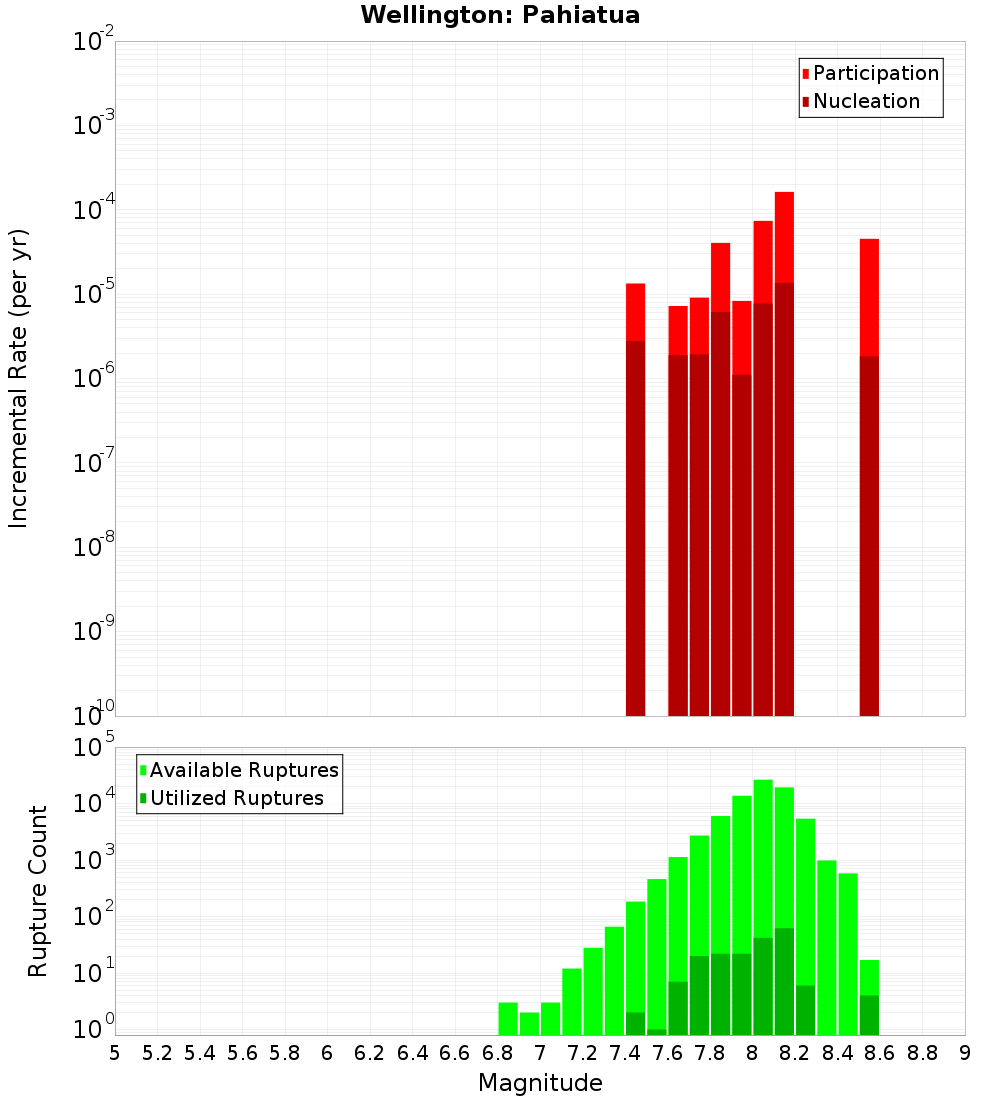

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

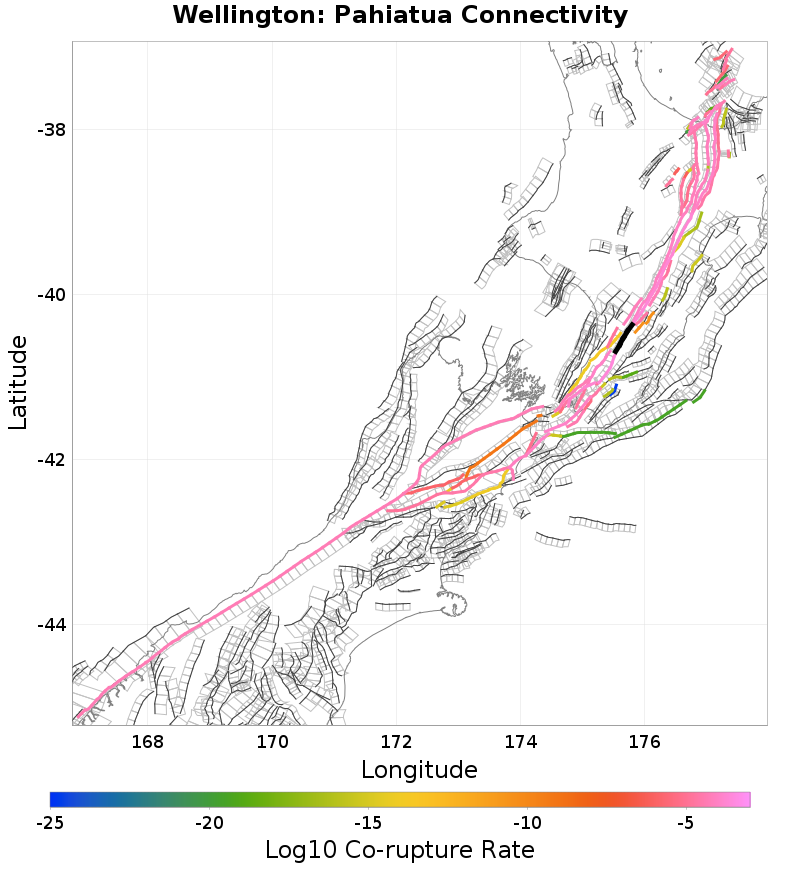

Connectivity

Nearby Sections

Fault Section
Mohaka: South, 0 km away
Ruahine: South, 0 km away
Wellington: Tararua 3, 0.03 km away
Tokomaru, 0.13 km away
Northern Ohariu, 2.46 km away
Otaki Forks: 2, 4.69 km away
Woodville, 5.06 km away
Pahiatua, 5.58 km away
Pohangina, 9.35 km away
Wairarapa: 3, 13.85 km away

Mohaka: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MTMuMGhXSndY
Connected?	true
Directly Connected?	true
Co-rupture Count	60,352
Co-rupture Rate	2.3550587E-4

Ruahine: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MTMuMGhXSndY
Connected?	true
Directly Connected?	true
Co-rupture Count	24,389
Co-rupture Rate	9.505976E-5

Wellington: Tararua 3, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MTMuMGhXSndY
Connected?	true
Directly Connected?	true
Co-rupture Count	49,026
Co-rupture Rate	2.484176E-4

Tokomaru, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MTMuMGhXSndY
Connected?	true
Directly Connected?	true
Co-rupture Count	300
Co-rupture Rate	1.337286E-5

Northern Ohariu, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MTMuMGhXSndY
Connected?	true
Directly Connected?	true
Co-rupture Count	6,802
Co-rupture Rate	2.1645756E-14

Otaki Forks: 2, 4.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MTMuMGhXSndY
Connected?	true
Directly Connected?	true
Co-rupture Count	20,110
Co-rupture Rate	9.934126E-5

Woodville, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MTMuMGhXSndY
Connected?	true
Directly Connected?	true
Co-rupture Count	5,229
Co-rupture Rate	1.6595328E-5

Pahiatua, 5.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MTMuMGhXSndY
Connected?	true
Directly Connected?	false
Co-rupture Count	237
Co-rupture Rate	3.4172748E-11

Pohangina, 9.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MTMuMGhXSndY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,227
Co-rupture Rate	5.800222E-5

Wairarapa: 3, 13.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MTMuMGhXSndY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
