Ruatoria South 4 Details
| Property | Value |
|---|---|
| Rupture Count | 25 |
| Ruptures Above Sect Min Mag | 22 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.82, 7.58] |
| Length Range | [17, 97] km |
| Total Rate | 5.8310764E-4 /yr |
| Multi-Fault Rate | 5.5218954E-4 /yr (94.70%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

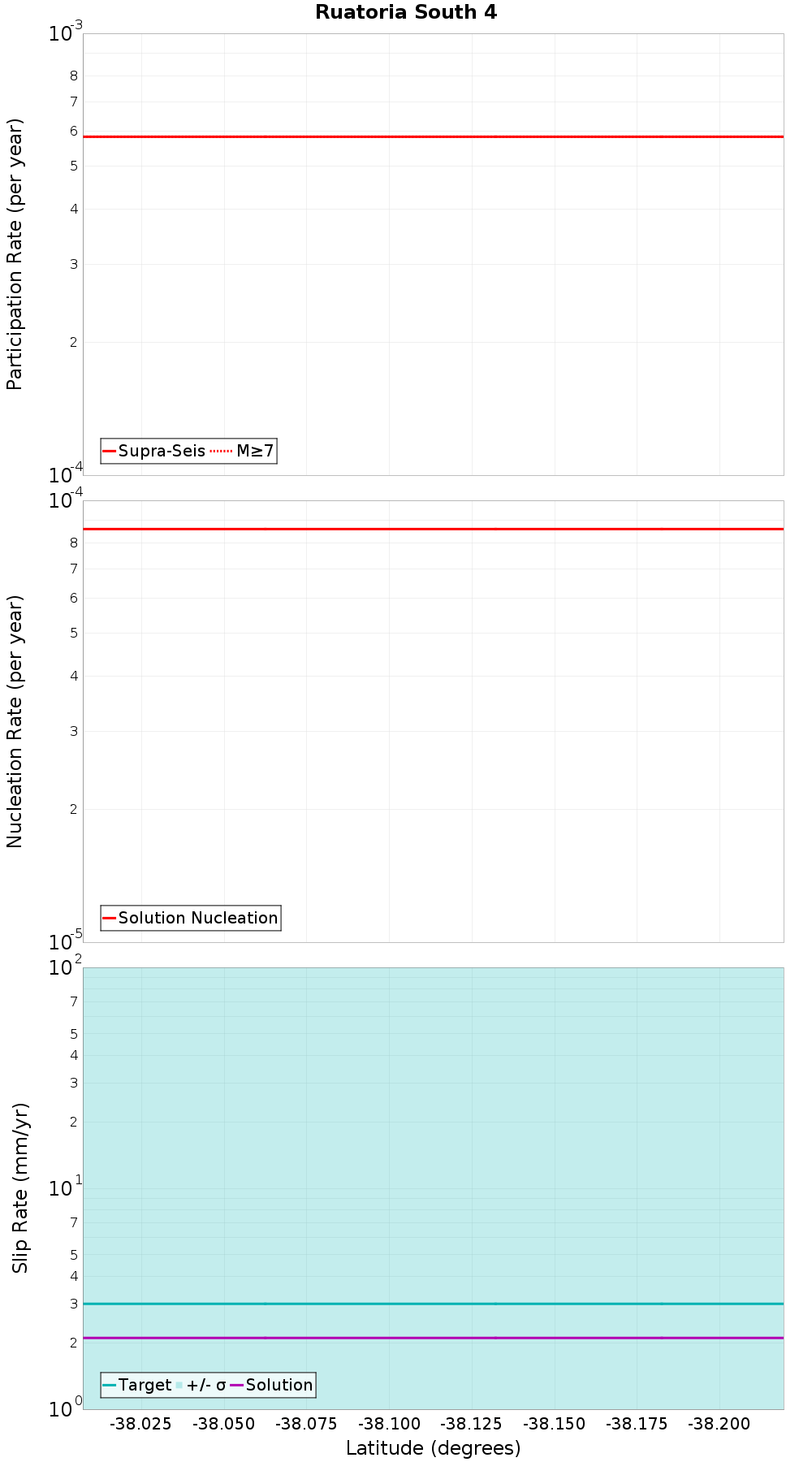

Along-Strike Values

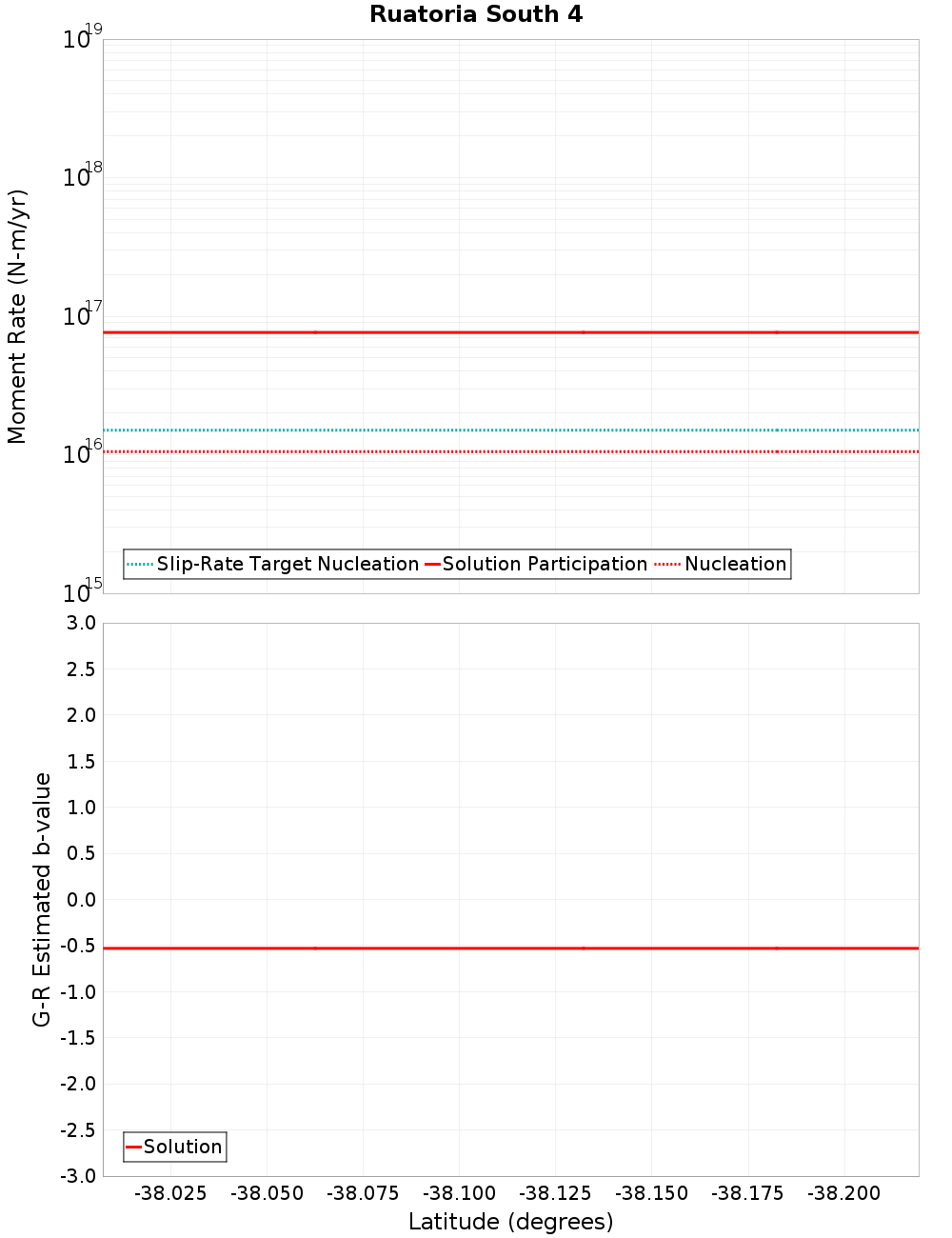

Moment-Rates and b-Values

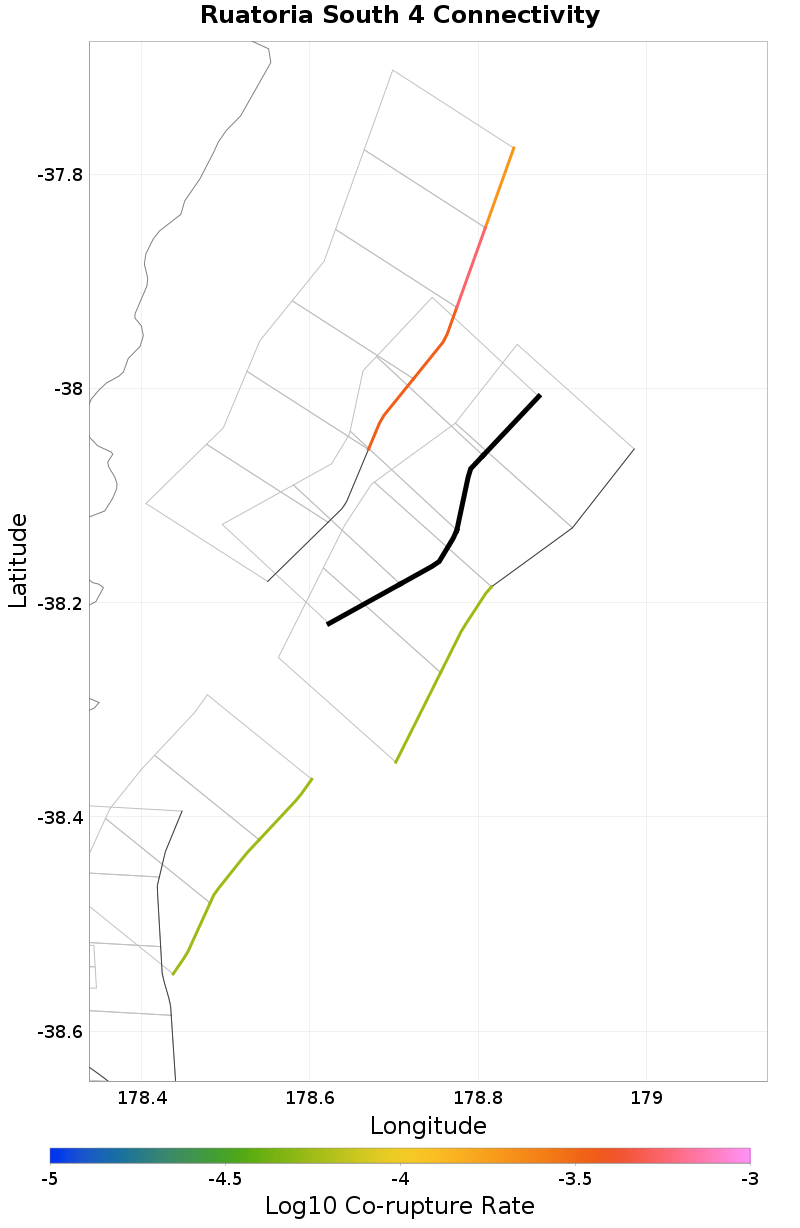

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria South 3, 3.77 km away |
| Houtunui, 4.74 km away |
| Ariel Bank 2, 14.82 km away |
Ruatoria South 3, 3.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 5.455269E-5 |
Houtunui, 4.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 5.5218954E-4 |
Ariel Bank 2, 14.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 5.455269E-5 |
