Tauranga Trough West 2 Details

Property	Value
Rupture Count	52
Ruptures Above Sect Min Mag	51
Ruptures w/ Nonzero Rates	15
Magnitude Range	[7.09, 7.79]
Length Range	[24, 114] km
Total Rate	3.5668752E-4 /yr
Multi-Fault Rate	3.5668752E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

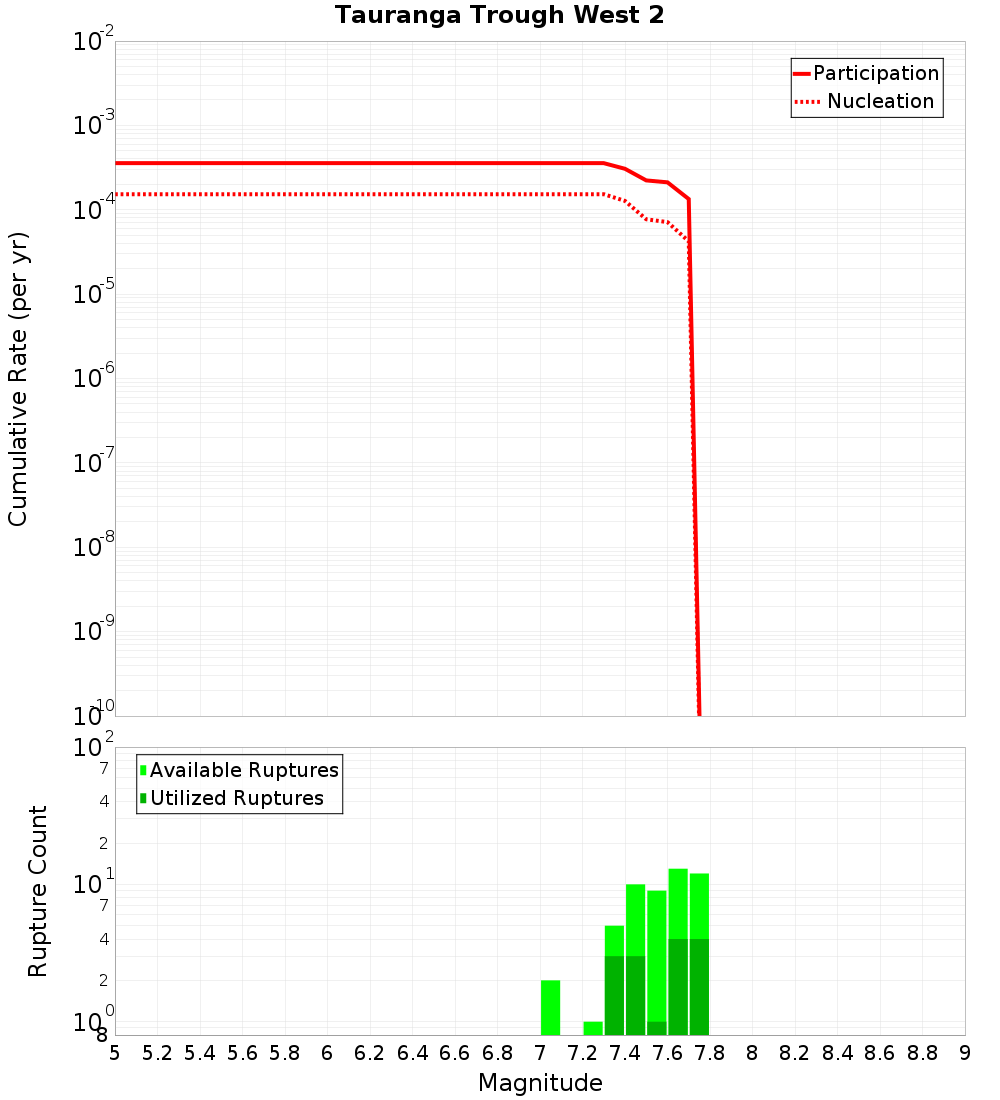

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

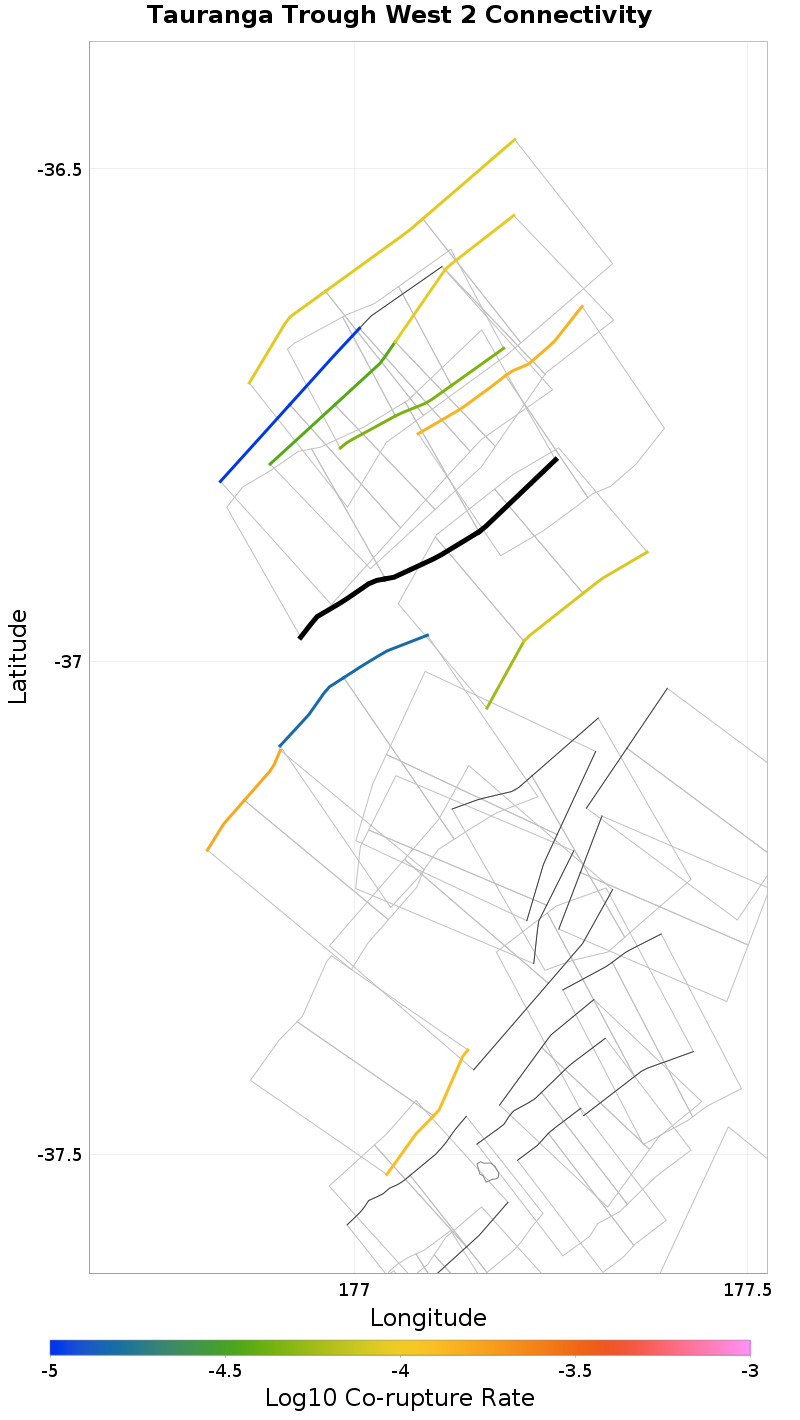

Connectivity

Nearby Sections

Fault Section
Ohena 3, 0.08 km away
Ohena 2, 0.13 km away
Ngatoro South 2, 0.18 km away
Ohena 4, 0.39 km away
Tuakana 7, 6.47 km away
Tauranga Trough East 2, 9.68 km away
Ngatoro South 5, 10.46 km away
Tuakana 6, 12.95 km away

Ohena 3, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	1.0405487E-5

Ohena 2, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3
Connected?	true
Directly Connected?	true
Co-rupture Count	29
Co-rupture Rate	9.054262E-5

Ngatoro South 2, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	1.4300887E-4

Ohena 4, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	8.724568E-5

Tuakana 7, 6.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	1.4829503E-5

Tauranga Trough East 2, 9.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	8.158527E-5

Ngatoro South 5, 10.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	4.484754E-5

Tuakana 6, 12.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjEuMFVXZWU3
Connected?	true
Directly Connected?	true
Co-rupture Count	24
Co-rupture Rate	1.621853E-4
