Makuri - Waewaepa Details
| Property | Value |
|---|---|
| Rupture Count | 4,039 |
| Ruptures Above Sect Min Mag | 4,032 |
| Ruptures w/ Nonzero Rates | 105 |
| Magnitude Range | [6.57, 8.39] |
| Length Range | [16, 893] km |
| Total Rate | 5.069351E-4 /yr |
| Multi-Fault Rate | 5.069351E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 83 |
Table Of Contents

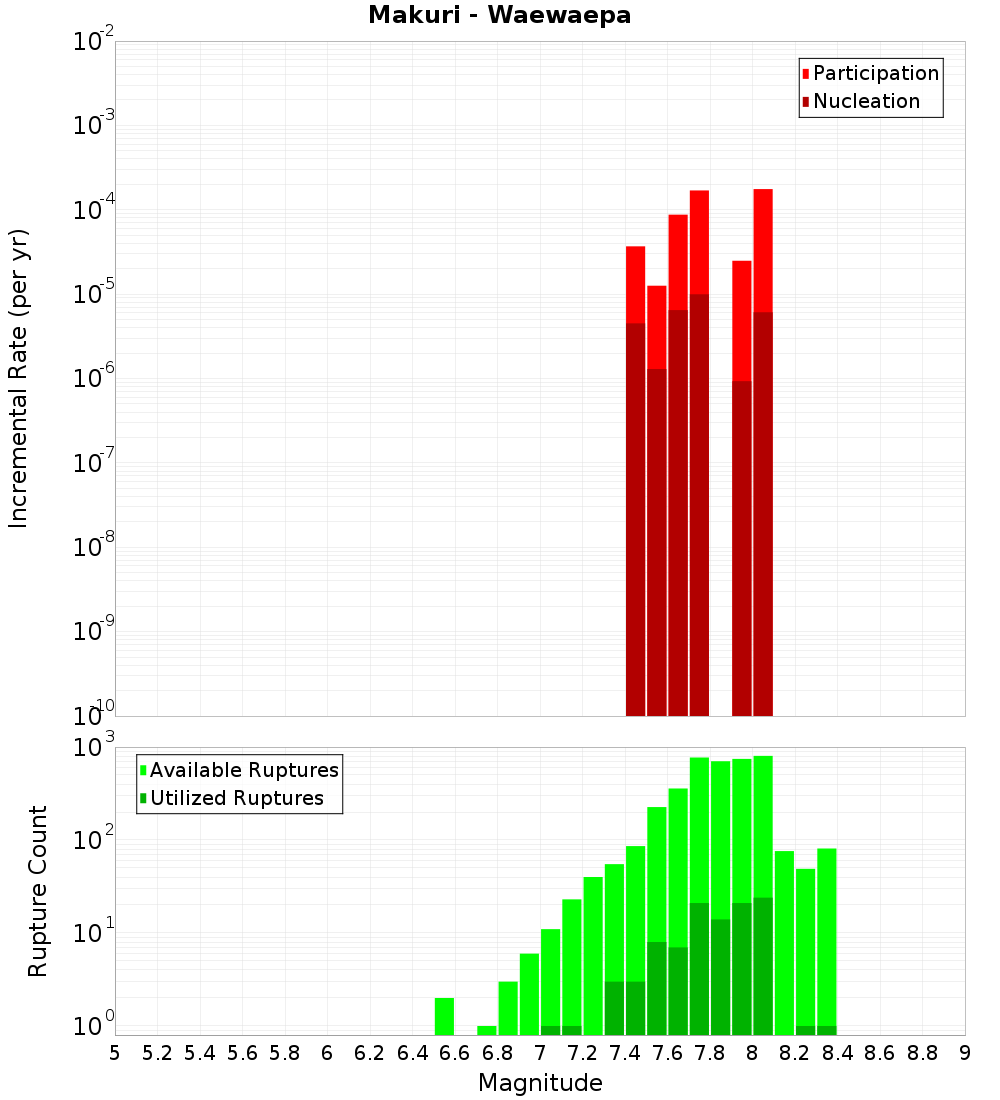

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

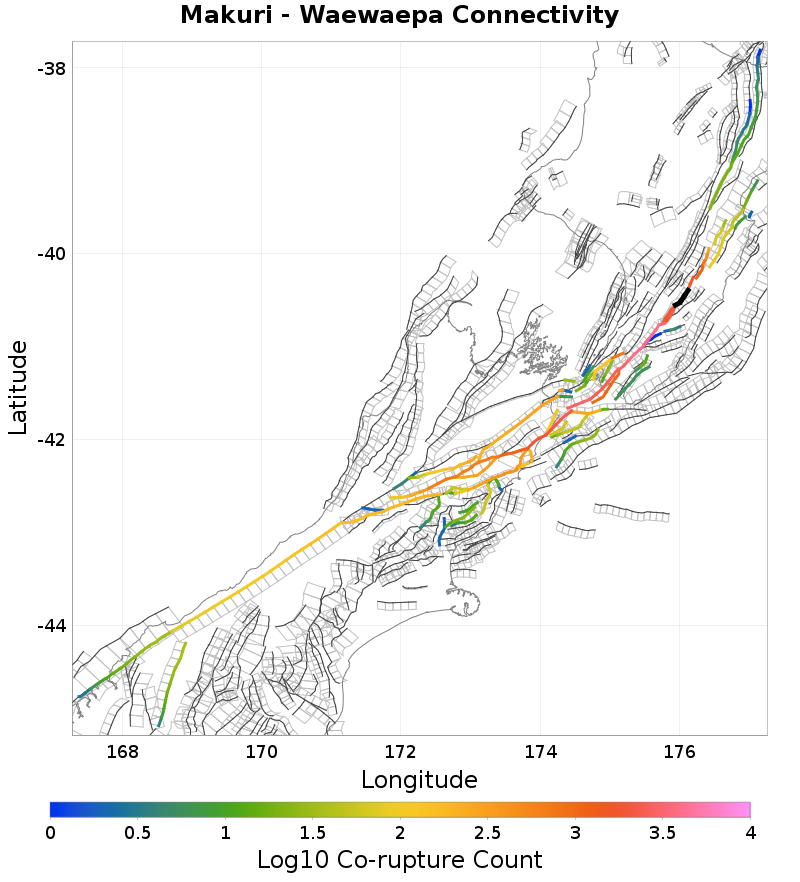

Connectivity
 |  |
|---|
Nearby Sections
Waewaepa, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,611 |
| Co-rupture Rate | 3.245986E-4 |
Alfredton North, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,266 |
| Co-rupture Rate | 2.0166881E-4 |
Pa Valley, 1.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,714 |
| Co-rupture Rate | 2.2591755E-4 |
Saunders Road, 6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waipukaka, 8.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maunga, 9.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pahiatua, 12.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pongaroa - Weber, 12.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
