Rapuwai Details

PropertyValue
Rupture Count501
Ruptures Above Sect Min Mag499
Ruptures w/ Nonzero Rates21
Magnitude Range[6.78, 8.04]
Length Range[20, 400] km
Total Rate1.9550855E-5 /yr
Multi-Fault Rate1.9550855E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults45

Table Of Contents

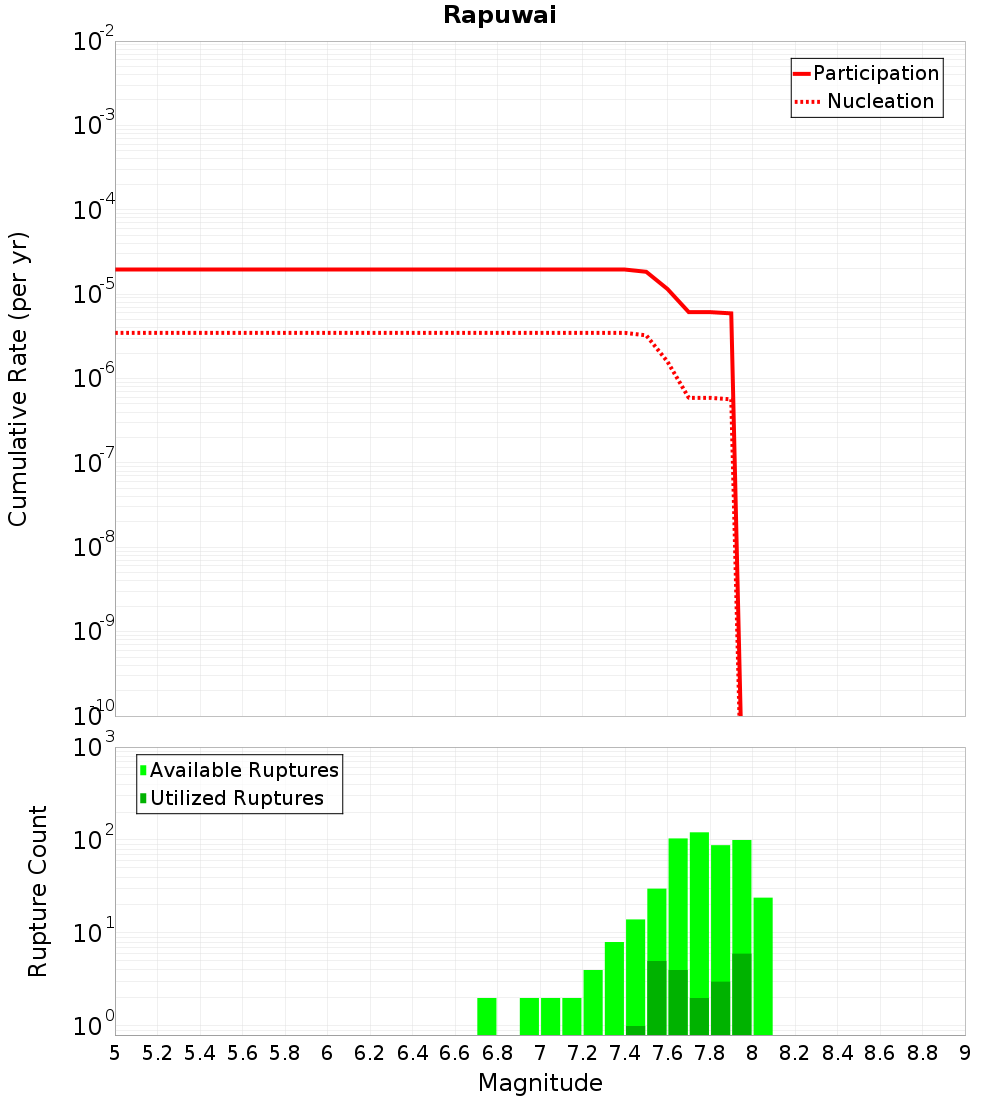

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

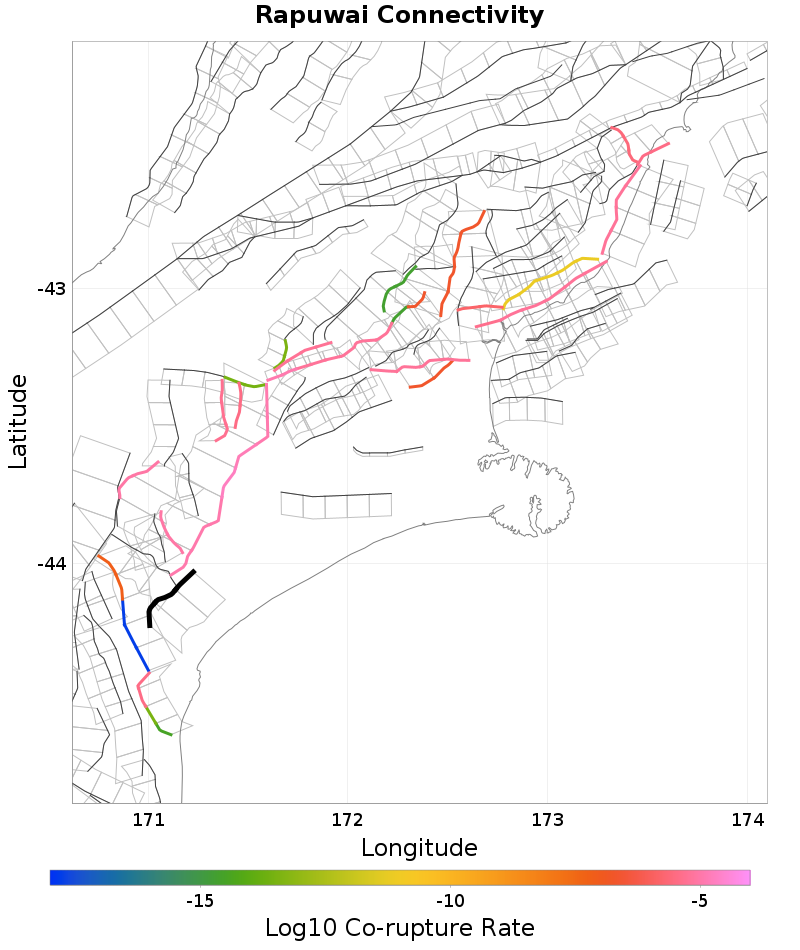

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Sugarloaf, 0.81 km away
Hutt Peel, 4.18 km away
Brothers, 4.62 km away
Maungati, 6.24 km away
Edith, 8.93 km away
Catherine, 10.69 km away
Albury, 14.9 km away

Sugarloaf, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate0.0

Hutt Peel, 4.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx
Connected?true
Directly Connected?true
Co-rupture Count481
Co-rupture Rate1.9550855E-5

Brothers, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx
Connected?true
Directly Connected?true
Co-rupture Count155
Co-rupture Rate6.791774E-8

Maungati, 6.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx
Connected?true
Directly Connected?true
Co-rupture Count173
Co-rupture Rate3.4909178E-6

Edith, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate8.712827E-6

Catherine, 10.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0

Albury, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MjYuMHY1bVBx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
