Stonewall Details

PropertyValue
Rupture Count1,000
Ruptures Above Sect Min Mag993
Ruptures w/ Nonzero Rates4
Magnitude Range[6.77, 8.22]
Length Range[19, 454] km
Total Rate1.3399582E-5 /yr
Multi-Fault Rate1.3399582E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults44

Table Of Contents

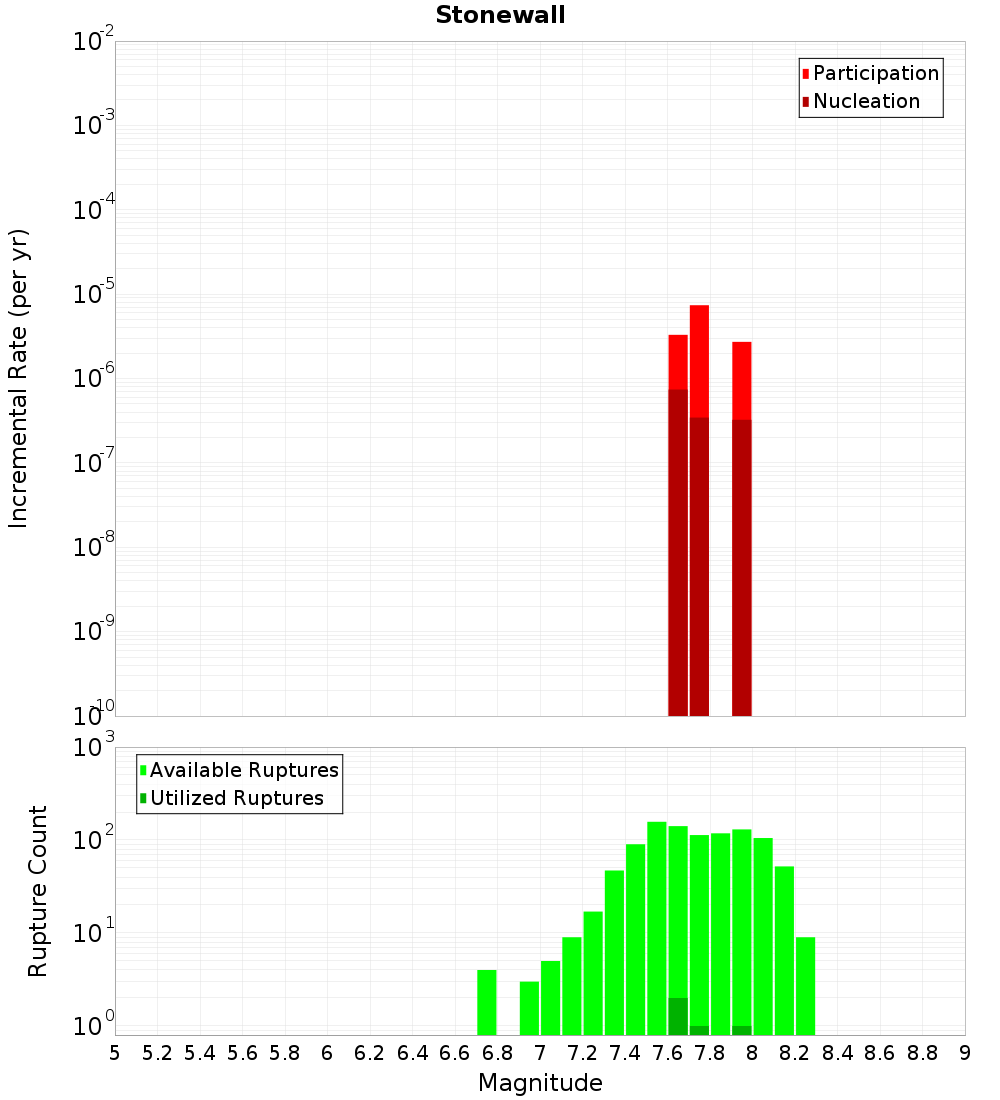

Magnitude-Frequency Distribution

(top)

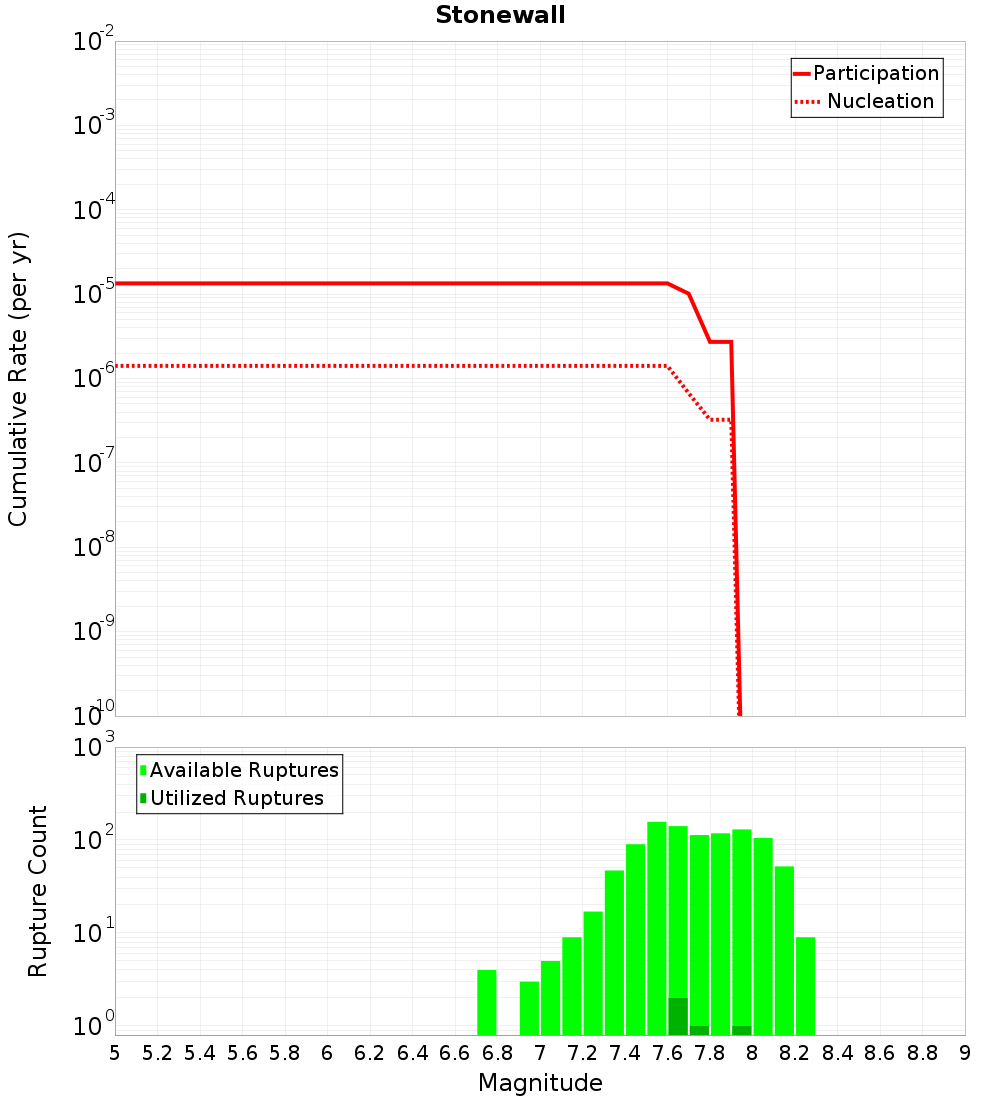

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

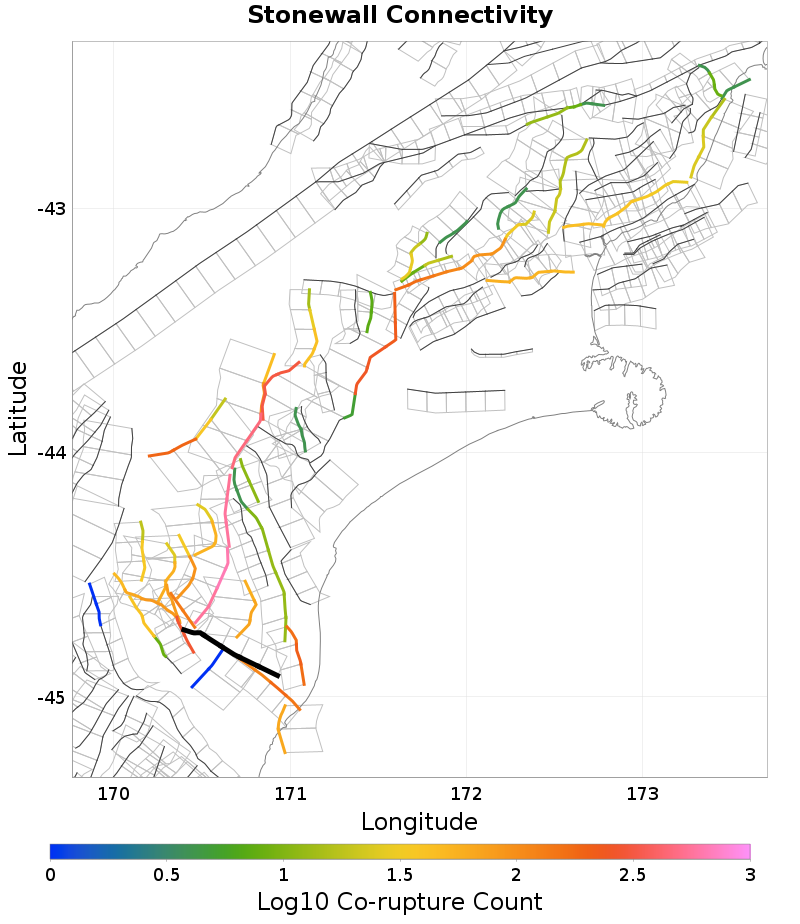

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Campbell Hills, 0.27 km away
Dryburgh, 0.28 km away
Hunters, 0.33 km away
Waimate, 0.35 km away
Waitaki, 0.64 km away
Black Hill, 0.69 km away
Awahokomo, 0.84 km away
Kirkliston, 1.94 km away
Waitangi, 3.51 km away
Fern Gully, 6.14 km away
Middle Range, 9.97 km away
Mt Sutton, 13.56 km away
Awamoa, 14.16 km away

Campbell Hills, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate0.0

Dryburgh, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?true
Co-rupture Count136
Co-rupture Rate0.0

Hunters, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate0.0

Waimate, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?true
Co-rupture Count210
Co-rupture Rate7.673372E-7

Waitaki, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?true
Co-rupture Count181
Co-rupture Rate3.2934624E-6

Black Hill, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Awahokomo, 0.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?true
Co-rupture Count278
Co-rupture Rate6.012283E-6

Kirkliston, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?true
Co-rupture Count679
Co-rupture Rate1.010612E-5

Waitangi, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate7.387299E-6

Fern Gully, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate3.2934624E-6

Middle Range, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate0.0

Mt Sutton, 13.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?false
Co-rupture Count93
Co-rupture Rate0.0

Awamoa, 14.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzEuMHBMVmtG
Connected?true
Directly Connected?false
Co-rupture Count65
Co-rupture Rate3.2934624E-6
