Rangitaiki 2 Details

Property	Value
Rupture Count	3,363
Ruptures Above Sect Min Mag	3,356
Ruptures w/ Nonzero Rates	335
Magnitude Range	[6.56, 8.21]
Length Range	[13, 575] km
Total Rate	1.64653E-4 /yr
Multi-Fault Rate	1.64653E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	50

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

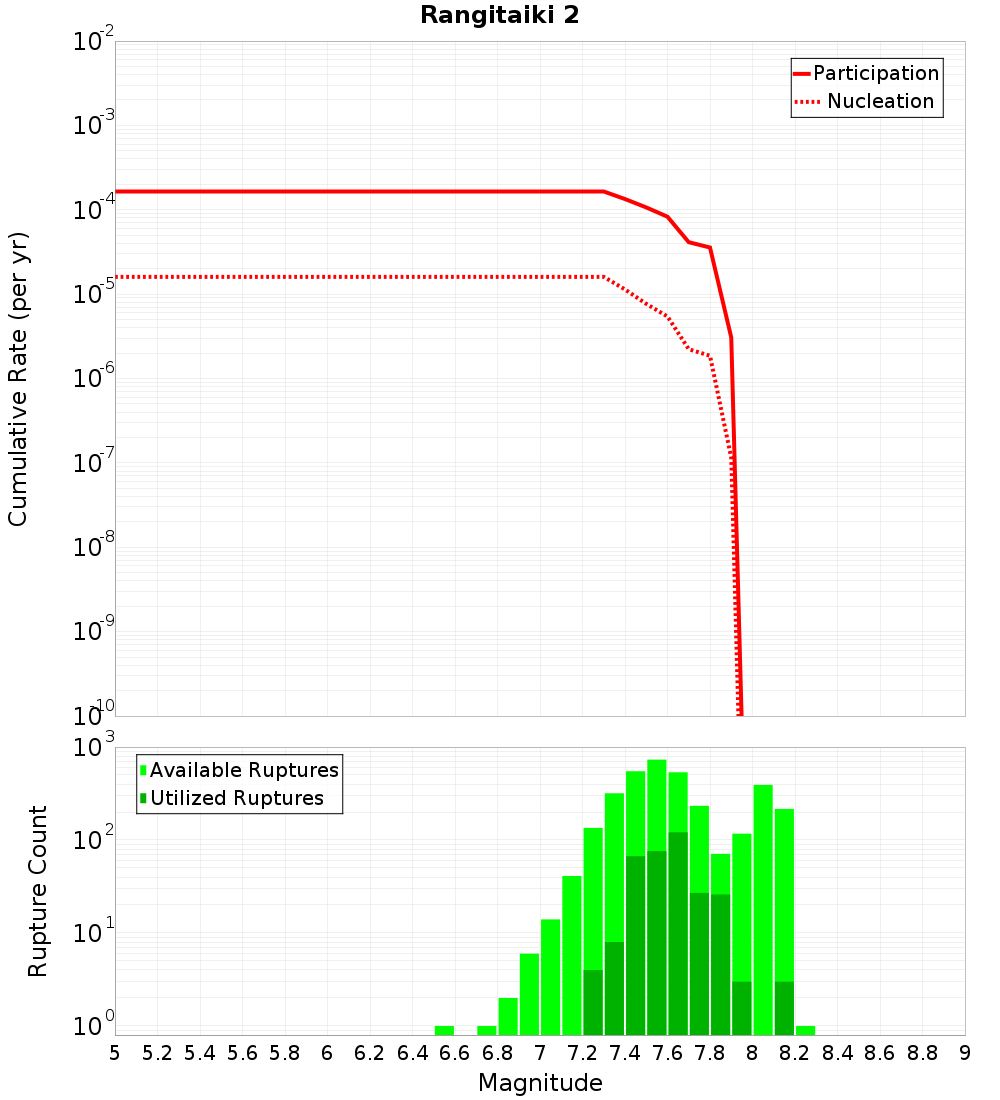

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

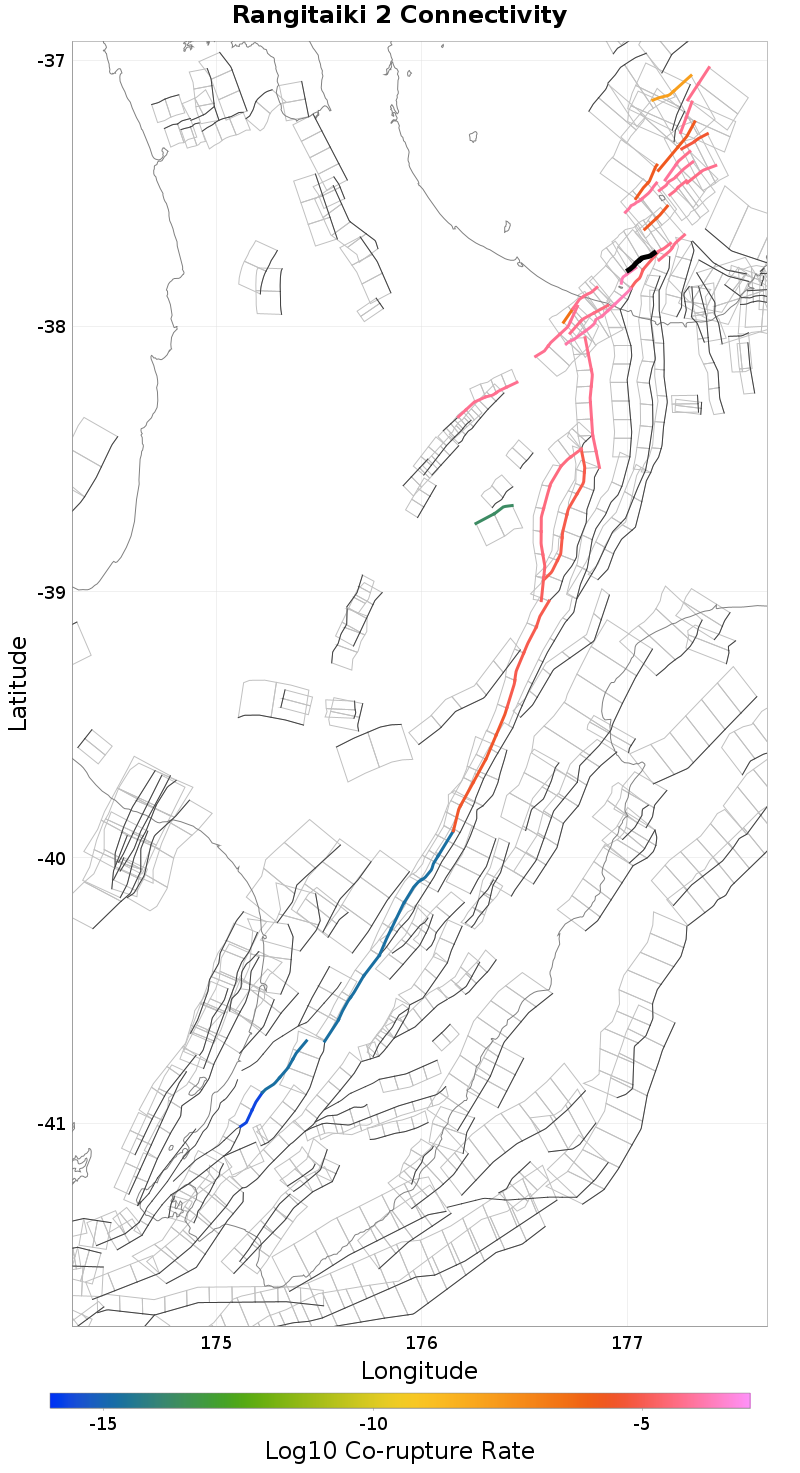

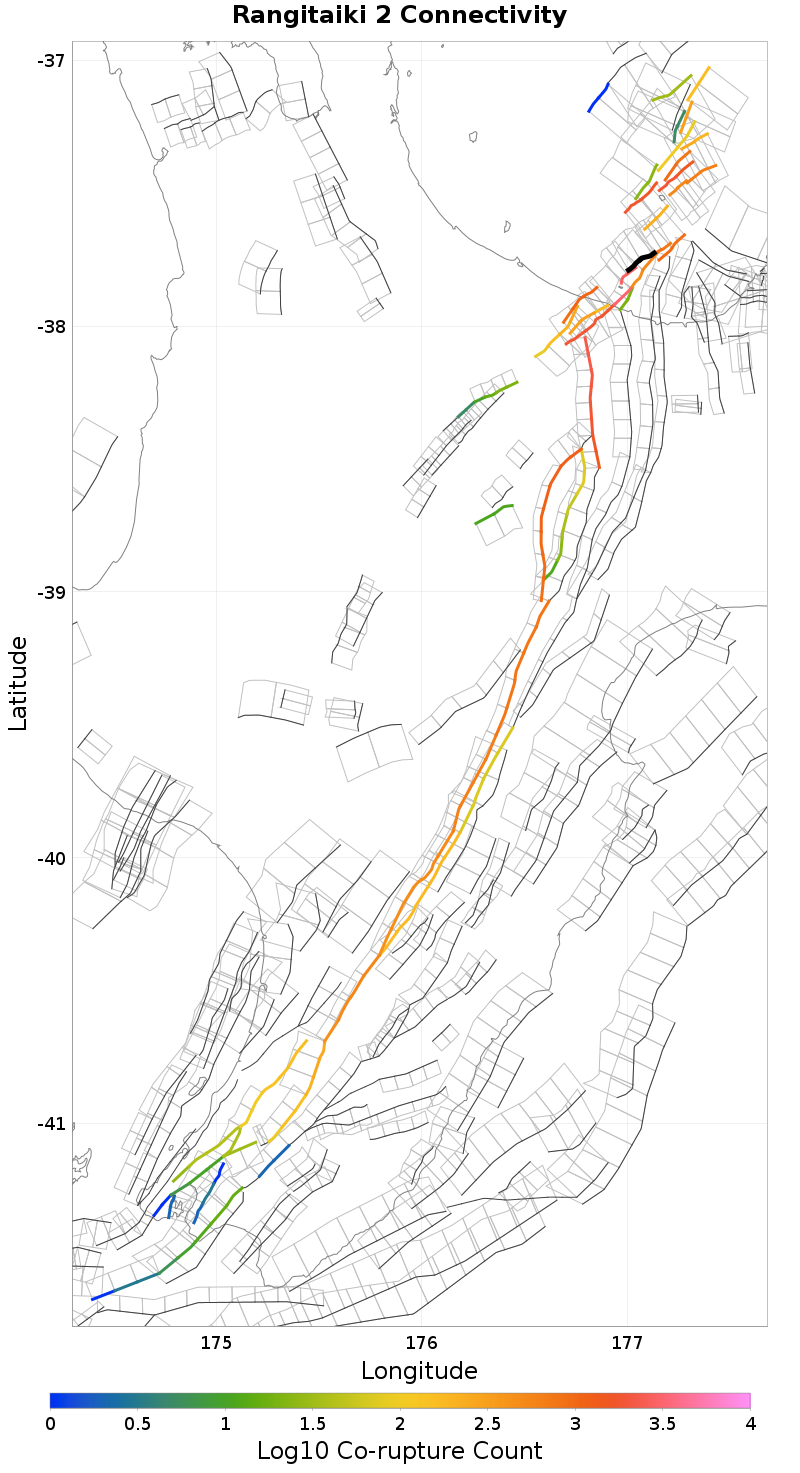

Connectivity

Nearby Sections

Fault Section
Ohiwa 1, 0.42 km away
Whakaari 4, 0.45 km away
Rangitaiki 1, 0.74 km away
White Island 1, 0.77 km away
White Island 2, 2.66 km away
Waimanawa - Waikaremoana, 6.46 km away
Keepa, 7.49 km away
Calypso 2, 8.01 km away
Waimana: North, 9.4 km away
Edgecumbe Coastal, 14.83 km away
Waiotahi: North, 14.87 km away
Ohae 1, 14.97 km away

Ohiwa 1, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	837
Co-rupture Rate	4.6570294E-5

Whakaari 4, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	1,795
Co-rupture Rate	8.339979E-5

Rangitaiki 1, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,803
Co-rupture Rate	1.4832977E-4

White Island 1, 0.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	3,219
Co-rupture Rate	1.6466458E-4

White Island 2, 2.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	915
Co-rupture Rate	5.176404E-5

Waimanawa - Waikaremoana, 6.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Keepa, 7.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	0.0

Calypso 2, 8.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	224
Co-rupture Rate	2.0620566E-6

Waimana: North, 9.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edgecumbe Coastal, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	1,625
Co-rupture Rate	1.13059075E-4

Waiotahi: North, 14.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 1, 14.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
